Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  3. Disconnect the ride sensor link from the upper control arm ball stud.

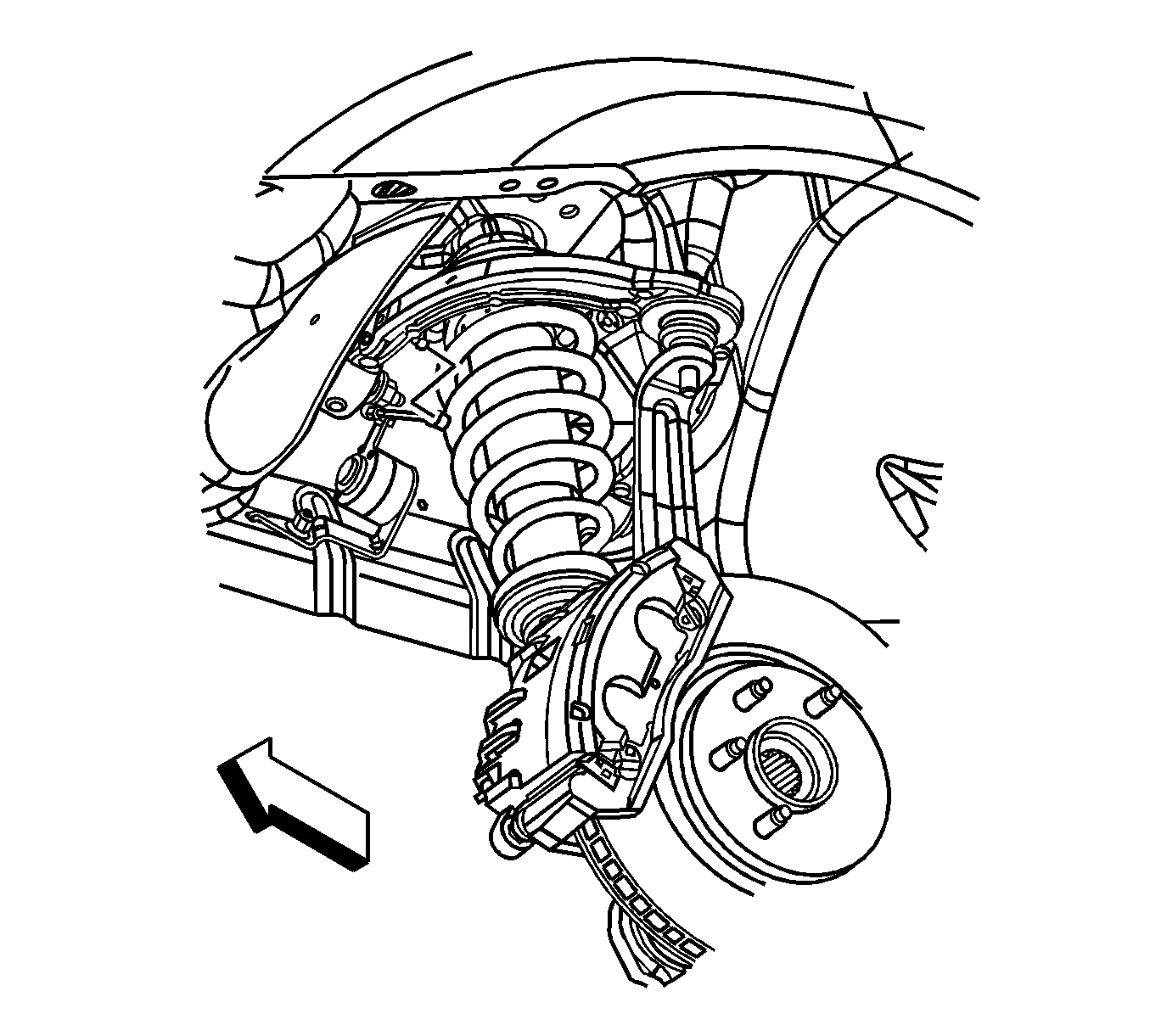

    Fig 1: View Of Front Ride Sensor Link
    GM1371682Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the ride sensor harness connector.
  5. Loosen the ride sensor retaining nut.

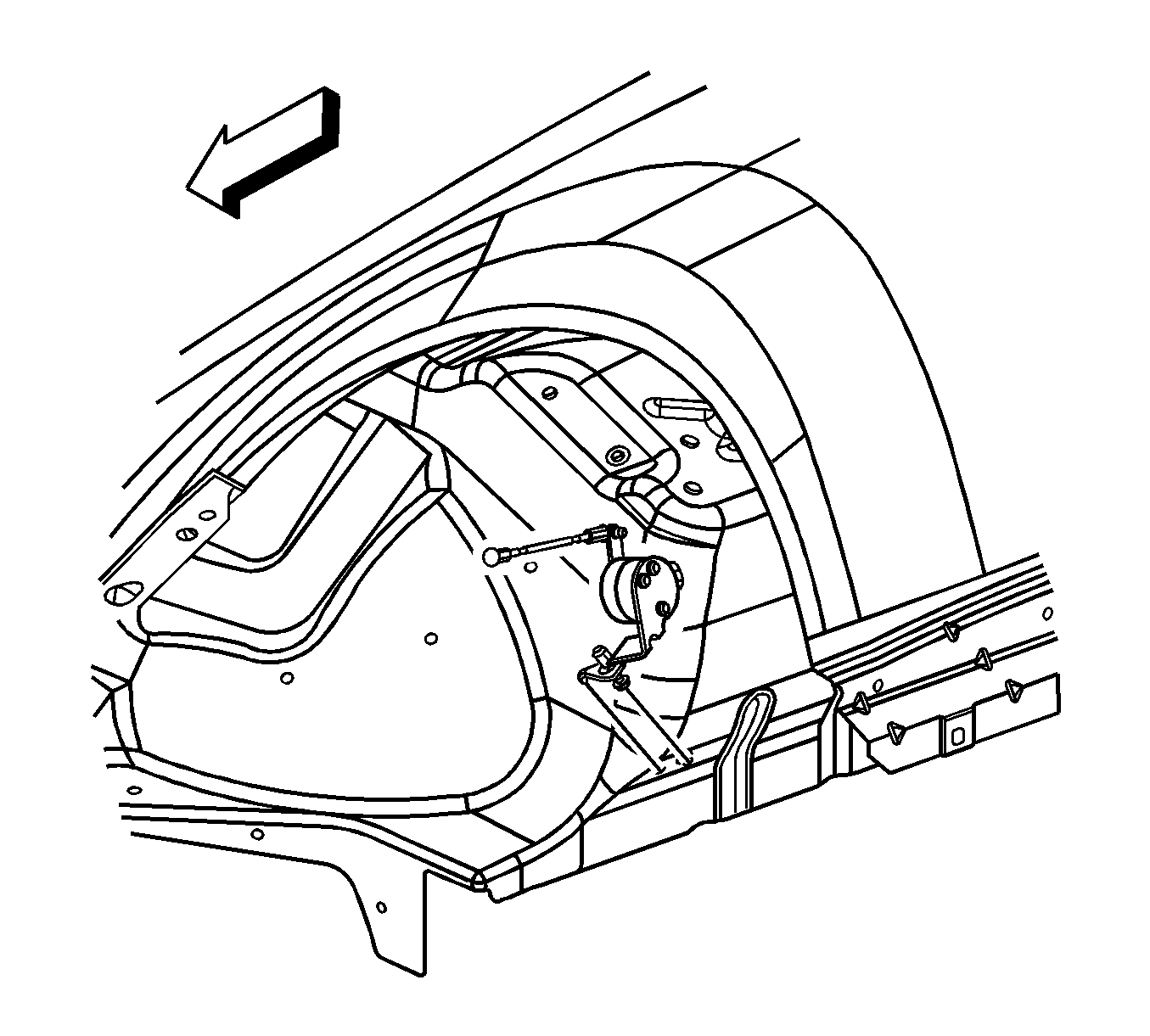

    Fig 2: View Of Front Ride Sensor
    GM1371680Courtesy of GENERAL MOTORS CORP.
  6. Gently tap the ride sensor retaining stud in order to loosen the stud to fender connection.
  7. Remove the ride sender from the vehicle.
