Power Sunroof Disassembled View
WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

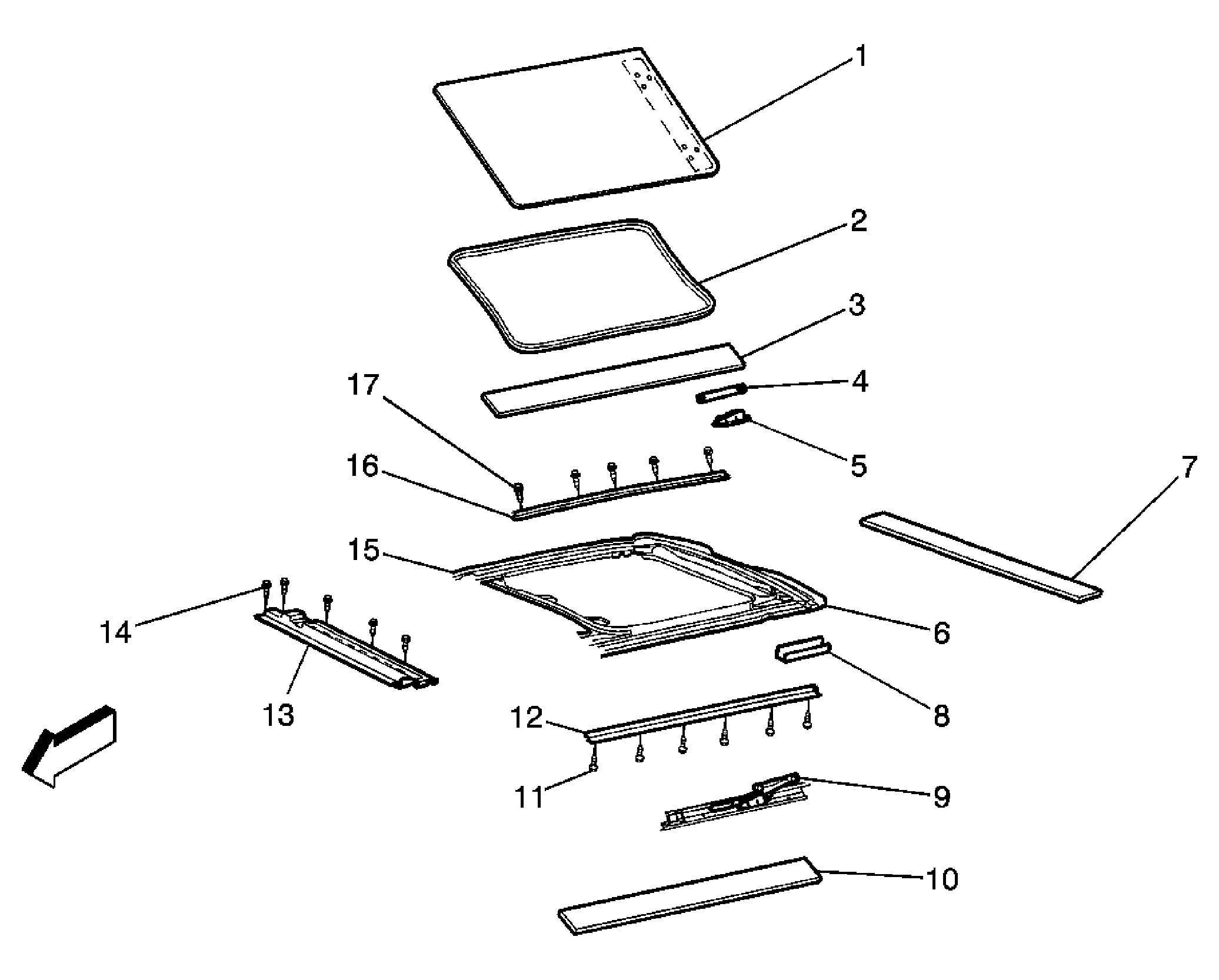

| Callout | Component Name |
|---|---|
| 1 | Rear Window Panel |
| 2 | Window Seal |
| 3 | Trim Panel, Right Rear |
| 4 | Rear Window Lift Arm Assembly |
| 5 | Rear Window Cam Assembly |
| 6 | Rear Sunroof Frame |
| 7 | Trim Panel |
| 8 | Rear Stationary Window Bracket |
| 9 | Rear Window Cam Assembly |
| 10 | Trim Panel |
| 11 | Rear Track Assembly Screws |
| 12 | Rear Track Assembly |
| 13 | Rear Sunshade Assembly |
| 14 | Rear Sunshade Assembly Screws |
| 15 | Rear Finishing Lace |
| 16 | Front Window Rear Track Assembly |
| 17 | Front Window Rear Track Screws |

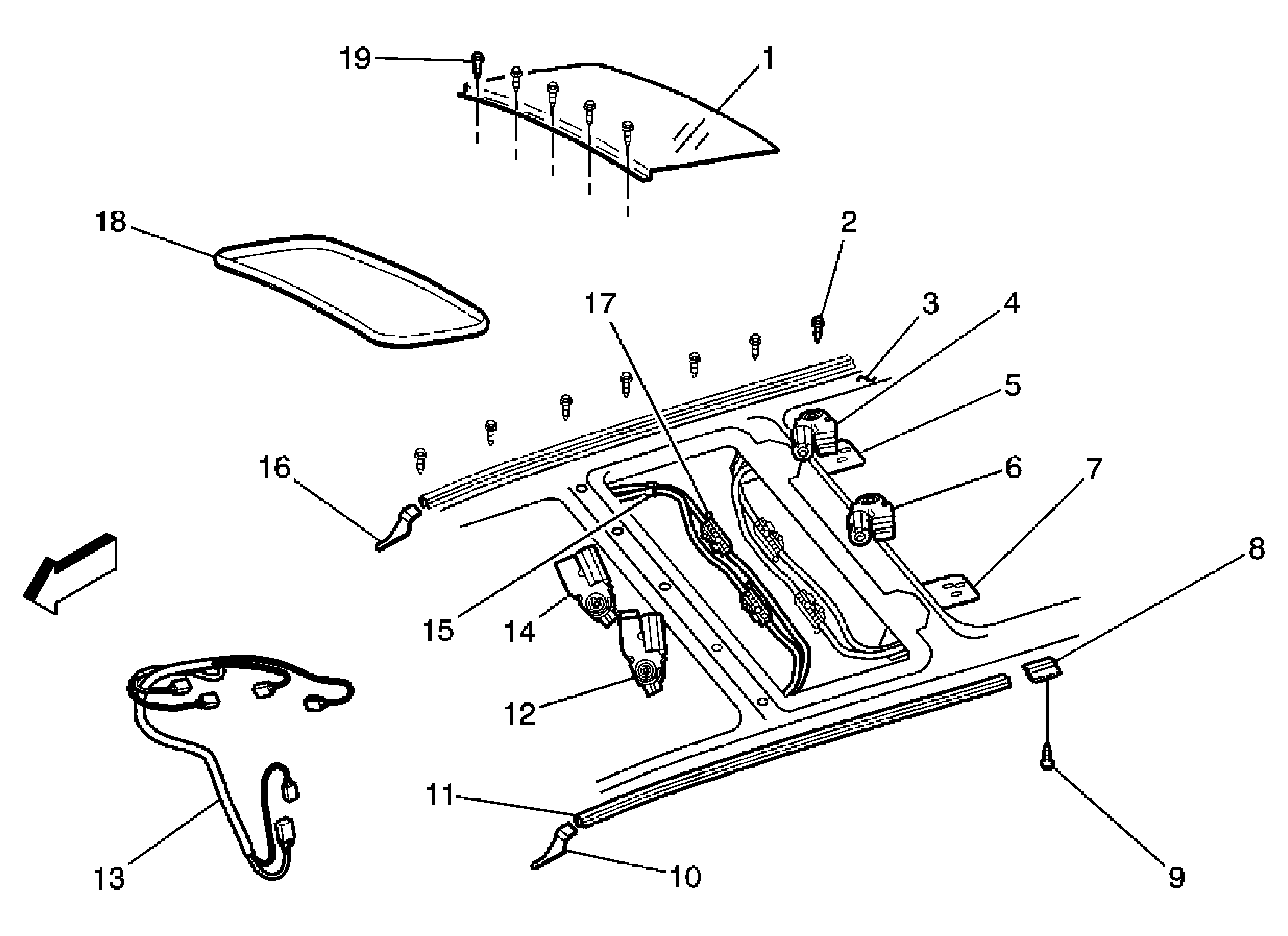

| Callout | Component Name |
|---|---|
| 1 | Sunroof Center Window Panel |
| 2 | Sunroof Front Window Rear Track Screws |
| 3 | Sunroof Frame |
| 4 | Sunroof Rear Sunshade Motor/Actuator |
| 5 | Sunroof Rear Vent Window Hinge Plate |
| 6 | Sunroof Rear/Vent WIndow Motor/Actuator |
| 7 | Sunroof Rear Vent Window Hinge Plate |
| 8 | Sunroof Rear Track Extension |
| 9 | Sunroof Rear Track Extension Screw |
| 10 | Sunroof Rear Track Front Cam Extension |
| 11 | Sunroof Rear Track Assembly |
| 12 | Sunroof Front Sunshade Motor/Actuator |
| 13 | Sunroof Wiring Harness |
| 14 | Sunroof Front Window Motor/Actuator |
| 15 | Sunroof Drive/Return Cable Tubes |
| 16 | Sunroof Rear Track Front Cam Extension |
| 17 | Sunroof Motor/Actuator Block |
| 18 | Sunroof Window Seal |
| 19 | Sunroof Center Window Screws |

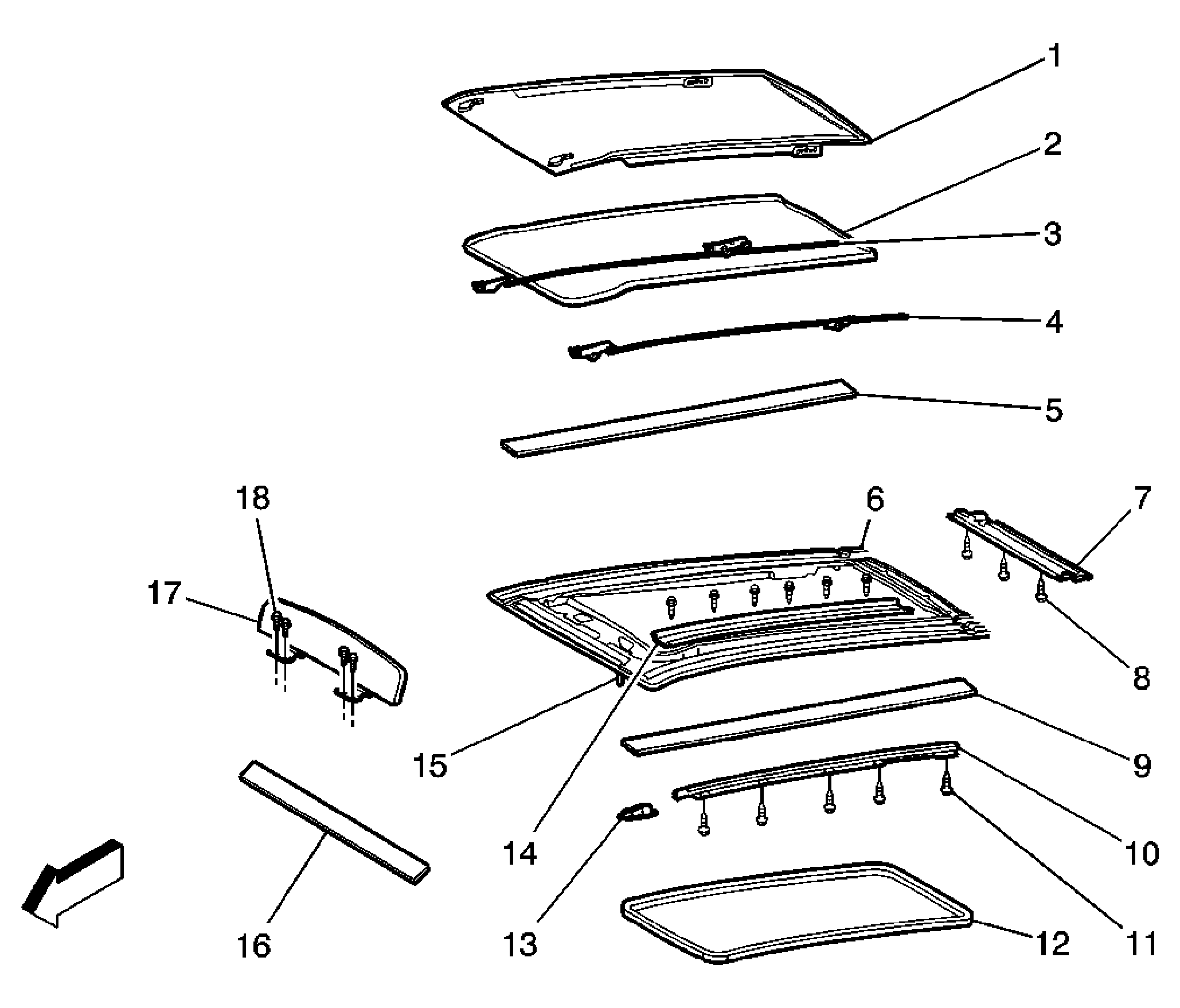

| Callout | Component Name |
|---|---|
| 1 | Front Sunroof Window |
| 2 | Front Sunroof Window Seal |
| 3 | Front Sunroof Window Rear Cable Guide |
| 4 | Front Sunroof Window Cable/Guide Assembly |
| 5 | Right Front Trim Panel |
| 6 | Sunroof Frame Assembly |
| 7 | Sunroof Front Sunshade Assembly |
| 8 | Sunroof Front Sunshade Assembly Screws |
| 9 | Left Front Trim Panel |
| 10 | Sunroof Front Sunshade Track Assembly |
| 11 | Sunroof Front Sunshade Track Assembly Screws |
| 12 | Sunroof Front Window Finish Lace |
| 13 | Sunroof Front Sunshade Track Extension |
| 14 | Sunroof Front Window Track |
| 15 | Sunroof Frame Front Locator Pin |
| 16 | Sunroof Front Trim Panel |
| 17 | Sunroof Air Deflector |
| 18 | Sunroof Air Deflector Screws |
