Combination Switch

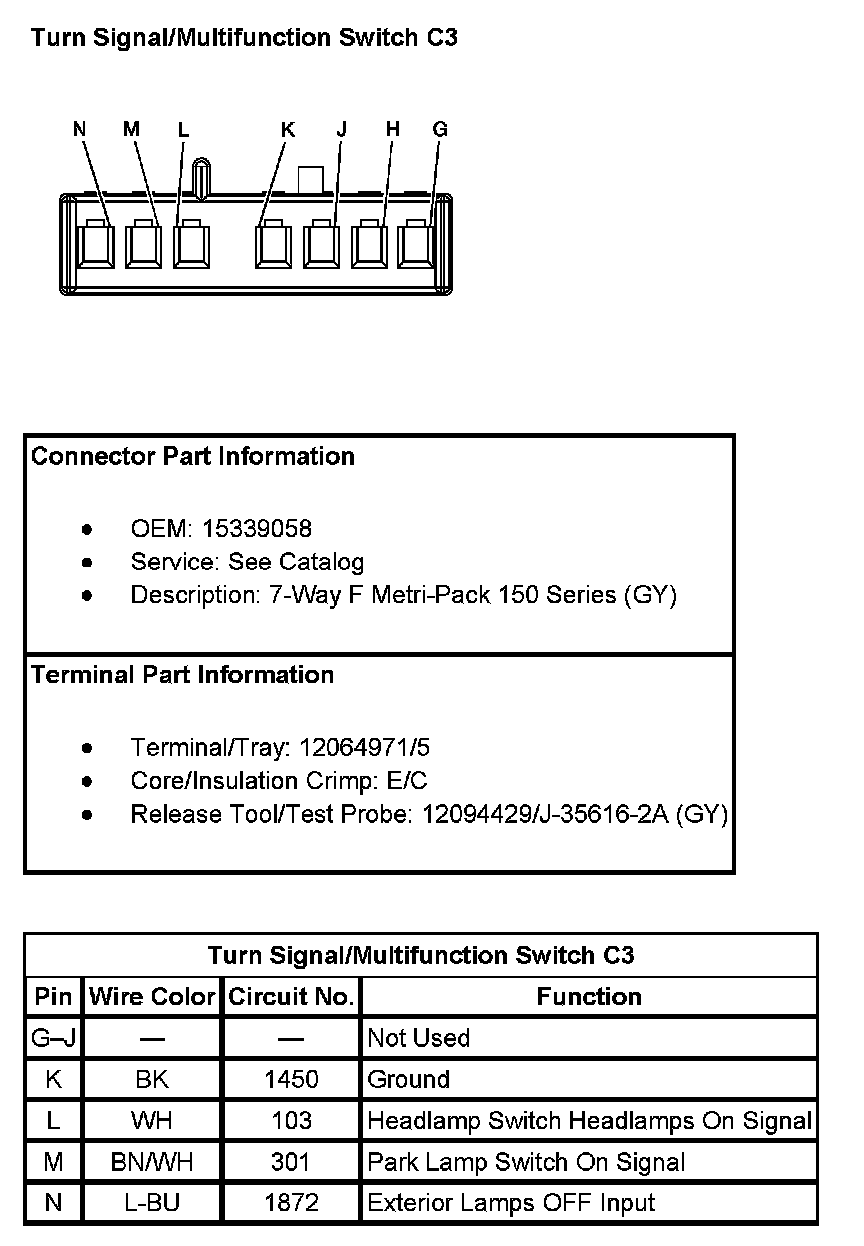

Turn Signal/Multifunction Switch C3:

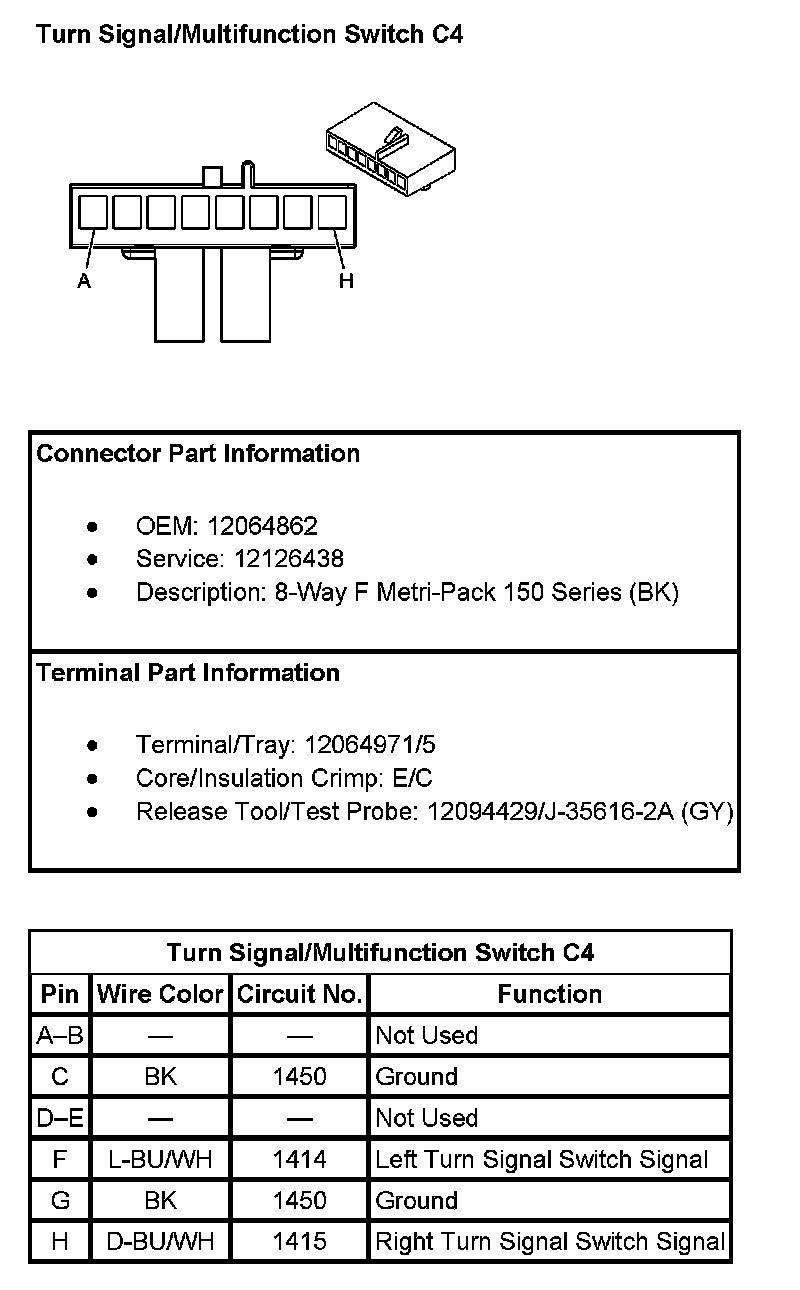

Turn Signal/Multifunction Switch C4:

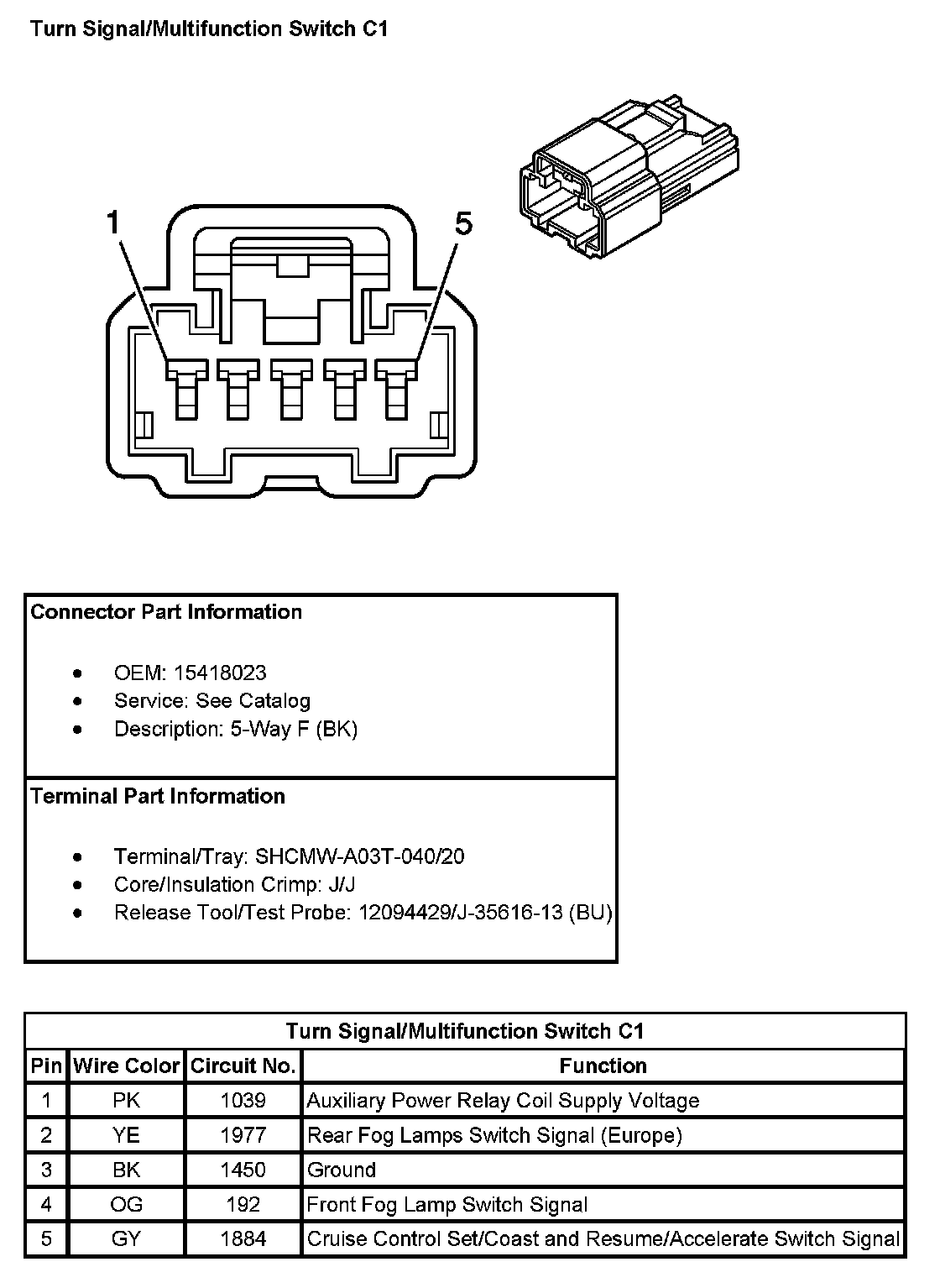

Turn Signal/Multifunction Switch C1:

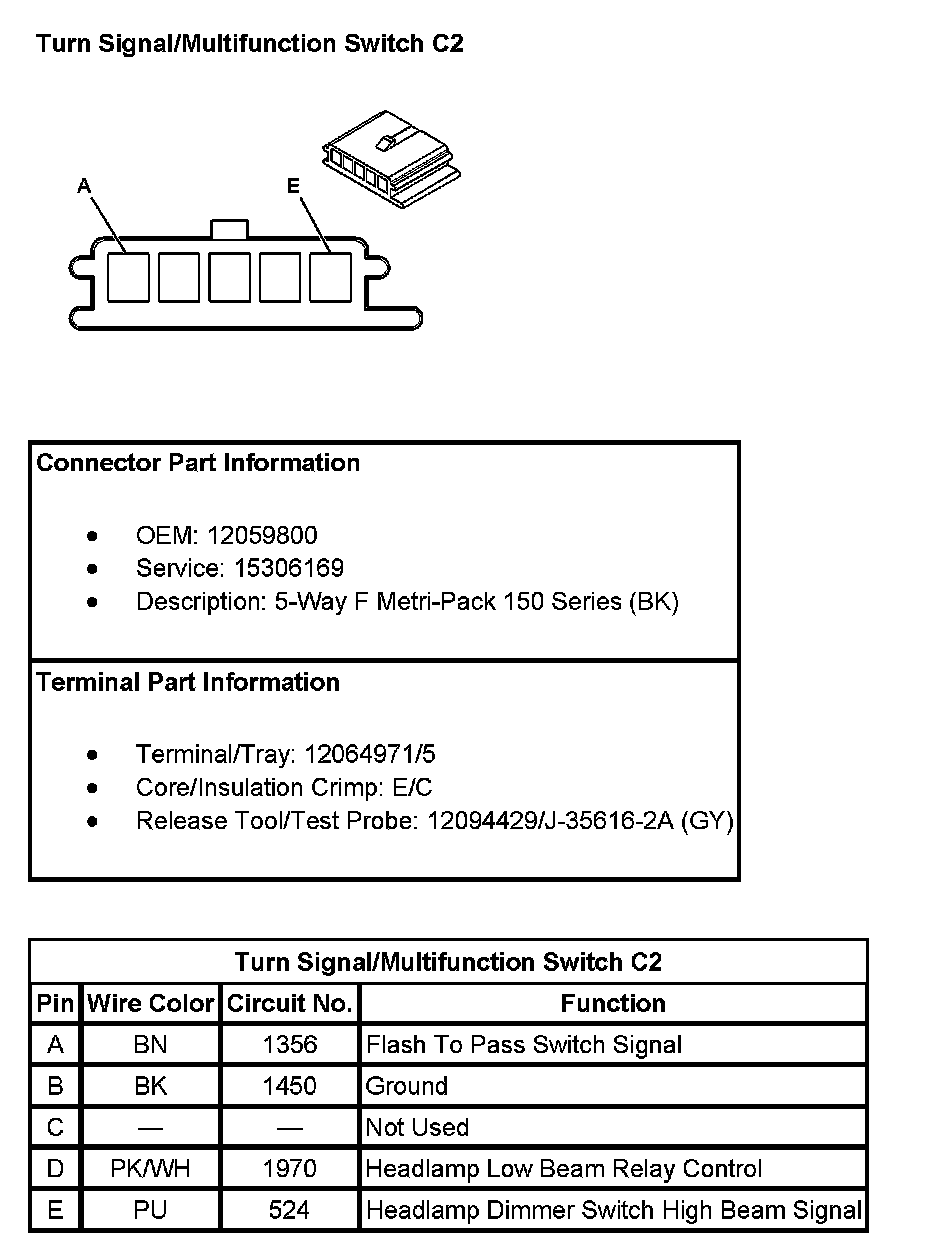

Turn Signal/Multifunction Switch C2:
