Oil Temperature Sensor/Switch, Engine

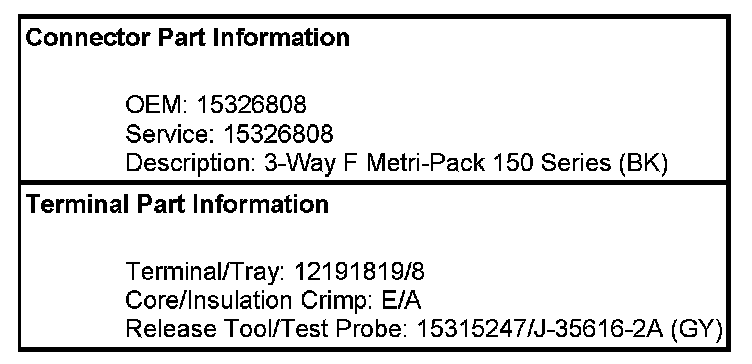

Displays and Gages Connector End Views

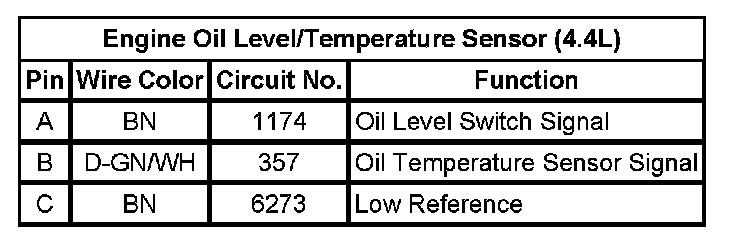

Engine Oil Level/Temperature Sensor (4.4L)
