Power Trunk / Liftgate Lock Switch

Rear Compartment Lid Release Switch - Exterior:



Rear Compartment Lid Release Switch - Interior:

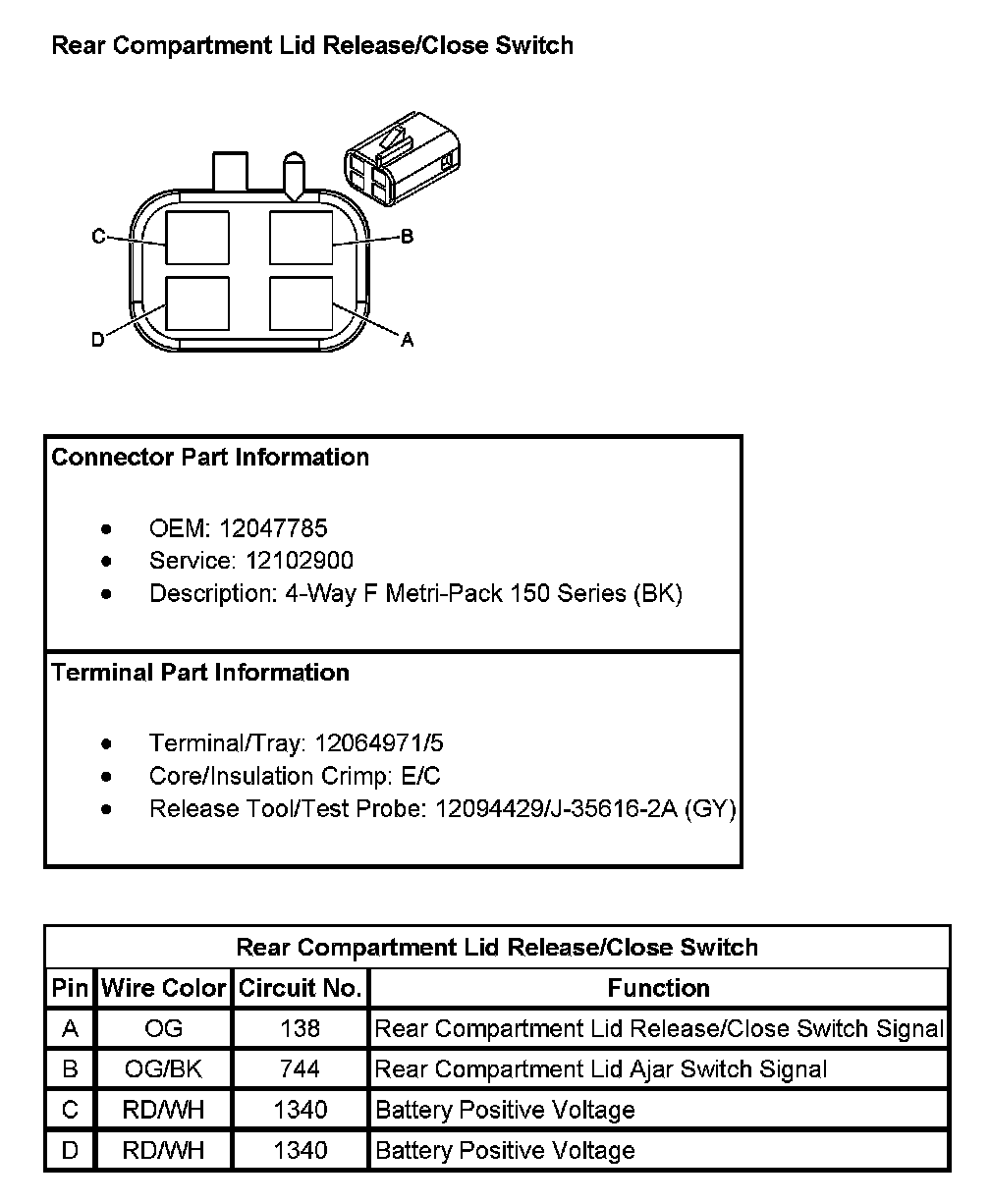

Rear Compartment Lid Release/Close Switch:
