Relay Box

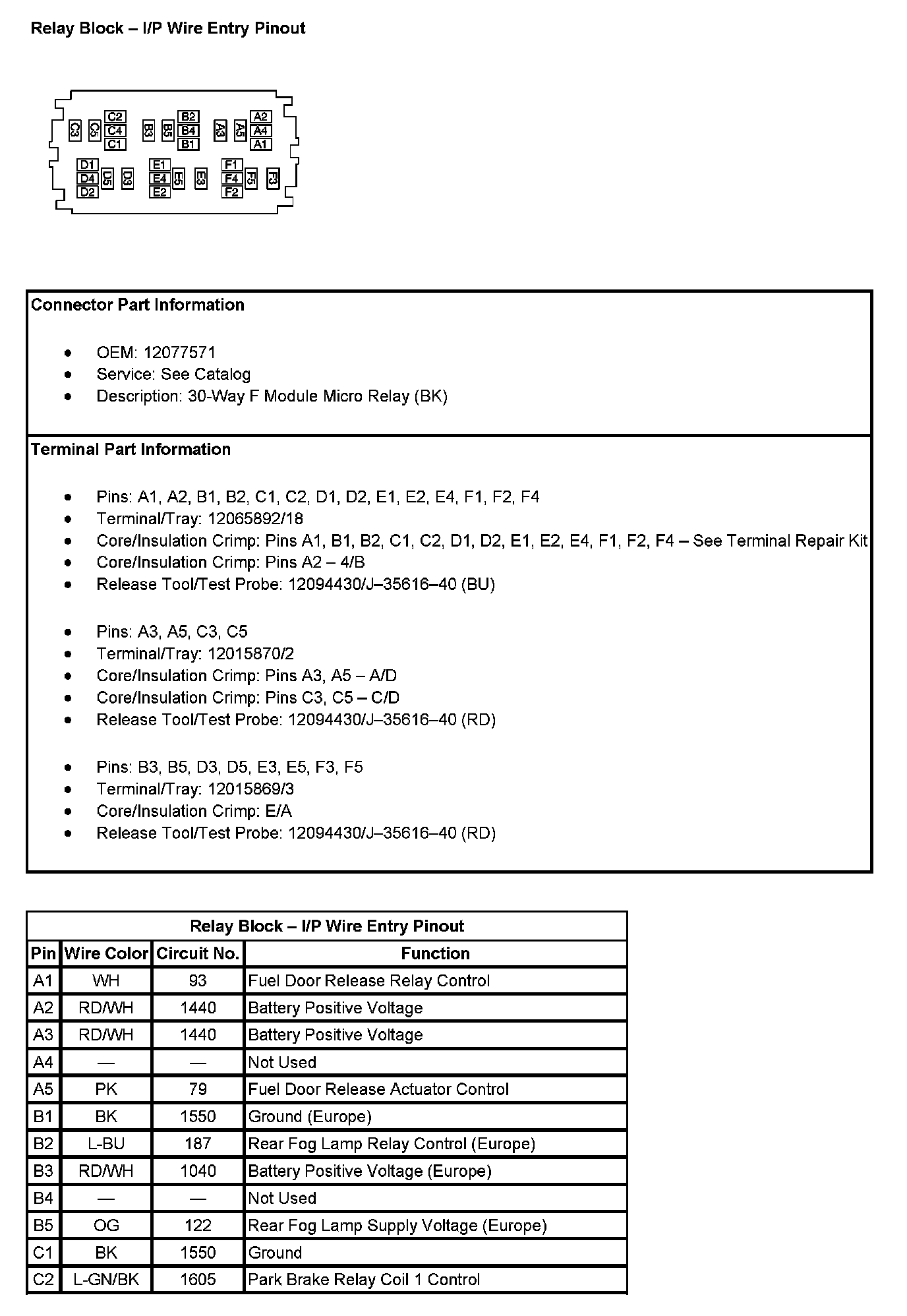

Relay Block - I/P Wire Entry Pinout (Pin A1 To C2):

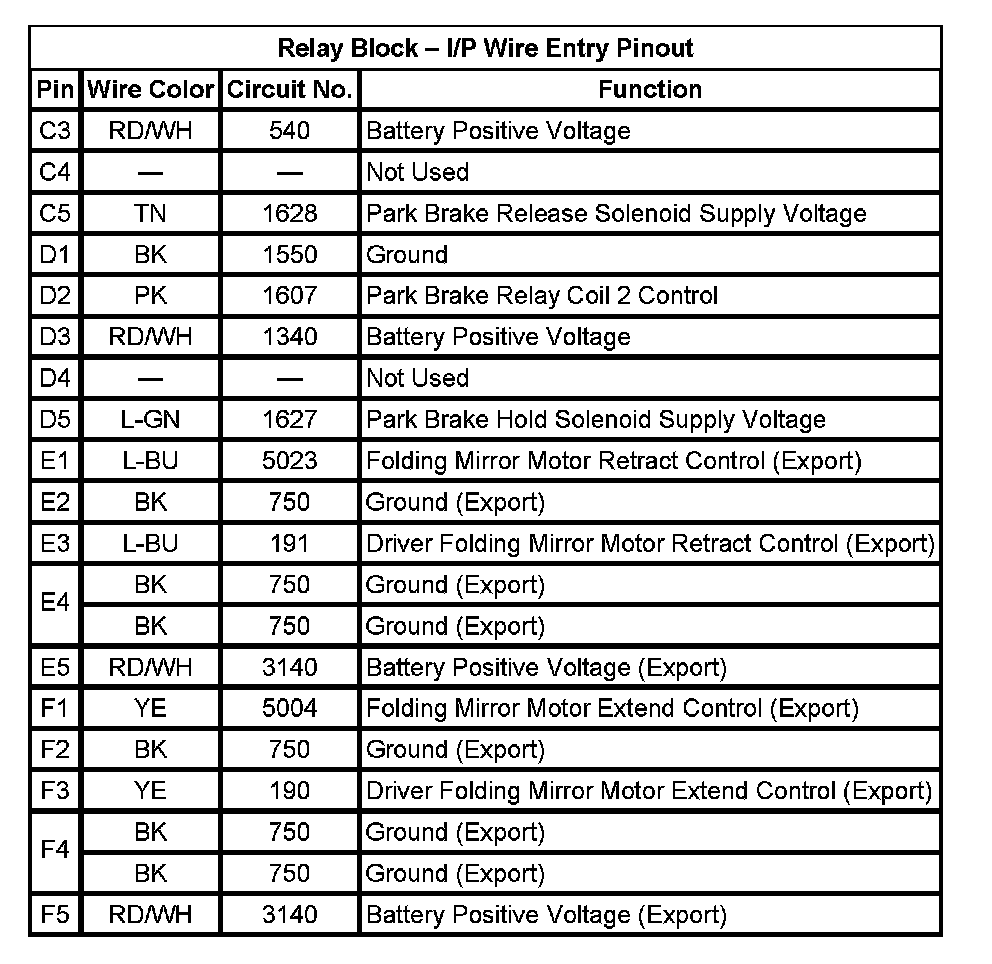

Relay Block - I/P Wire Entry Pinout (Pin C3 To F5):
