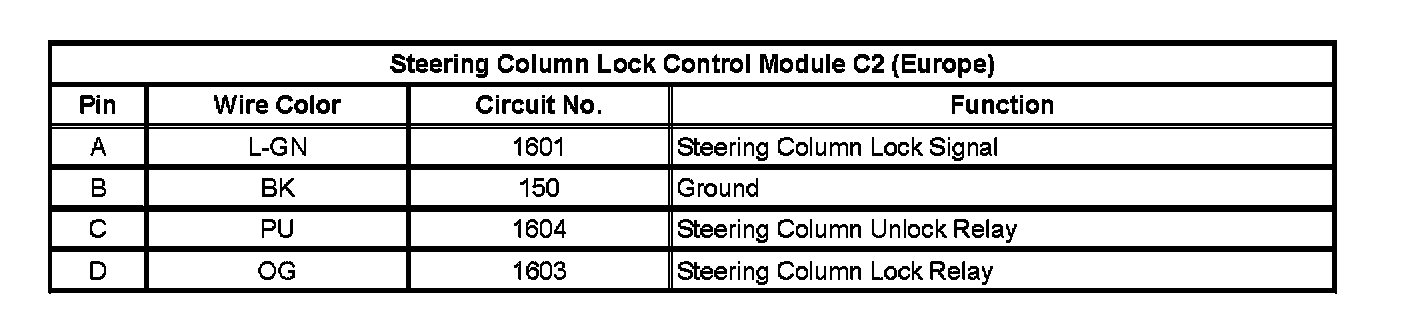

Steering Column Lock Control Module C2 (Europe)



Steering Column Lock Control Module C2 (Europe)







Steering Column Lock Control Module C2 (Europe):
