Climate Control Seat Module - Passenger

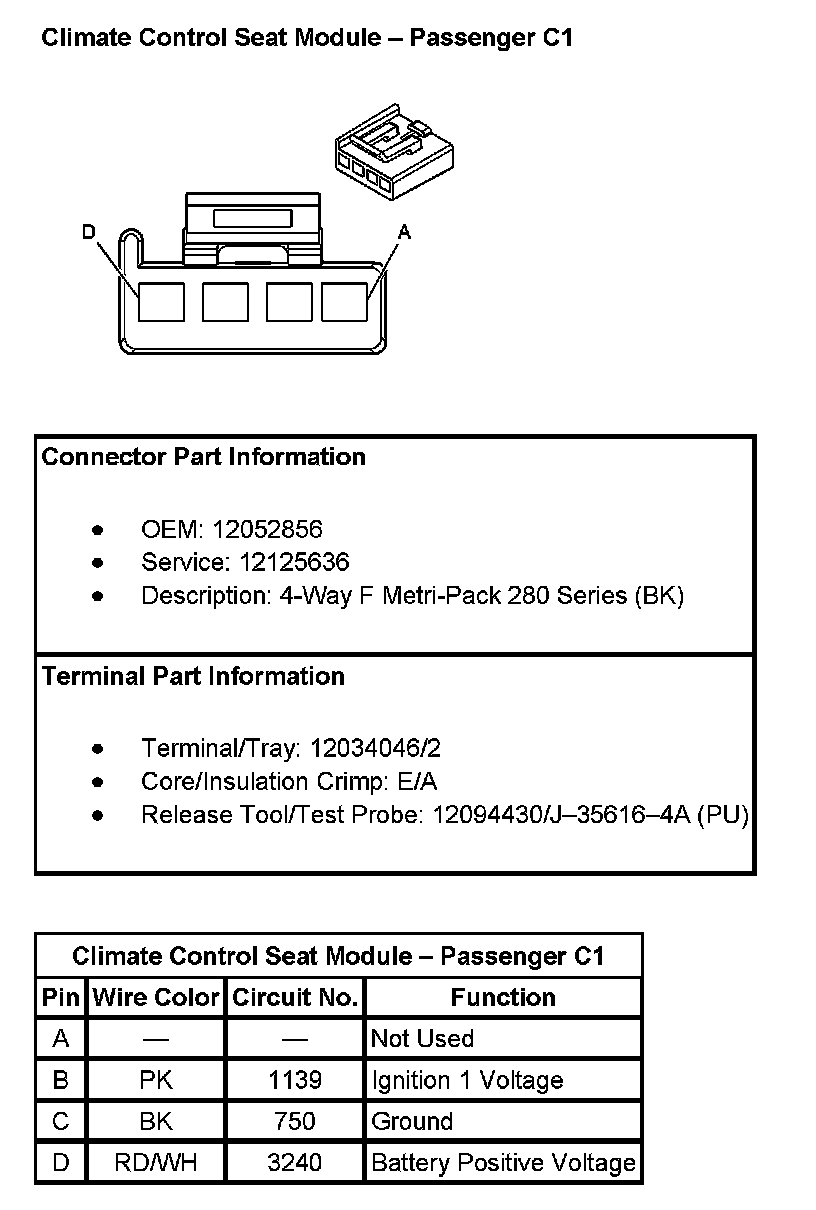

Climate Control Seat Module - Passenger C1:

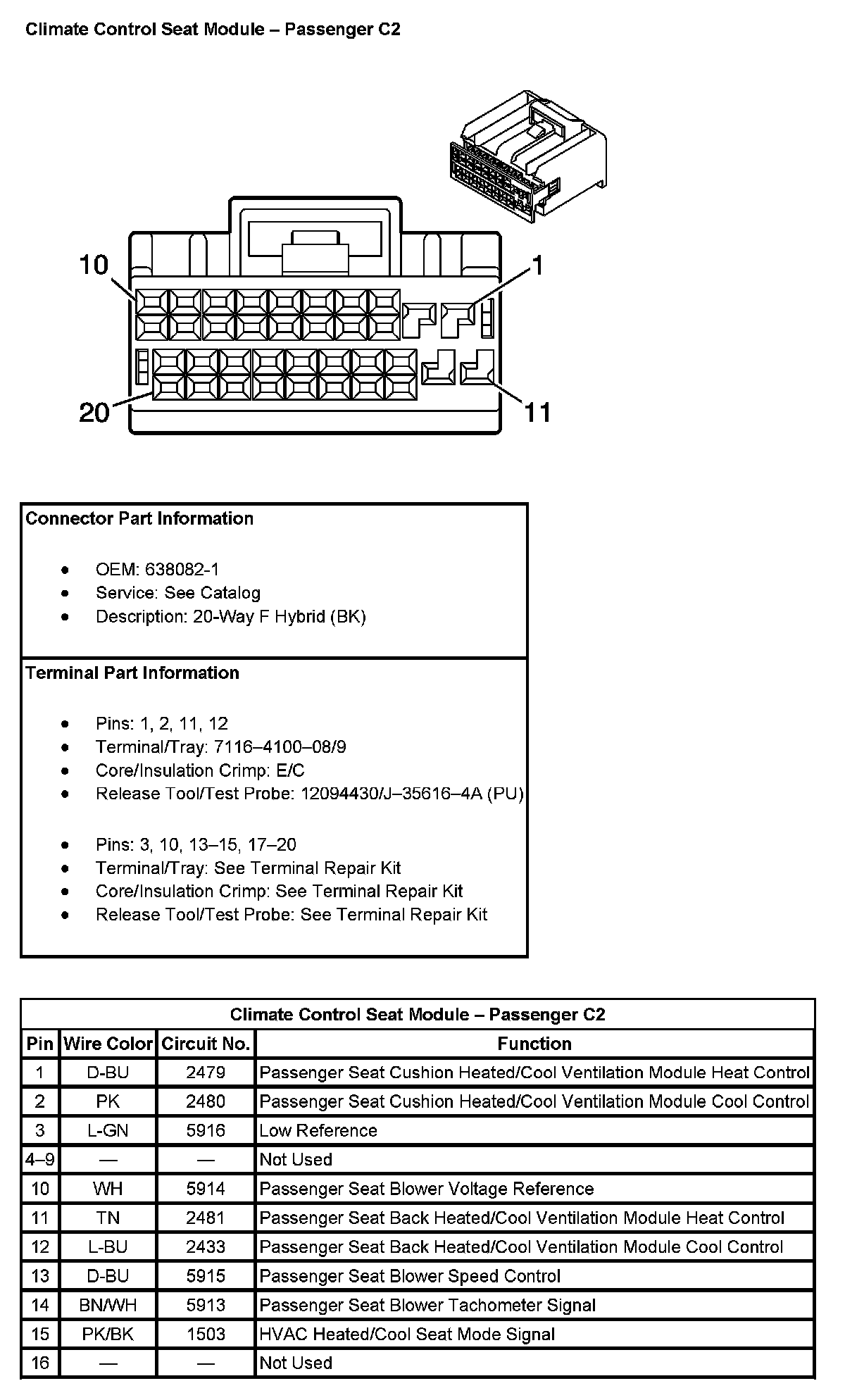

Climate Control Seat Module - Passenger C2 (Pin 1 To 16):

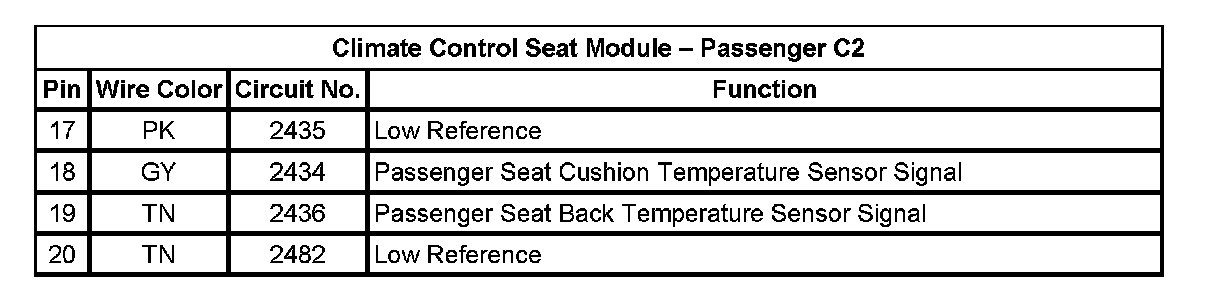

Climate Control Seat Module - Passenger C2 (Pin 17 To 20):
