System Specifications

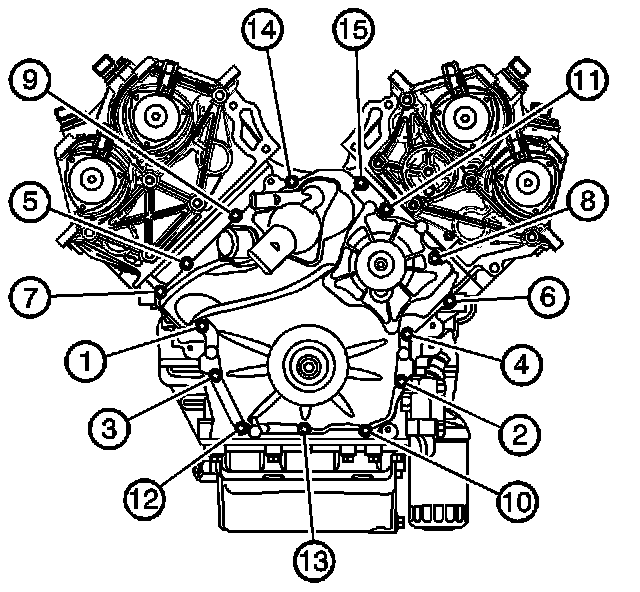

Engine Front Cover Bolt 15 N.m (11 lb ft)

Crankshaft Balancer Bolt
First Pass 50 N.m (37 lb ft)
Final Pass 150 degrees

Primary Camshaft Drive Chain)
Tensioner Bolt 25 N.m (18 lb ft)
Secondary Camshaft Drive Chain)
Tensioner Bolt 25 N.m (18 lb ft)
