Power Seat Control Module

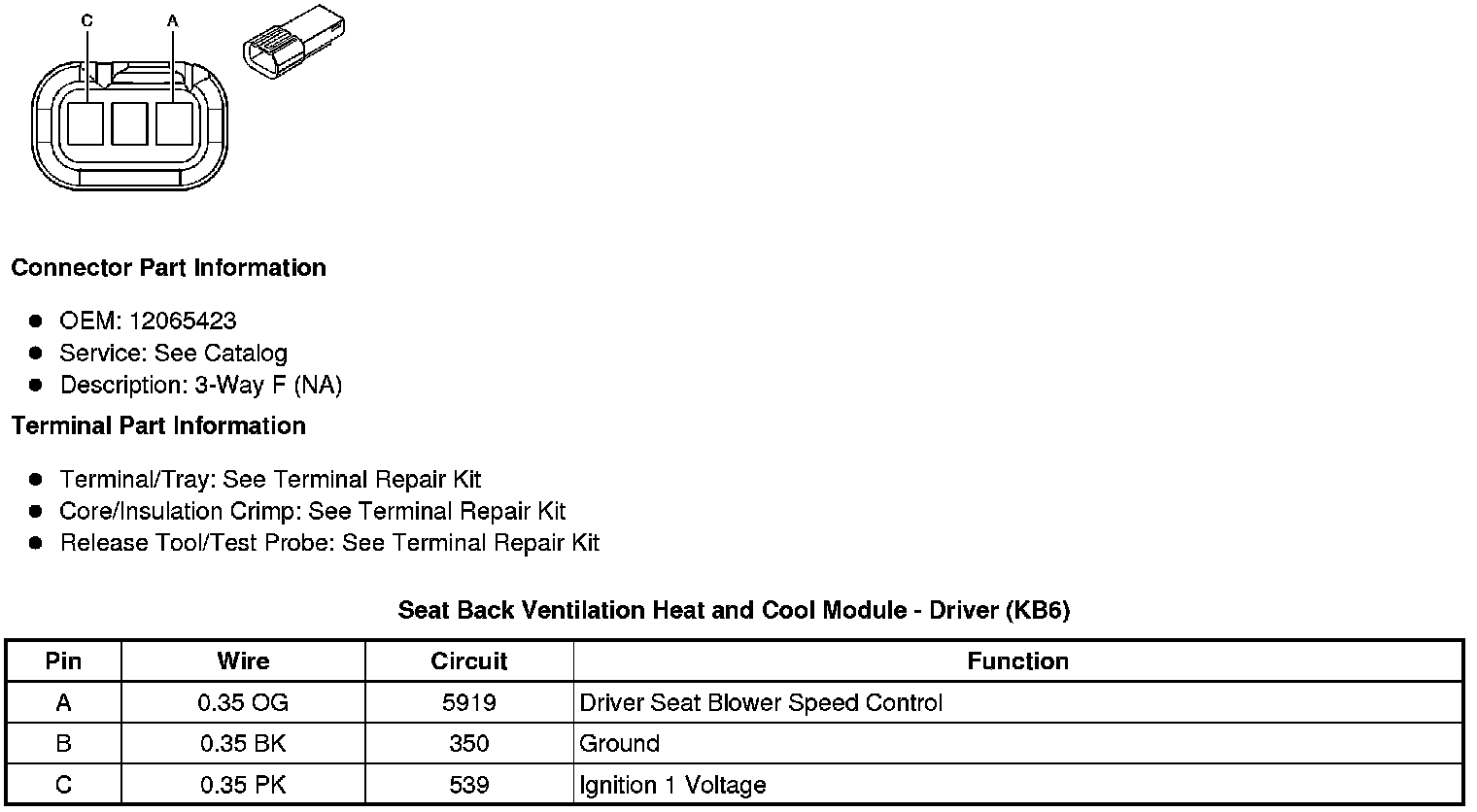

Seat Back Ventilation Heat and Cool Module - Driver (KB6)

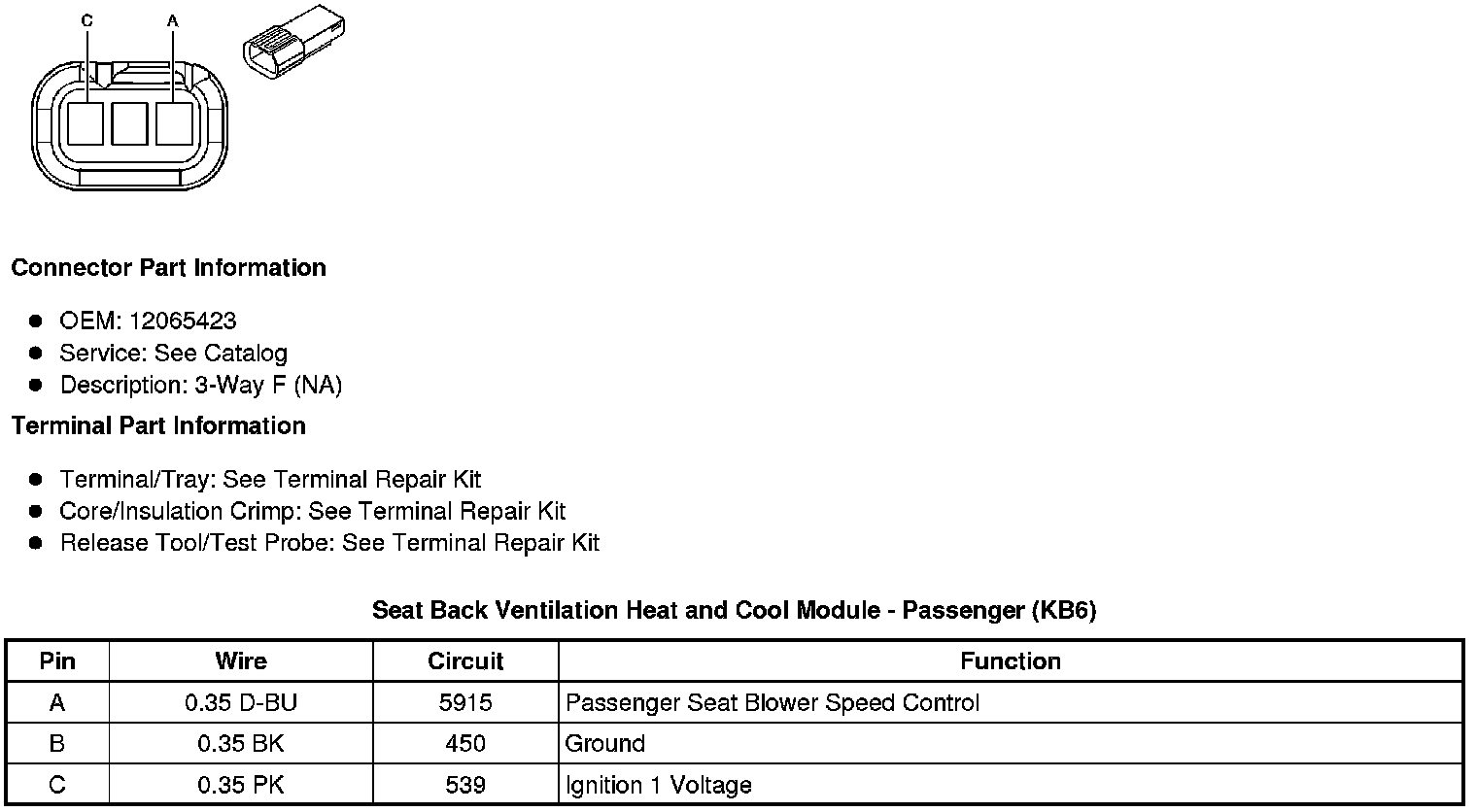

Seat Back Ventilation Heat and Cool Module - Passenger (KB6)
