Tire Pressure Module

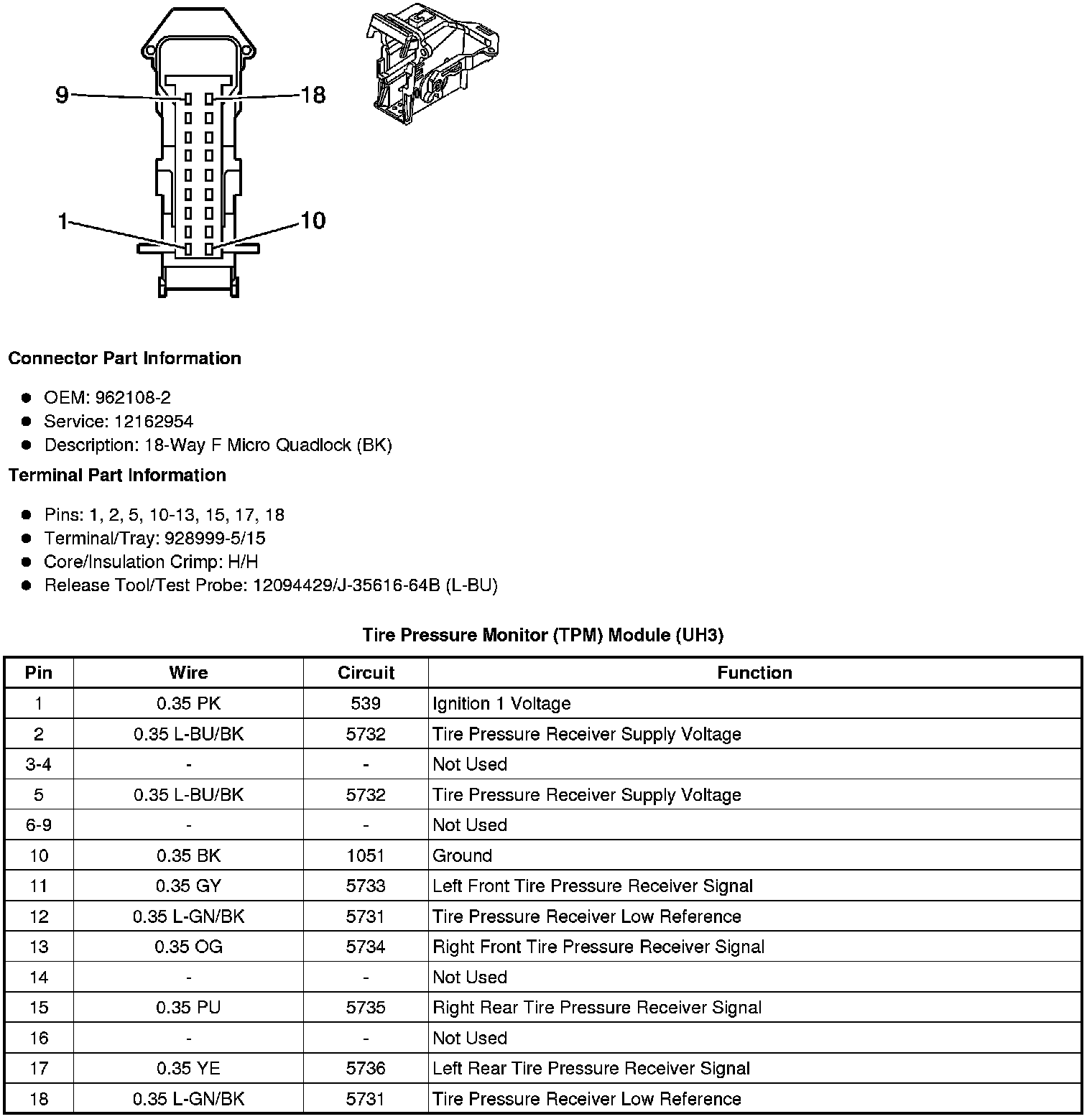

Tire Pressure Monitor (TPM) Module (UH3)

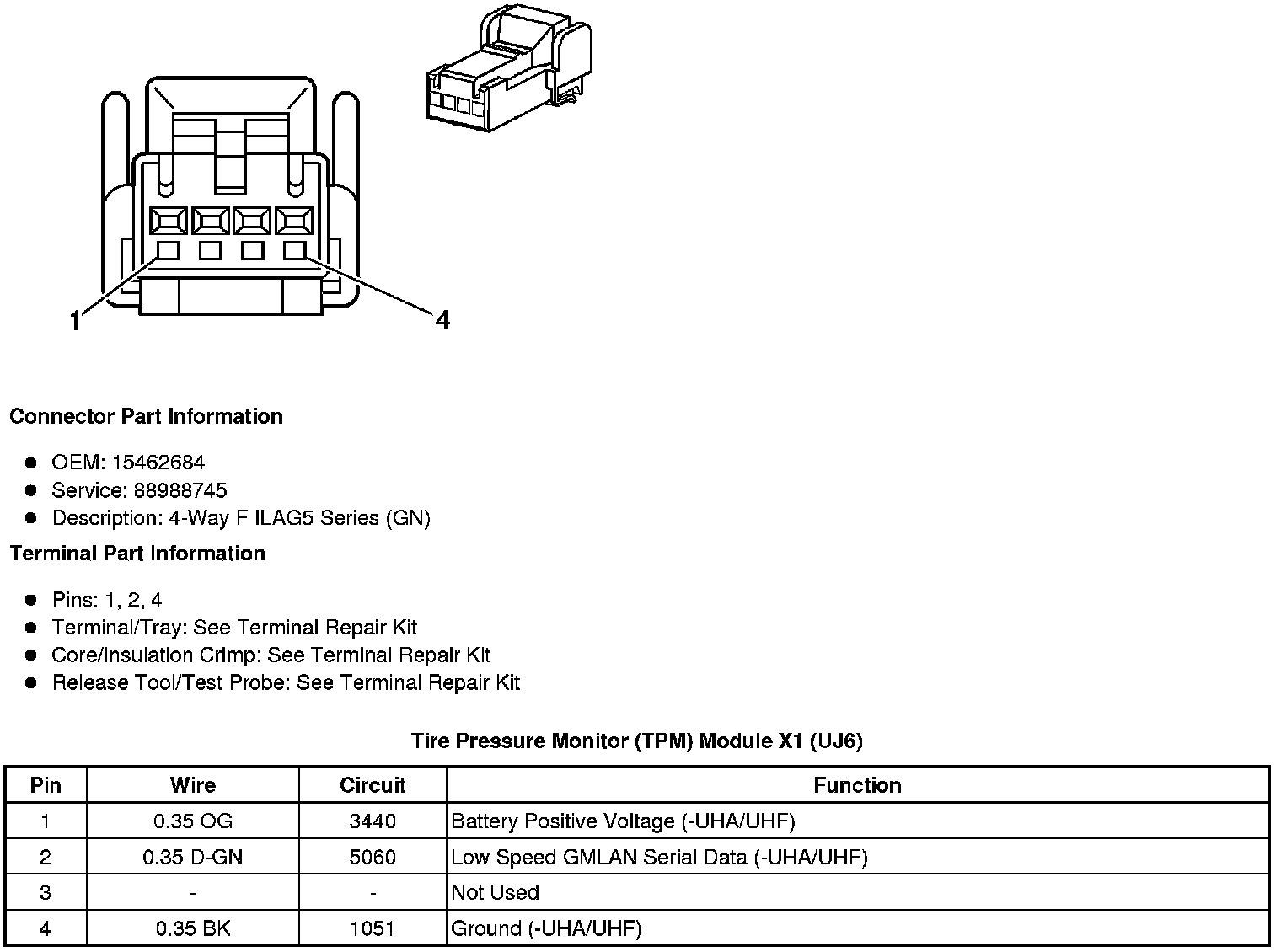

Tire Pressure Monitor (TPM) Module X1 (UJ6)
