Coolant Temperature Sensor/Switch (For Computer): Locations

Powertrain Component Views

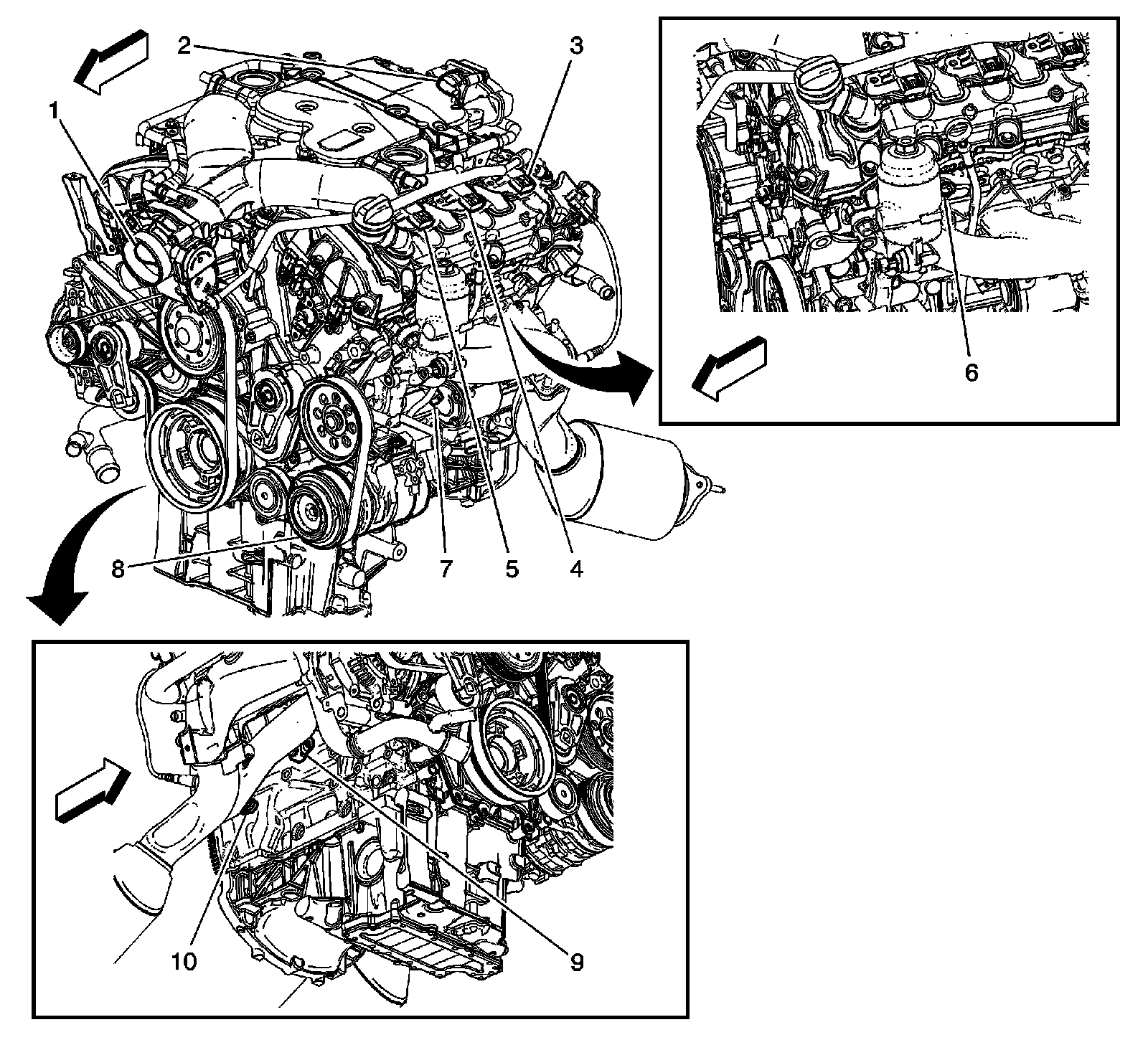

Engine-Right Front (LLT/LP1/LY7)




1 - Throttle Body (LLT/LP1/LY7)
2 - Intake Manifold Tuning (IMT) Solenoid Valve (LLT/LP1/LY7)
3 - Ignition Coil 5 (LLT/LP1/LY7)
4 - Ignition Coil 3 (LLT/LP1/LY7)
5 - Ignition Coil 1 (LLT/LP1/LY7)
6 - Engine Coolant Temperature (ECT) Sensor (LLT/LP1/LY7)
7 - Knock Sensor (KS) 2
8 - A/C Compressor Clutch
9 - Knock Sensor (KS) 1
10 - Crankshaft Position (CKP) Sensor
