Connector Views

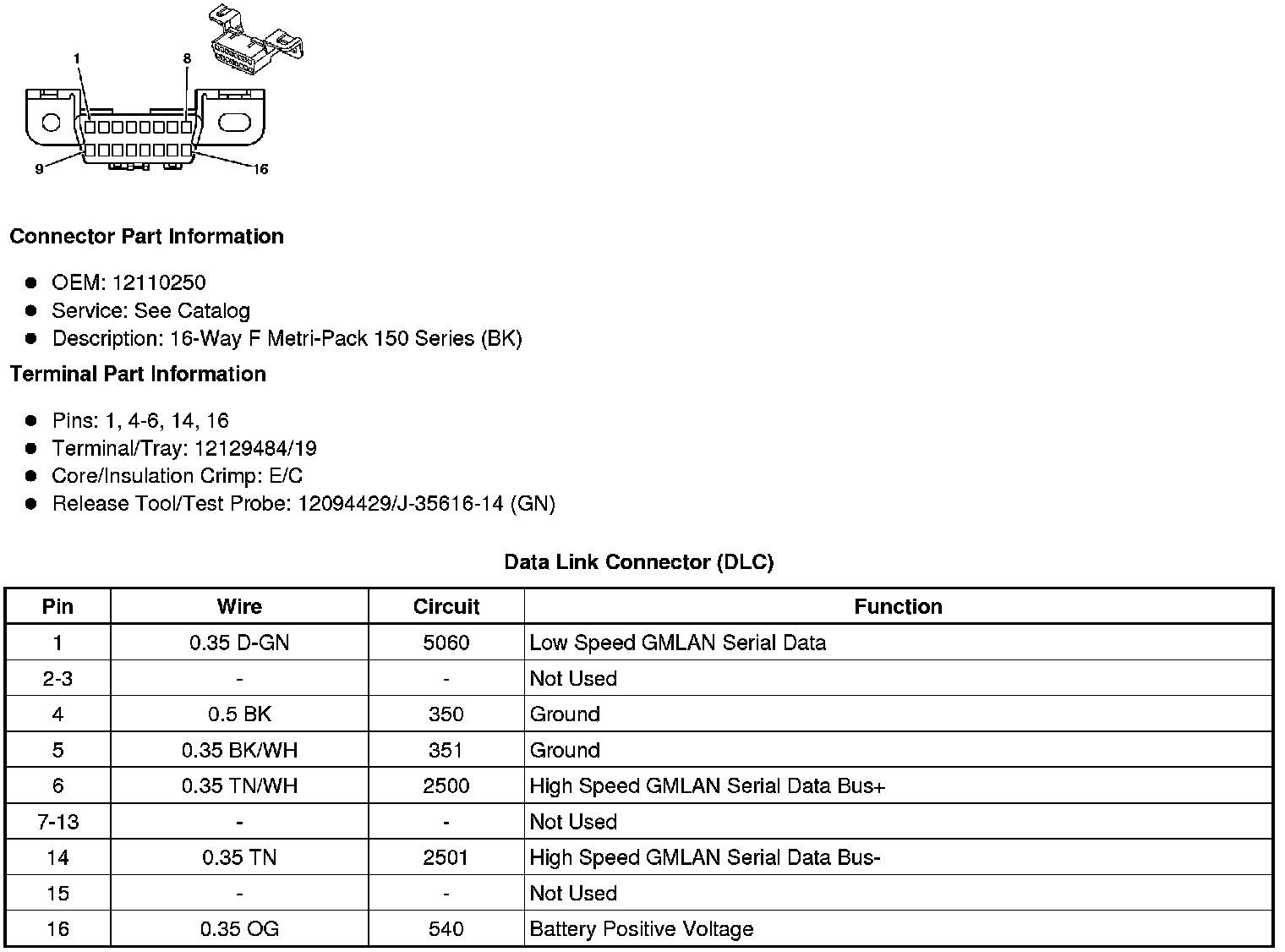

Data Link Connector (DLC)






Data Link Noise Filter (UE1)

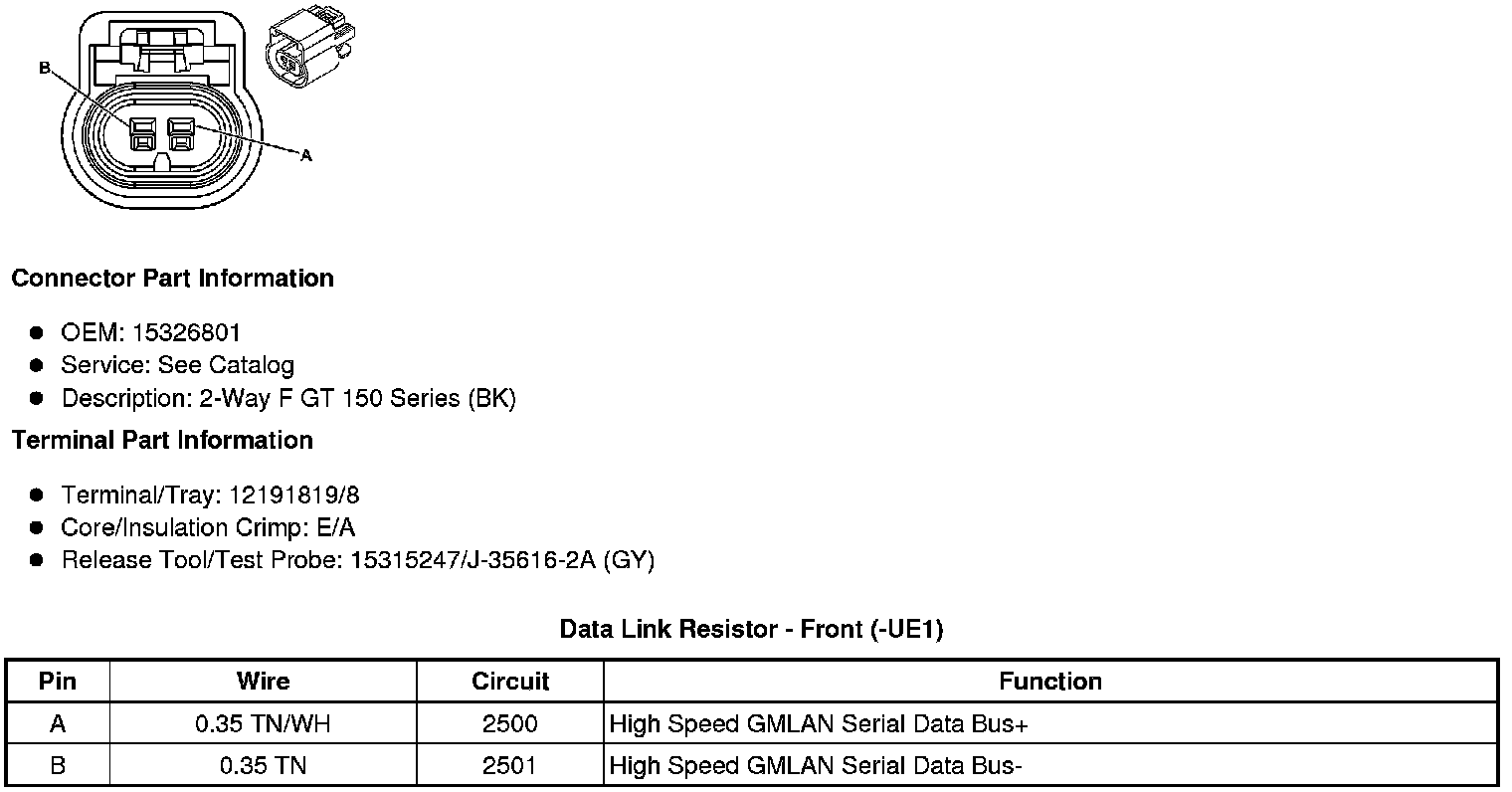

Data Link Resistor - Front (-UE1)

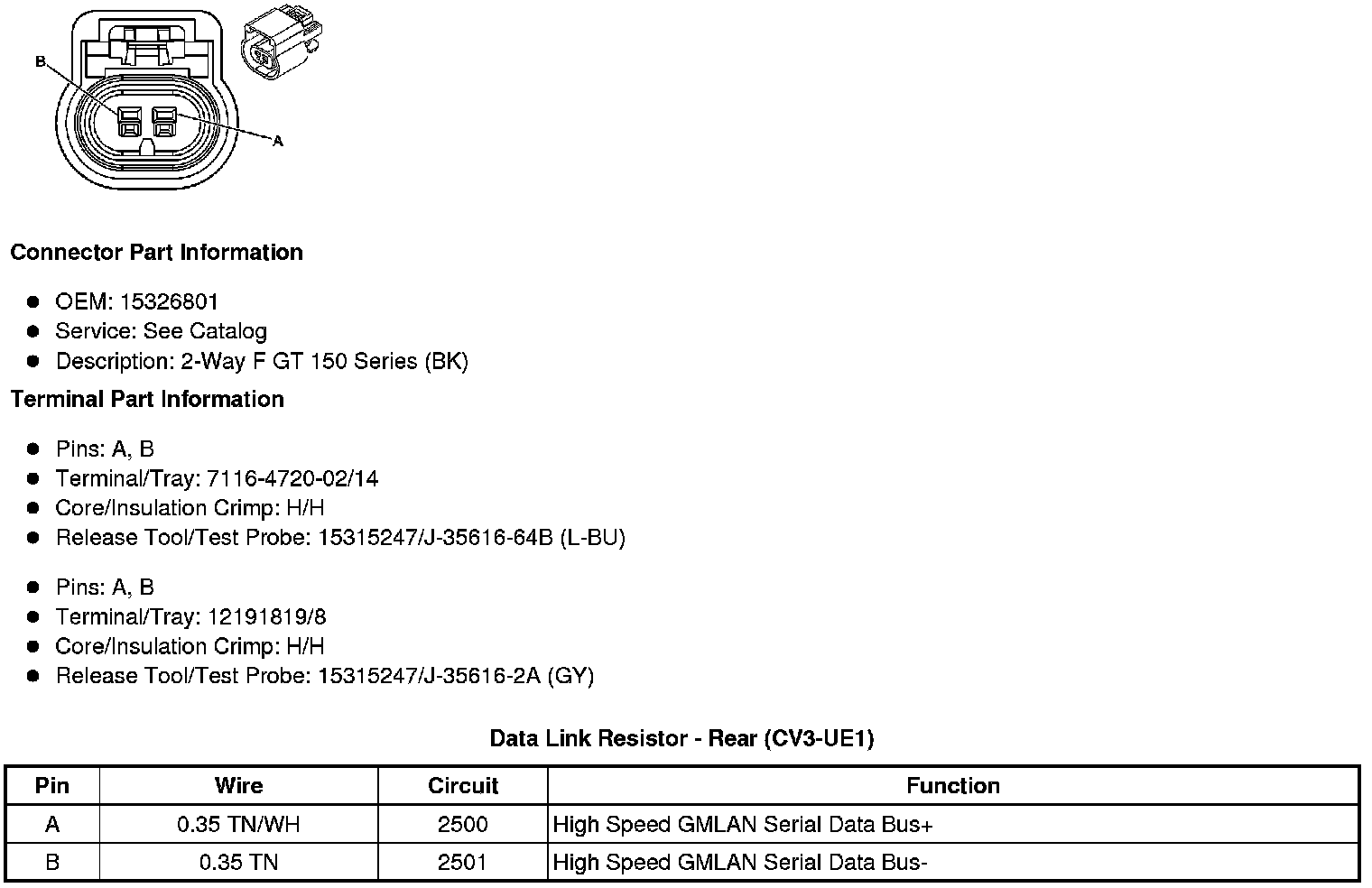

Data Link Resistor - Rear (CV3-UE1)
