Steering Wheel Secondary/Configurable Control Schematics

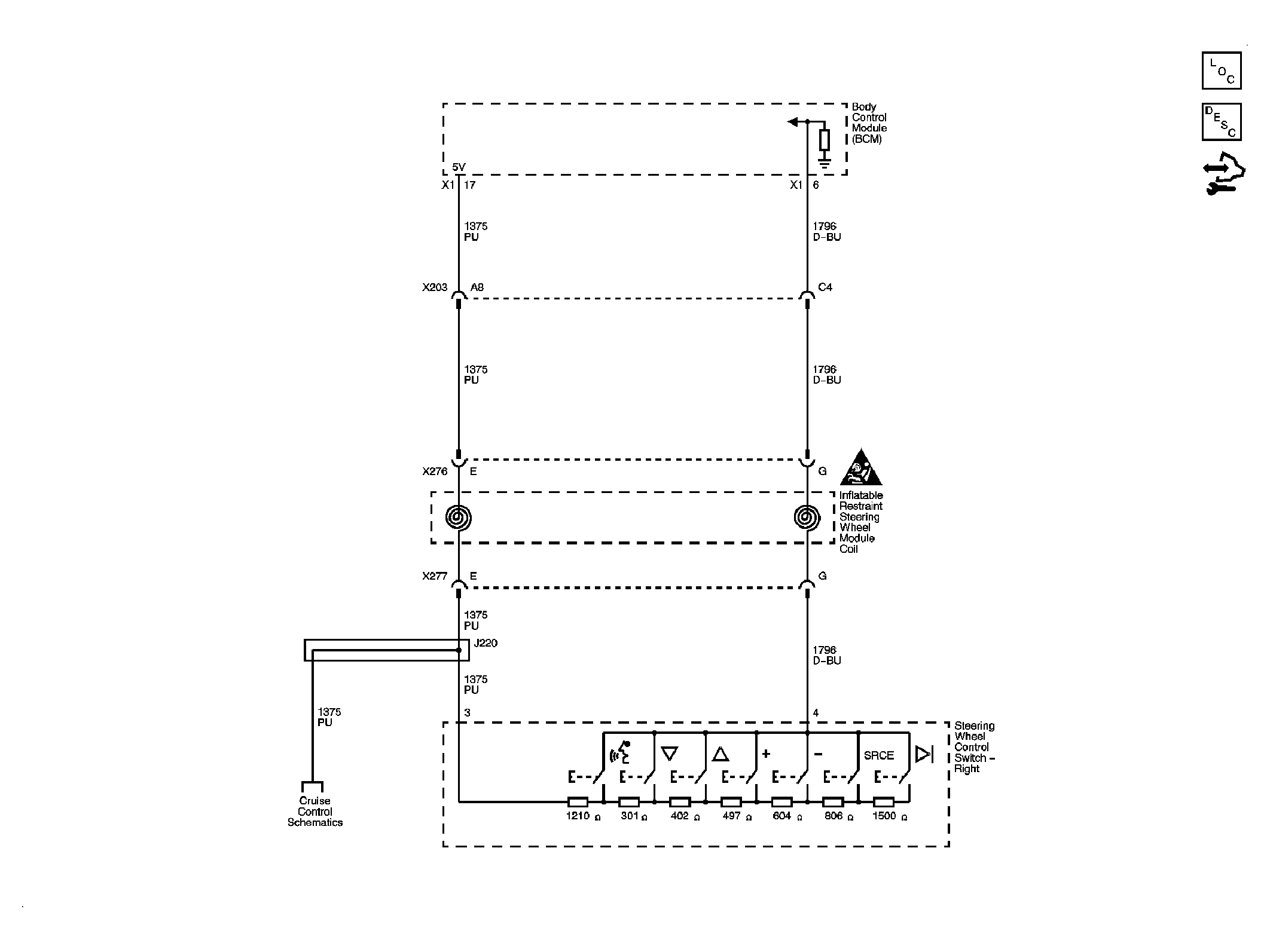

Fig 1: Redundant Steering Wheel Controls Schematic
GM1885761Courtesy of GENERAL MOTORS CORP.
