Entertainment/Communication Component Views
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|

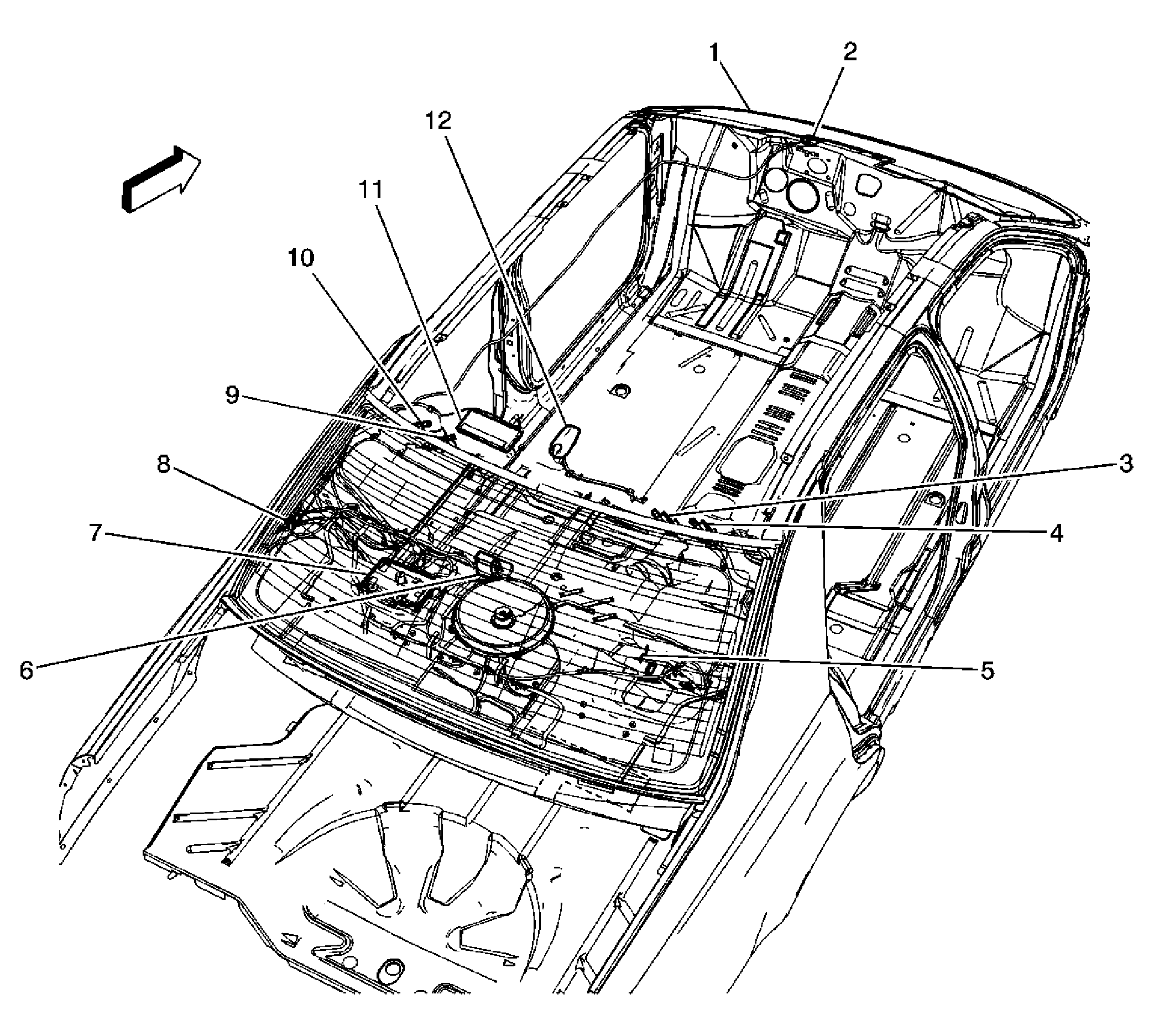

| 1 | Front Windshield |
| 2 | FM Antenna Module |
| 3 | Antenna Amplifier-RR Center (U3Q) |
| 4 | Antenna Amplifier-RR (U3Q) |
| 5 | Video Display Module (U3Q) |
| 6 | Remote Control Door Lock Receiver (RCDLR) |
| 7 | Traffic Information Receiver (U3Q) |
| 8 | C342 |
| 9 | Antenna Amplifier-LR Center (U3Q) |
| 10 | Antenna Amplifier-RR (U3Q) |
| 11 | Radio Antenna Module |
| 12 | Cellular Navigation and Digital Radio Antenna (UE1/U2K) |

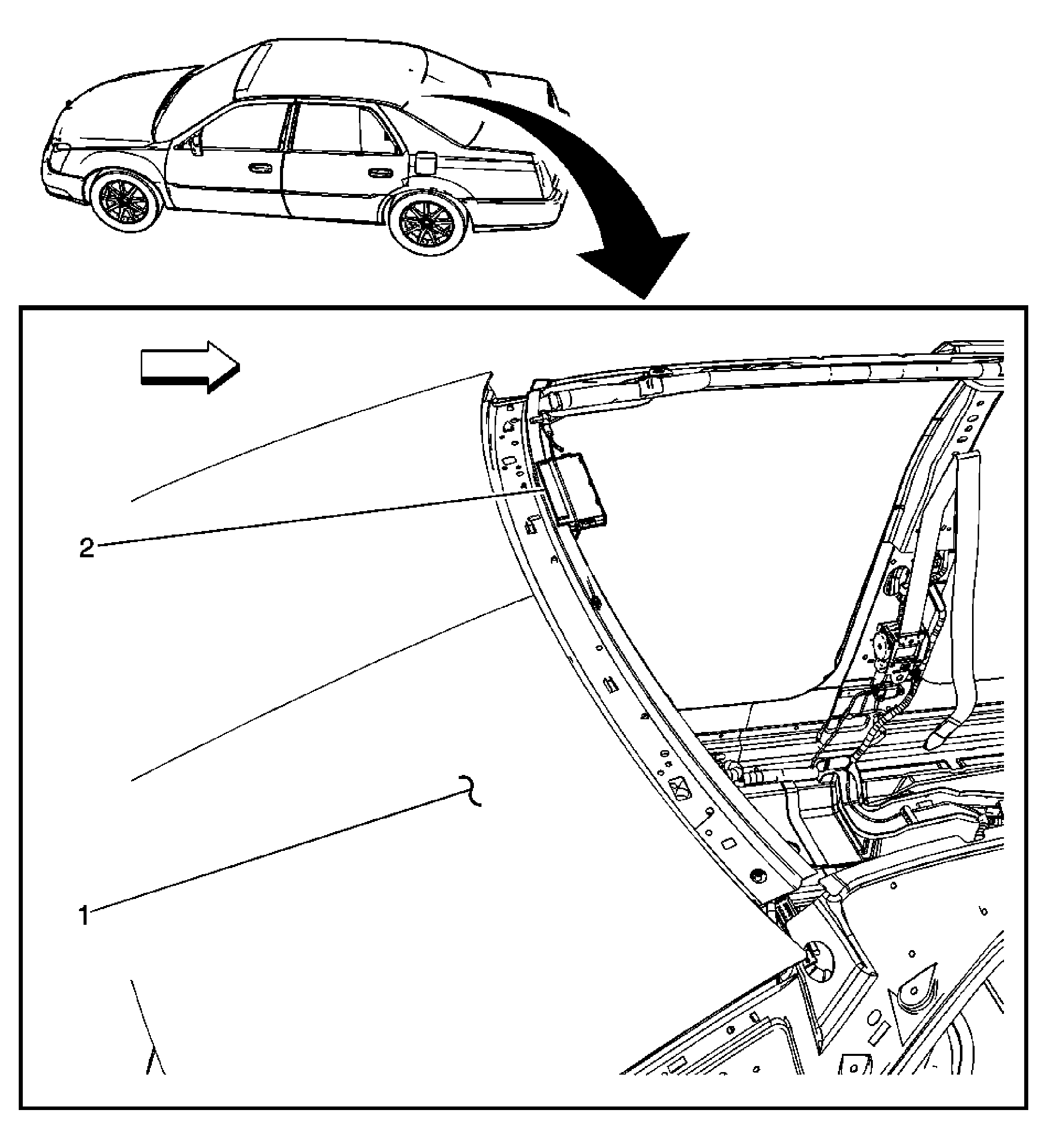

| Callout | Component Name |
|---|---|

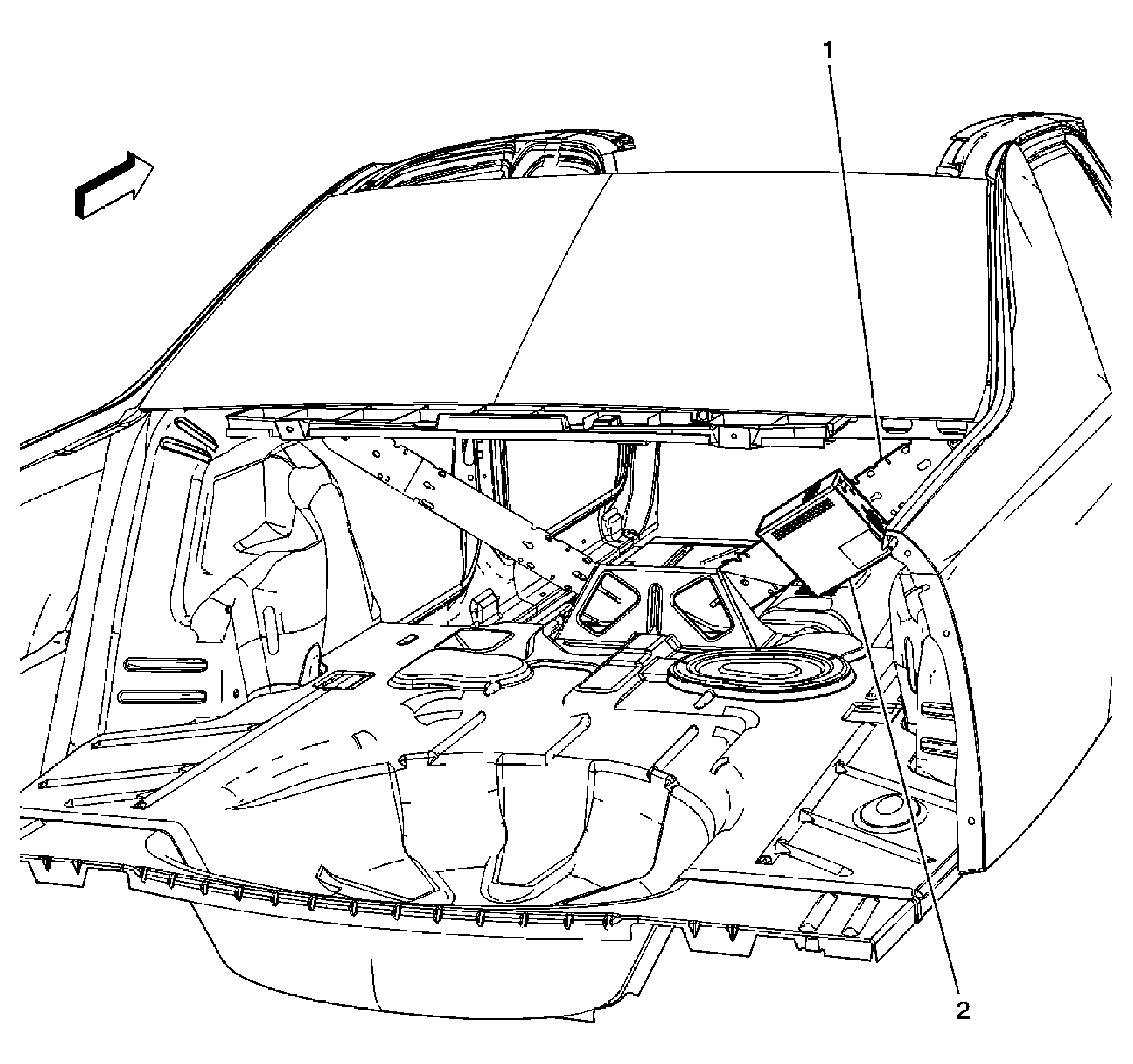

| 1 | Rear Seat Back Body Panel |
| 2 | Vehicle Interface Communication Module (VCIM) |
| Callout | Component Name |
|---|---|

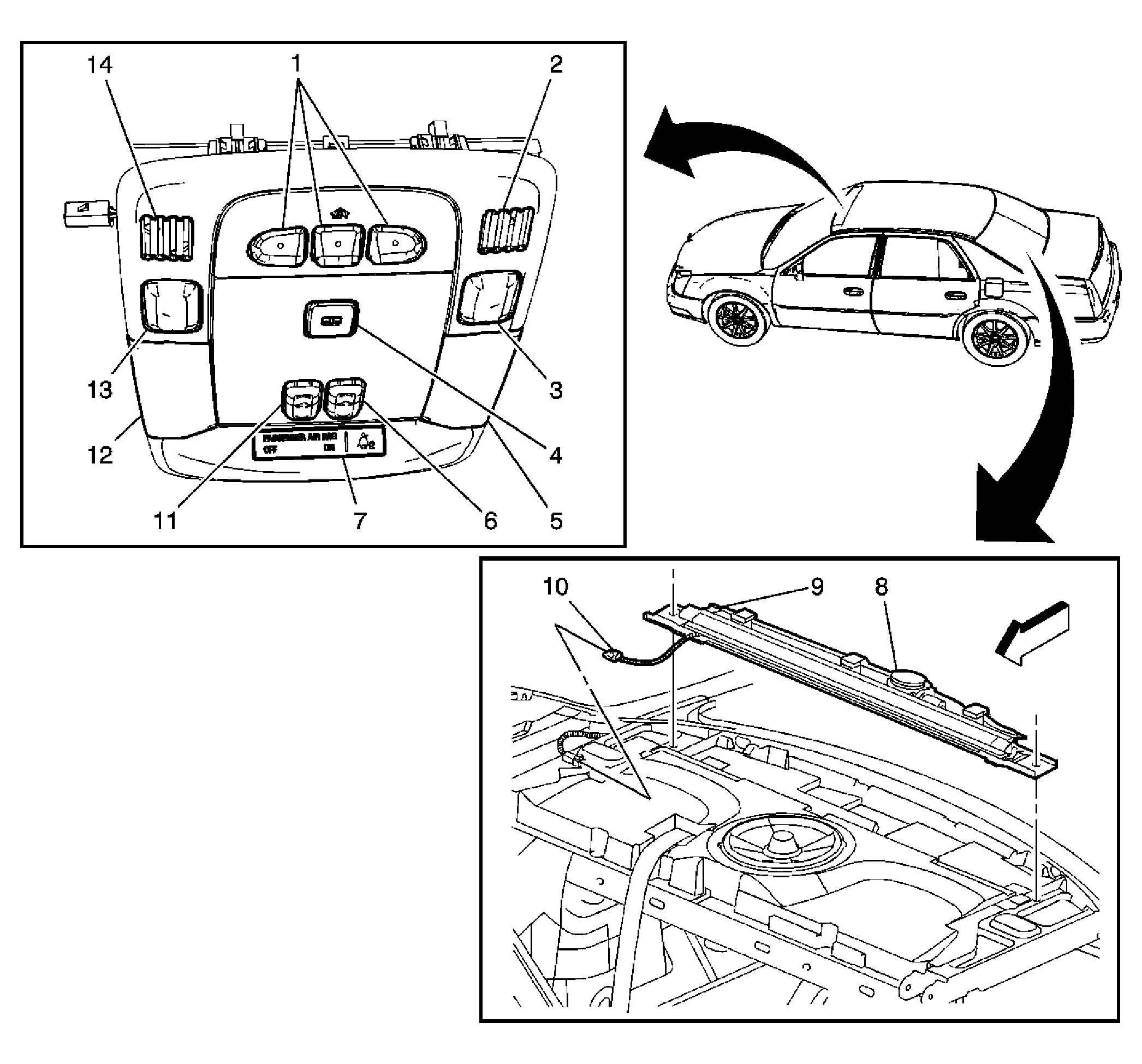

| 1 | Sunshade - Left Rear (DC5) |
| 2 | Rear Park Assist Indicator (UFR) |
| 3 | Courtesy Lamp - Right Rear (V4U) |
| 4 | Sunshade - Right Rear (DC5) |
| 5 | Garage Door Opener Transmitter (UG1) |
| 6 | Noise Compensation Microphone (UQA) |
| 7 | Courtesy Lamp - Right Front (V4U) |
| 8 | Sunshade - Right Front |
| 9 | Sunshade Switch (DE9) |
| 10 | Inflatable Restraint I/P Module Indicator |
| 11 | Inside Rearview Mirror (ISRVM) |
| 12 | Onstar Button Assembly (UE1) |
| 13 | Sunroof Switch (CF5) |
| 14 | Sunshade - Left Front (- V4U) |
| 15 | Courtesy Lamp - Left Front (V4U) |
| 16 | Cellular Microphone (UE1/U3Q/U3R/U3U) |
| 17 | Courtesy Lamp - Left Rear (V4U) |
| Callout | Component Name |
|---|---|

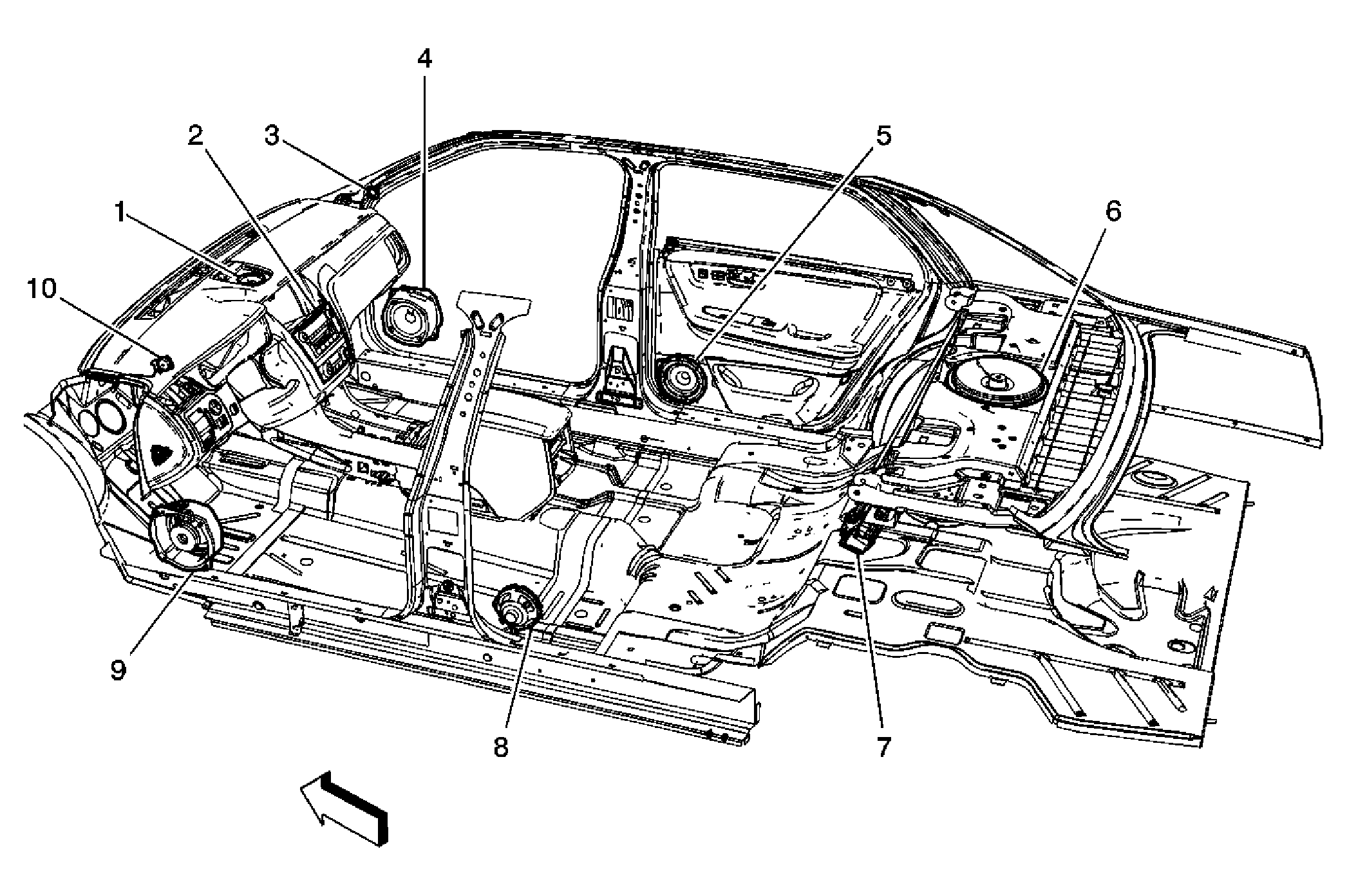

| 1 | Speaker - Front Center (U57) |
| 2 | Radio |
| 3 | Speaker - Right A-Pillar Tweeter |
| 4 | Speaker - RF Door |
| 5 | Speaker - RR Door |
| 6 | Speaker - Rear Subwoofer |
| 7 | Audio Amplifier |
| 8 | Speaker - LR Door |
| 9 | Speaker - LF Door |
| 10 | Speaker - Left A-Pillar Tweeter |
| Callout | Component Name |
|---|---|
| 1 | Radio Front Glass Antenna |
| Callout | Component Name |
|---|---|
| 1 | Garage Door Opener Buttons (UG1) |
| 2 | Noise Compensation Microphone (UQA) |
| 3 | Overhead Console Lamp Switch-Passenger |
| 4 | Sun Shade Switch (DE9) |
| 5 | Overhead Console Lamp-Passenger |
| 6 | Sunroof Vent Switch (CF5) |
| 7 | Inflatable Restraint PASSENGER OFF/ON Indicator |
| 8 | Rear Window Sunshade Module |
| 9 | Rear Window Sunshade Assembly |
| 10 | C395 |
| 11 | Sunroof Open Switch (CF5) |
| 12 | Overhead Console Lamp-Driver |
| 13 | Overhead Console Lamp Switch-Driver |
| 14 | Cellular Microphone (UE1) |
| Callout | Component Name |
|---|---|

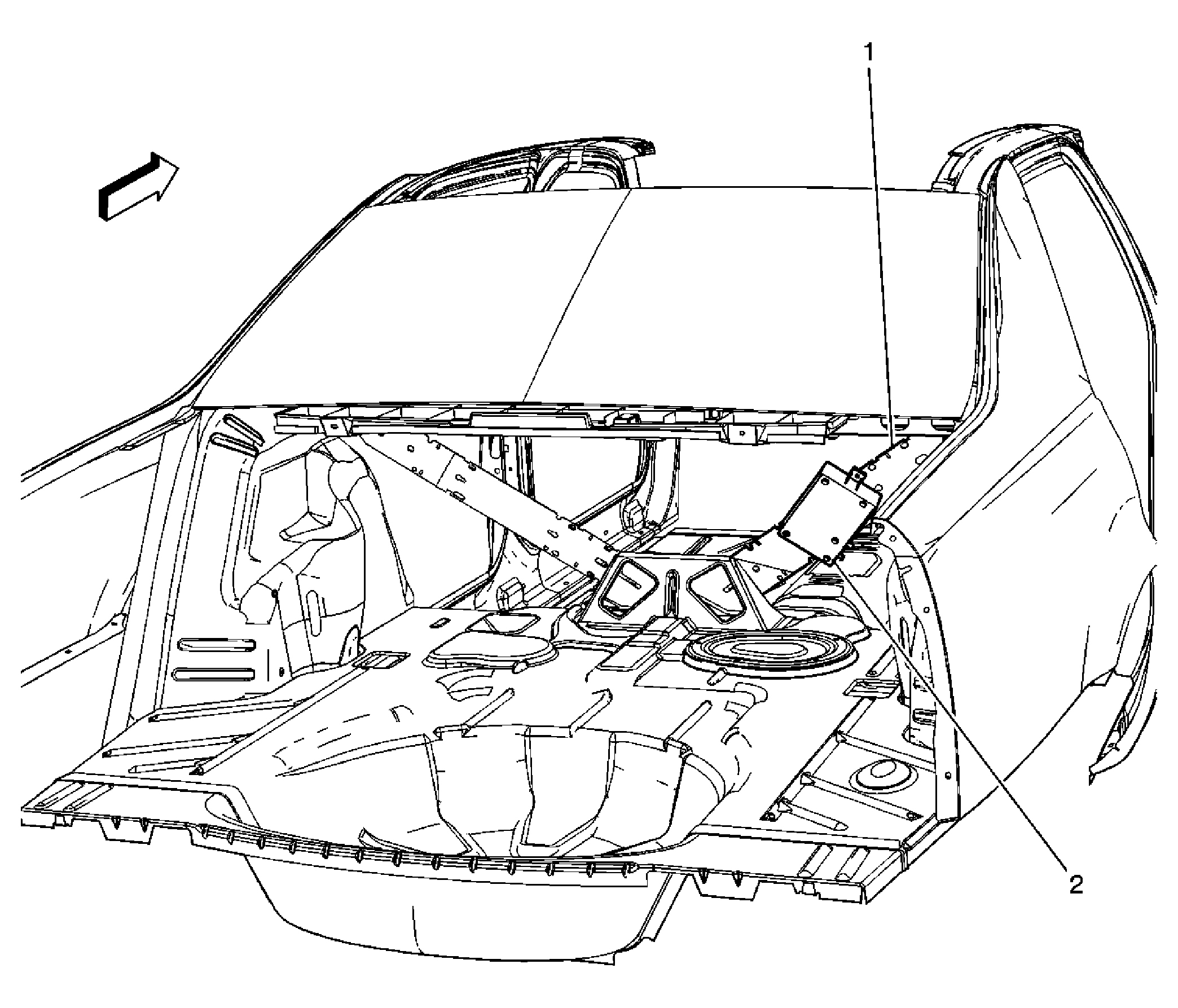

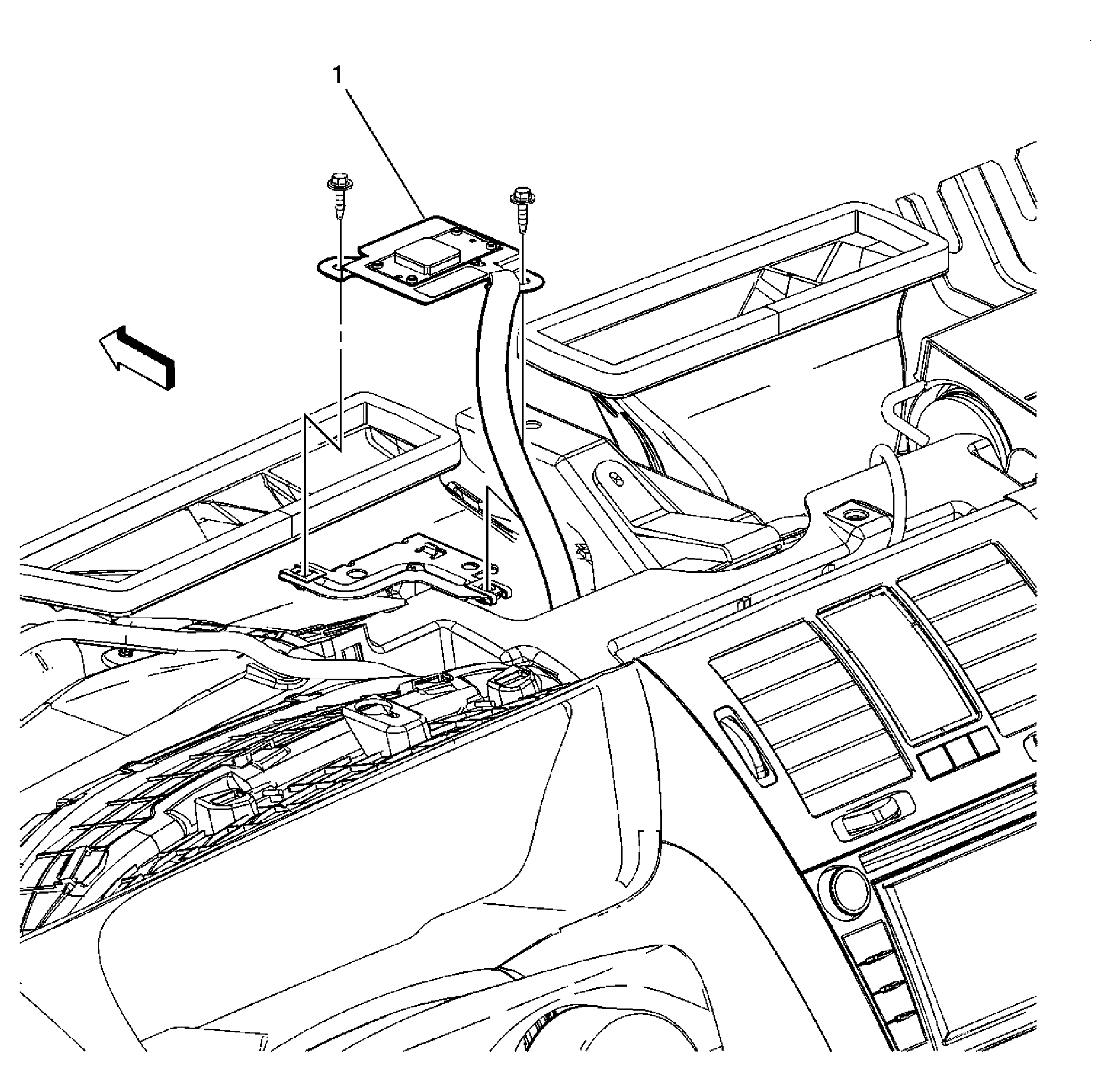

| 1 | Rear Seat Back Body Panel |
| 2 | Video Tuner (Export) |
| Callout | Component Name |
|---|---|
| 1 | Global Positioning System (GPS) Antenna (U3R) |
| Callout | Component Name |
|---|---|
| 1 | Rear Window |
| 2 | Radio Antenna Module |

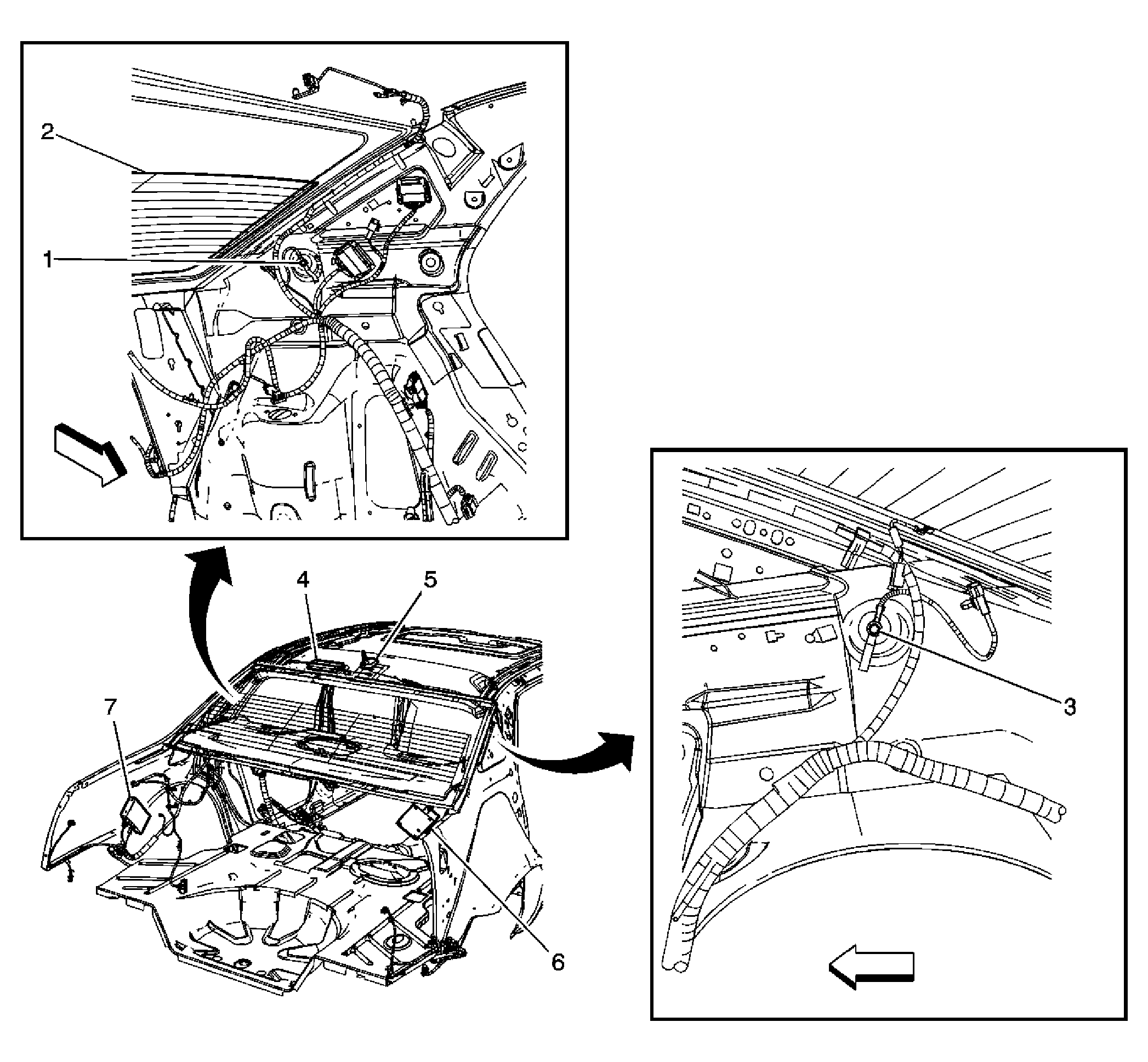

| Callout | Component Name |
|---|---|

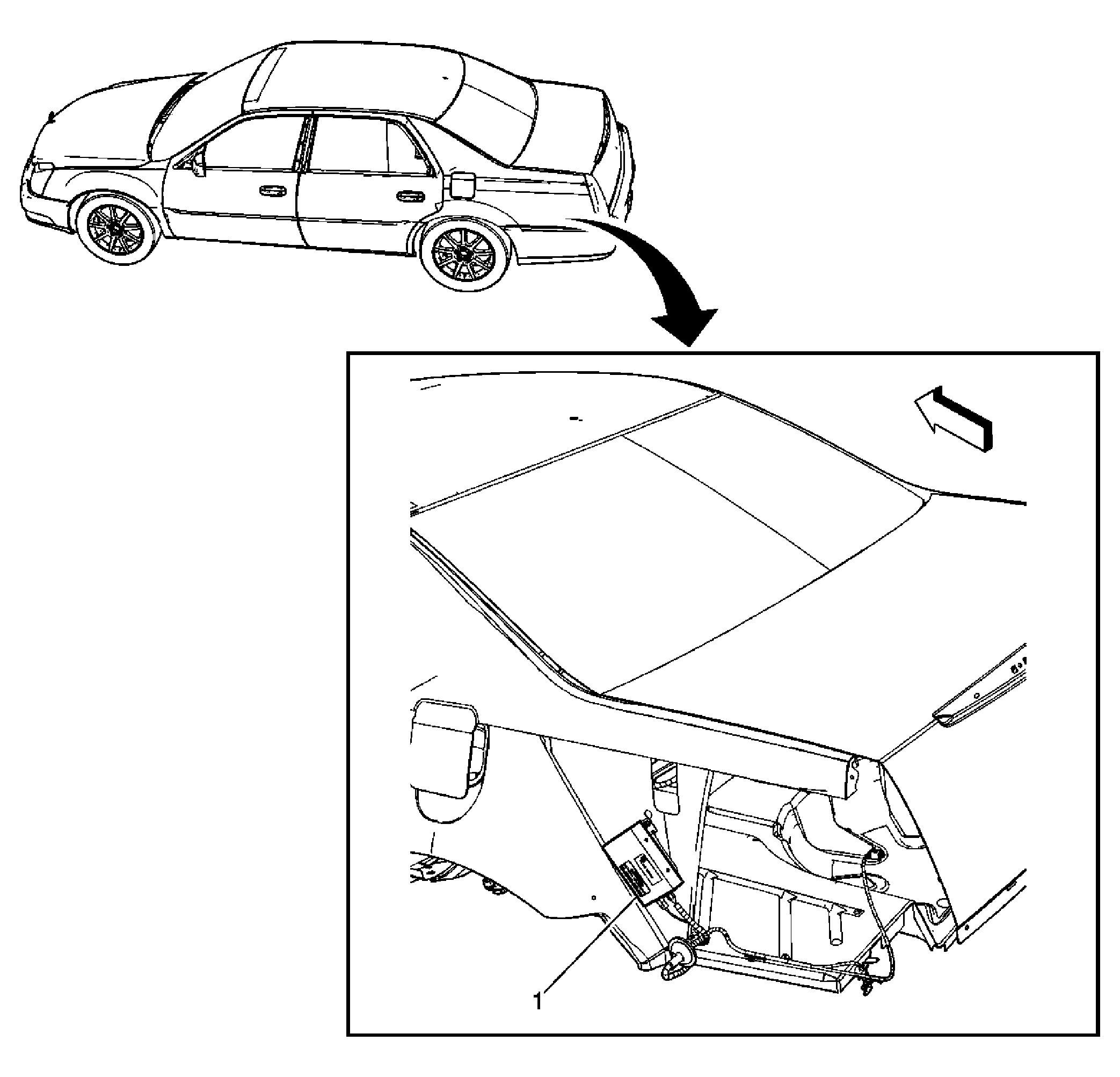

| 1 | Digital Radio Receiver (U2K) |
| Callout | Component Name |
|---|---|
| 1 | G306 |
| 2 | Defogger Grid |
| 3 | G307 |
| 4 | Rear Radio Antenna Module |
| 5 | Cellular/GPS (UE7)and/or Digital Antenna (U2K) |
| 6 | Vehicle Communication Interface Module (VCIM) (UE1) |
| 7 | Digital Radio Receiver (DRR) (U2K) |
| Callout | Component Name |
|---|---|
| 1 | Rear Window Defogger |
| 2 | RFA Rear Glass Antenna |
| 3 | Radio Rear Glass Antenna |
| 4 | Center High Mounted Stop Lamp (CHMSL) |
| 5 | Tail Lamp - Right |
| 6 | Object Alarm Sensor - RR Outer |
| 7 | Object Alarm Sensor - RR Middle |
| 8 | License Lamp |
| 9 | Object Alarm Sensor - LR Middle |
| 10 | Object Alarm Sensor - LR Outer |
| 11 | Tail Lamp - Left |
| 12 | Remote Control Door Lock Receiver (RCDLR) |
| Callout | Component Name |
|---|---|

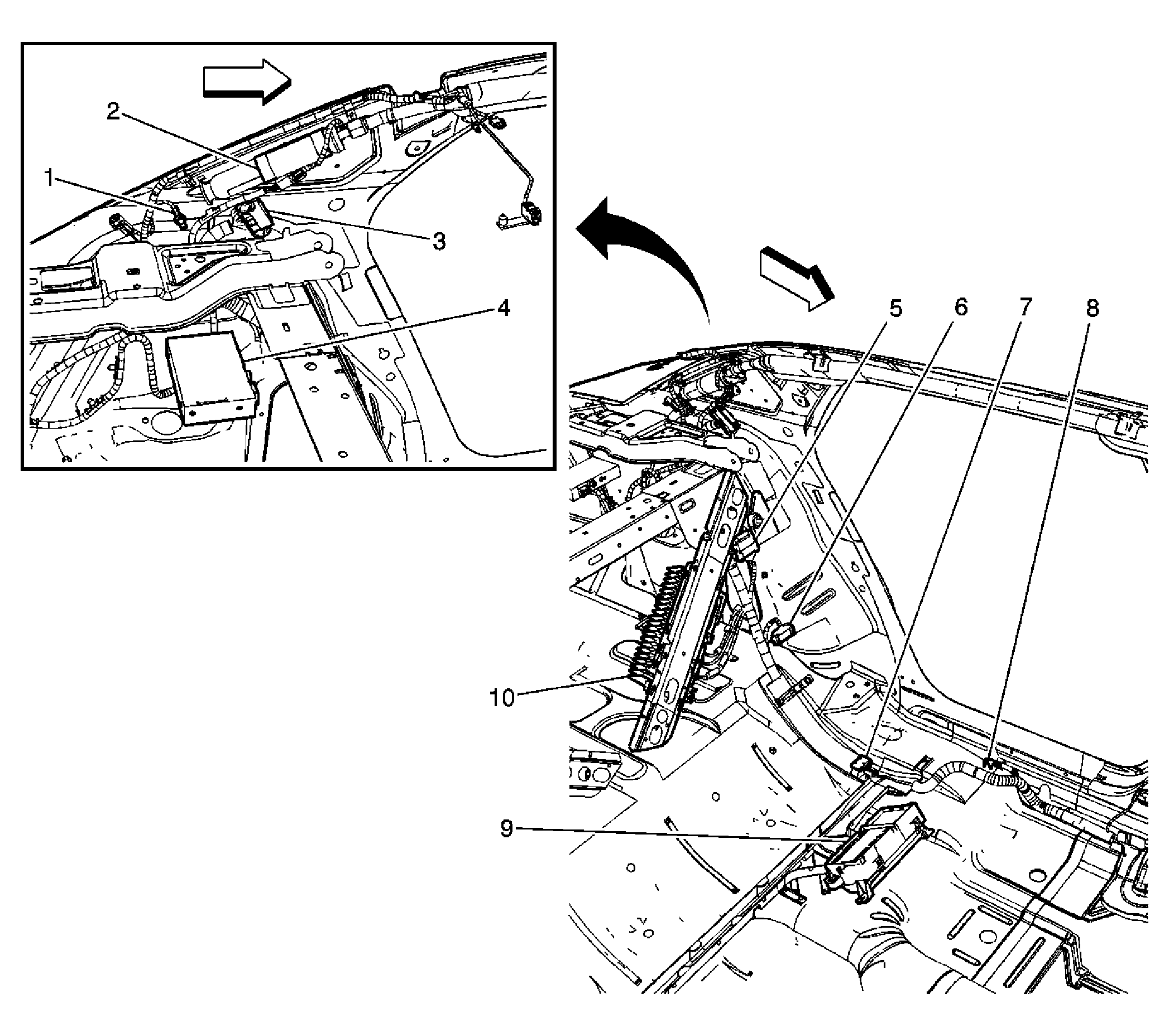

| 1 | G306 |
| 2 | Inflatable Restraint Roof Rail Module - Left |
| 3 | C321 Body Harness to Headliner Harness |
| 4 | Traffic Information Receiver |
| 5 | C445 Body Harness to Rear Shelf Harness |
| 6 | C313 Body Harness to LR Seat Harness |
| 7 | Splice Pack SP300 |
| 8 | G301 |
| 9 | Fuse Block - Rear |
| 10 | Audio Amplifier |
