Radio Antenna Module (B9Q)

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

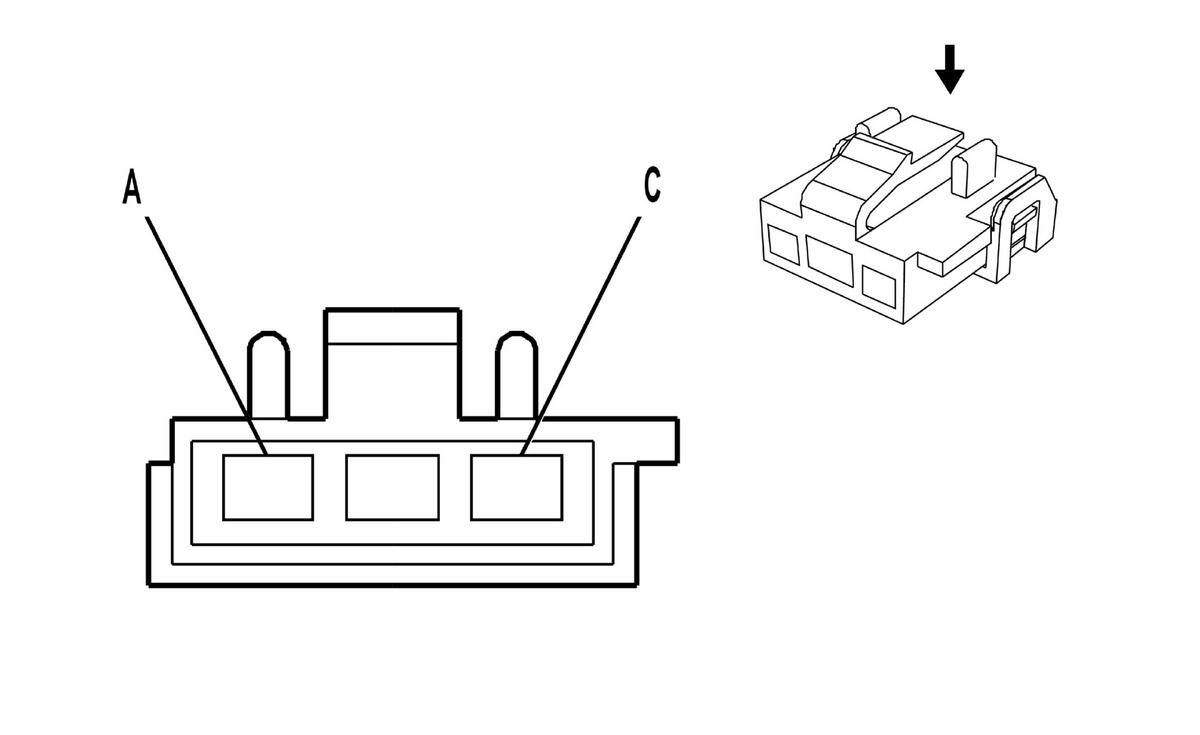

Fig 1: Digital Radio Antenna Module (BQ9) Connector End View

Courtesy of GENERAL MOTORS CORP.

Radio Antenna Module (B9Q) Connector & Terminal Parts Information

Connector Part Information

OEM: 12020013
Service: 12102668
Description: 3-Way F Metri-Pack Mixed Series (GY)

Terminal Part Information

Pins: A, C
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pins: B
Terminal/Tray: 12015860/4
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-40 (BU)

Radio Antenna Module (B9Q) Terminal Identification

Pin	Wire Color	Circuit No.	Function
A	PK/TN	3240	Battery Positive Voltage
B	PK	5165	Antenna 14-Volt Switched Supply Voltage
C	BK	450	Ground
