Radio C2

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

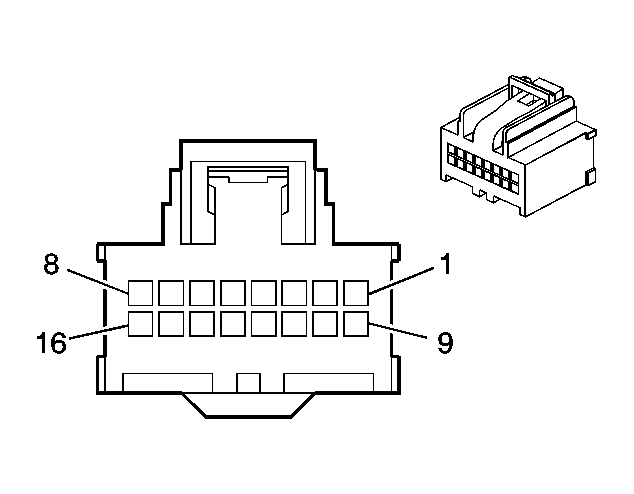

Fig 1: Radio C2 Connector End View

Courtesy of GENERAL MOTORS CORP.

Radio C2 Connector & Terminal Parts Information

Connector Part Information

OEM: 7283-9076-30
Service: 15136073
Description: 16-Way F (BK)

Terminal Part Information

Pins: 1, 2, 3, 5, 6, 7, 8, 9, 10, 11, 13, 14, 15
Terminal/Tray: 7116-4618-02/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)

Radio C2 Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	BN/WH	367	Remote Radio Left Audio Signal
2	GY	388	Remote Radio Right Audio Signal (2)
3	BK/YE	1574	Rear Audio Drain Wire
4	-	-	Not Used
5	BN/WH	599	Left Rear Low Level Audio Signal
6	D-BU	546	Right Rear Low Level Audio Signal
7	OG/BK	1406	Remote Playback Device Left Audio Signal
8	PU	2334	Amplifier Control
9	TN/WH	372	Remote Radio Audio (-)
10	D-GN/WH	368	Remote Radio Right Audio Signal (1)
11	BK/TN	1705	Drain Wire
12	-	-	Not Used
13	BN	1999	Left Rear Low Level Audio (-)
14	TN/RD	1946	Right Rear Low Level Audio (-)
15	L-BU	1405	Remote Playback Device Audio Common Signal
16	-	-	Not Used
