Radio Antenna Module Replacement
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Radio Antenna Module Replacement

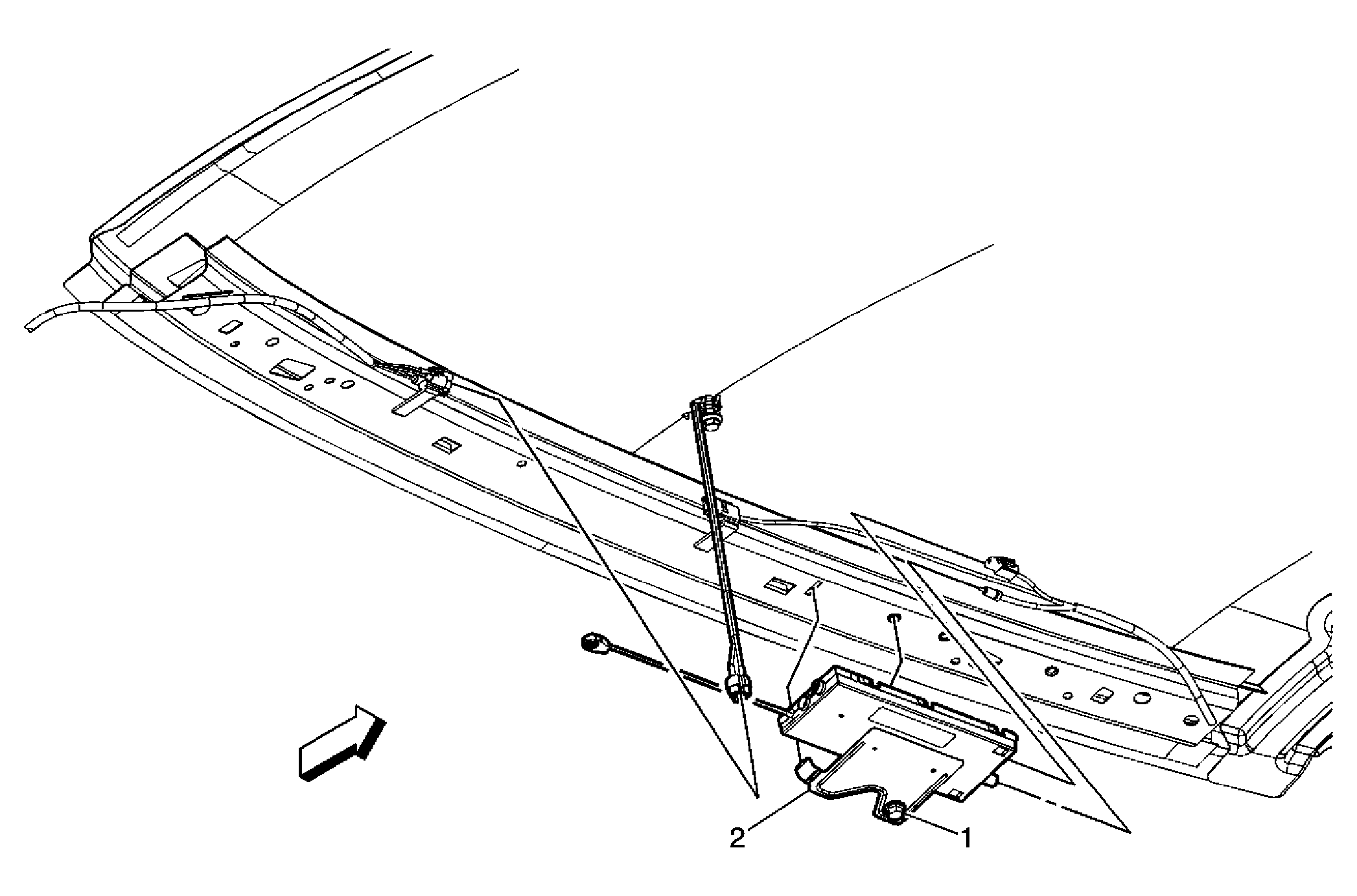

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Lower the headliner. Refer to Headlining Trim Panel Replacement . |
|
| 1 | Radio Antenna Module Bolt
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Radio Antenna Module From Roof Rail Rear Tip: Disconnect the electrical connectors. |
