Door Control Module Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

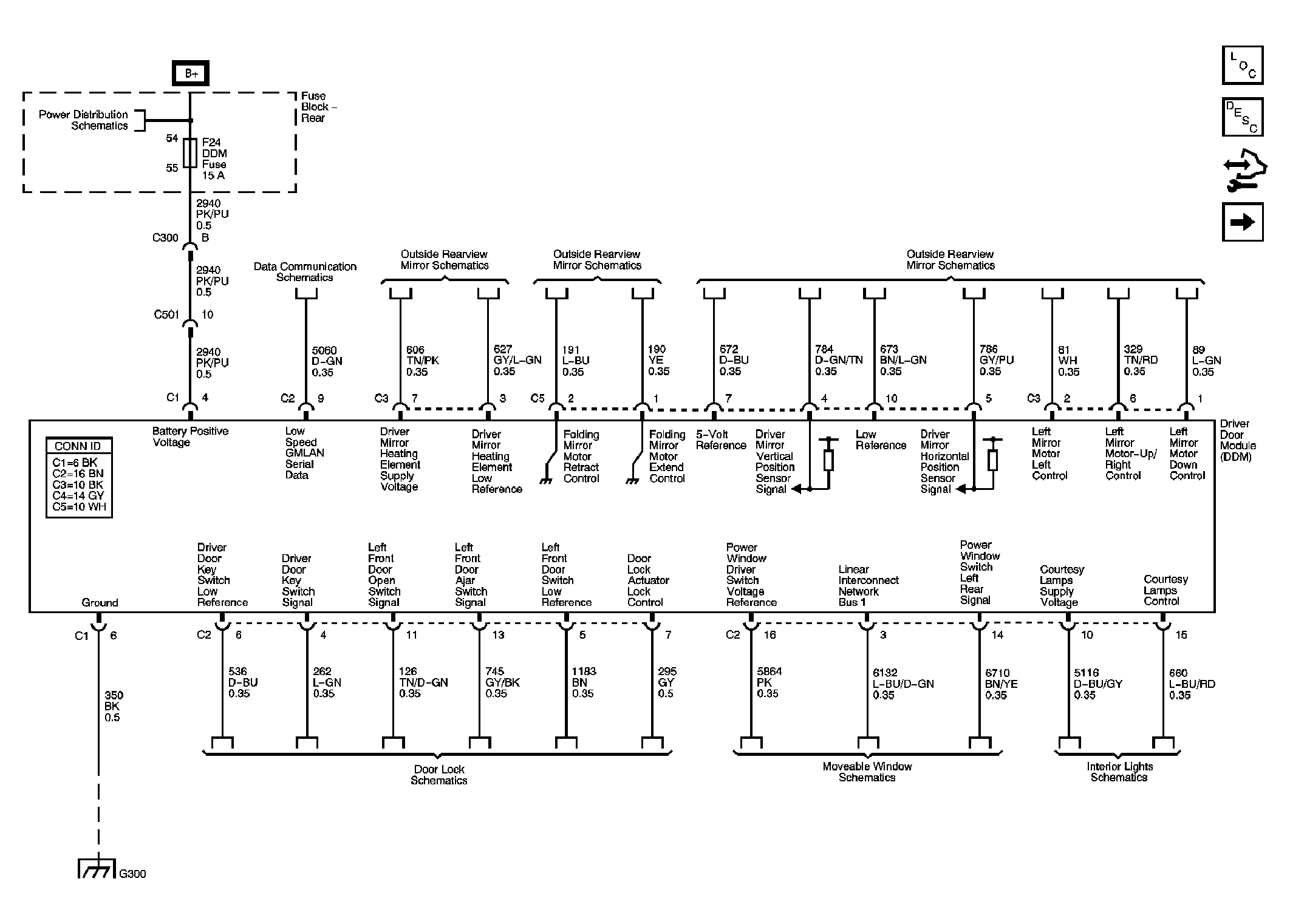

Fig 1: Driver Door Module (DDM) Schematics
GM1758984Courtesy of GENERAL MOTORS CORP.

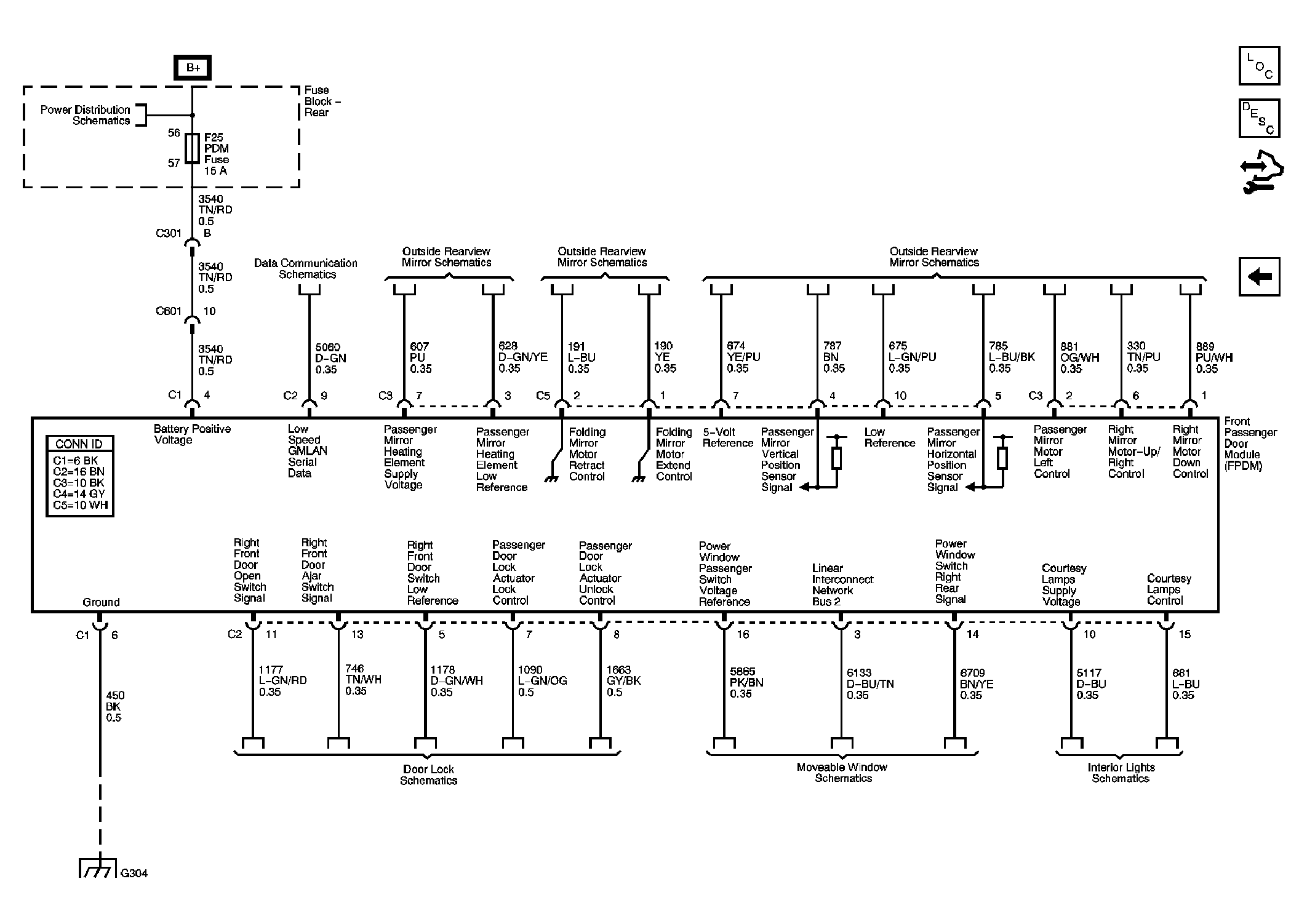

Fig 2: Passenger Door Module (PDM) Schematics
GM1762561Courtesy of GENERAL MOTORS CORP.
