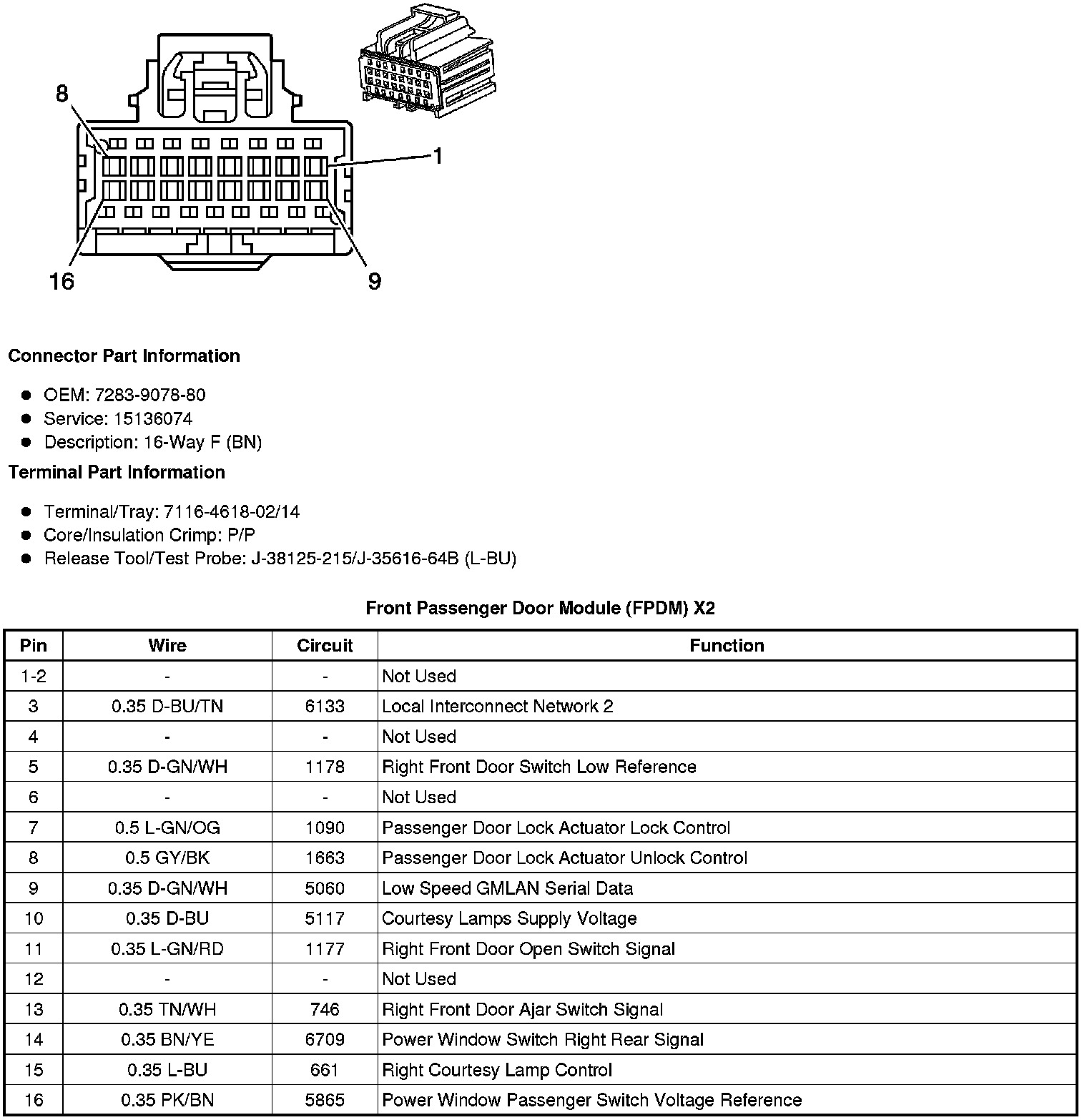

Front Passenger Door Module (FPDM) X2



Component Connector End Views

Front Passenger Door Module (FPDM) X2
