Fuse Block
Electrical Center Identification Views

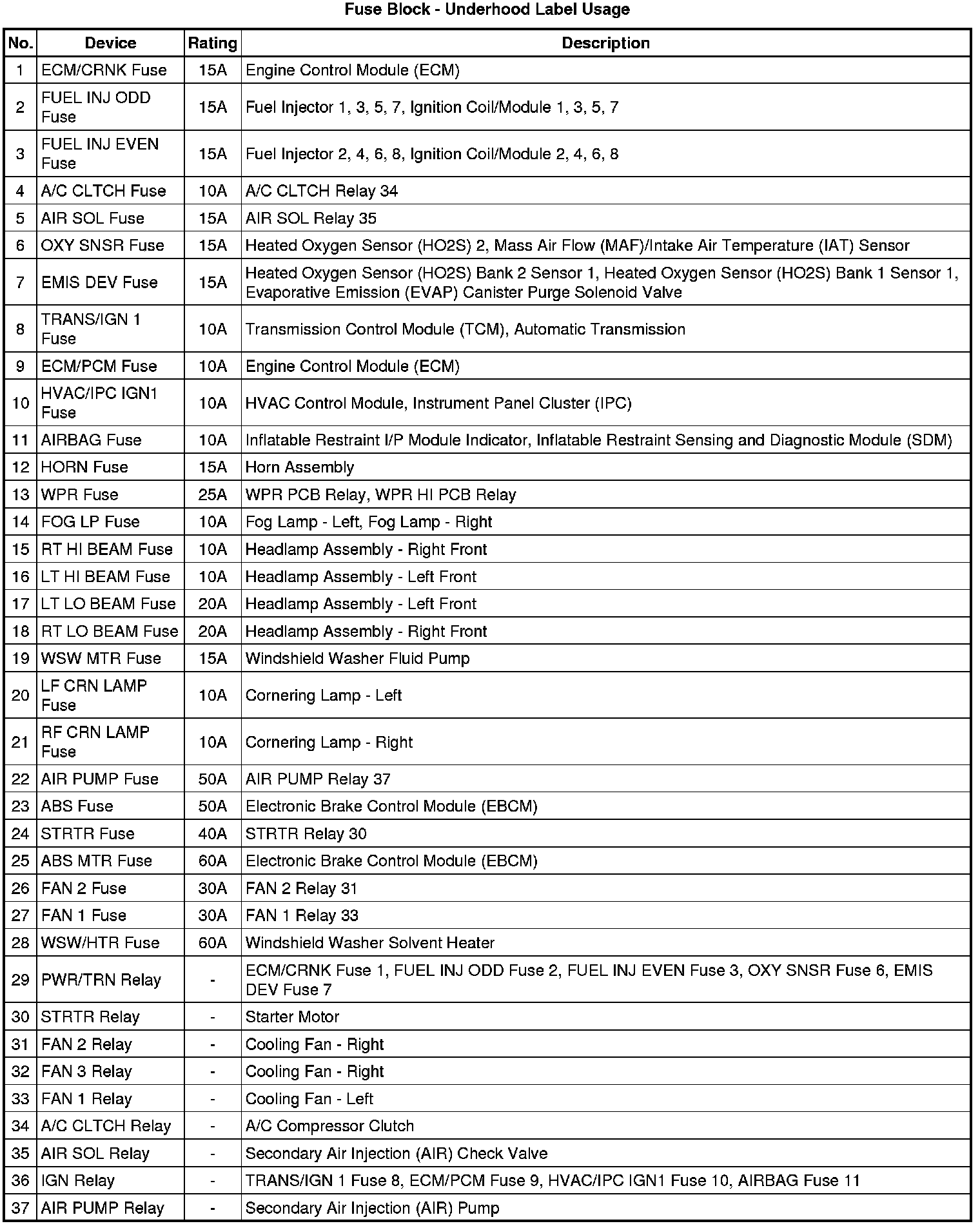

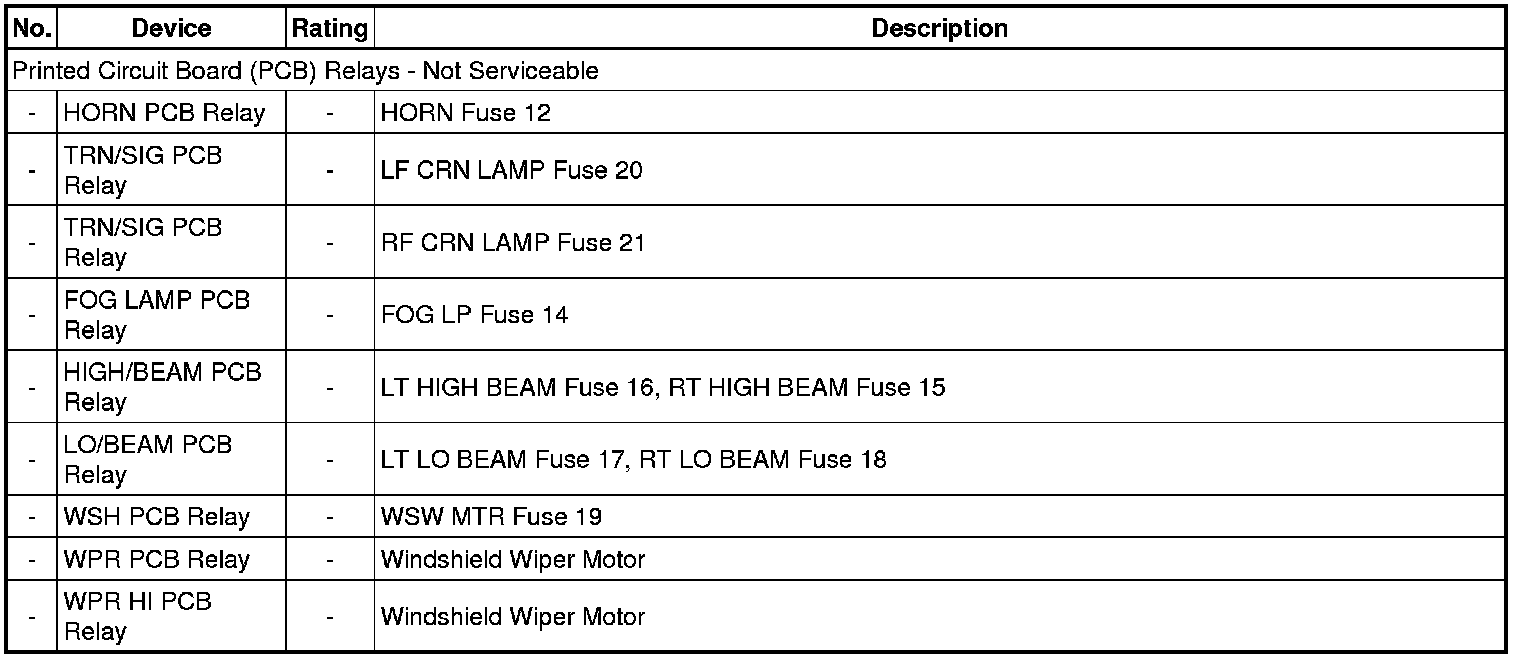

Fuse Block - Underhood Label

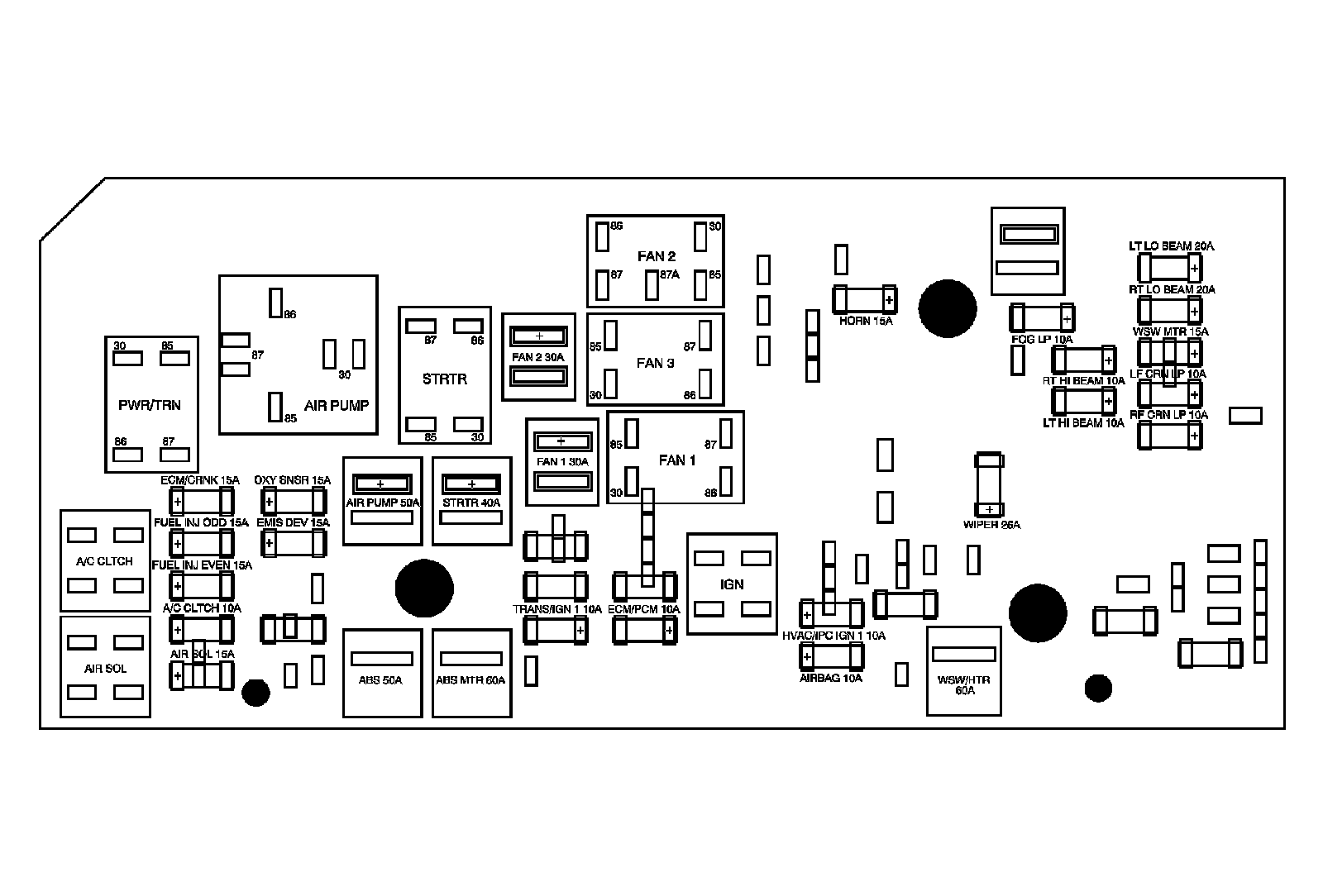

Fuse Block - Underhood Top View

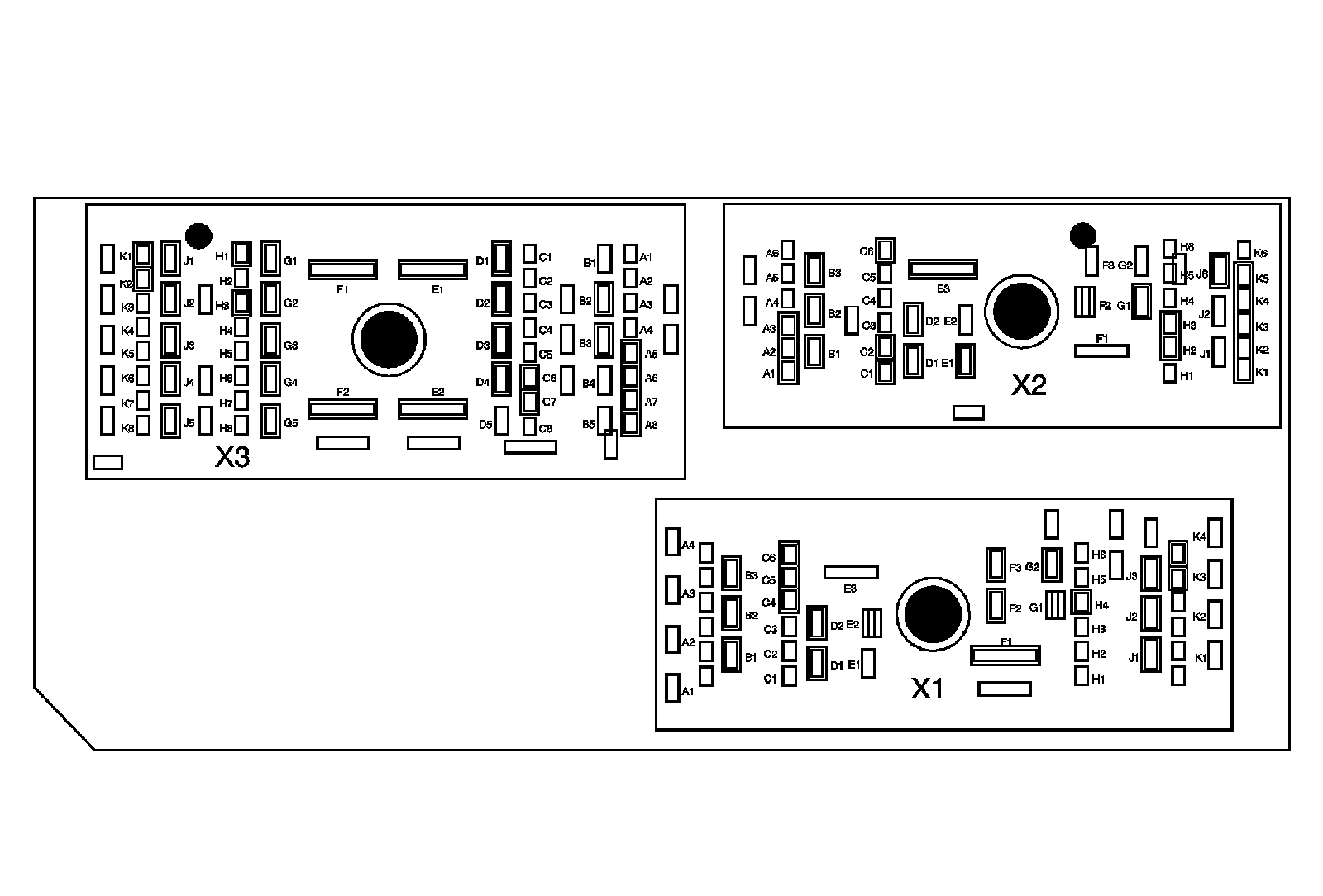

Fuse Block - Underhood Bottom View

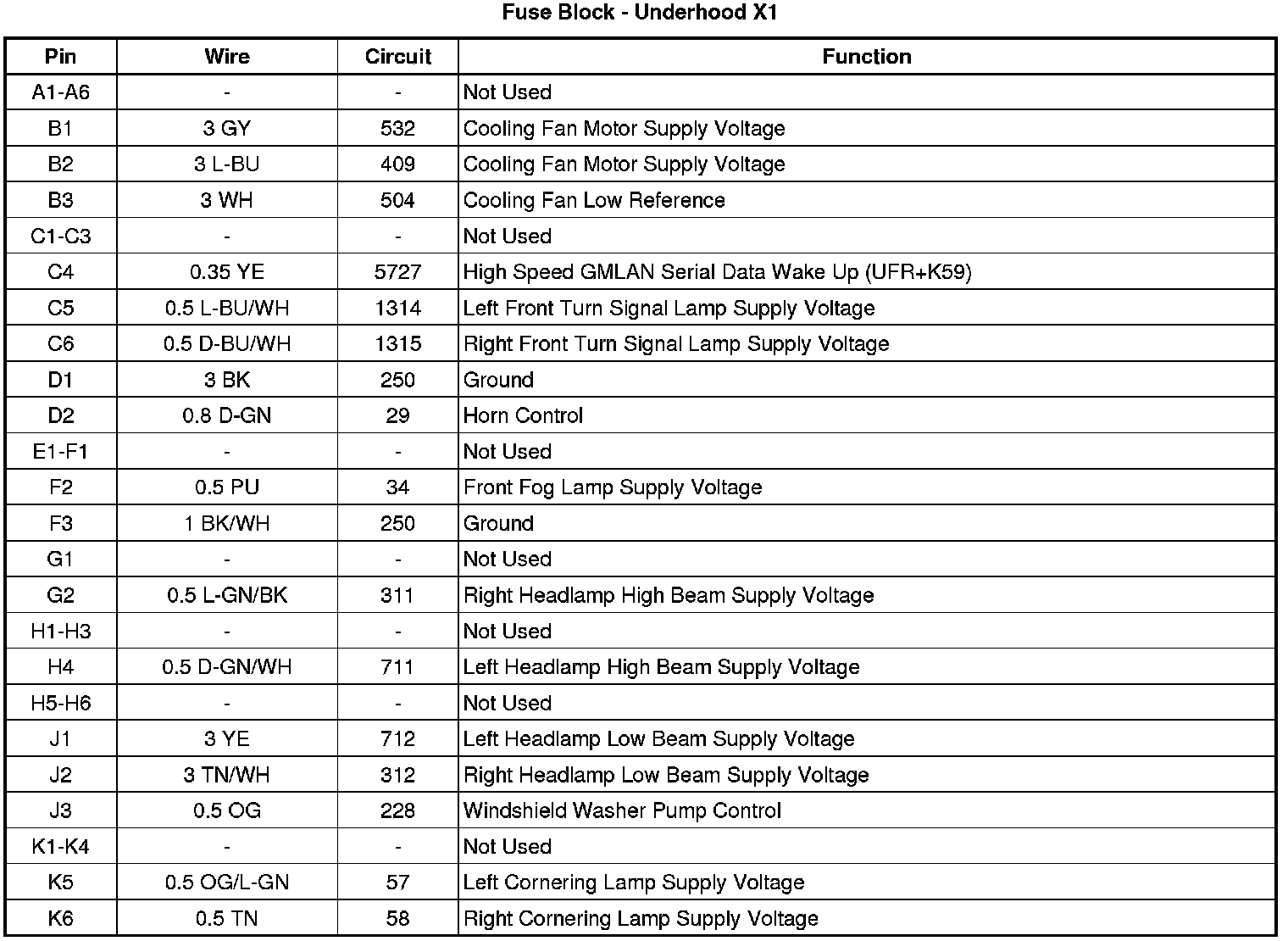

Fuse Block - Underhood X1

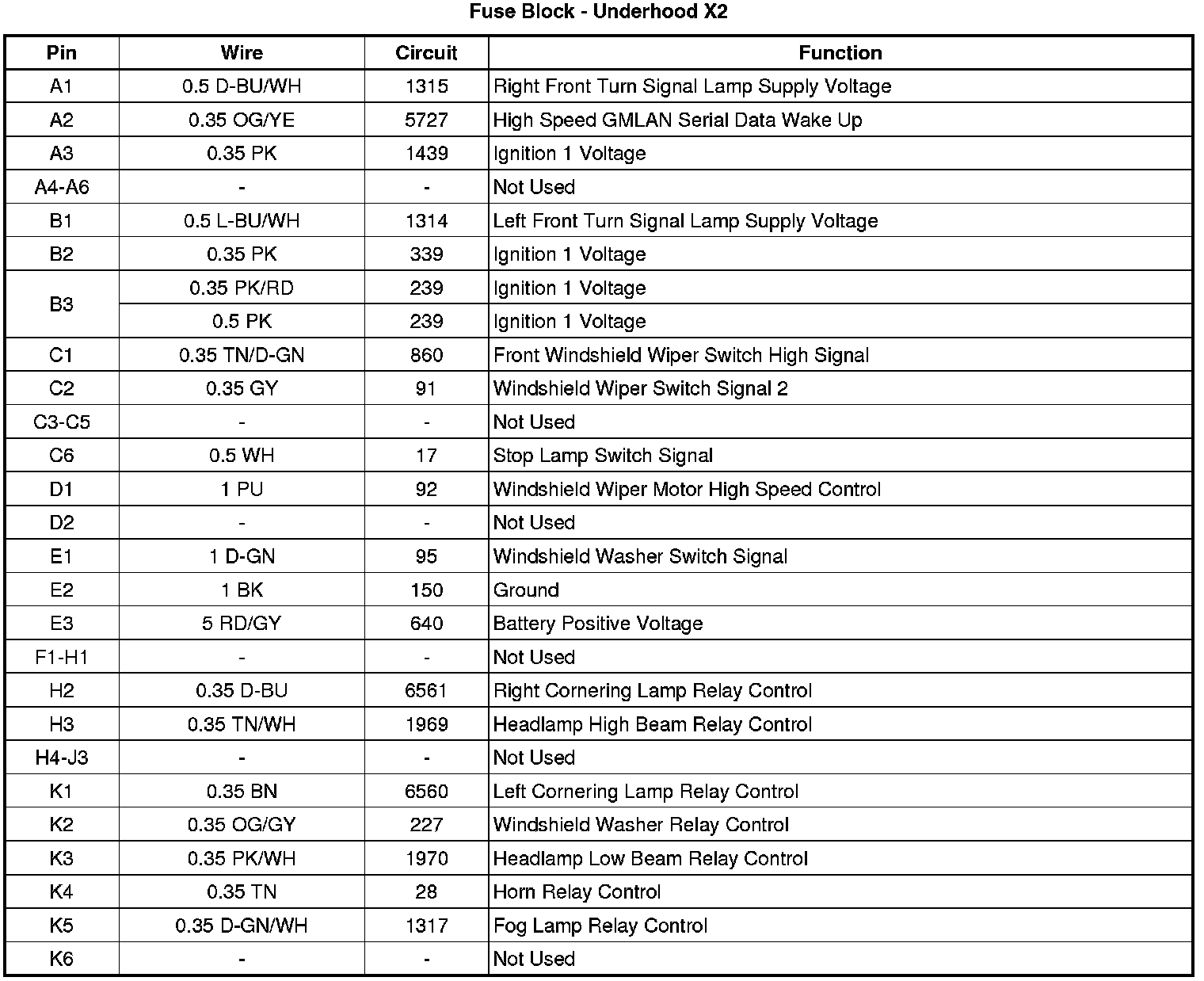

Fuse Block - Underhood X2

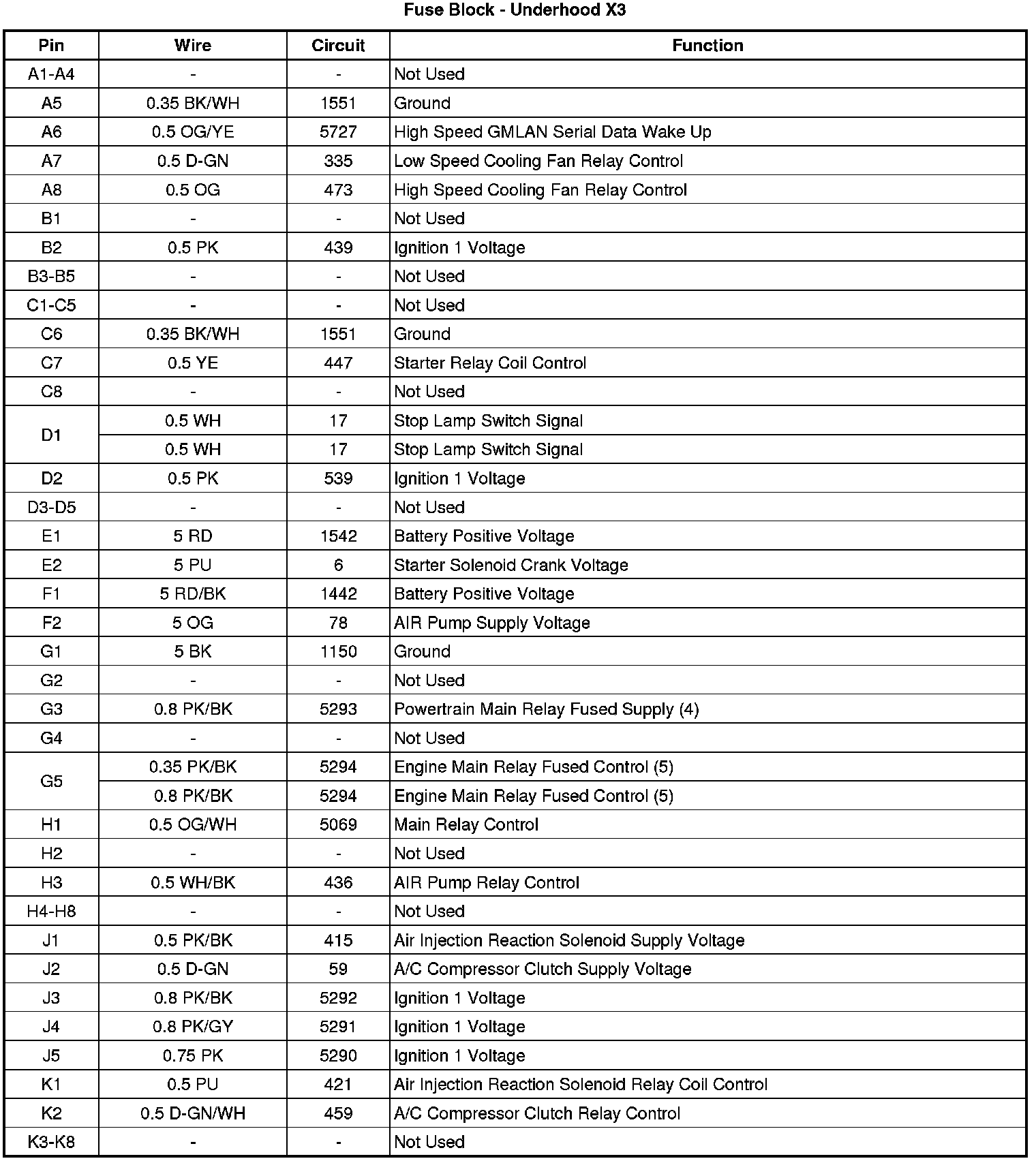

Fuse Block - Underhood X3

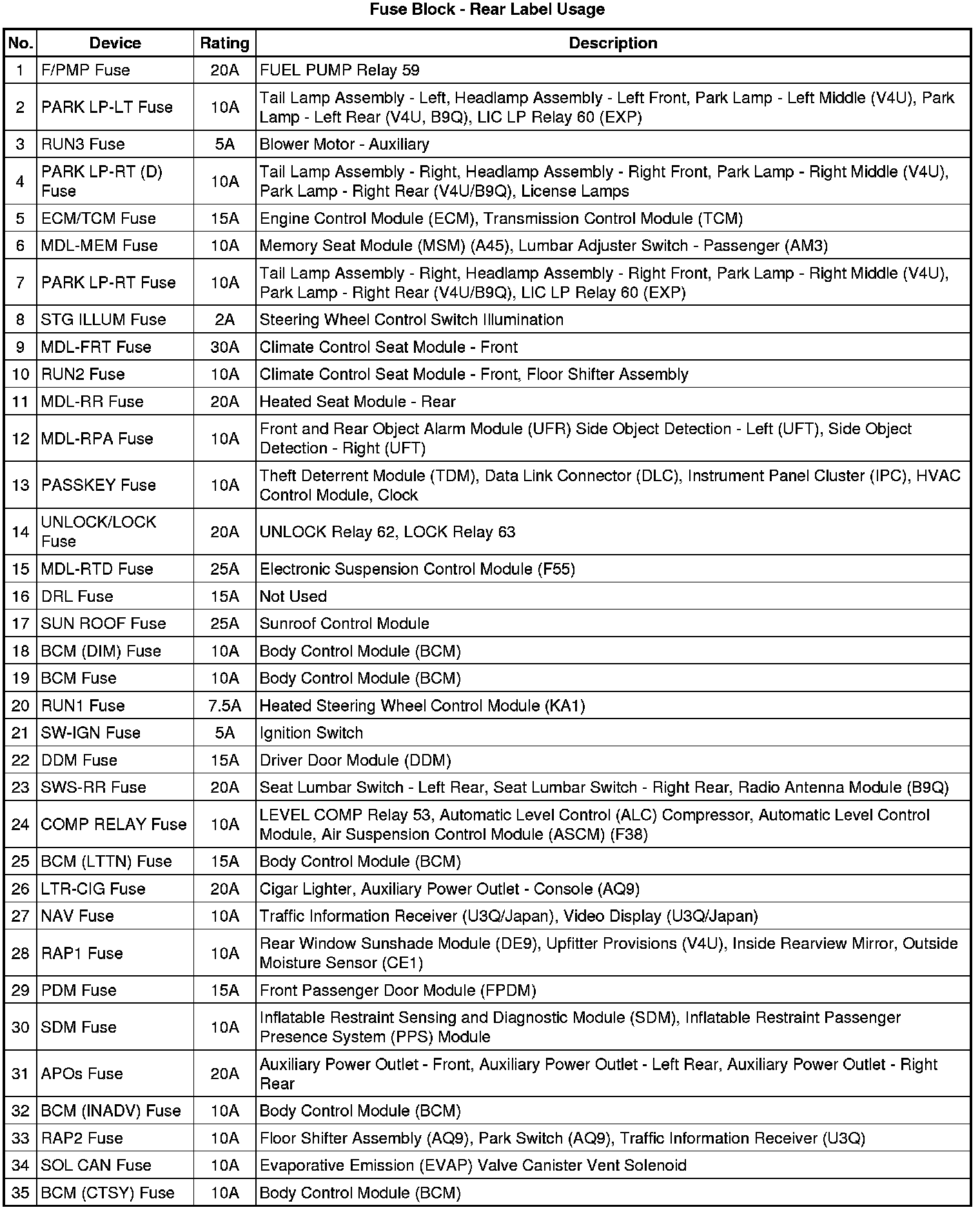

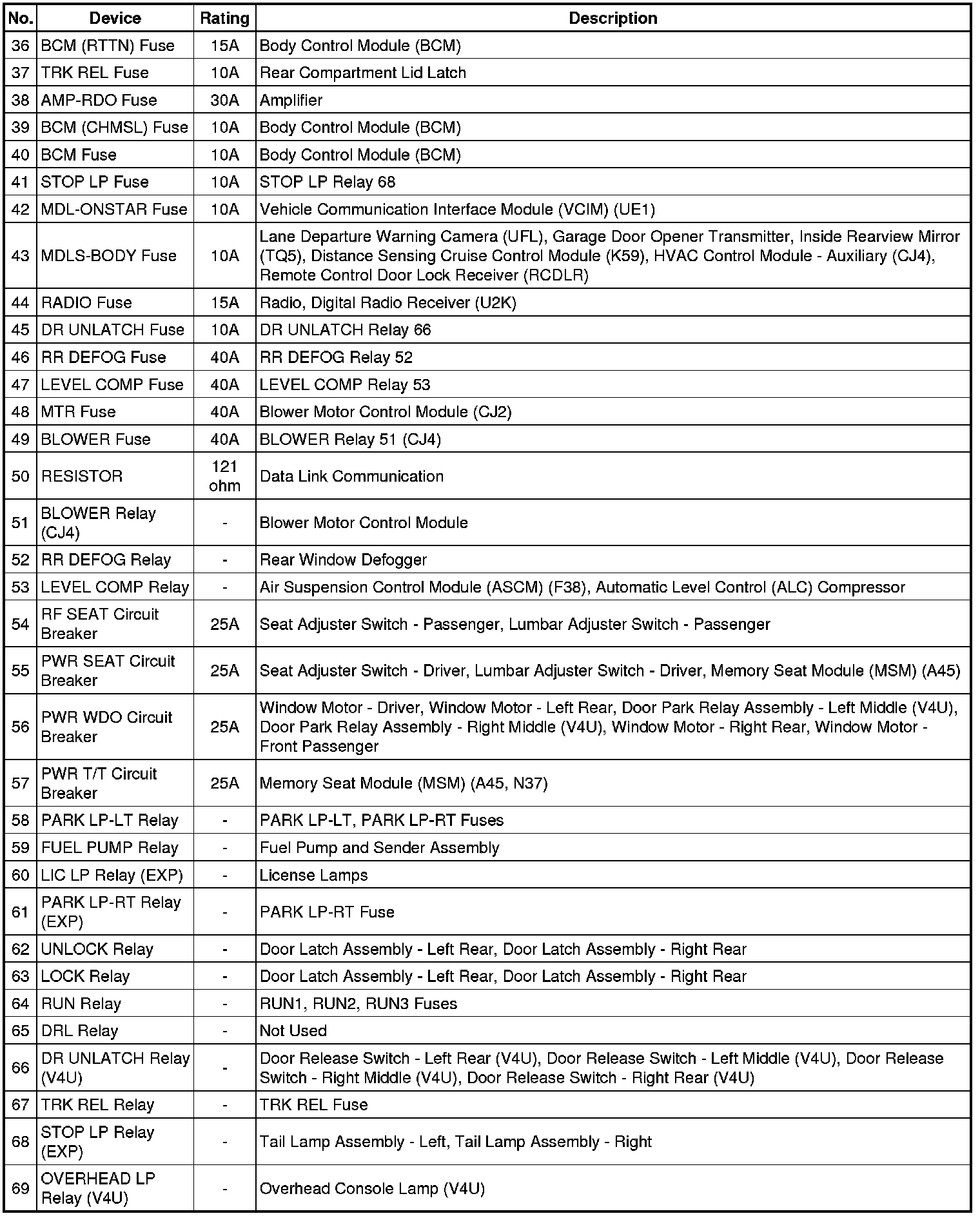

Fuse Block - Rear Label

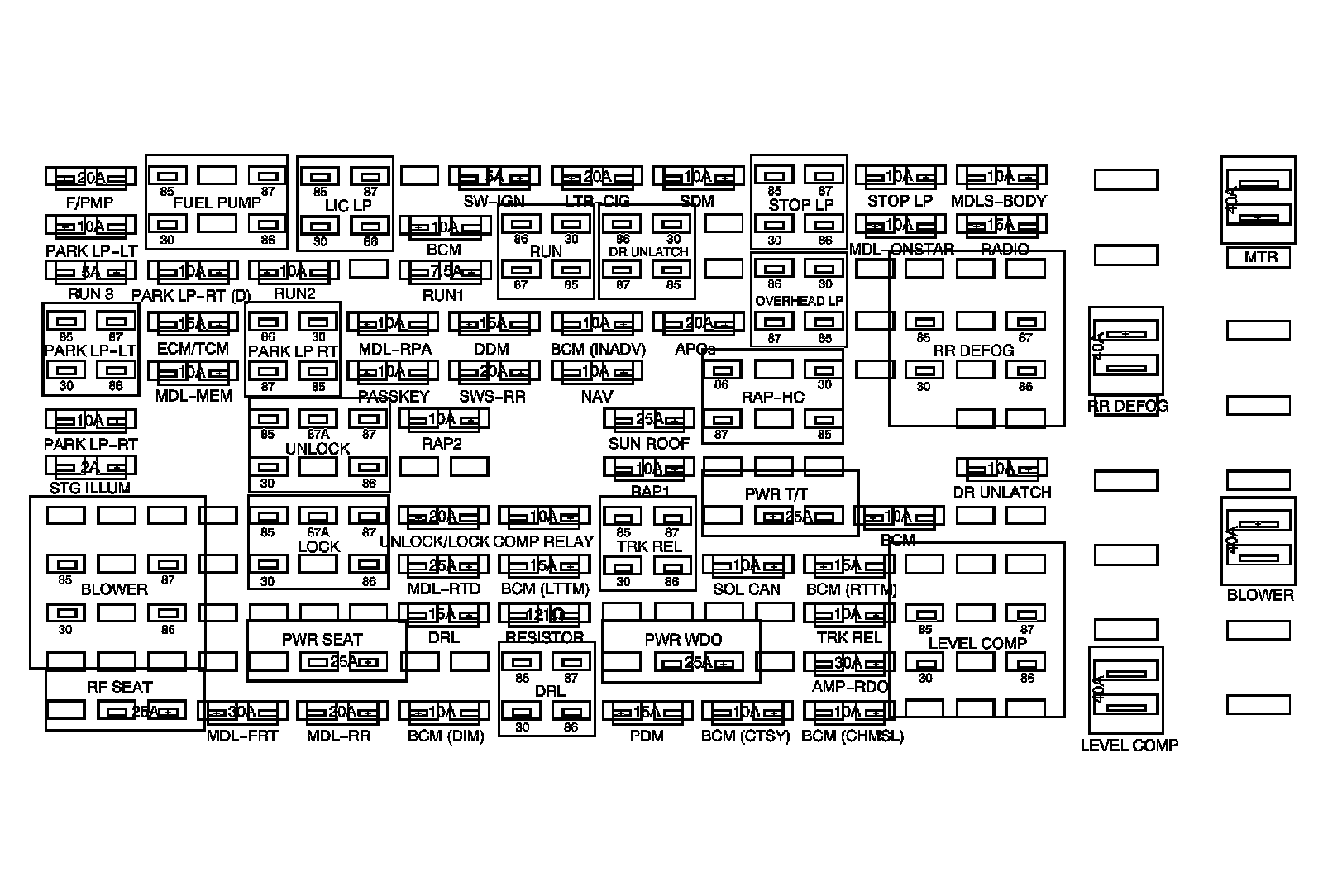

Fuse Block - Rear Top View

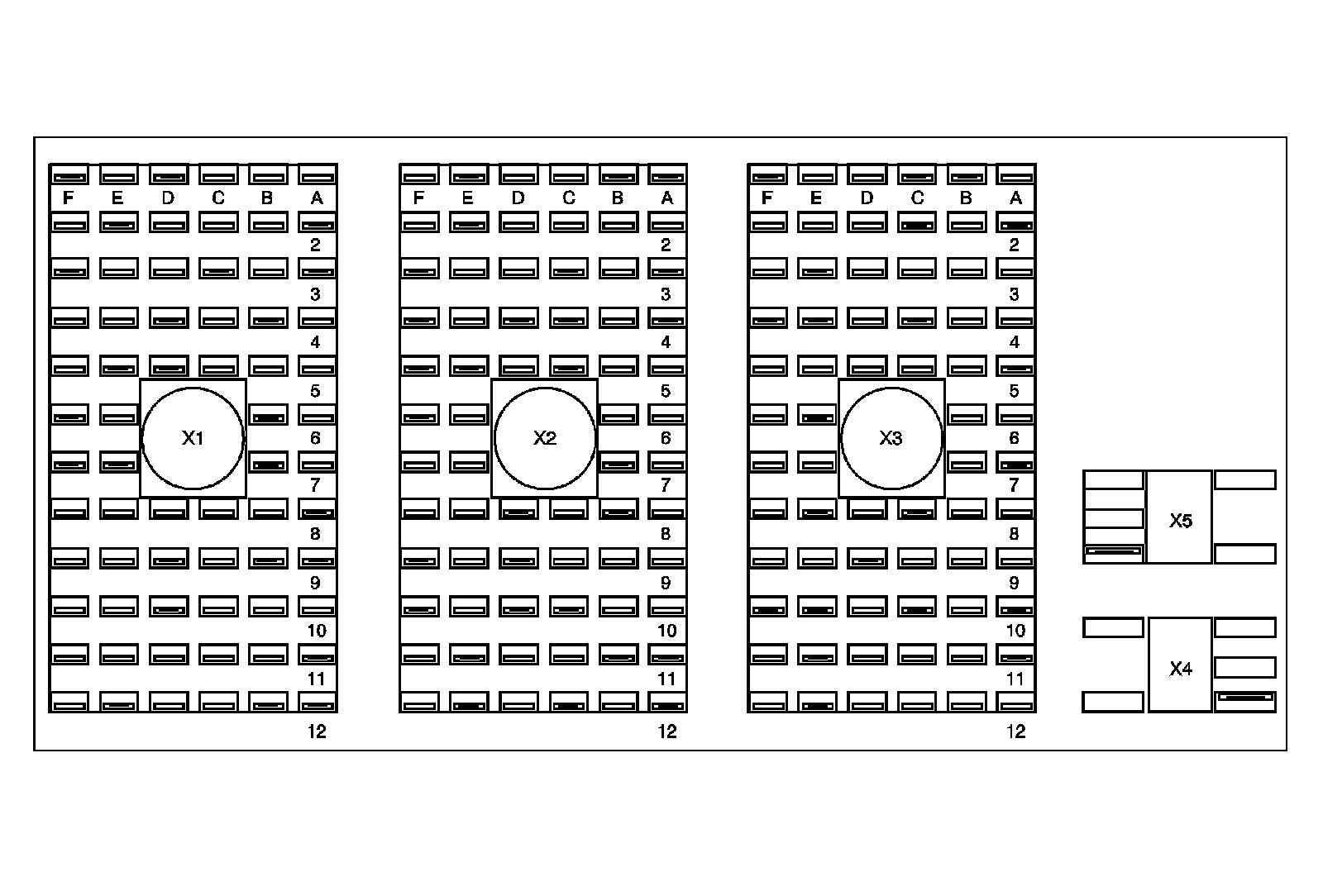

Fuse Block - Rear Bottom View

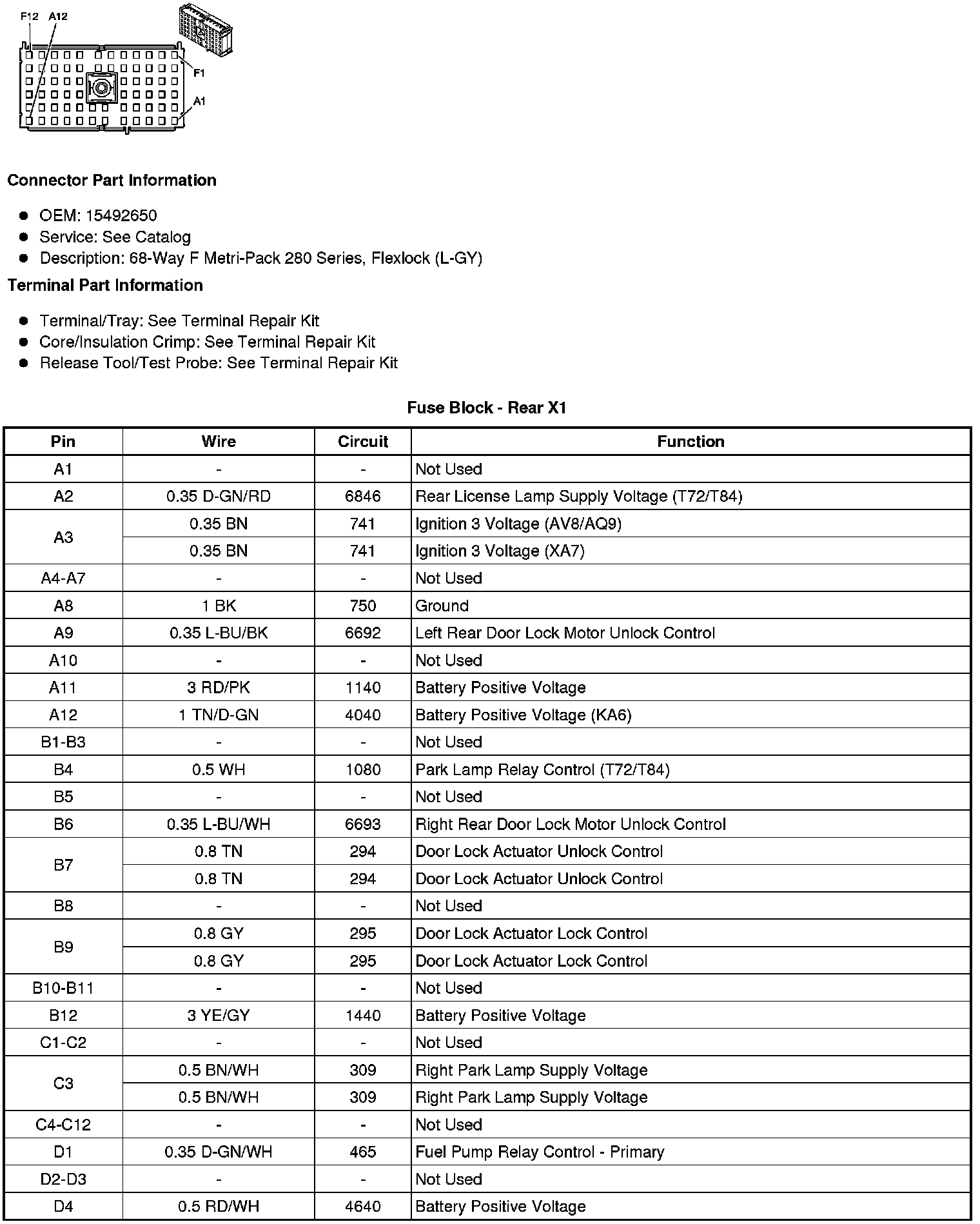

Fuse Block - Rear X1

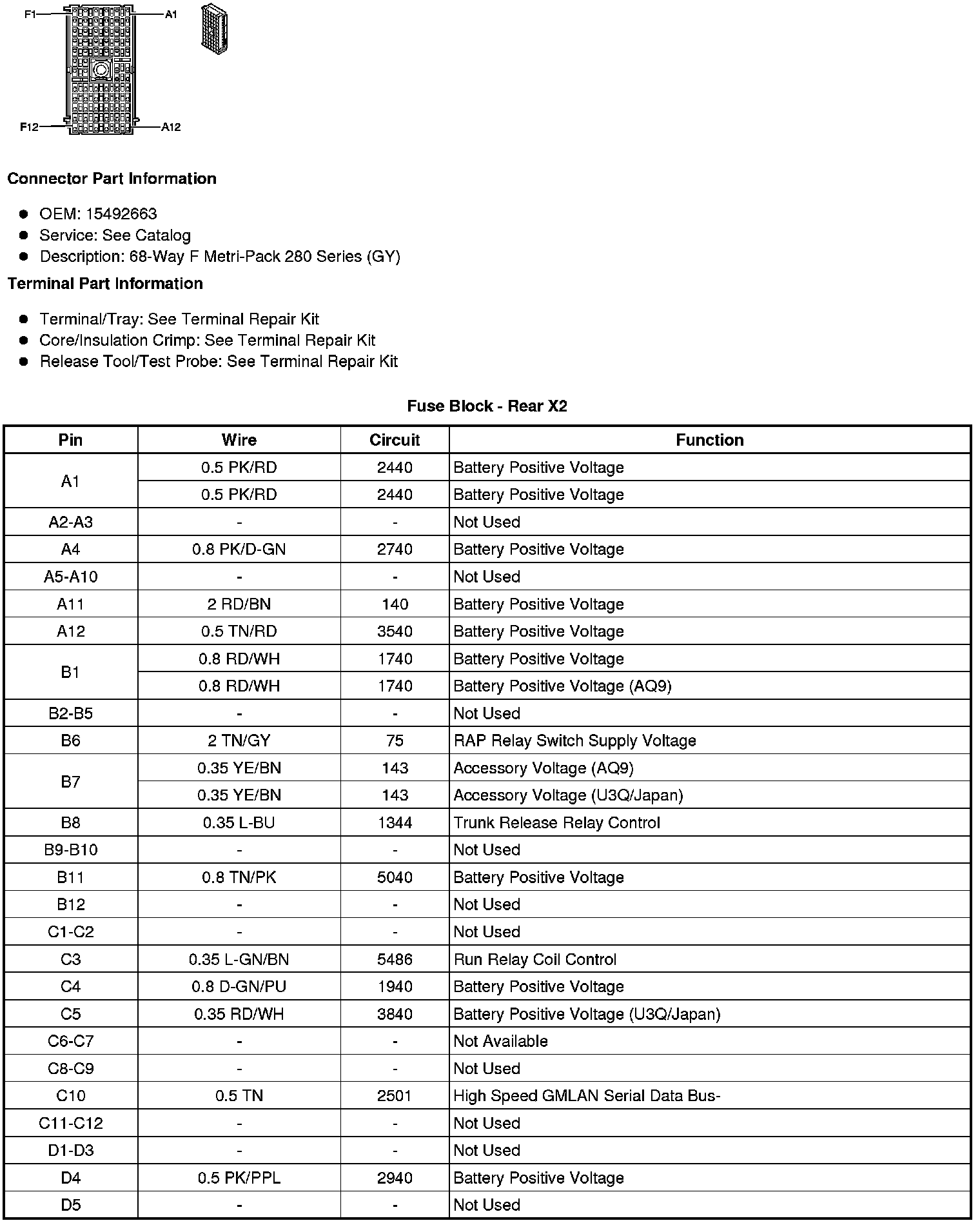

Fuse Block - Rear X2

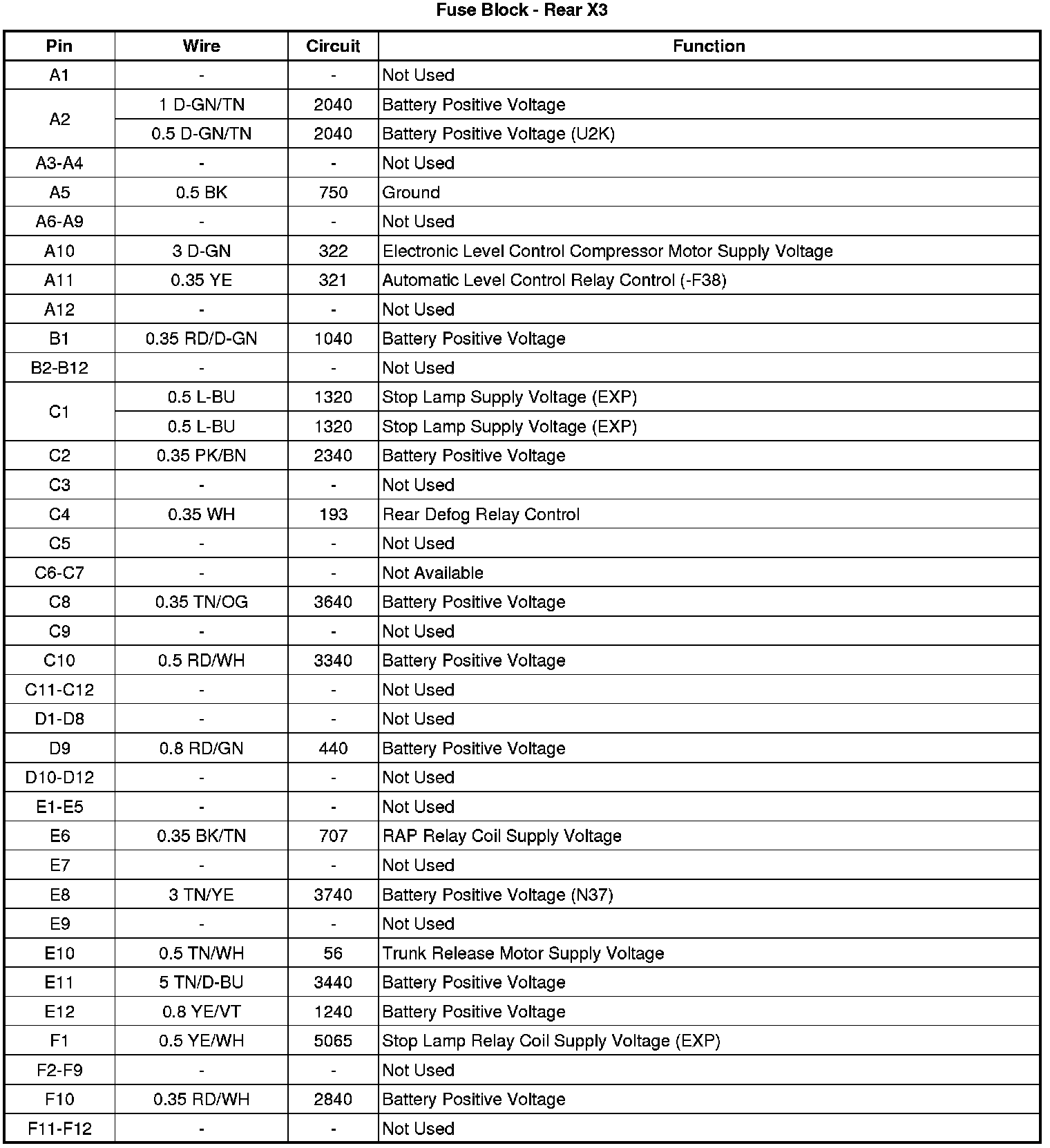

Fuse Block - Rear X3

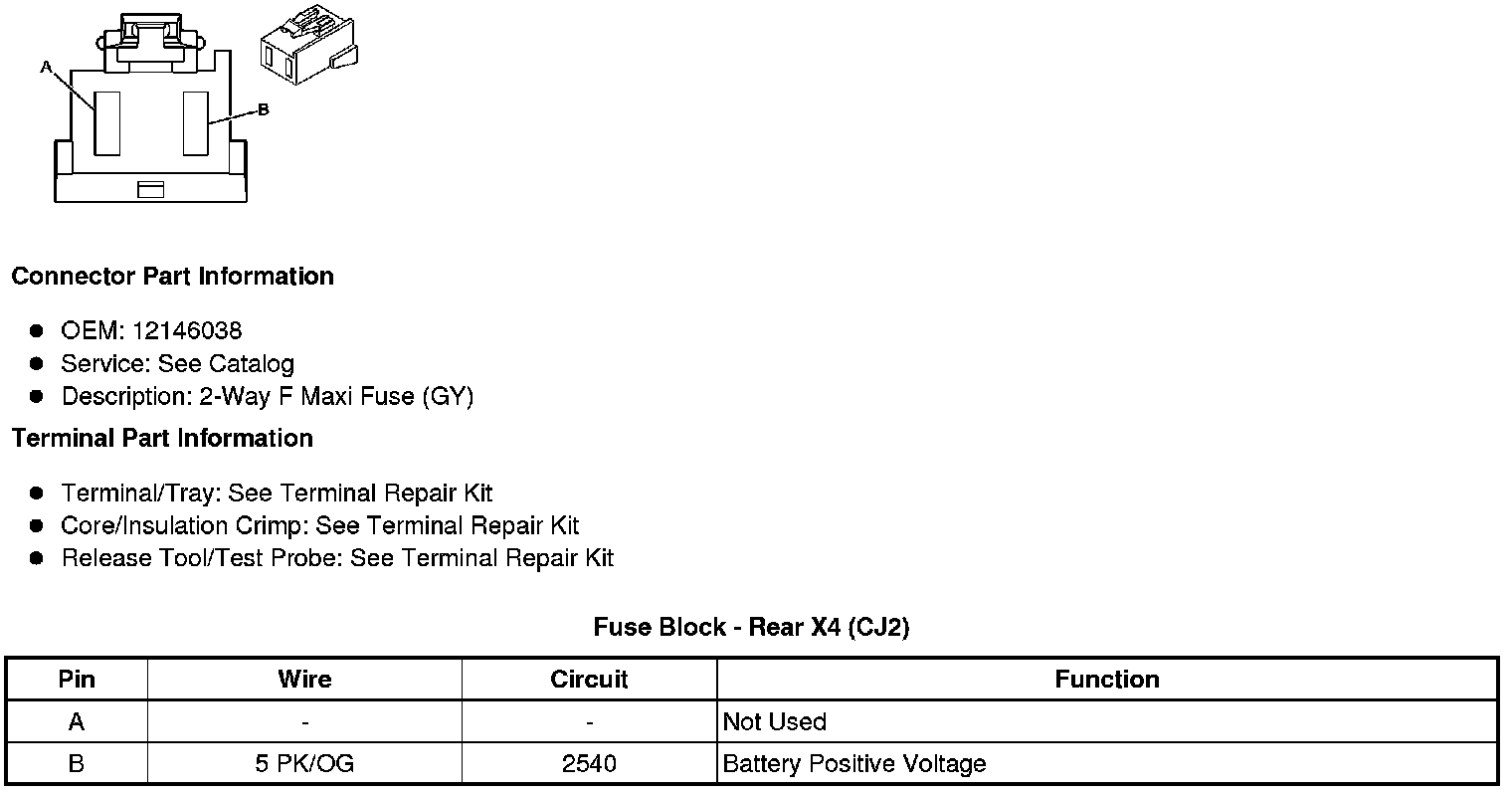

Fuse Block - Rear X4 (CJ2)

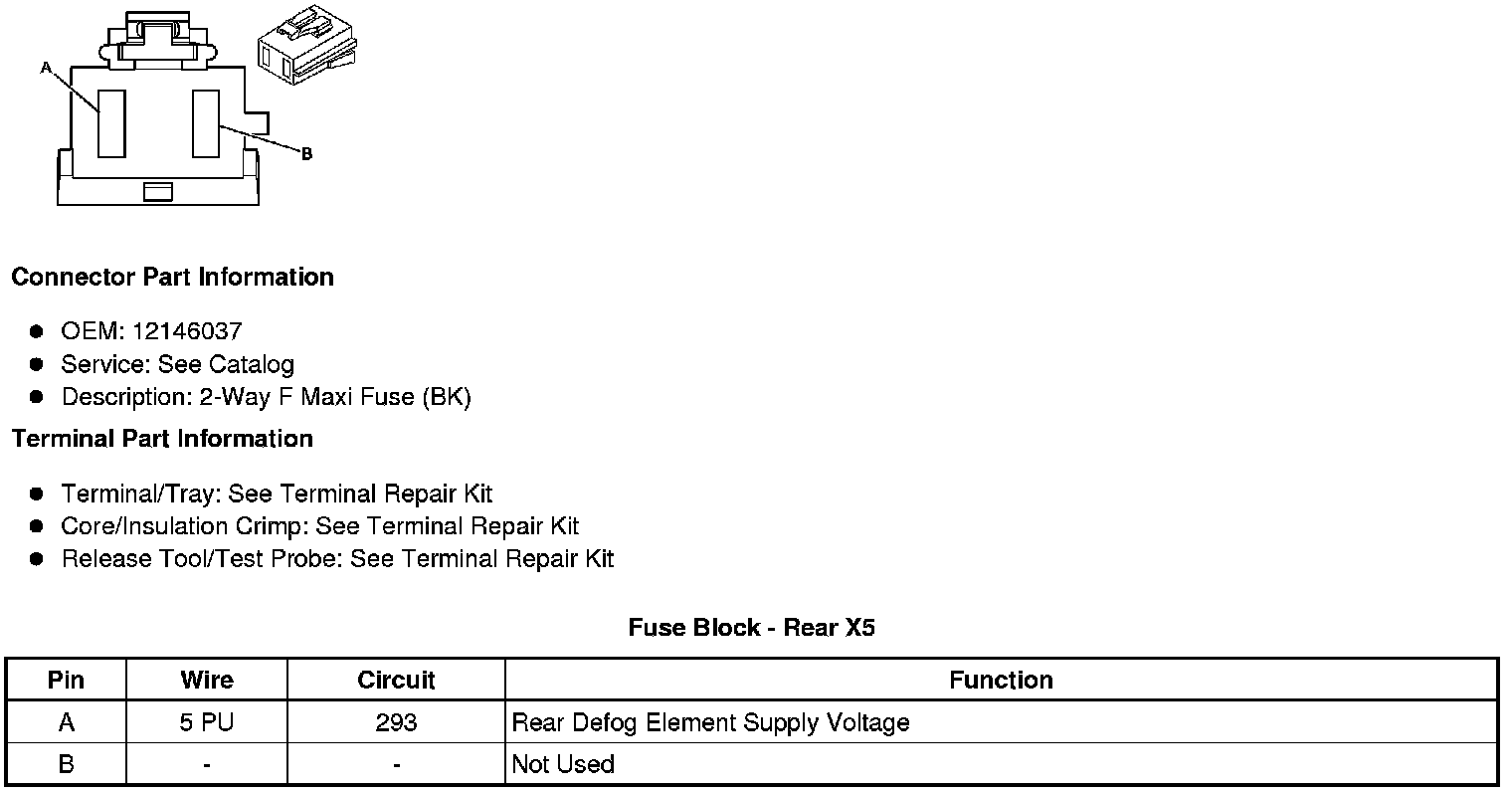

Fuse Block - Rear X5
