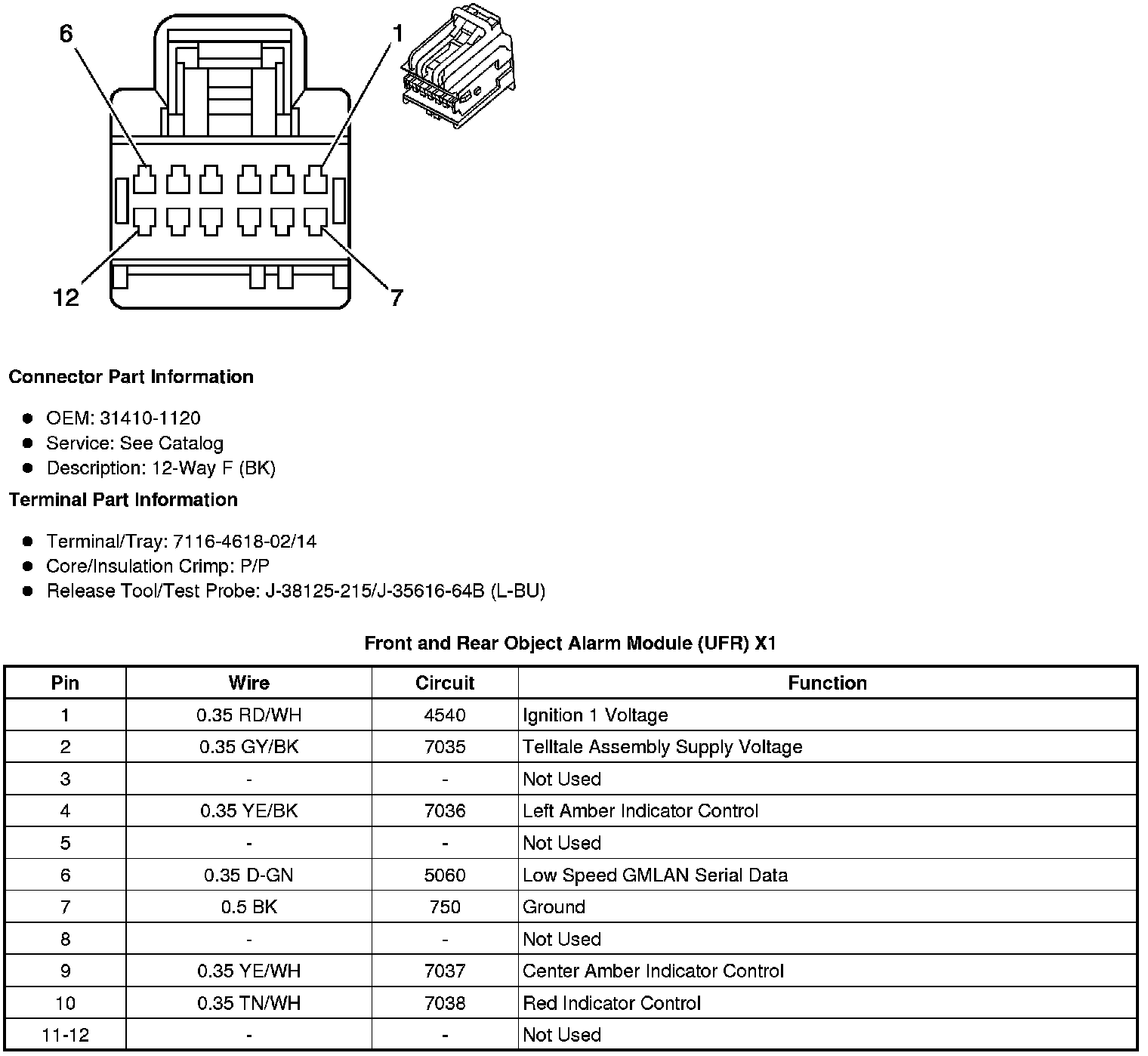

Front and Rear Object Alarm Module (UFR) X1
Component Connector End Views
Front and Rear Object
Alarm Module
(UFR) X1
