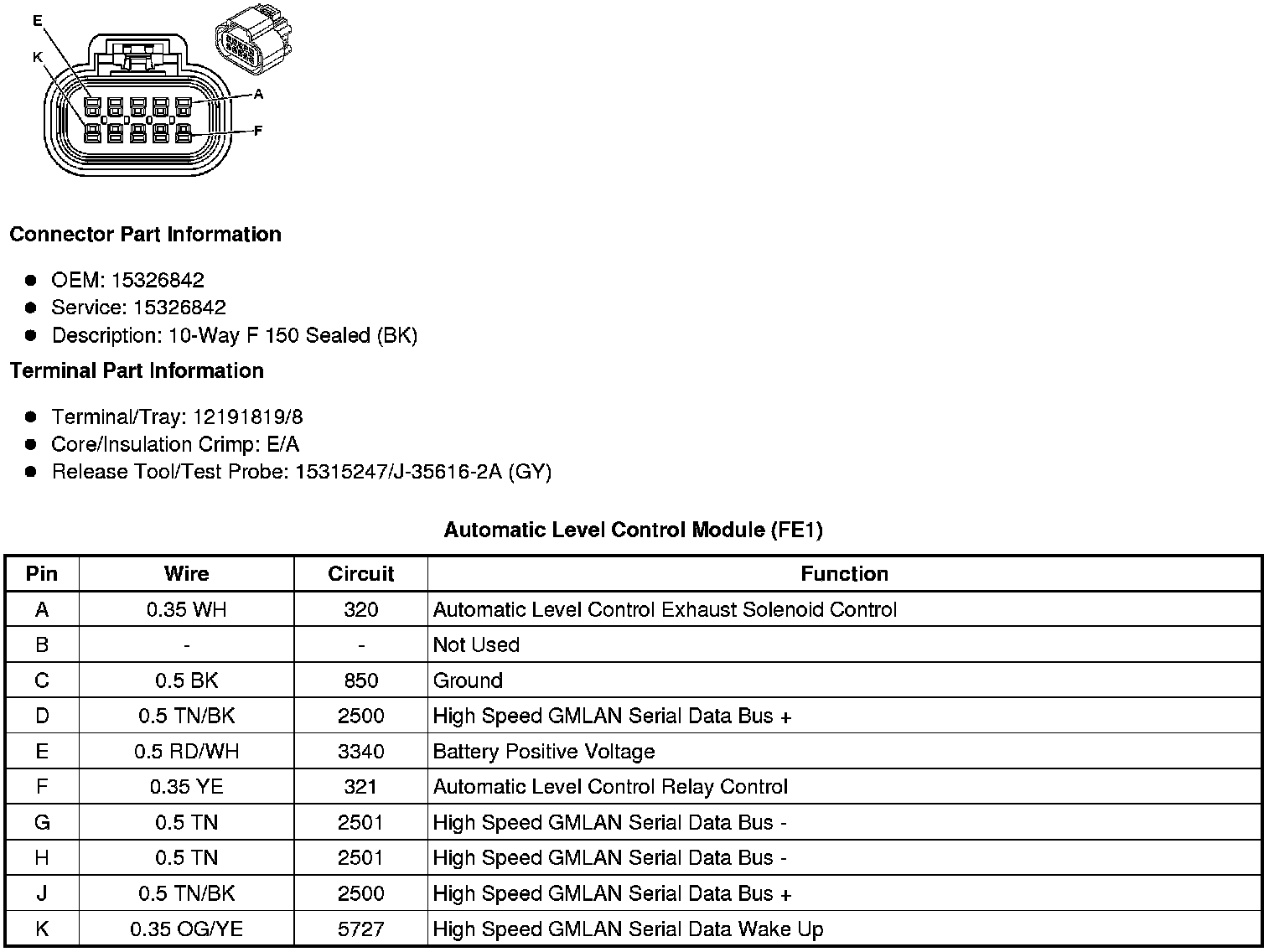

Automatic Level Control Module (FE1)
Component Connector End Views
Automatic Level Control Module (FE1)
