Automatic Volume Control



Component Connector End Views - Continued

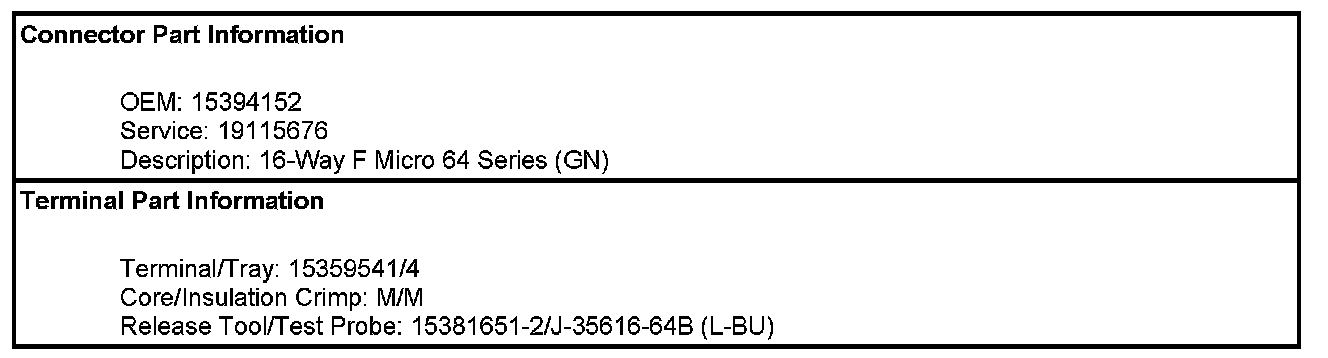

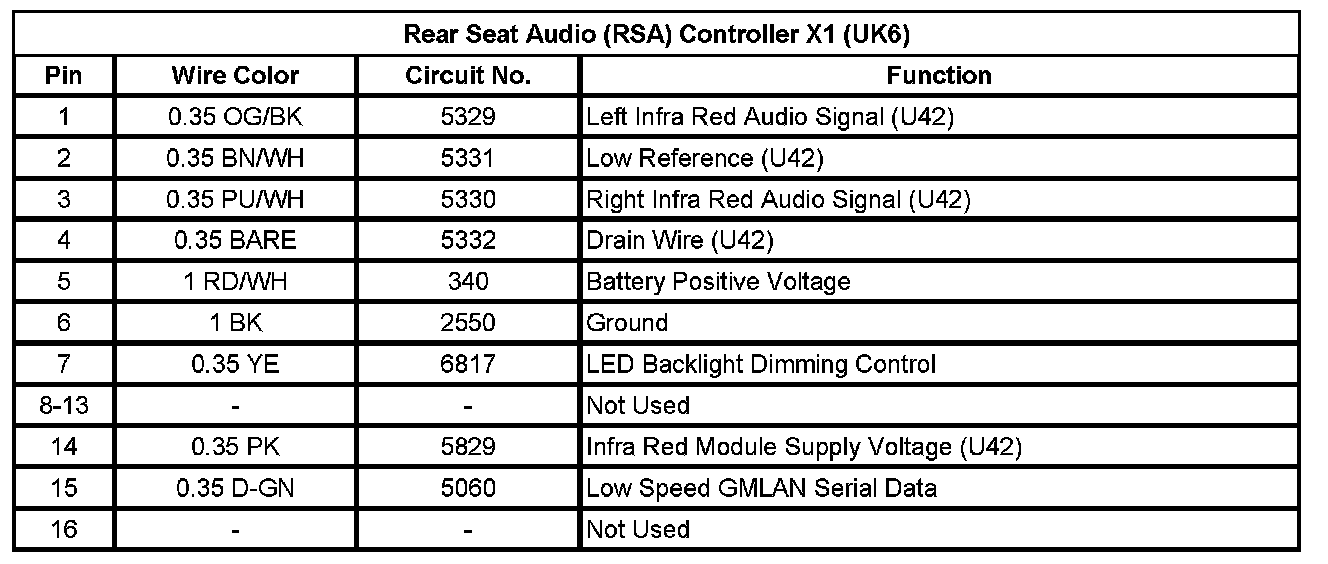

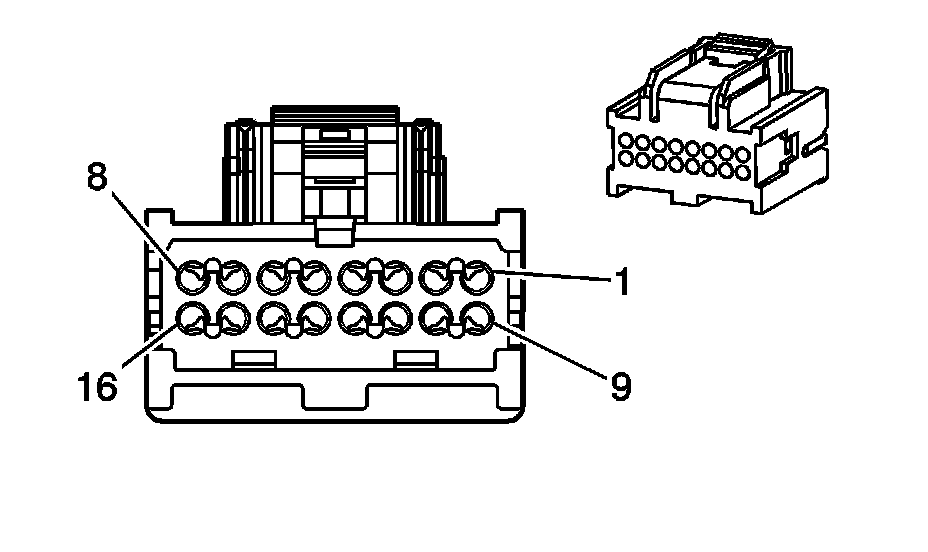

Rear Seat Audio (RSA) Controller X1 (UK6)

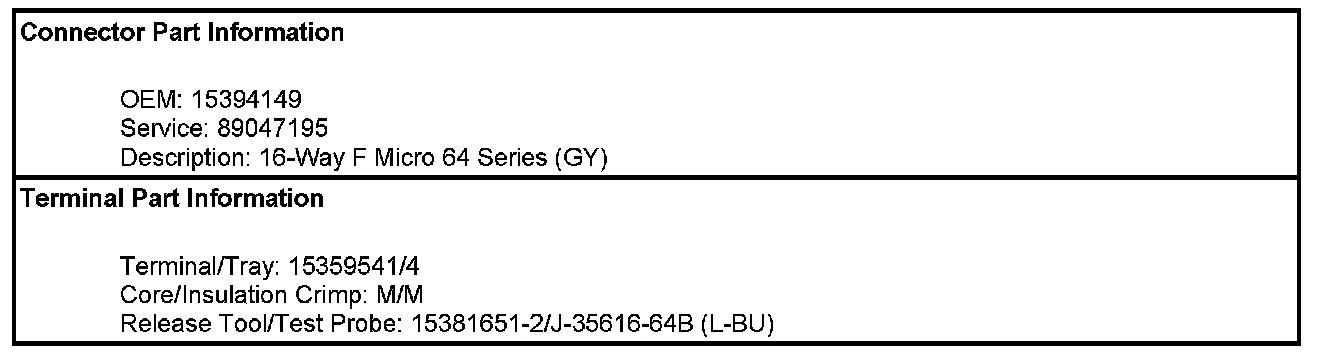

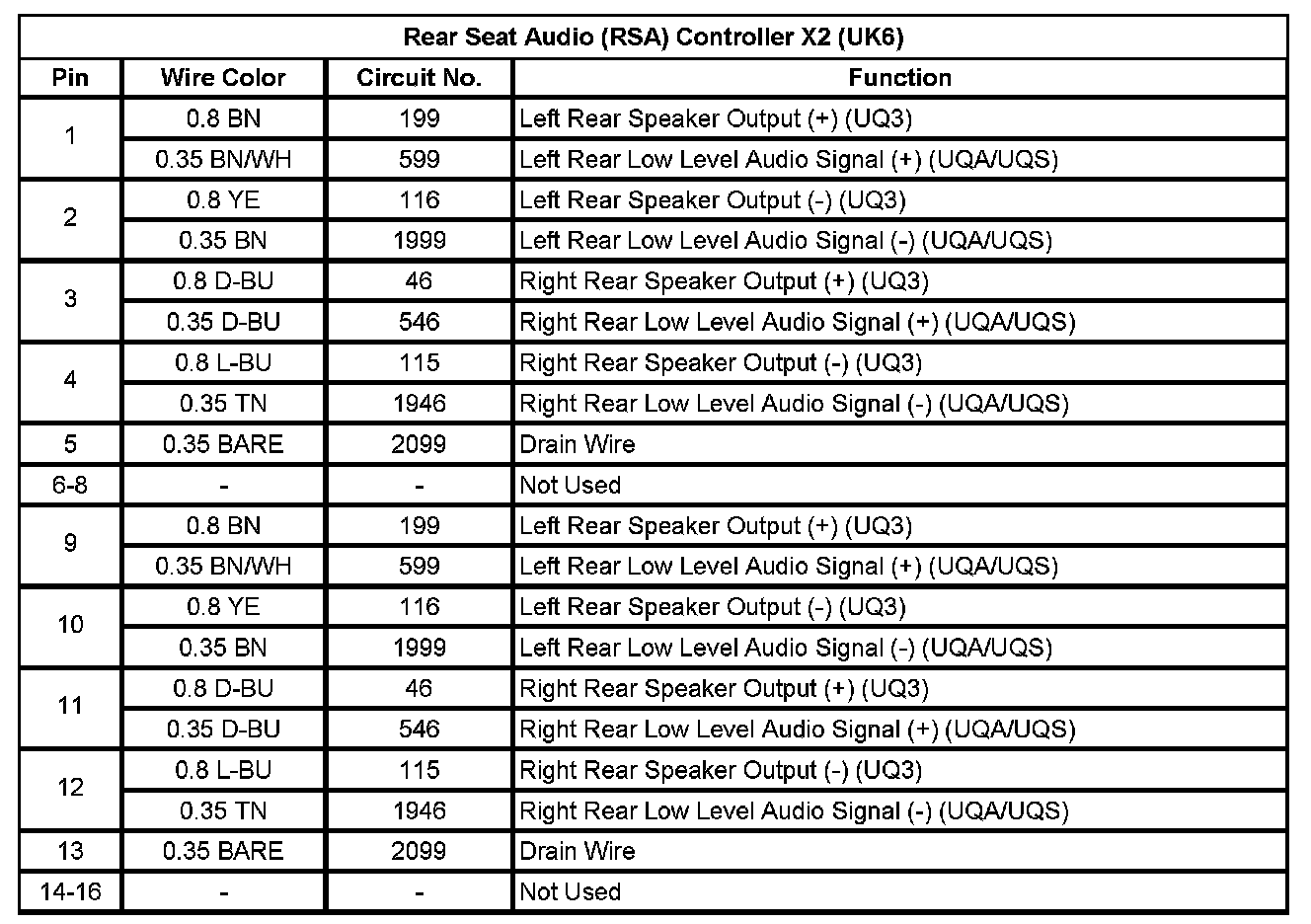

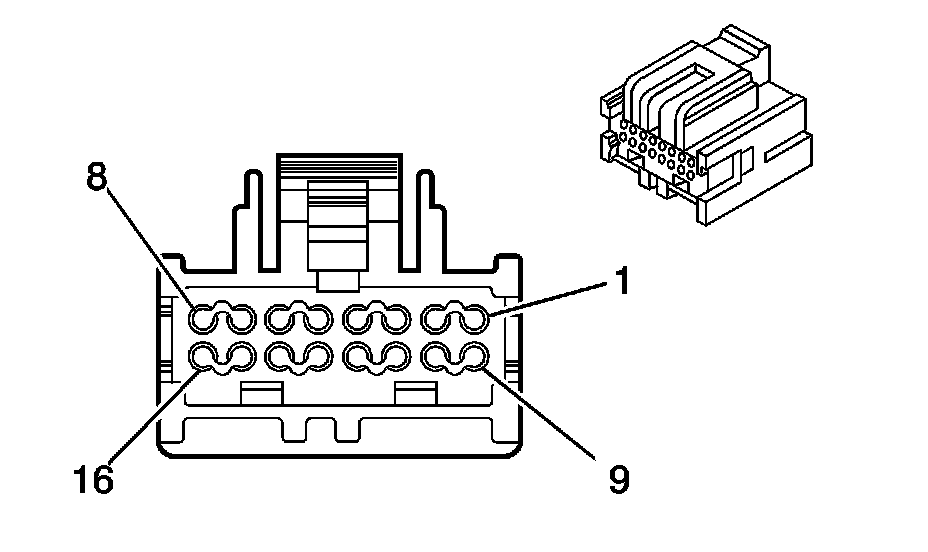

Rear Seat Audio (RSA) Controller X2 (UK6)
