Map Light

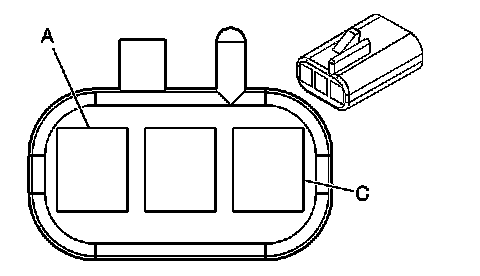

Component Connector End Views

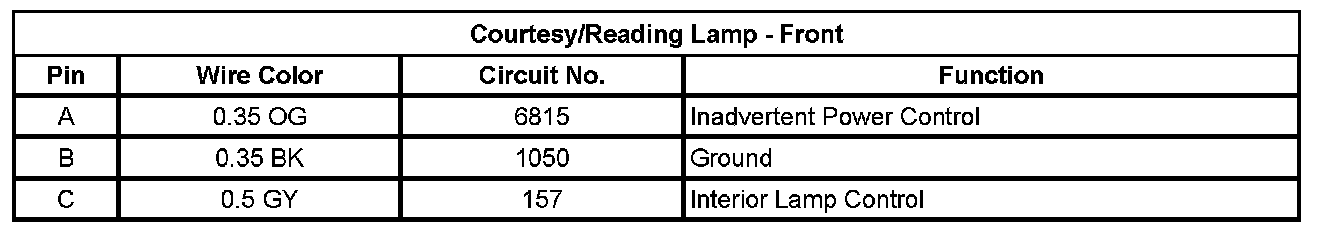

Courtesy/Reading Lamp - Front

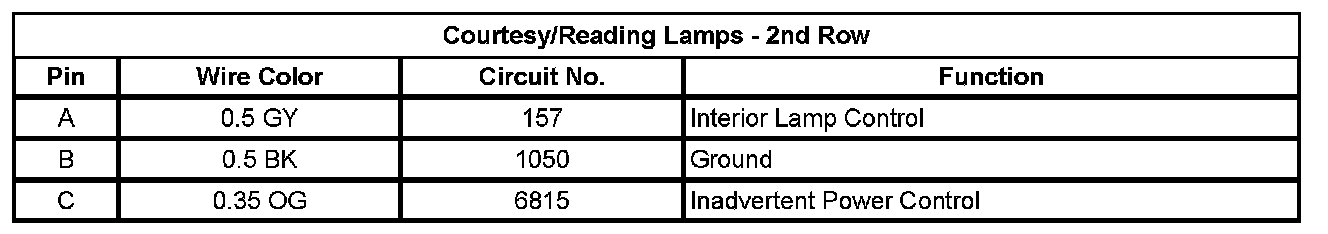

Courtesy/Reading Lamps - 2nd Row

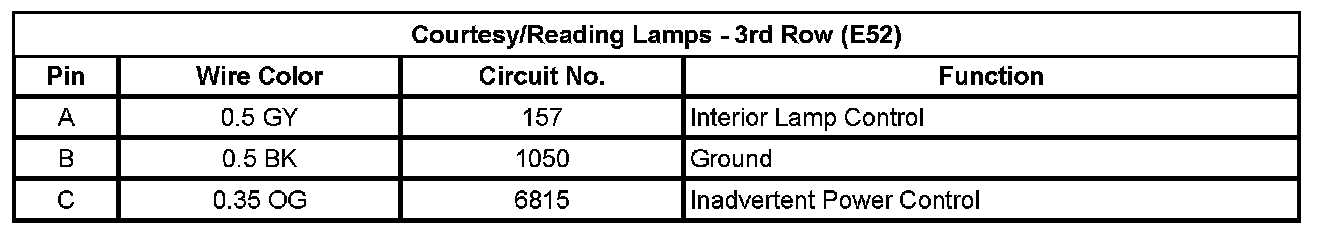

Courtesy/Reading Lamps - 3rd Row (E52)
