Parking Assist Control Module



Component Connector End Views - Continued

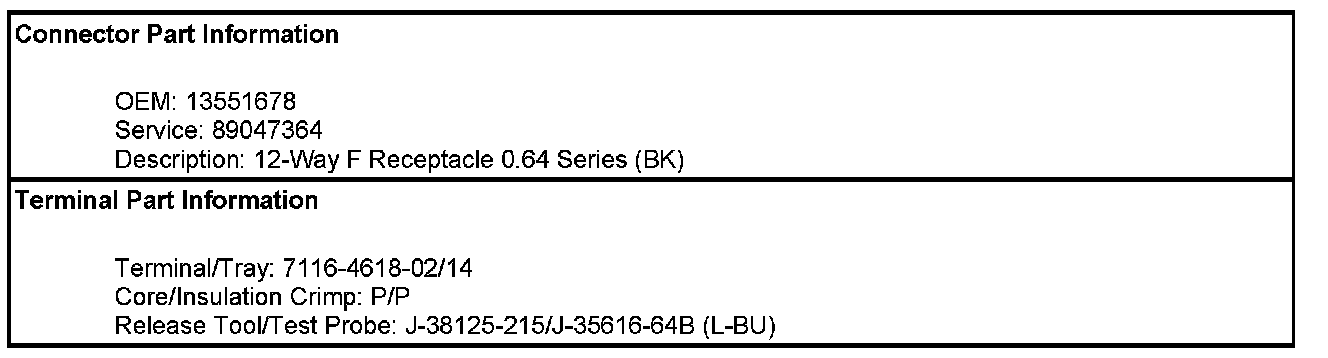

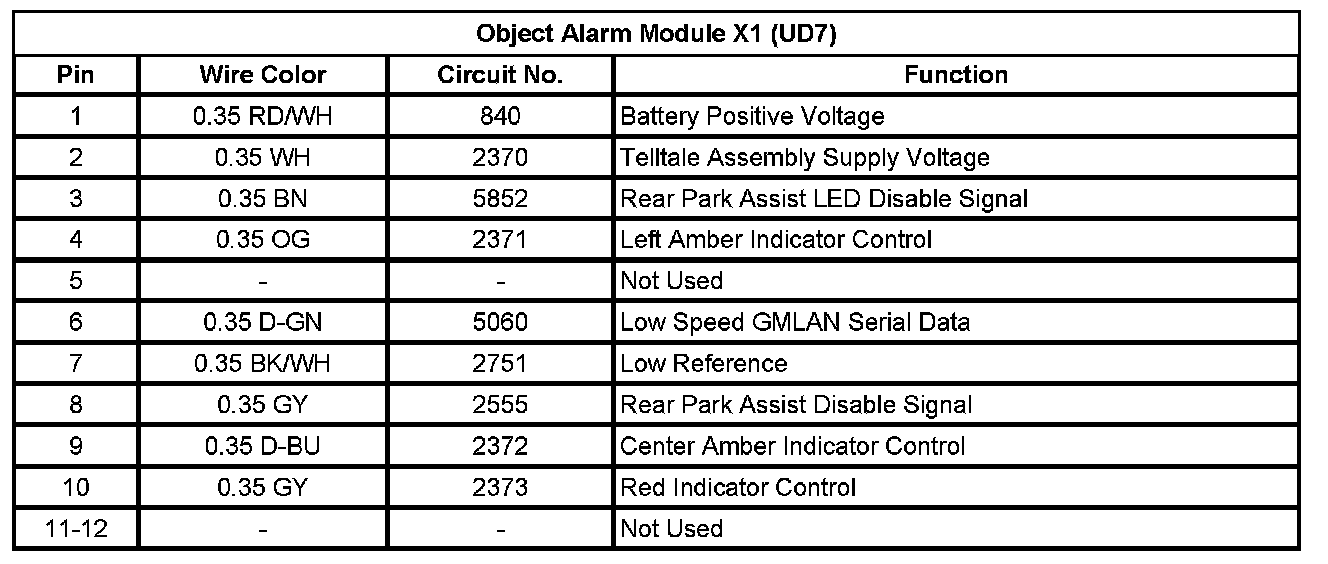

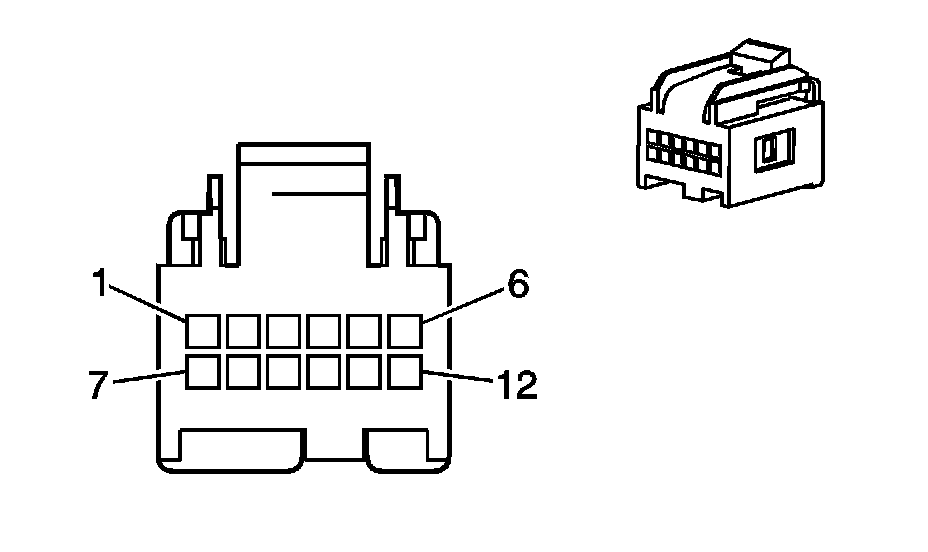

Object Alarm Module X1 (UD7)

Transfer Case Shift Control Switch:

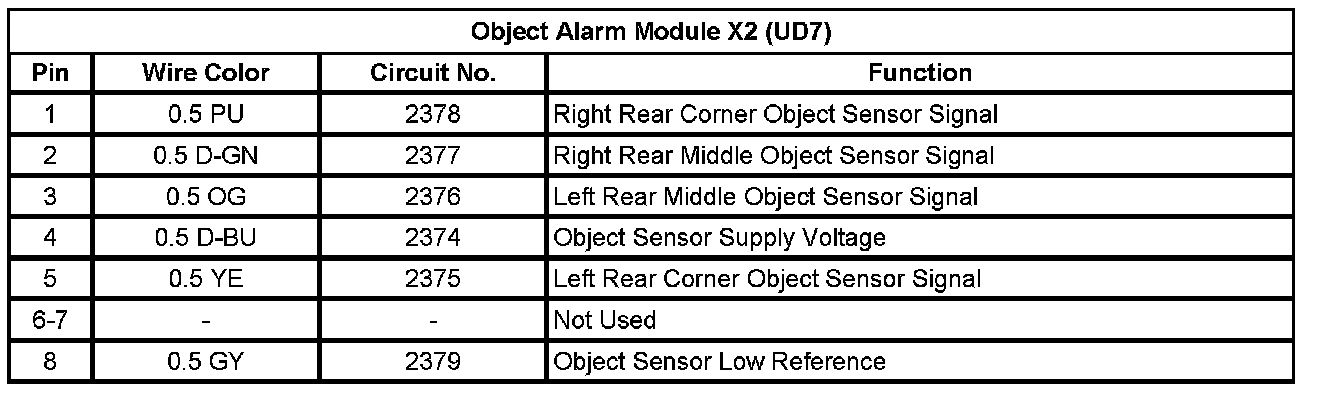

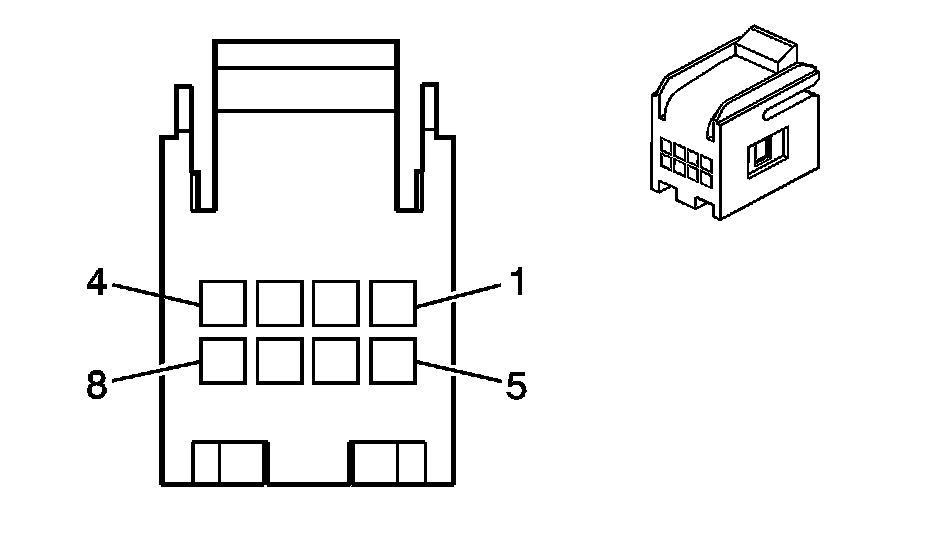

Object Alarm Module X2 (UD7)
