Power Trunk / Liftgate Control Module



Component Connector End Views - Continued

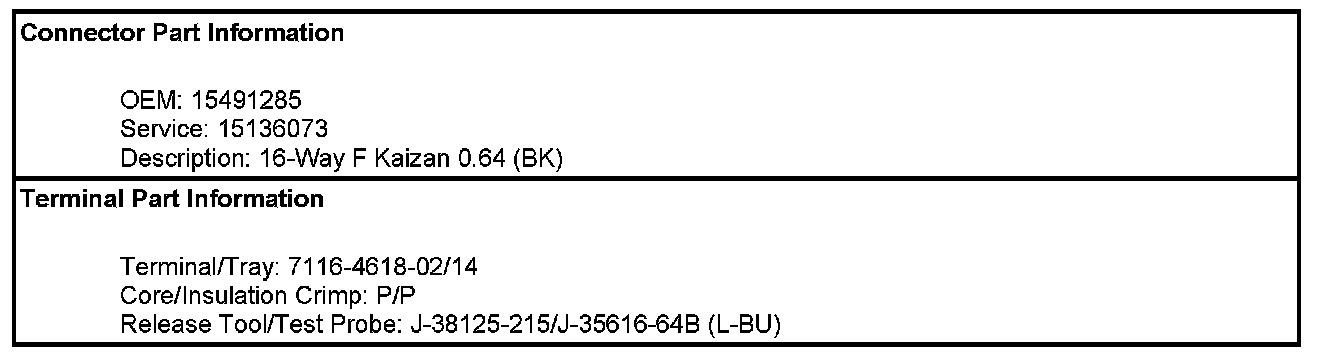

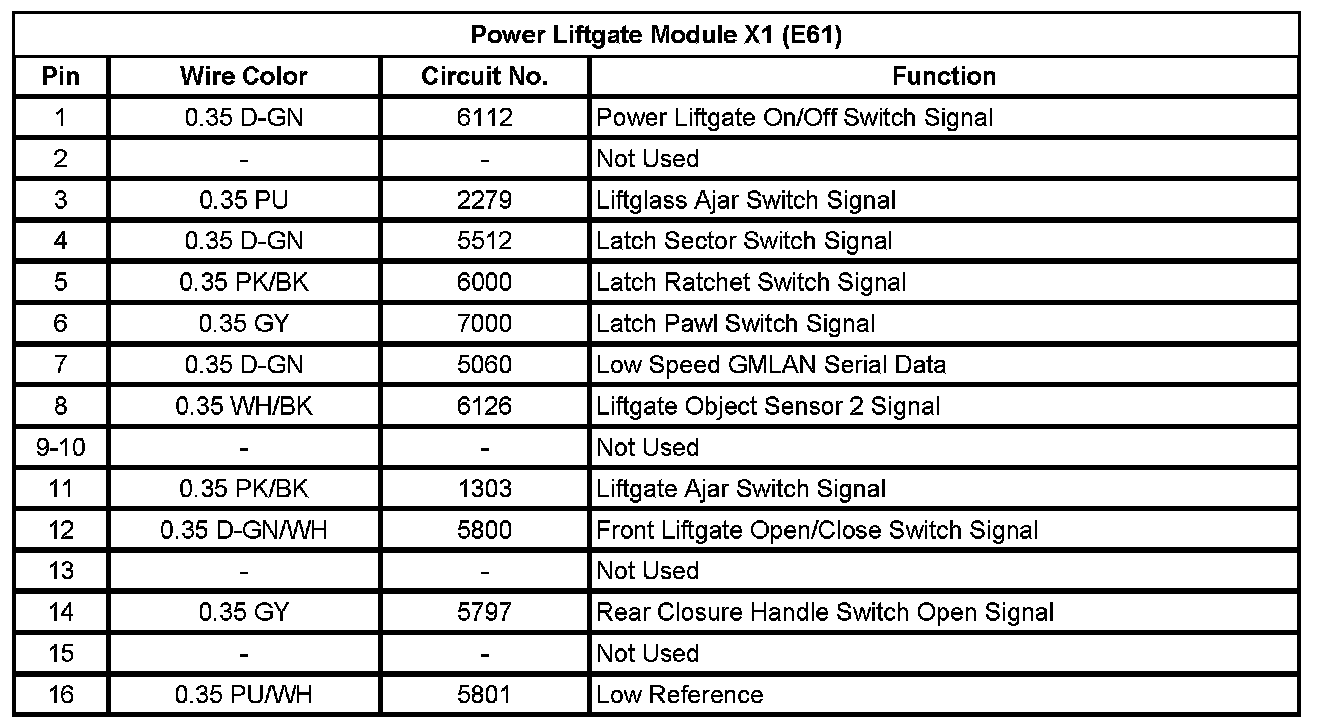

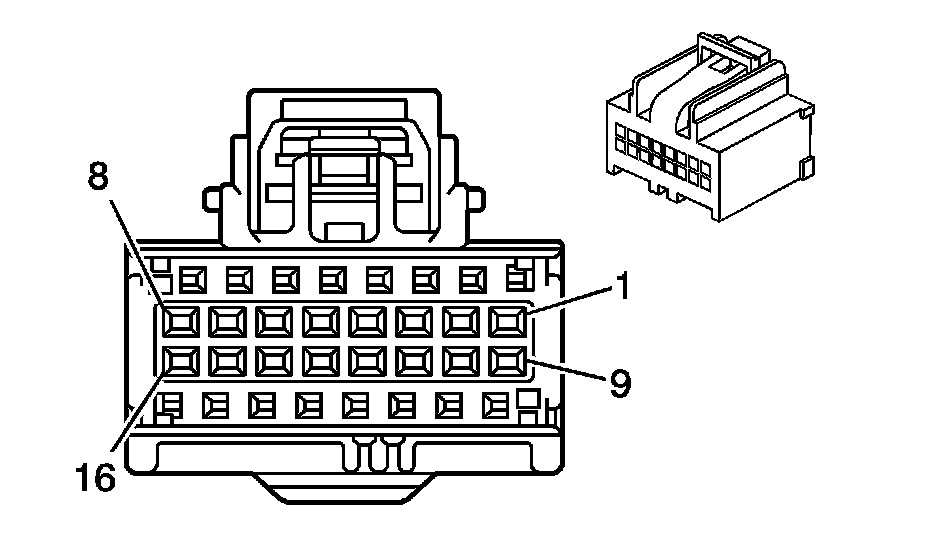

Power Liftgate Module X1 (E61)

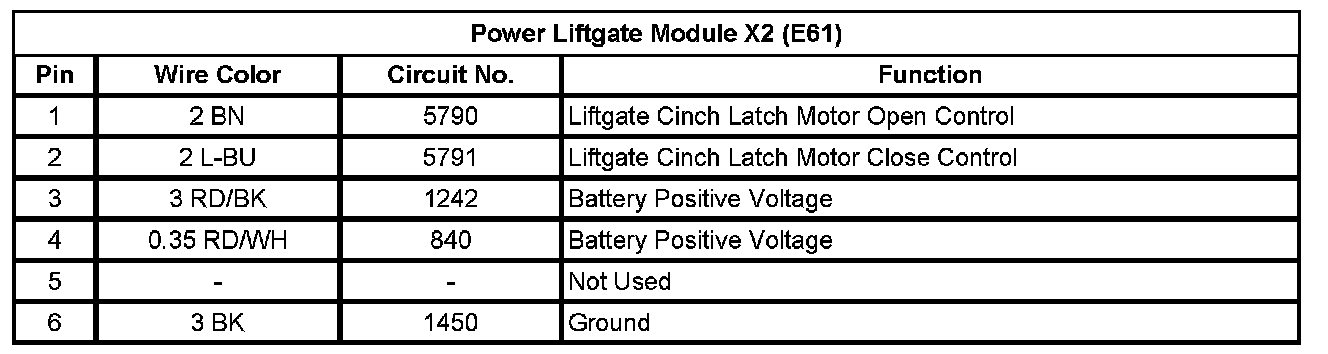

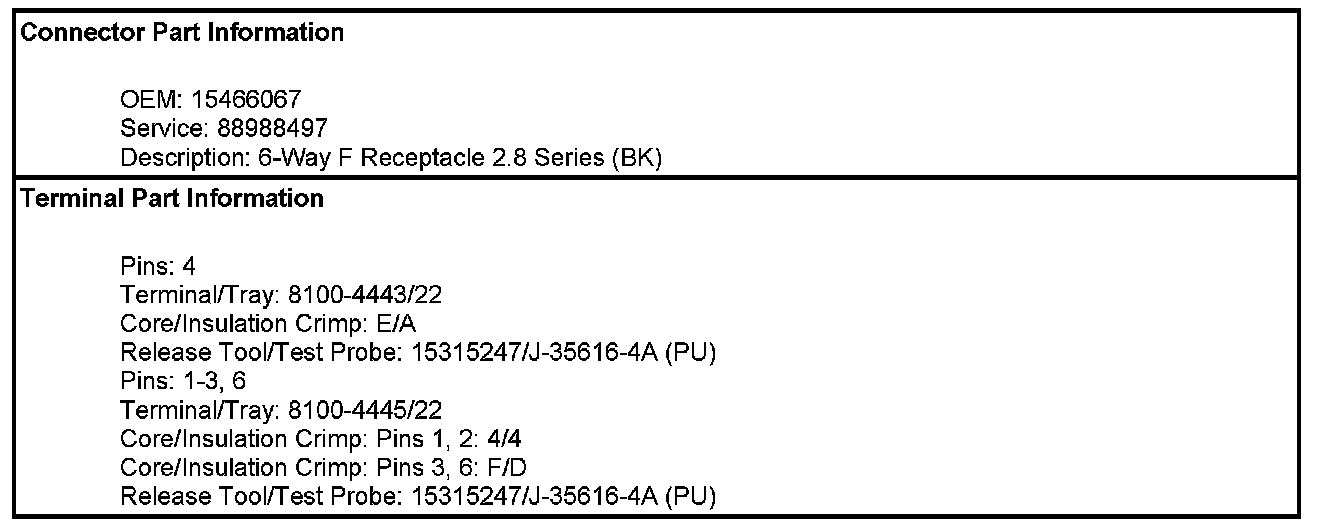

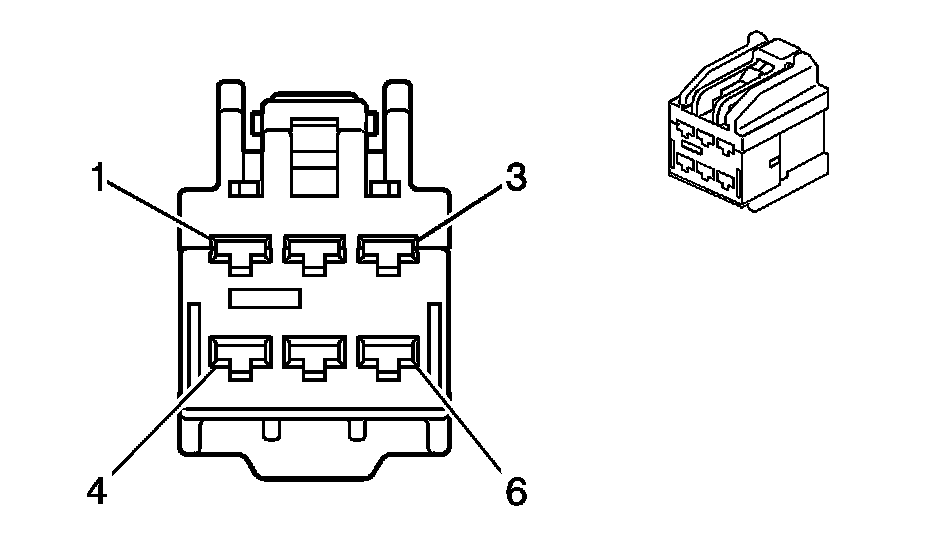

Power Liftgate Module X2 (E61)
