Steering Angle Sensor

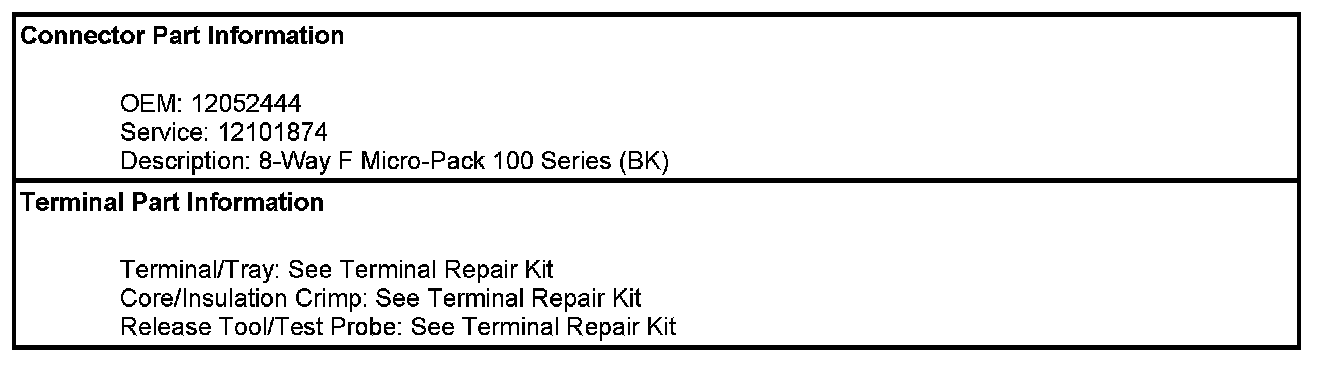

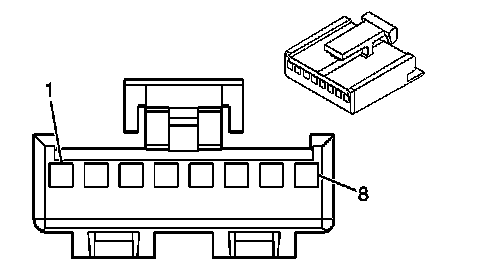

Component Connector End Views - Continued

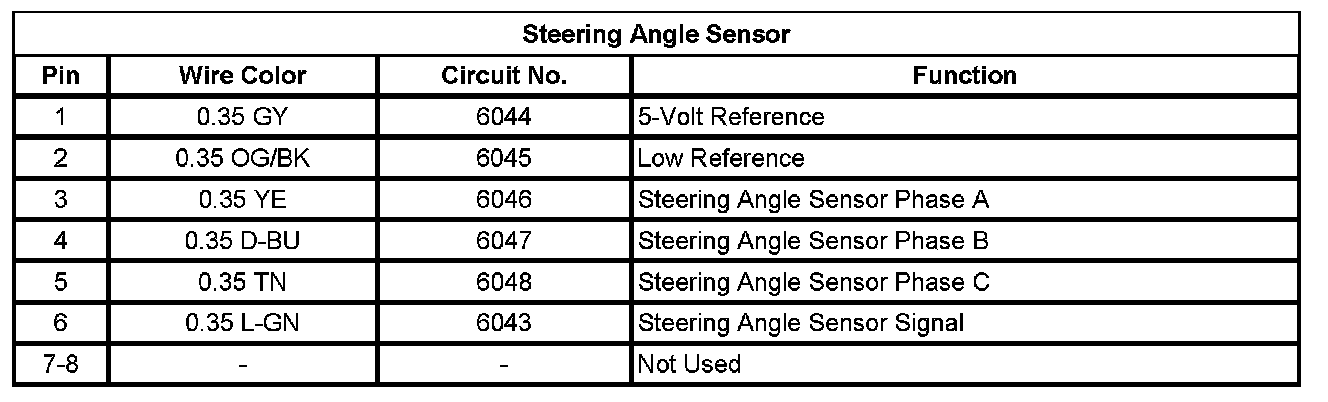

Steering Angle Sensor
Steering Wheel Speed/Position Sensor:
