Steering Mounted Controls Transmitter



Component Connector End Views - Continued

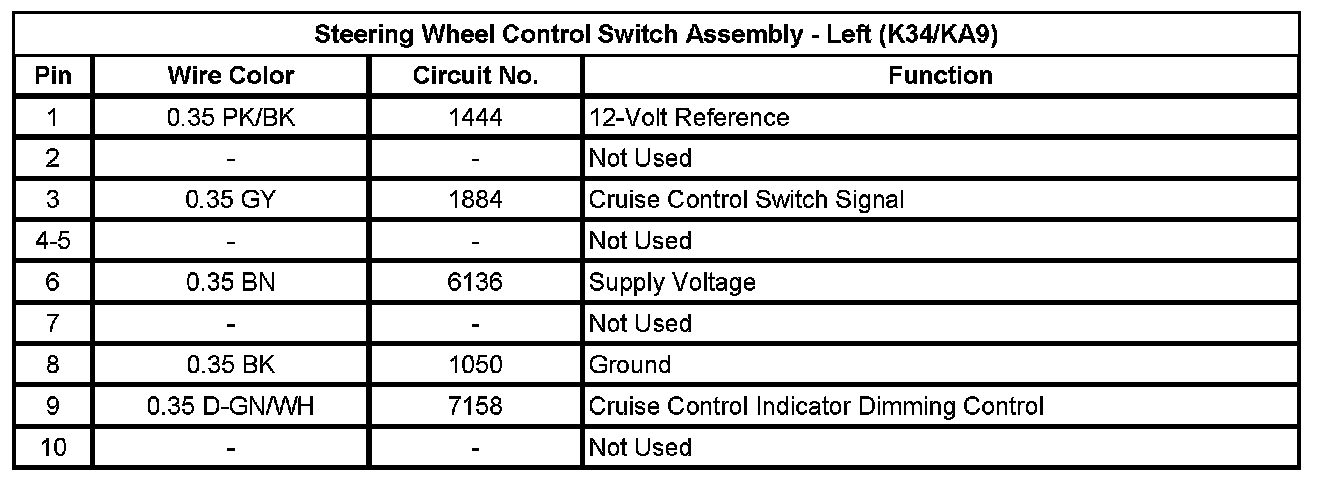

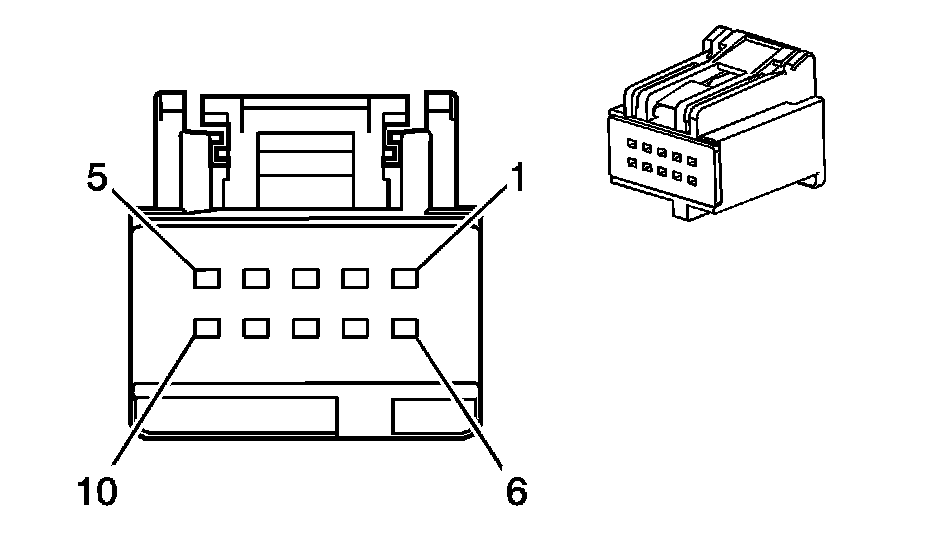

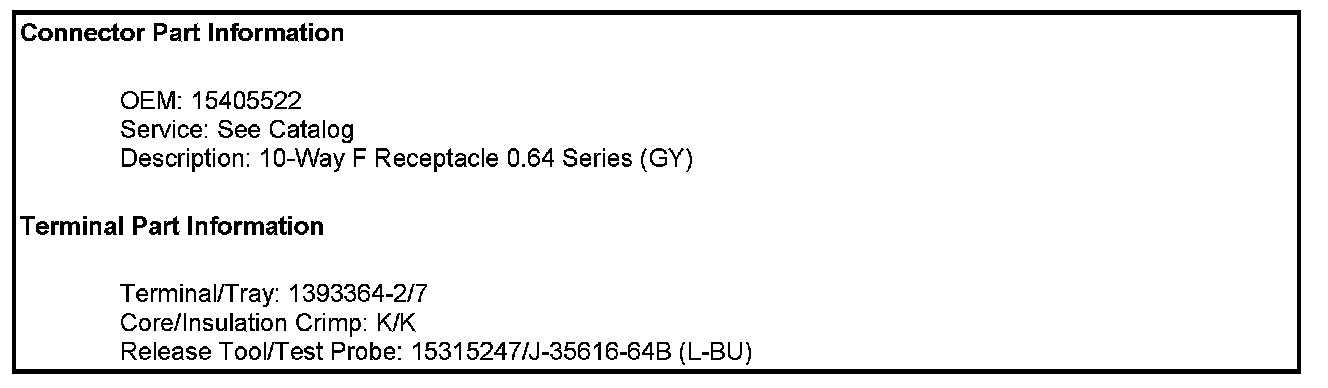

Steering Wheel Control Switch Assembly - Left (K34/KA9)

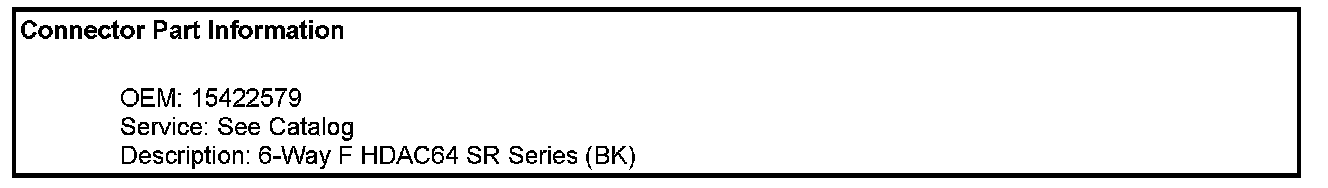

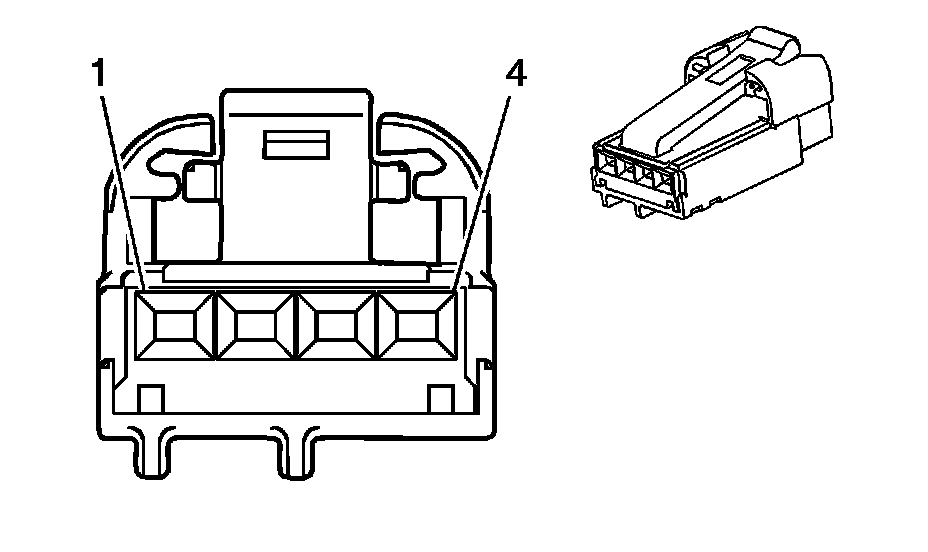

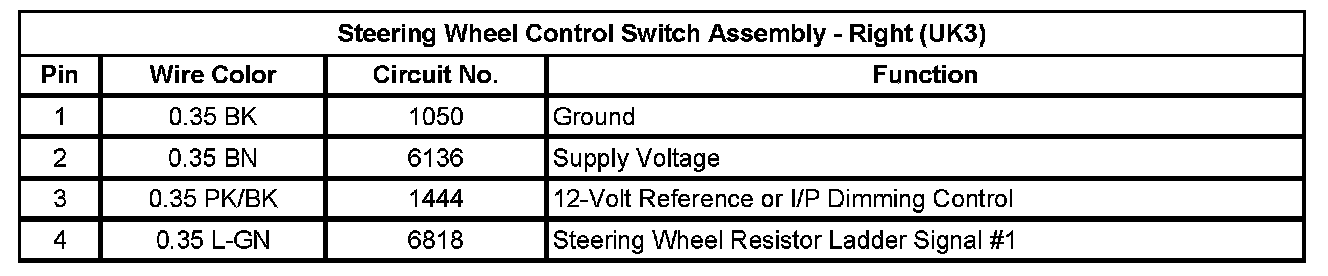

Steering Wheel Control Switch Assembly - Right (UK3)
