Temperature Sensor/Switch, Transfer Case



Component Connector End Views - Continued

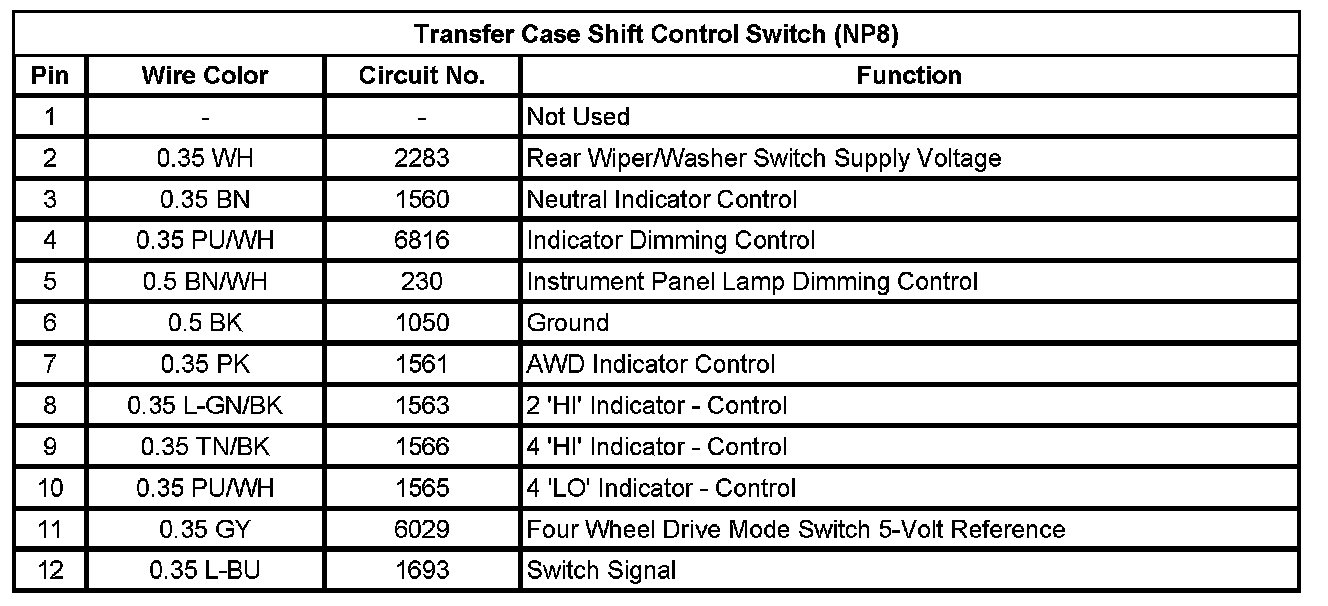

Transfer Case Shift Control Switch (NP8)

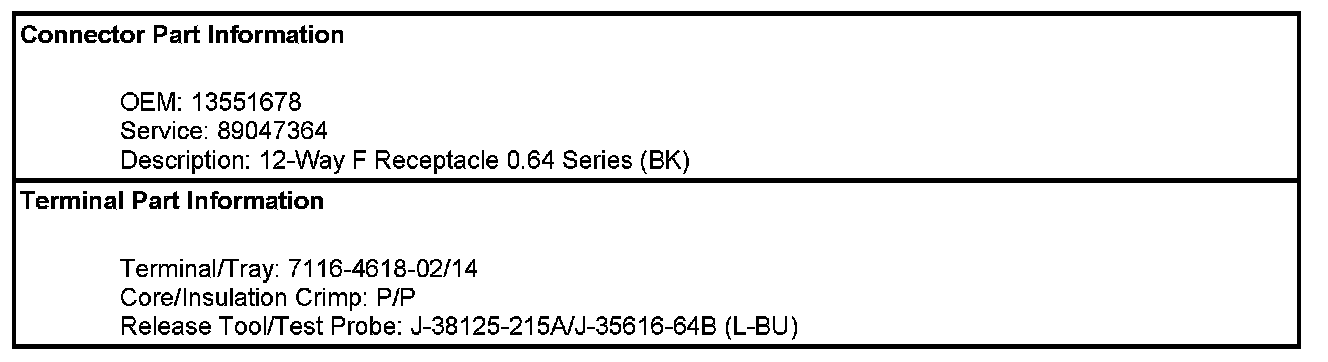

Transfer Case Shift Control Switch:
