Transfer Case Encoder Motor



Component Connector End Views - Continued

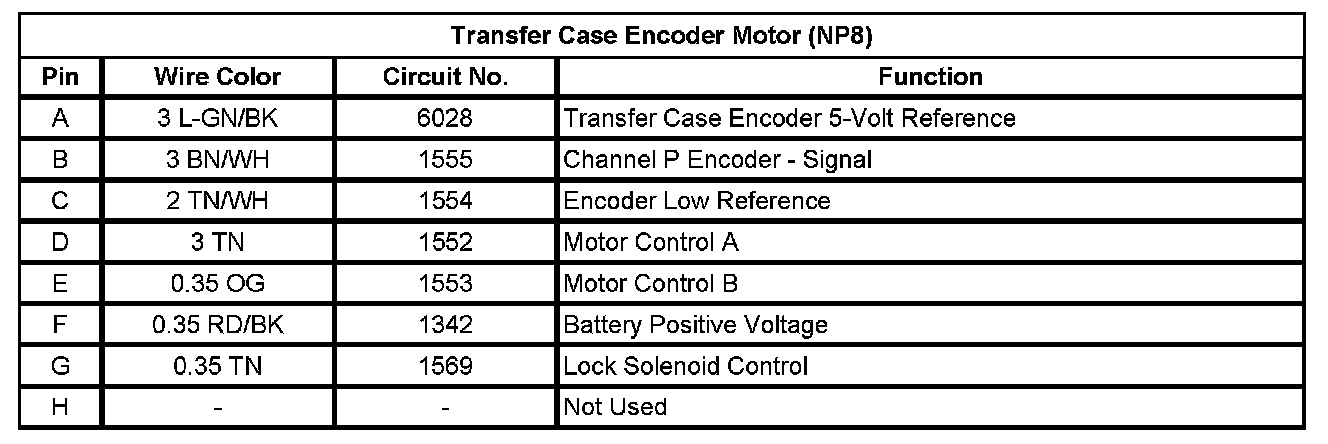

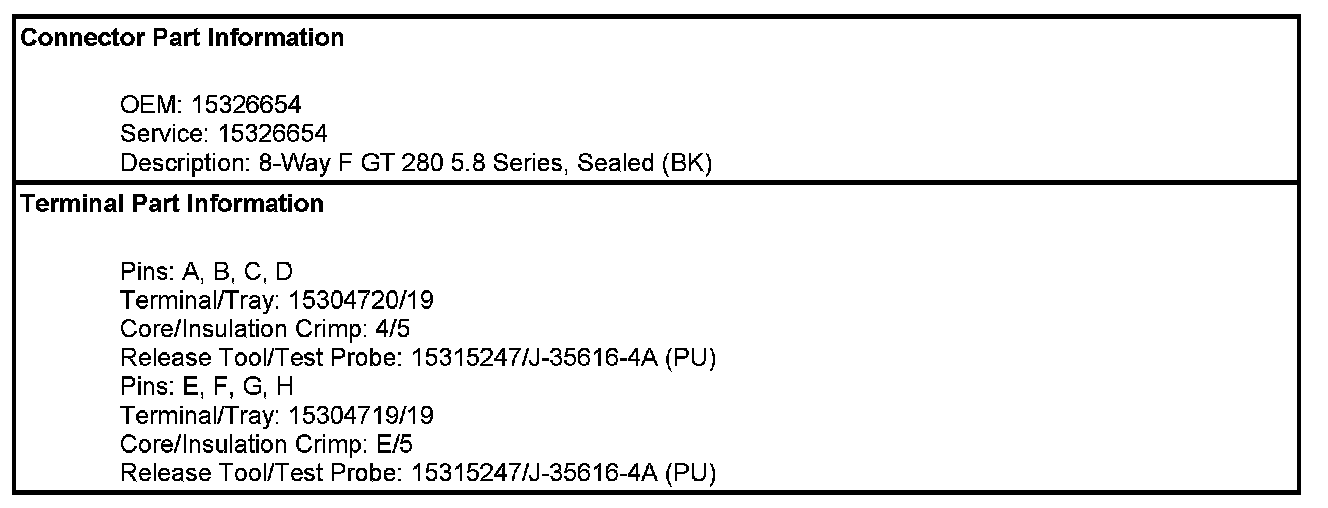

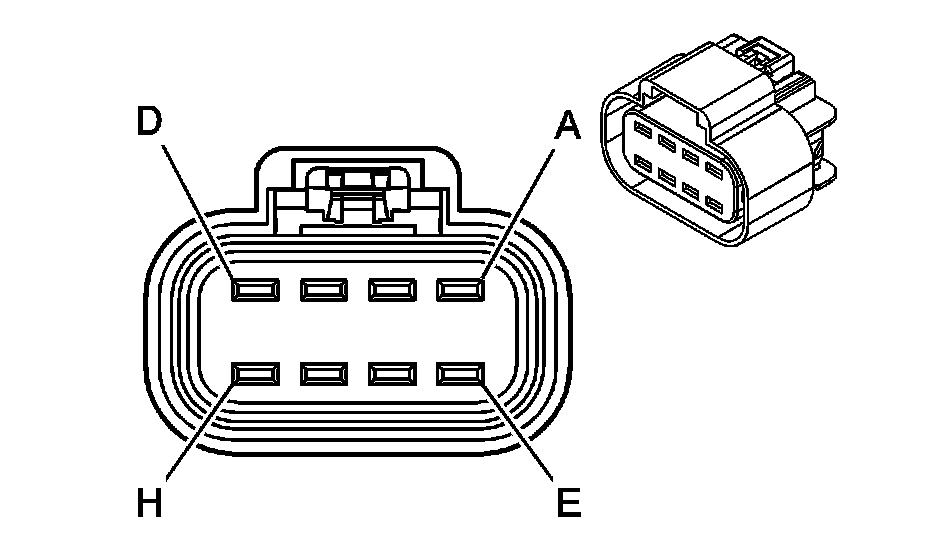

Transfer Case Encoder Motor (NP8)

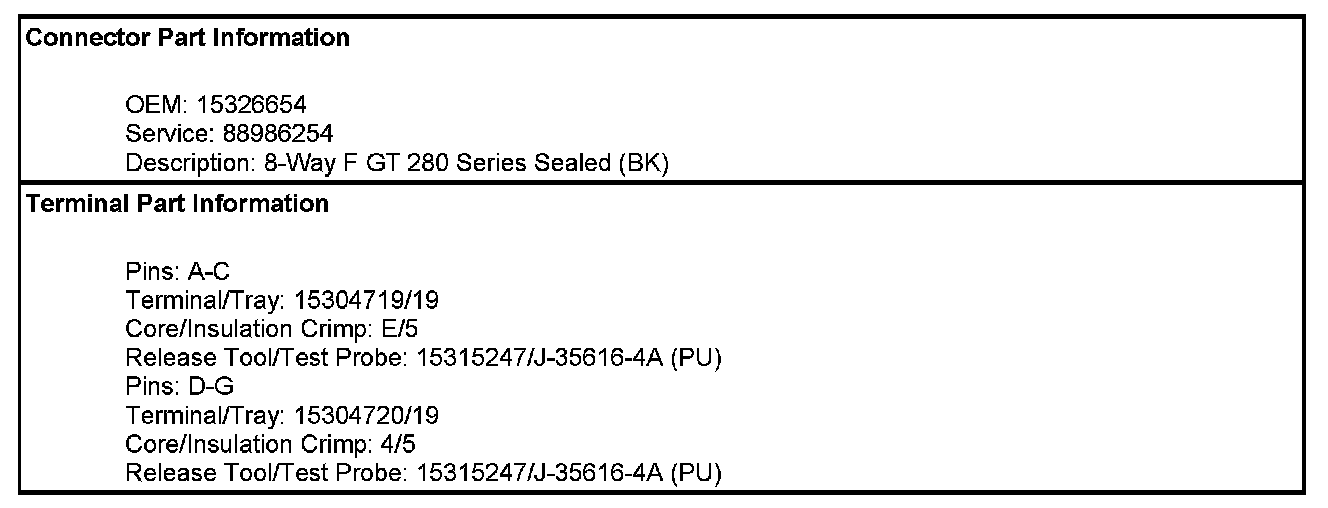

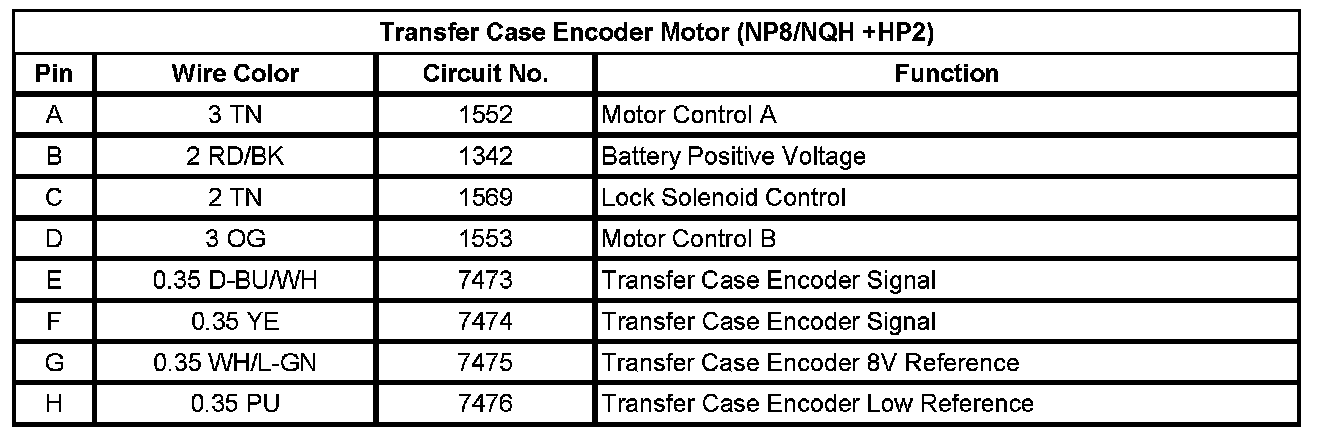

Transfer Case Encoder Motor (NP8/NQH +HP2)
