Hydraulic Control Module

Disassembled Views

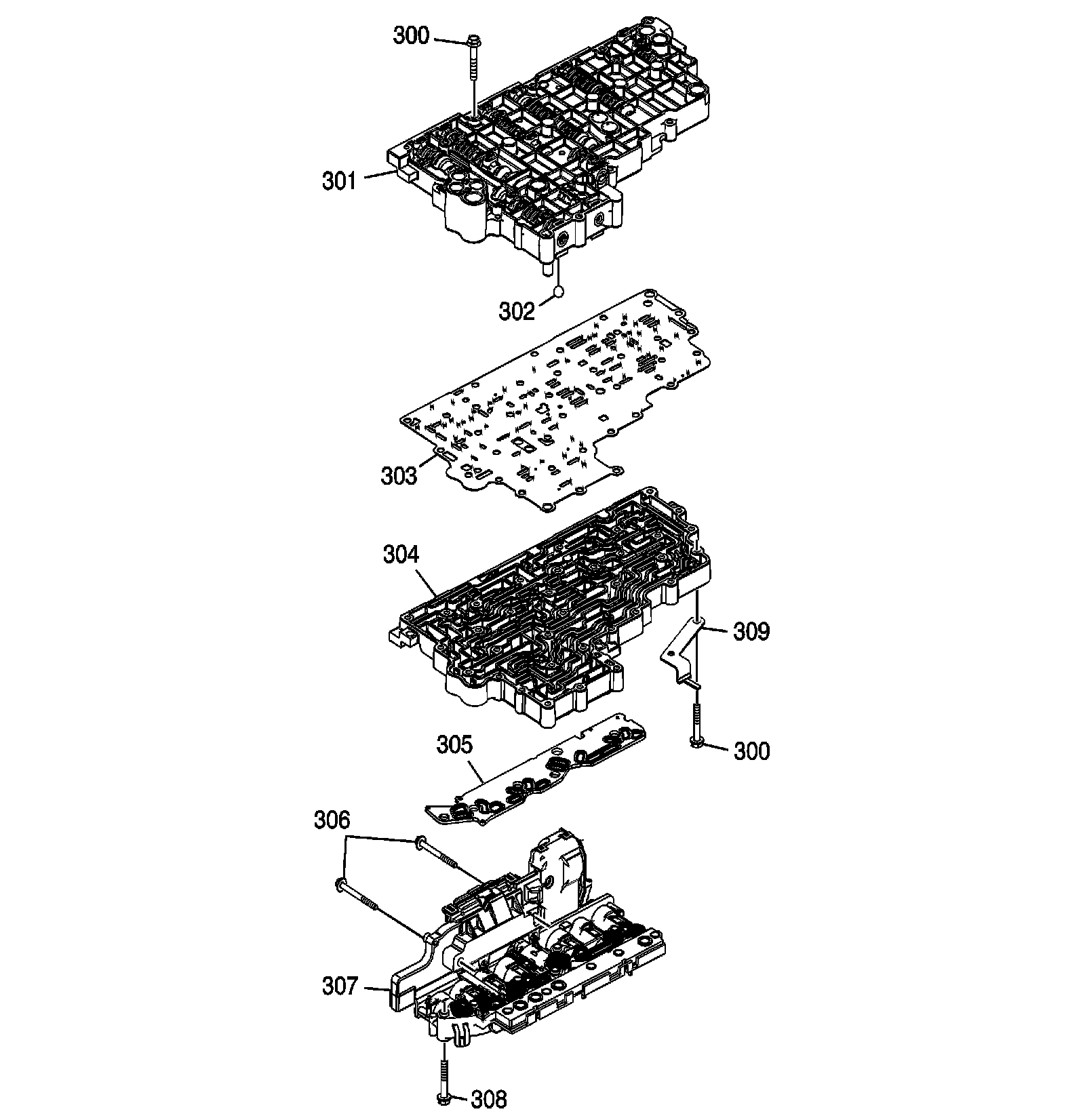

Hydraulic Control Module




300 - Control Valve Channel Plate Bolt
301 - Control Valve Upper Body Assembly
302 - A/Trans Fluid Pump Ball Check Valve
303 - Control Valve Body Spacer (w/Gasket) Plate Assembly
304 - Control Valve Channel Plate
305 - Control Valve Channel Plate Spacer Plate Gasket
306 - Control Solenoid Valve Heat Sink (w/Body and TCM) Bolt
307 - Control Solenoid (w/ Body and TCM) Valve Assembly
308 - Control Valve Lower Body Bolt
309 - A/Trans Manual Shift Shaft Position Switch Assembly Bracket
