Air Flow Meter/Sensor: Locations

Front of Vehicle/Engine Compartment Component Views

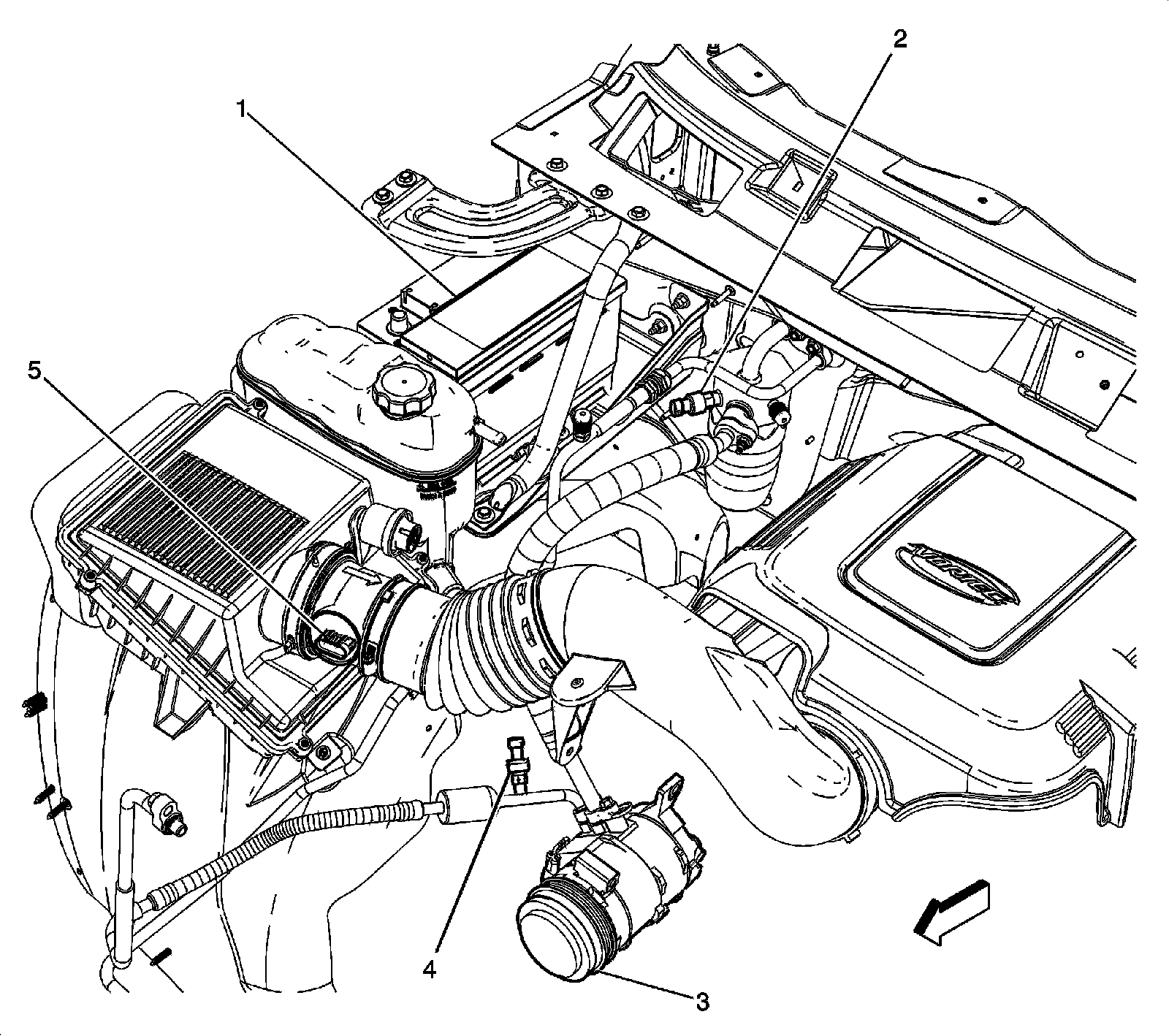

Right Rear of the Engine Compartment Components




1 - Battery - Right
2 - A/C Low Pressure Switch
3 - A/C Compressor Clutch
4 - A/C Refrigerant Pressure Sensor
5 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
