Coolant Temperature Sensor/Switch (For Computer): Locations

Powertrain Component Views

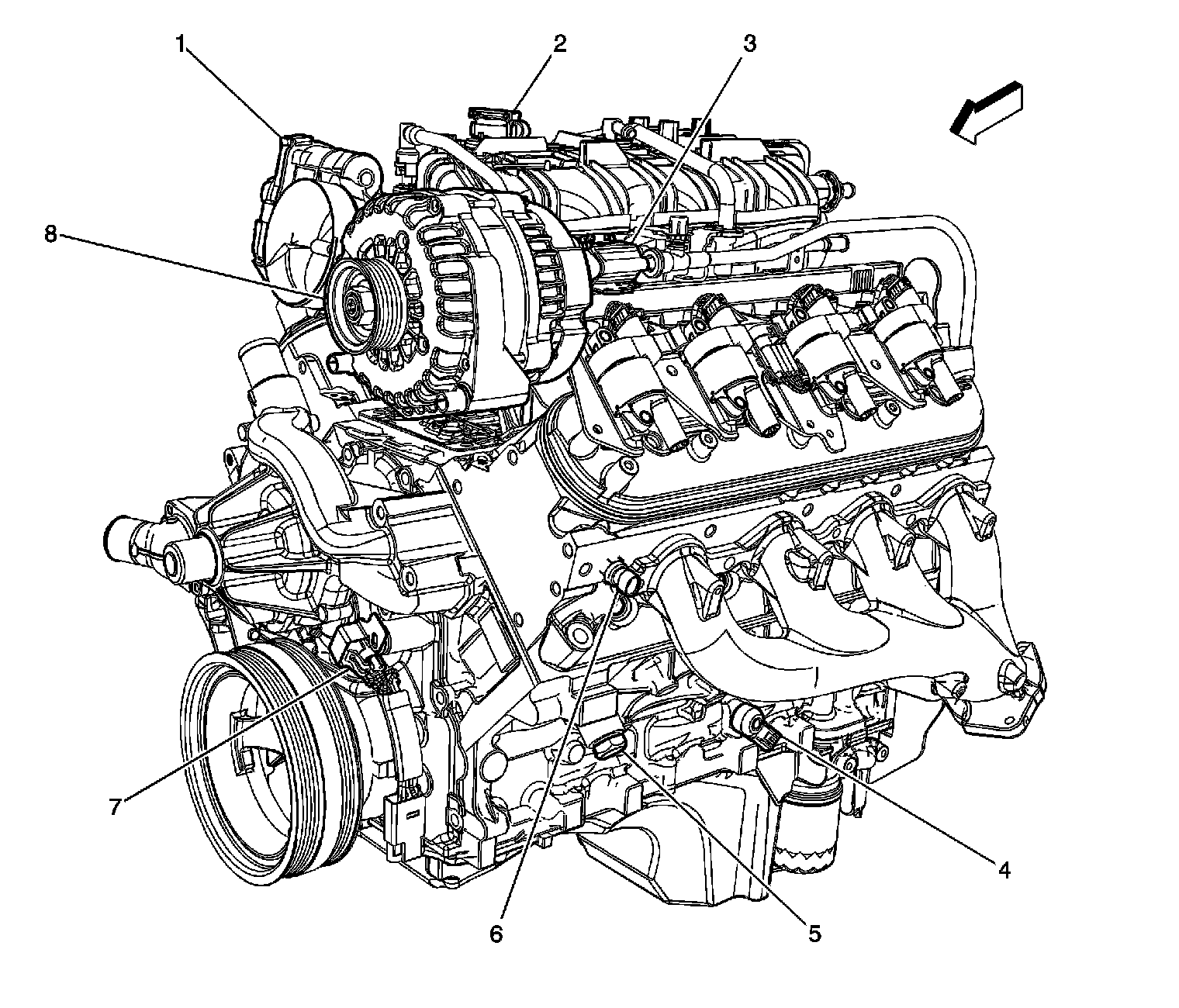

Left Front Side of the Engine Components




1 - Throttle Body
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Knock Sensor (KS) - 1
5 - Engine Block Heater
6 - Engine Coolant Temperature (ECT) Sensor
7 - Camshaft Position (CMP) Sensor
8 - Generator
