Electrical Symbols



Electrical Symbols

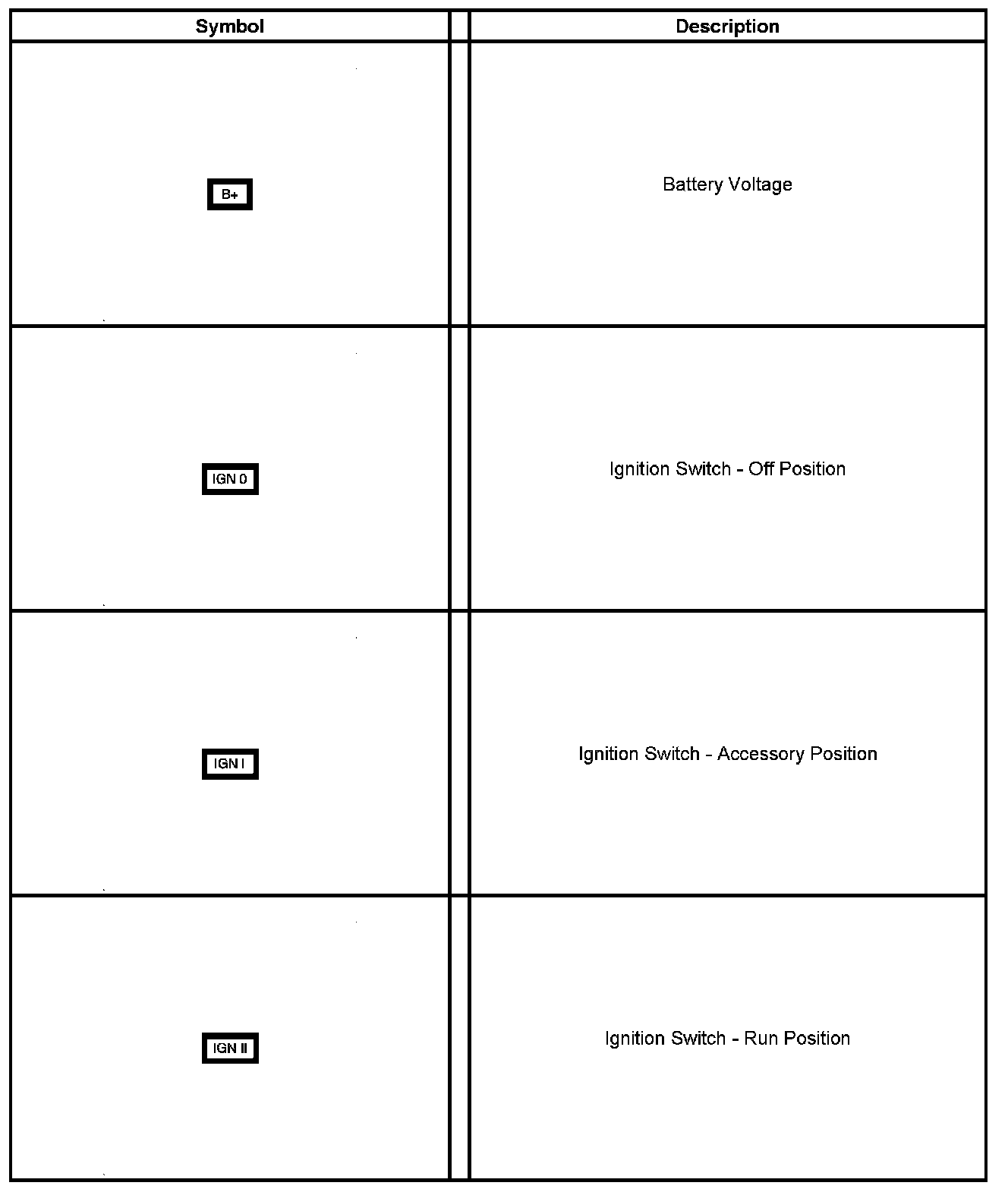

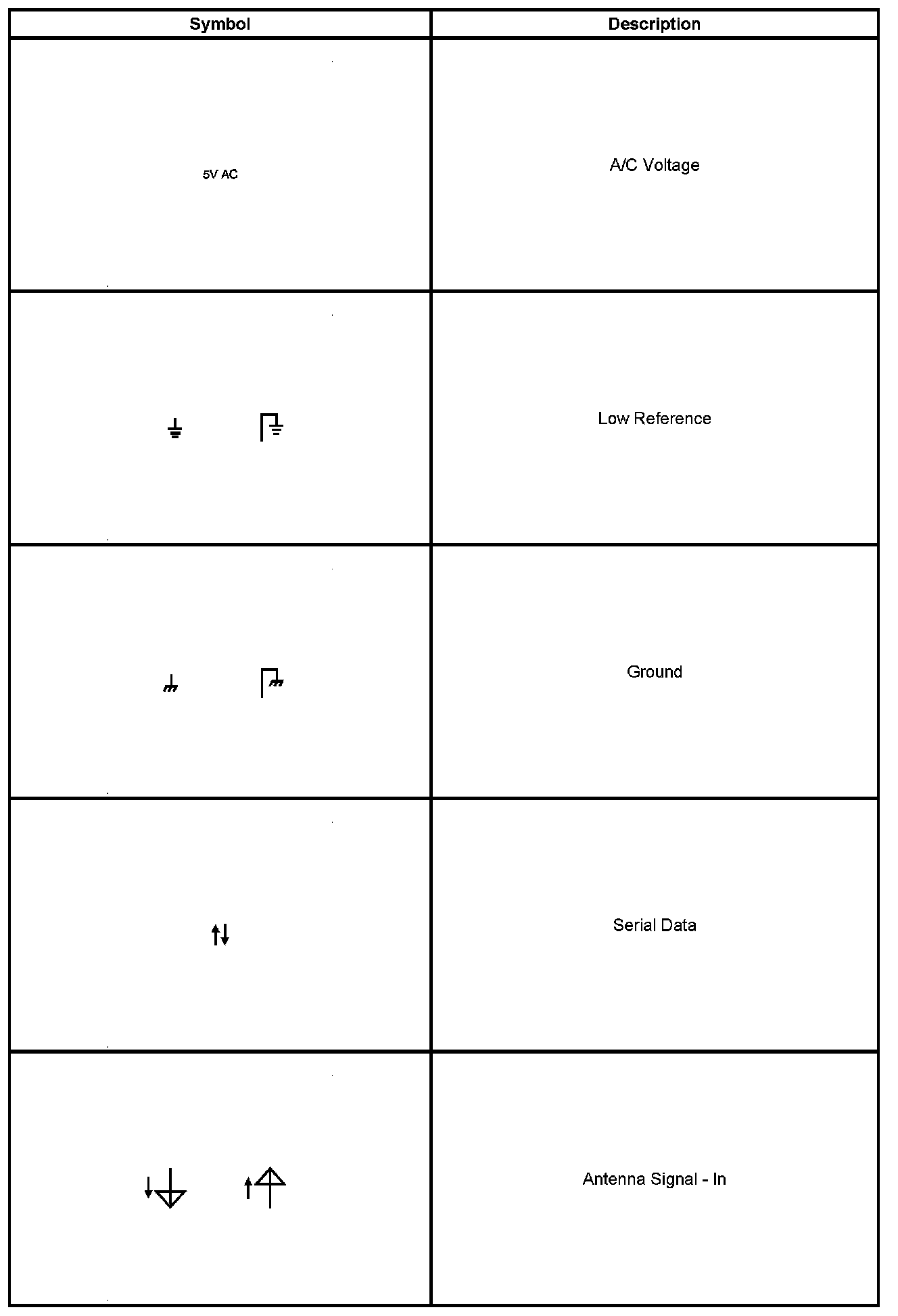

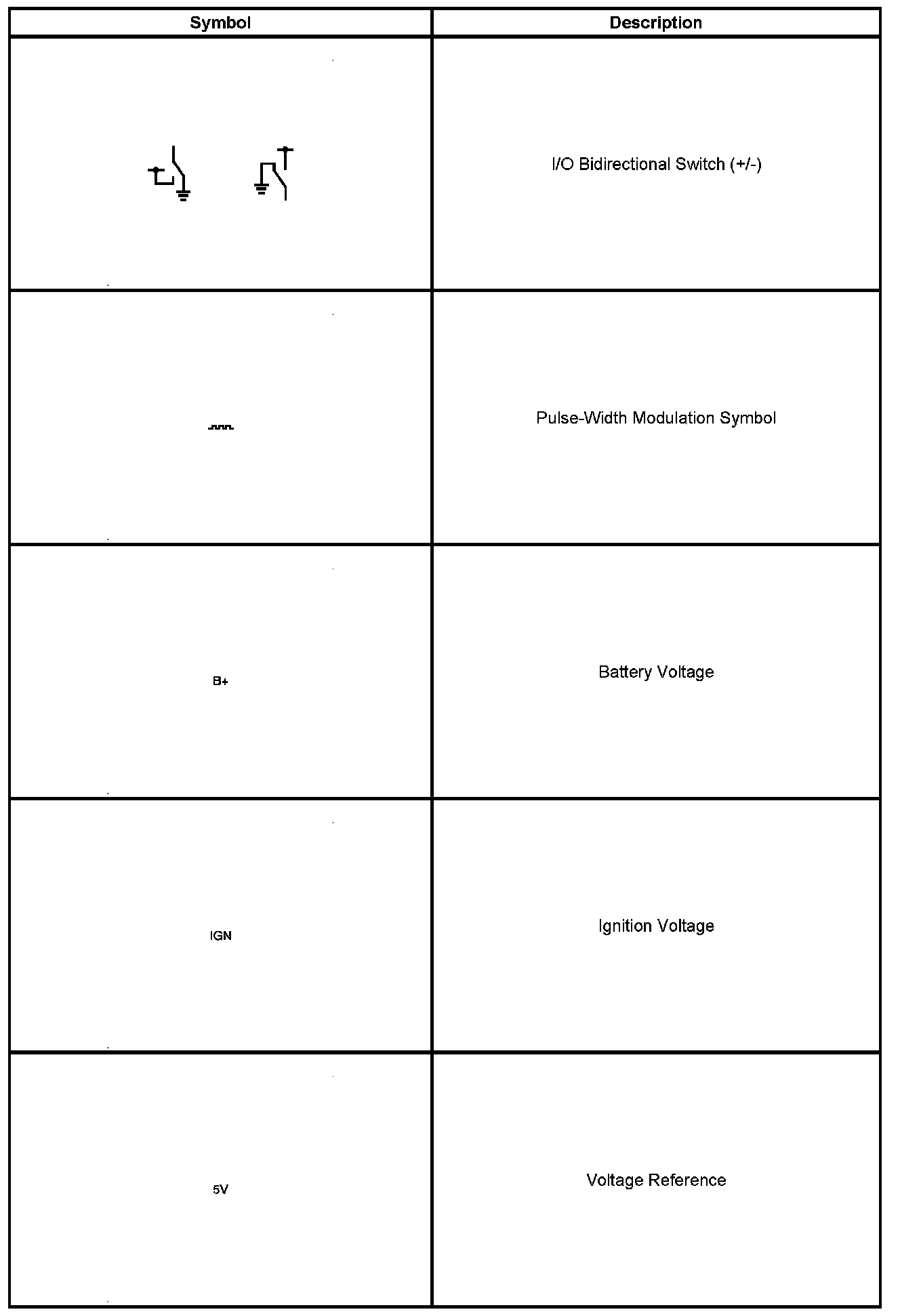

Voltage Indicators

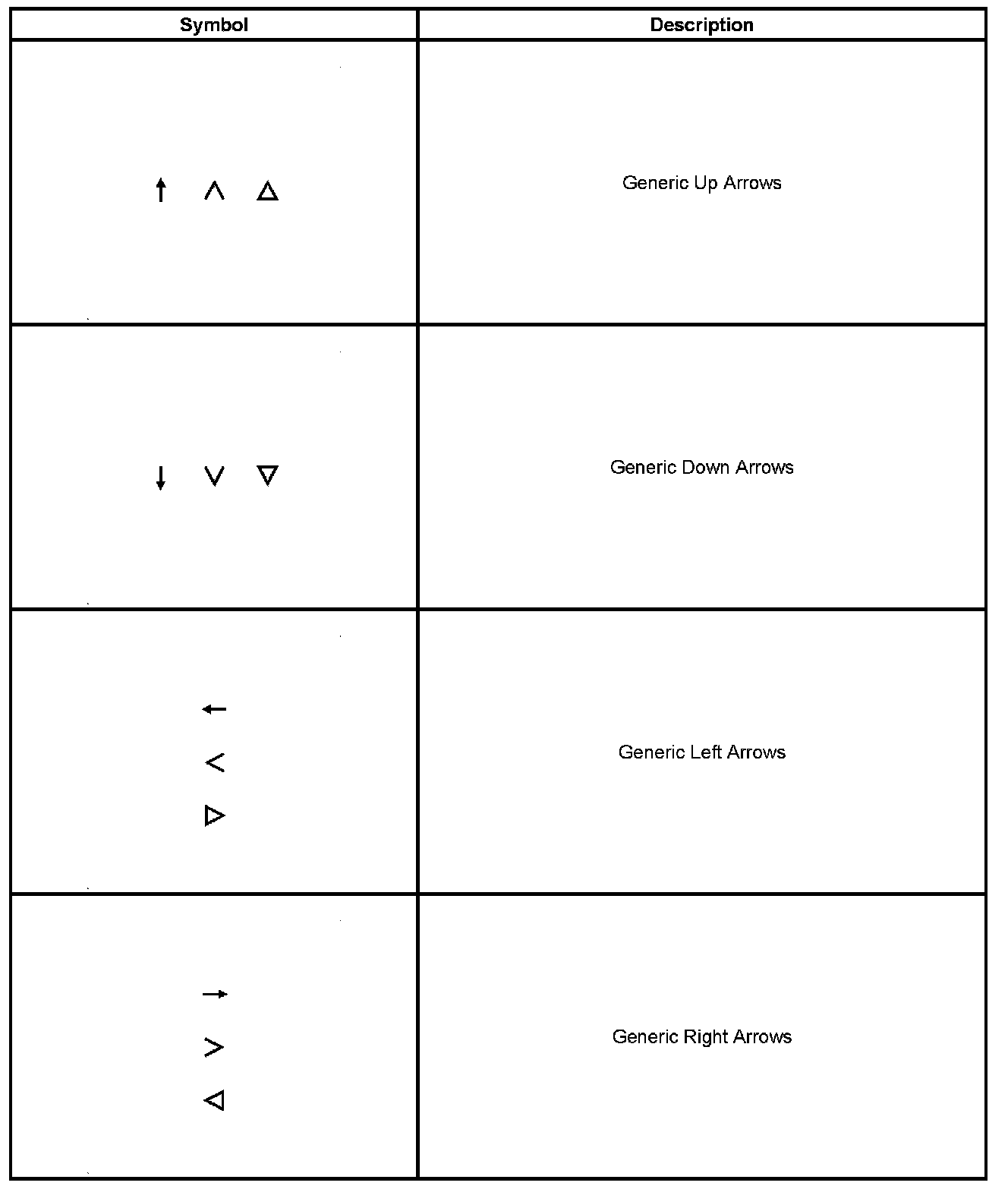

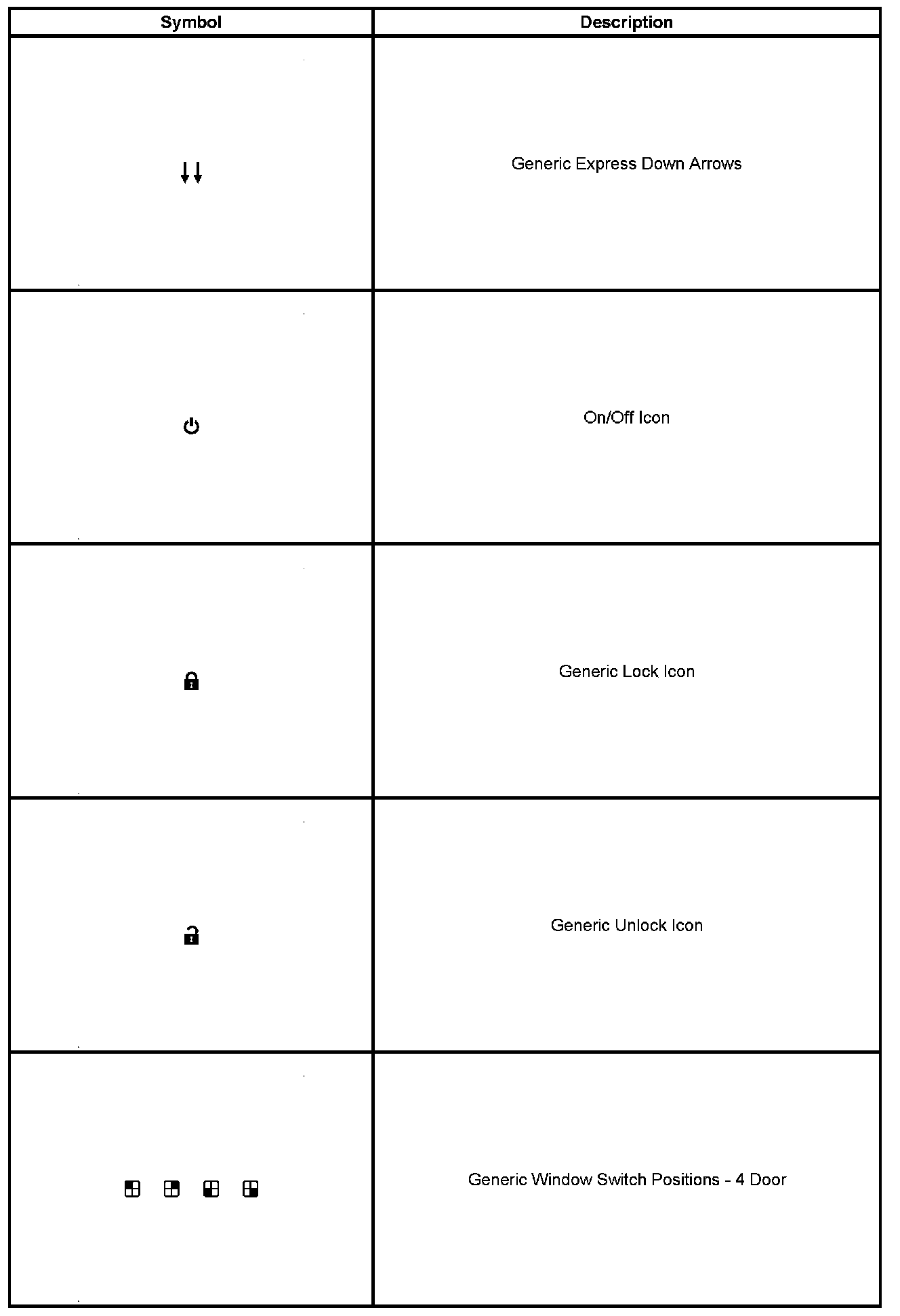

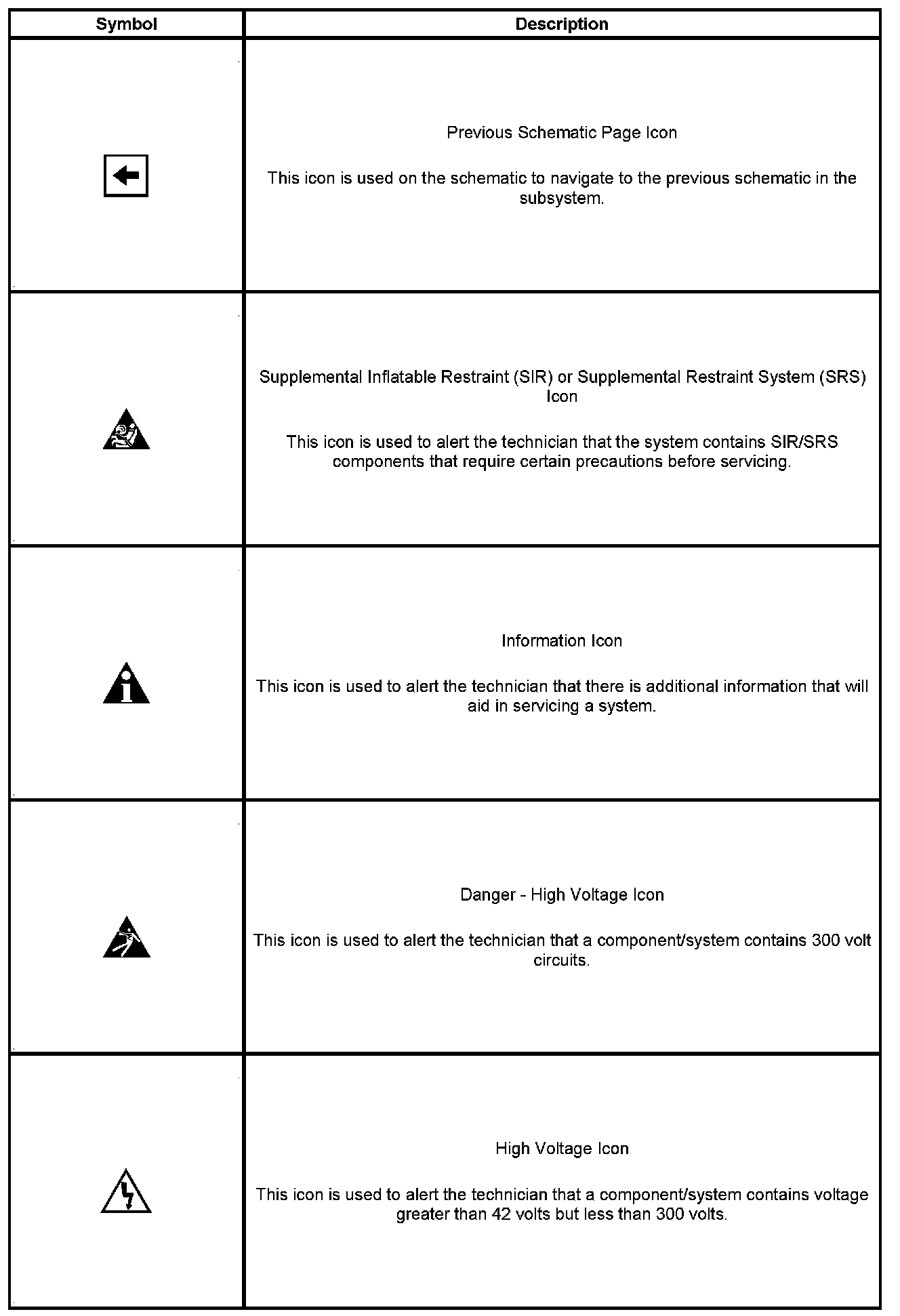

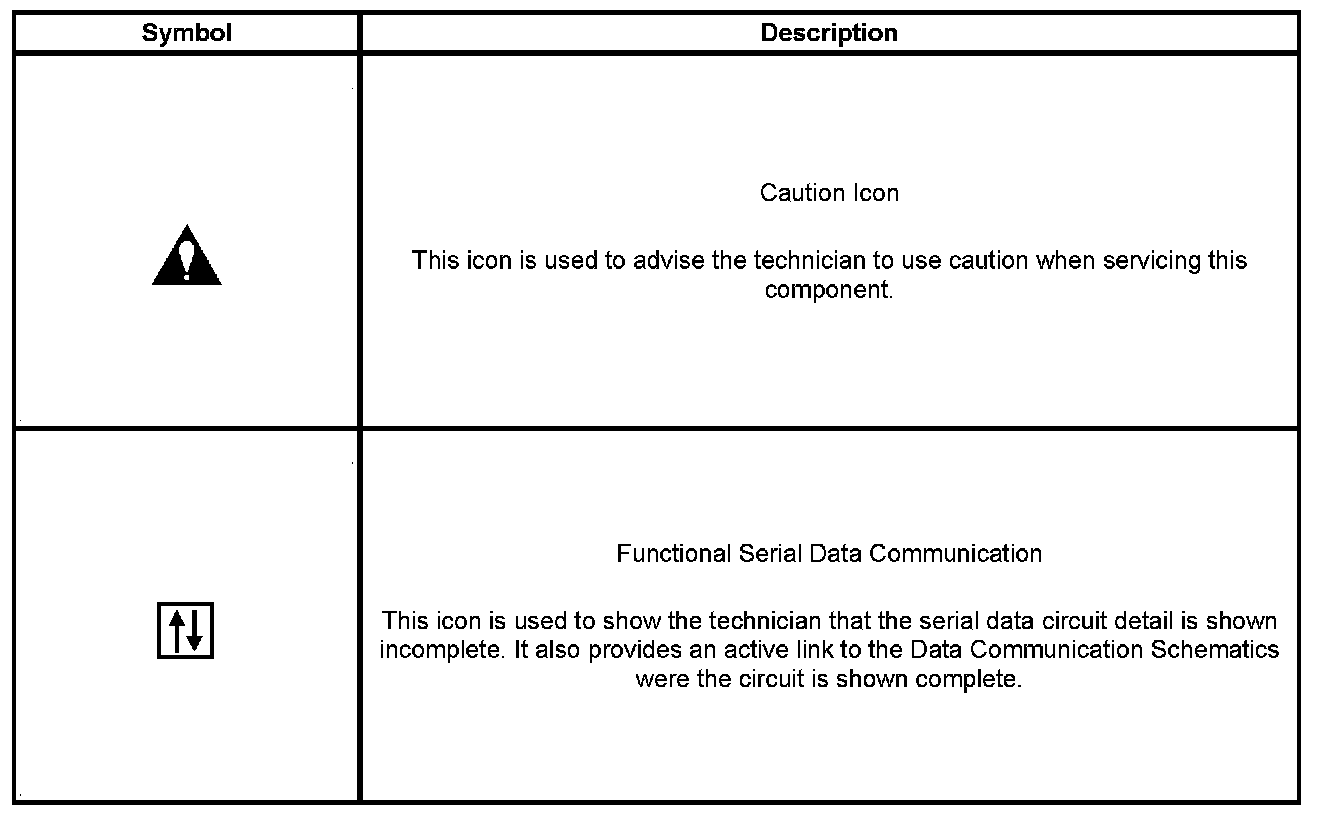

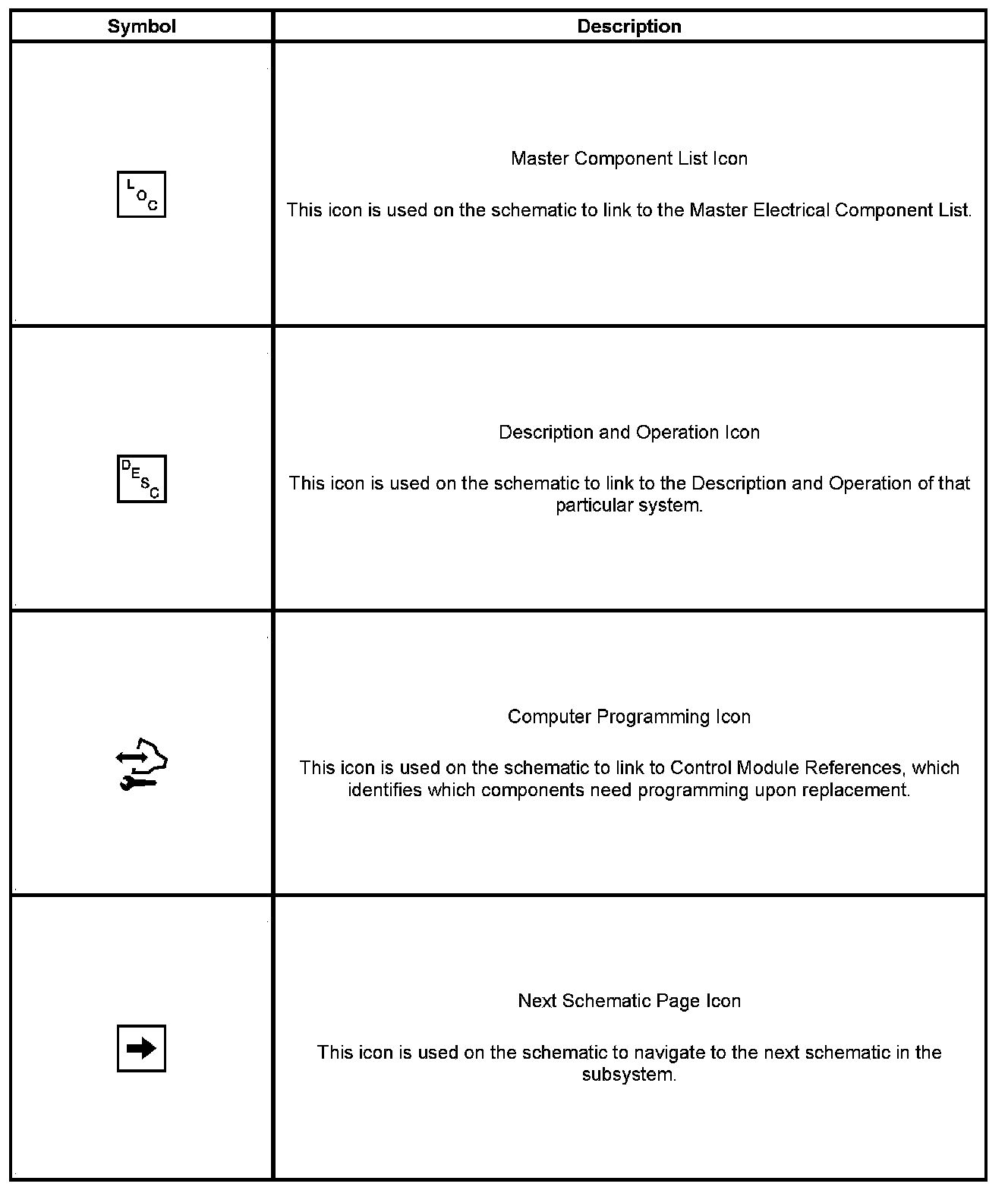

General Icons

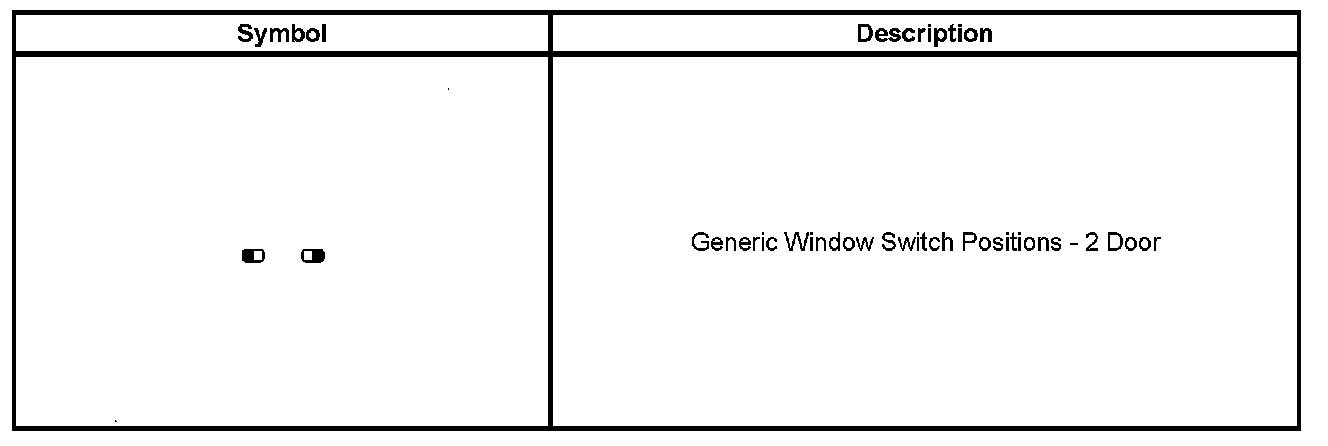

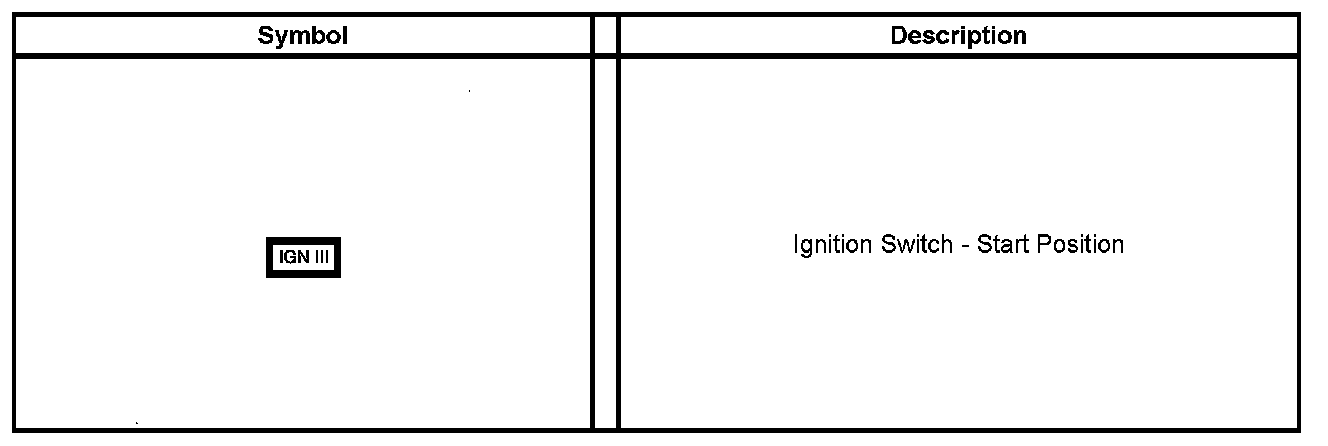

Switch Position Icons

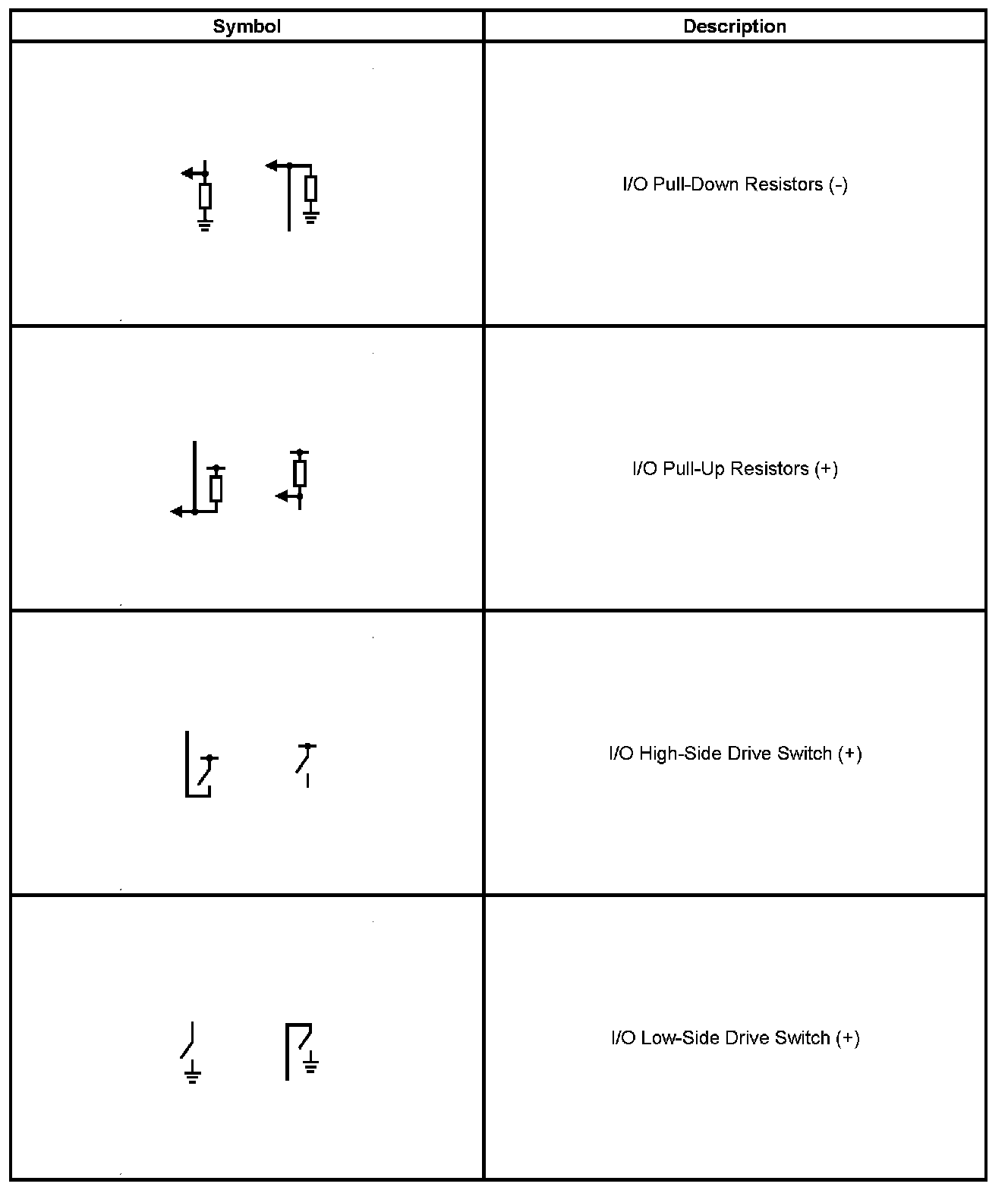

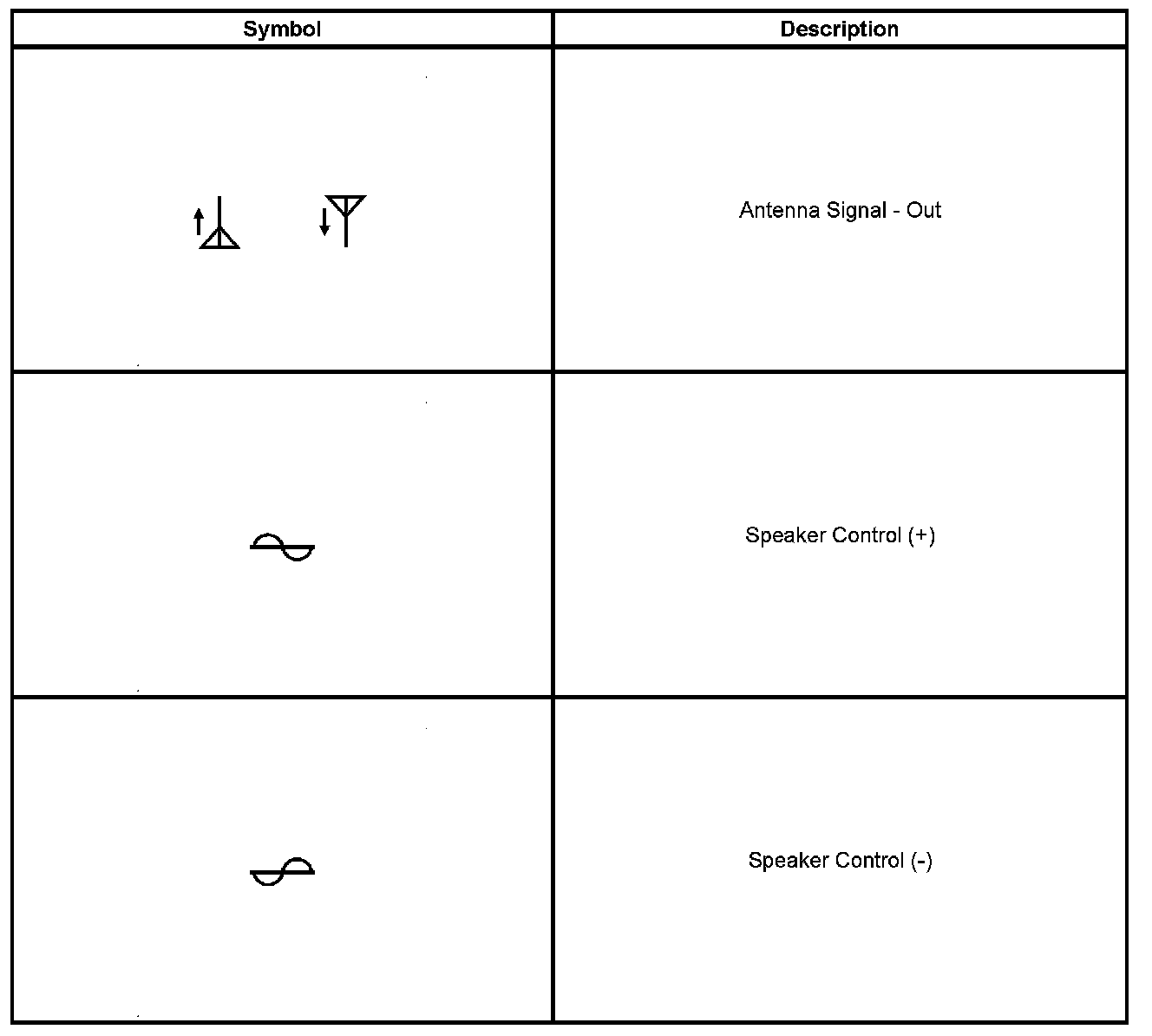

Module Circuit Function Icons

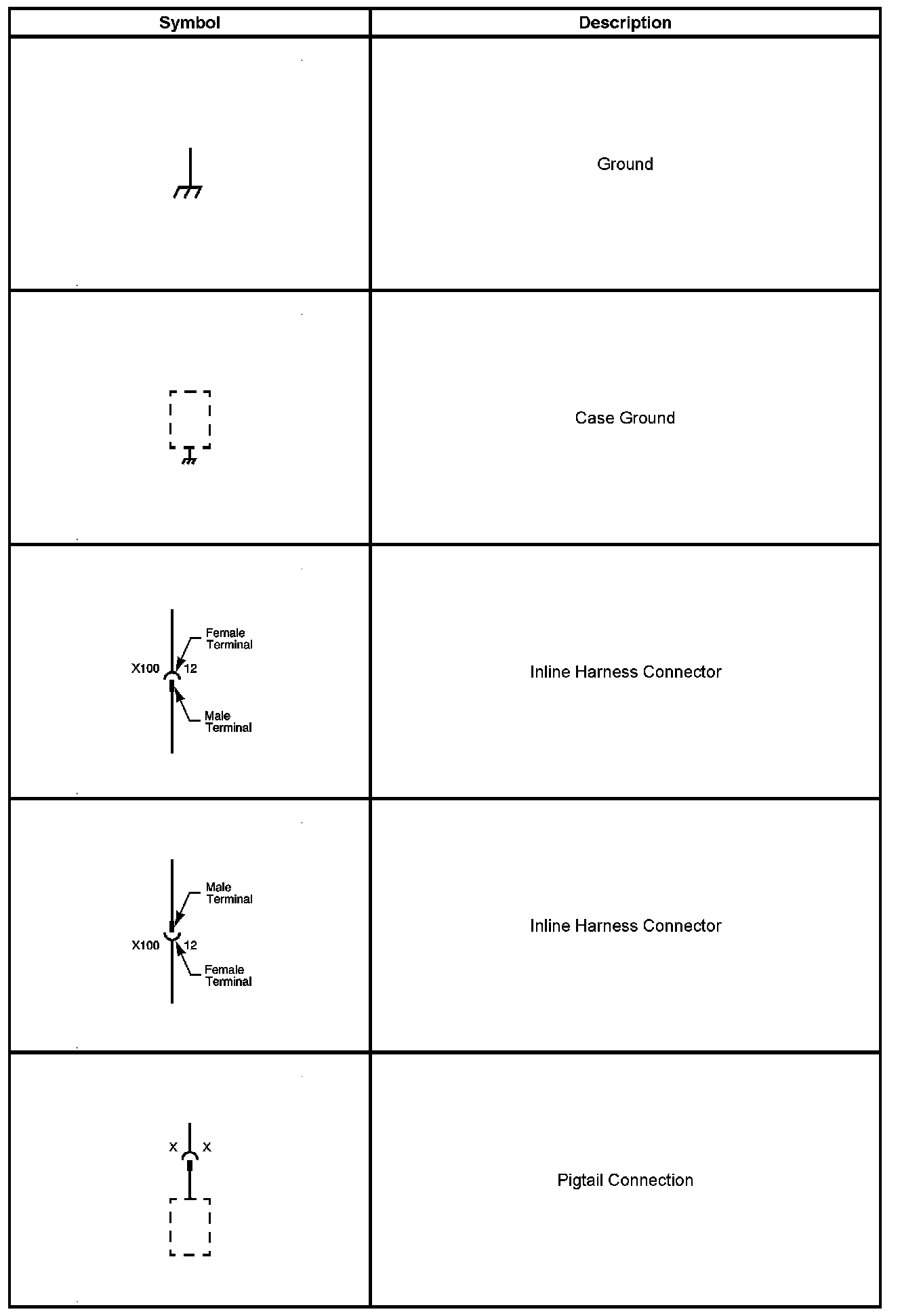

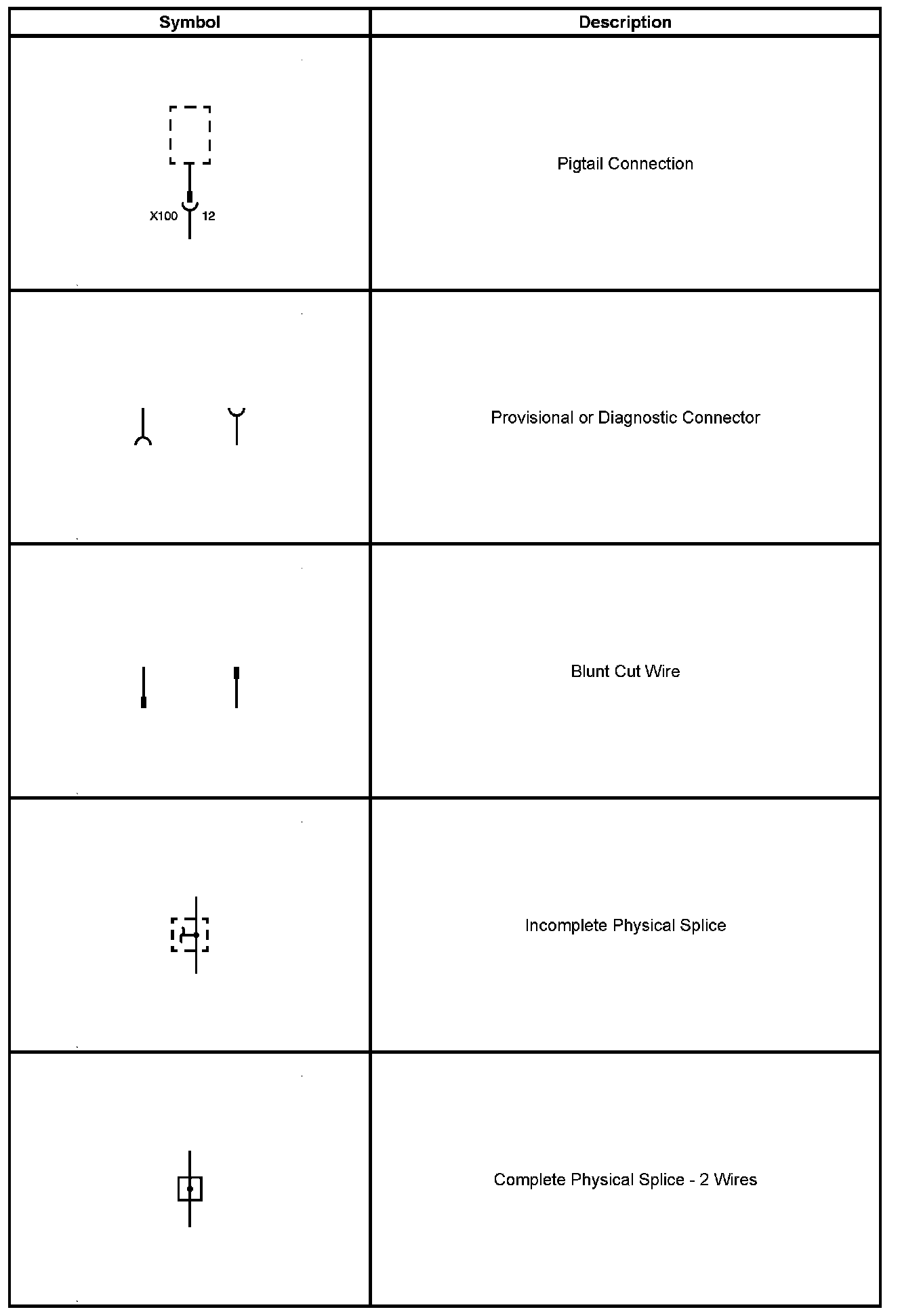

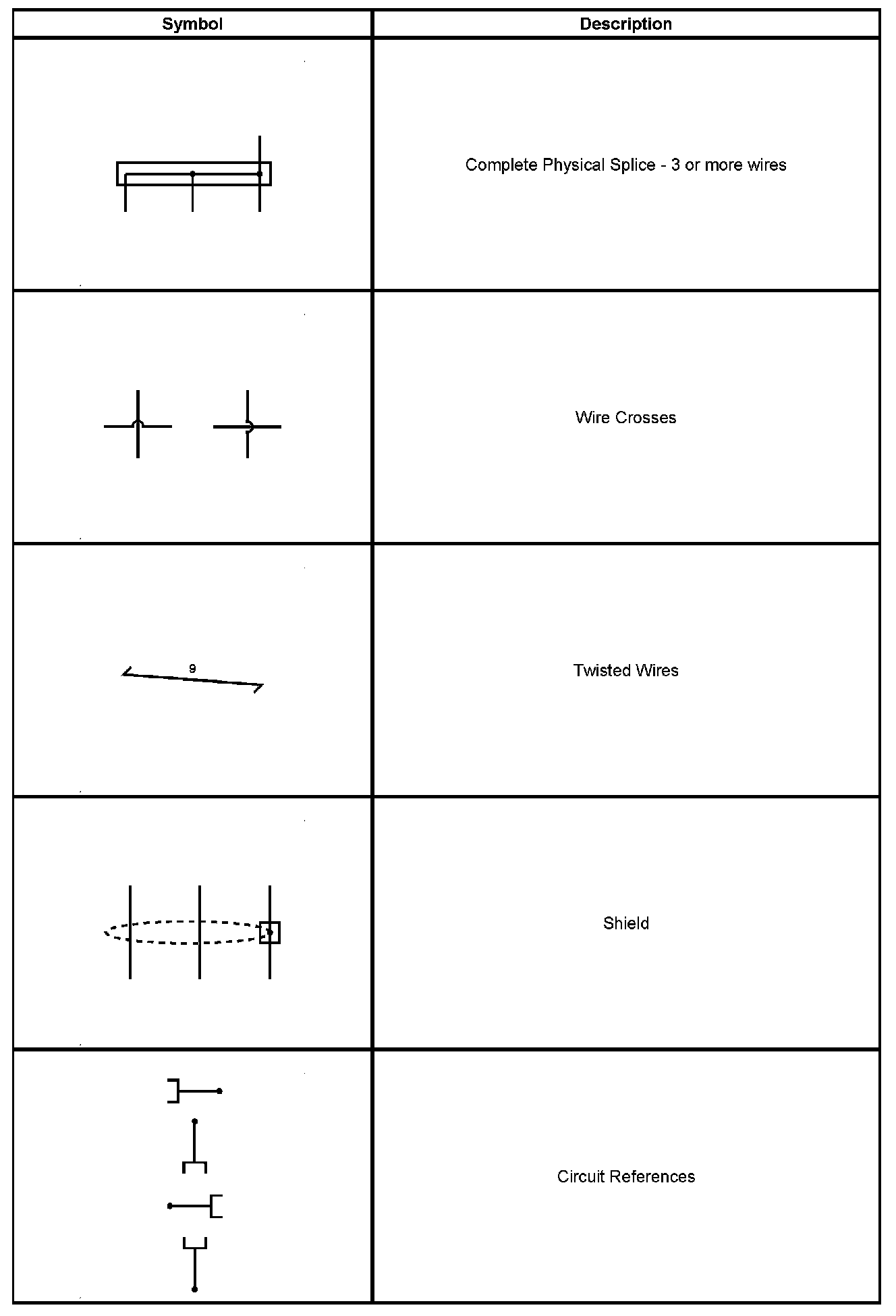

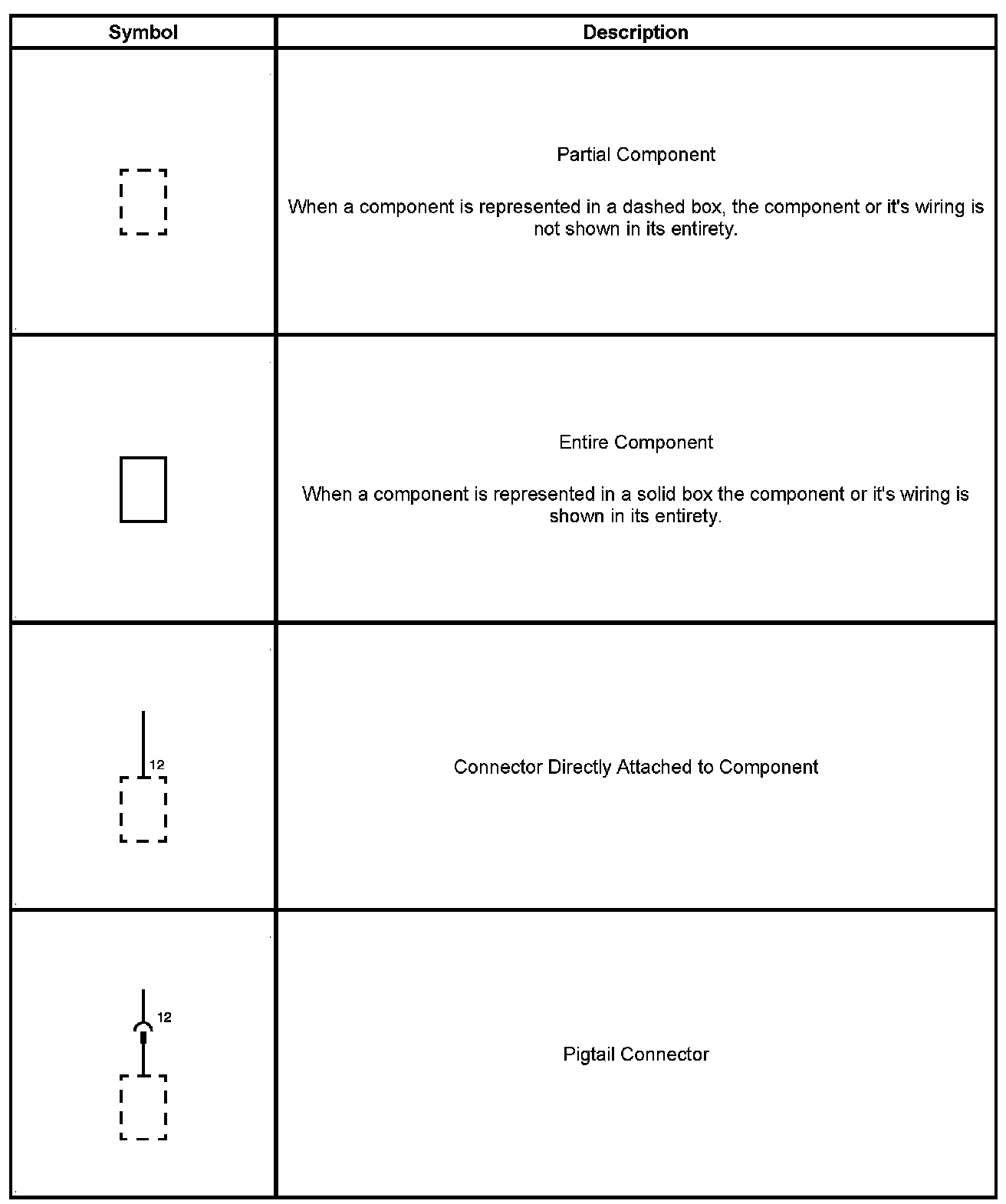

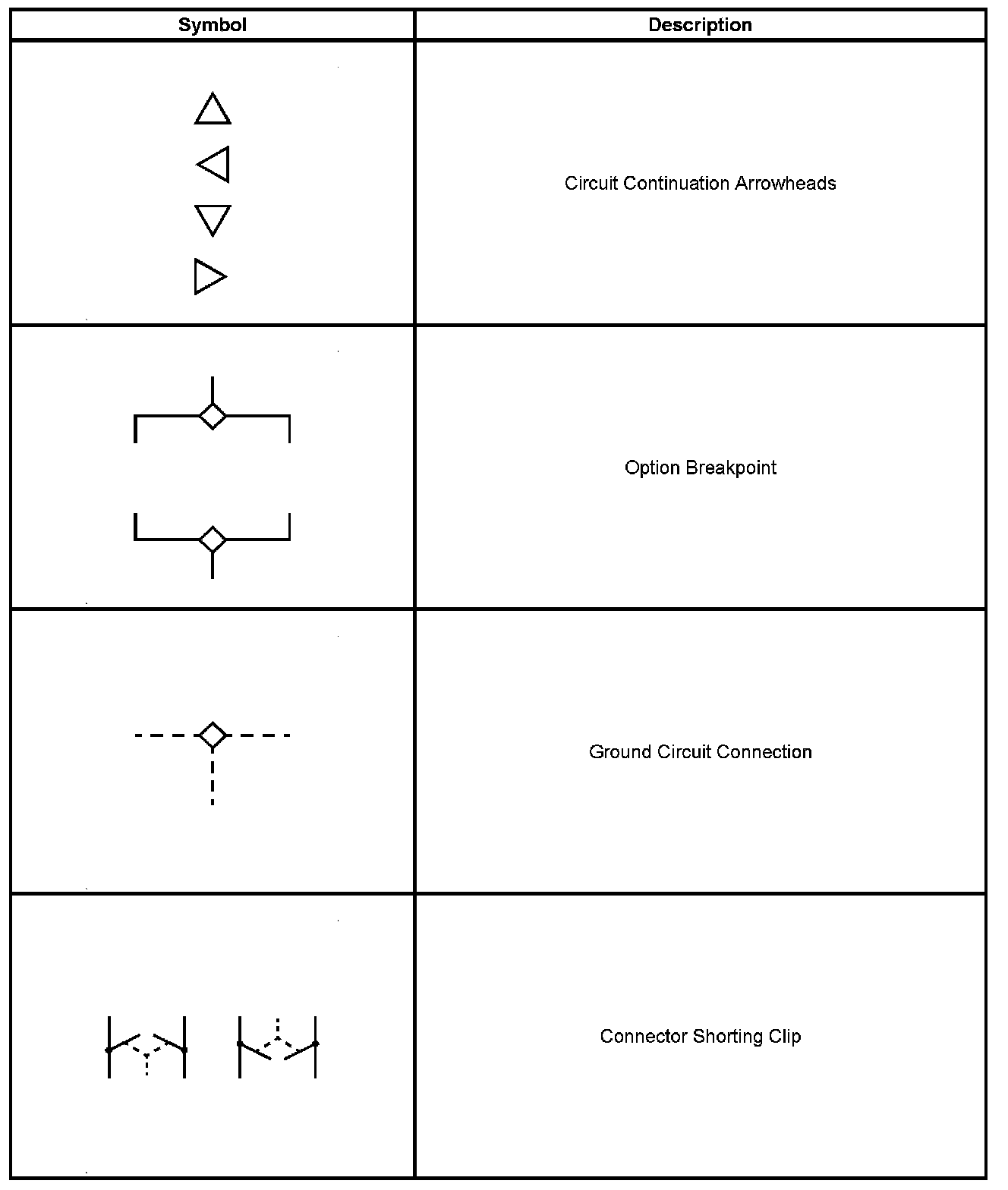

Harness Components

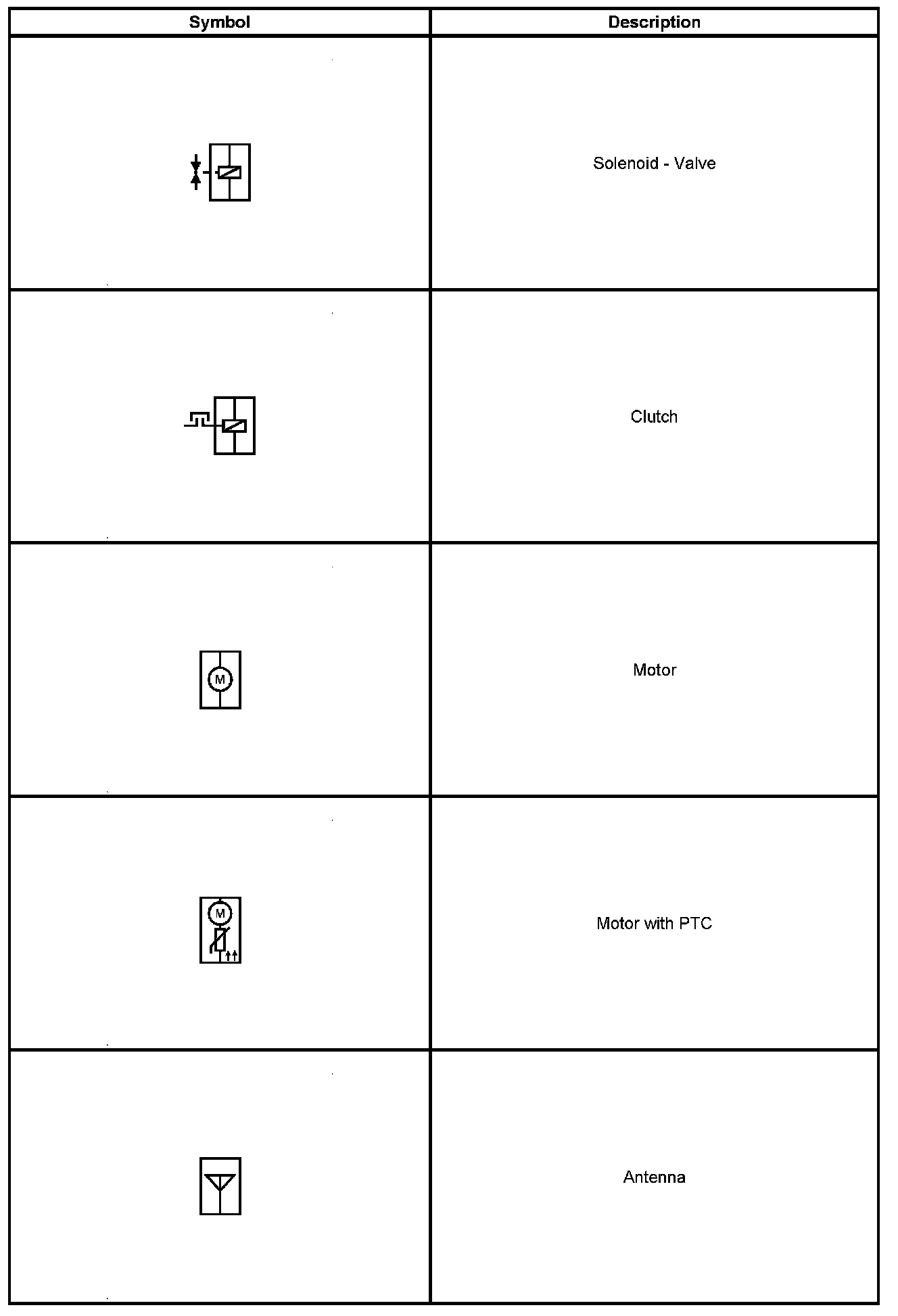

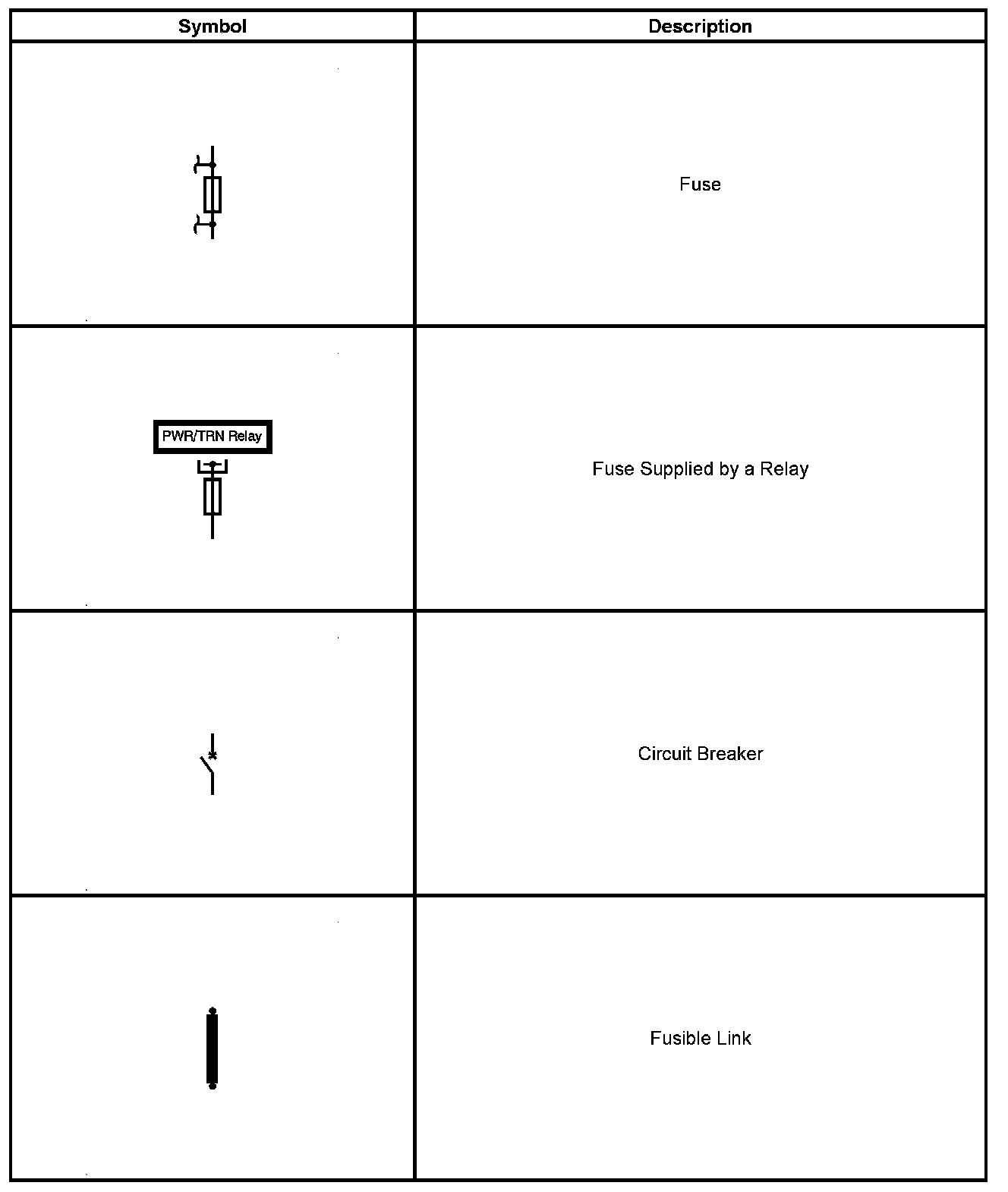

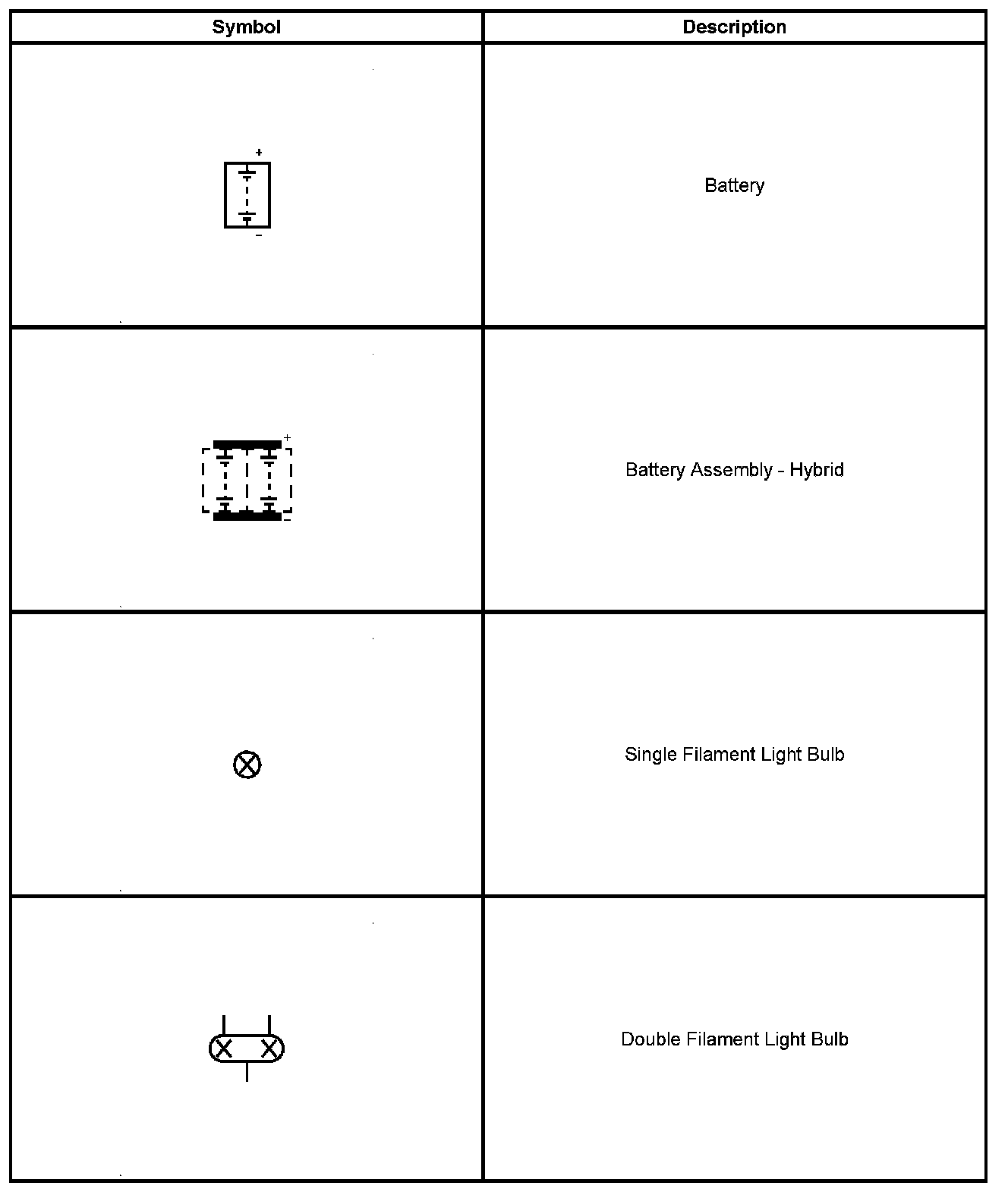

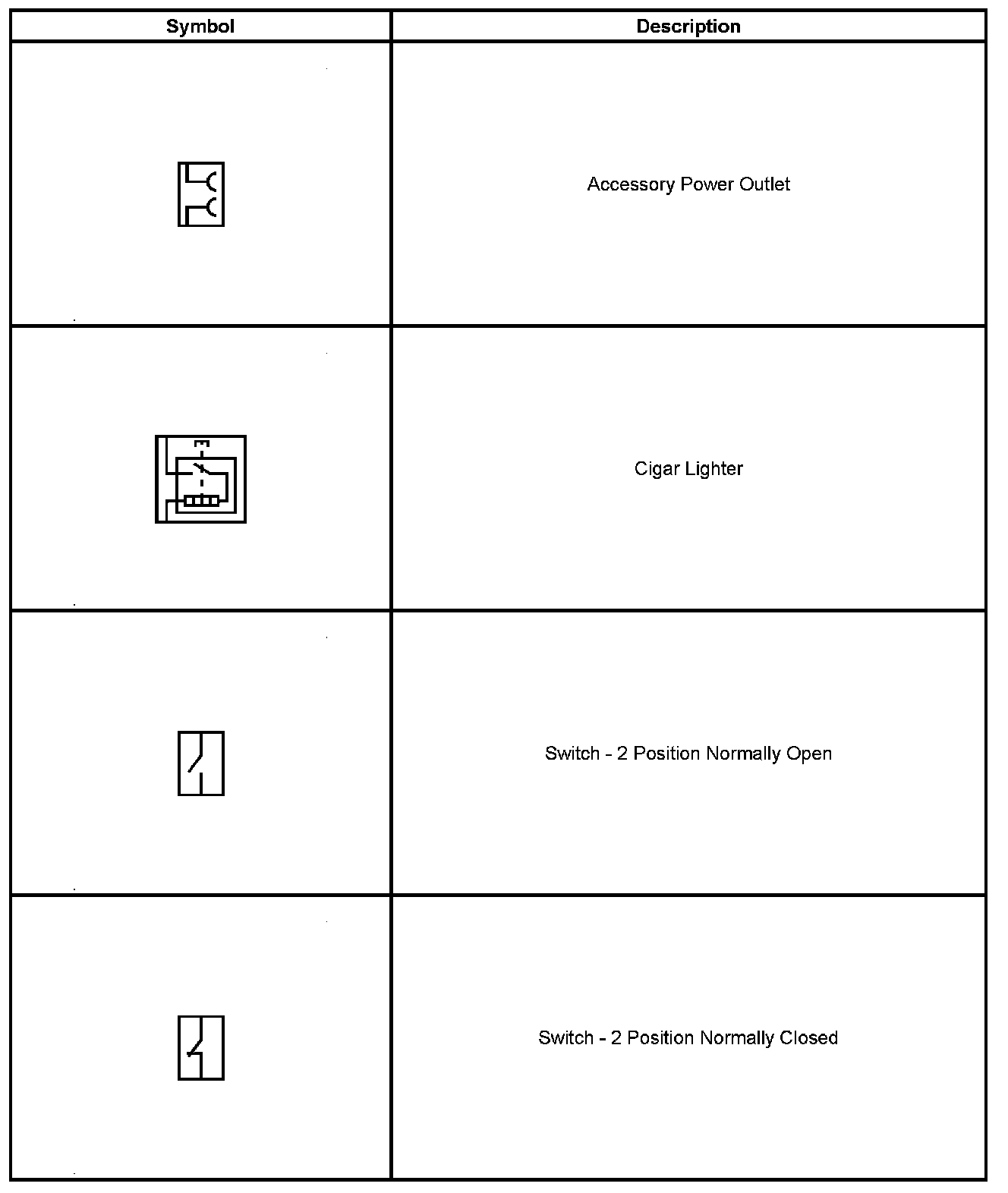

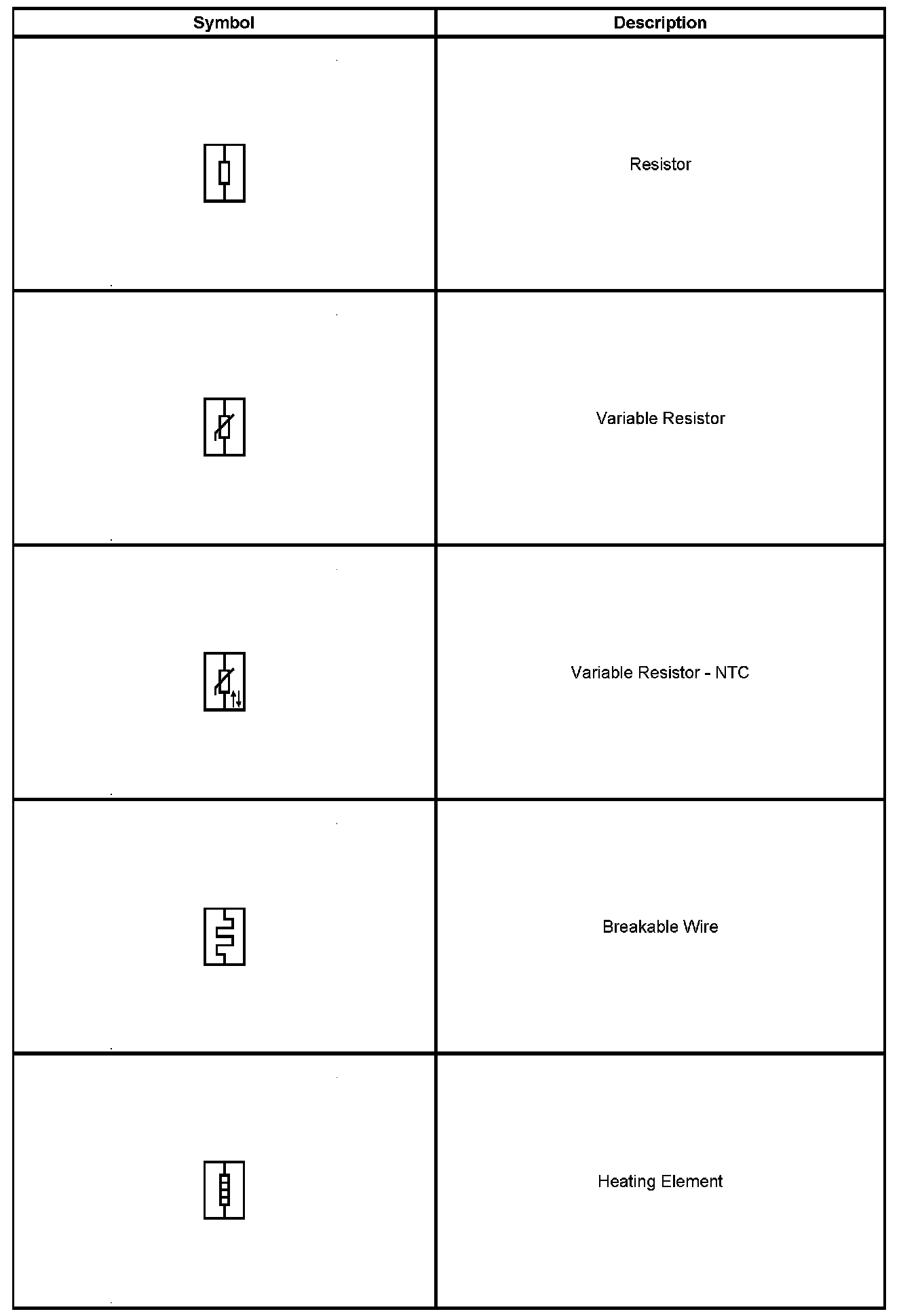

Component Parts

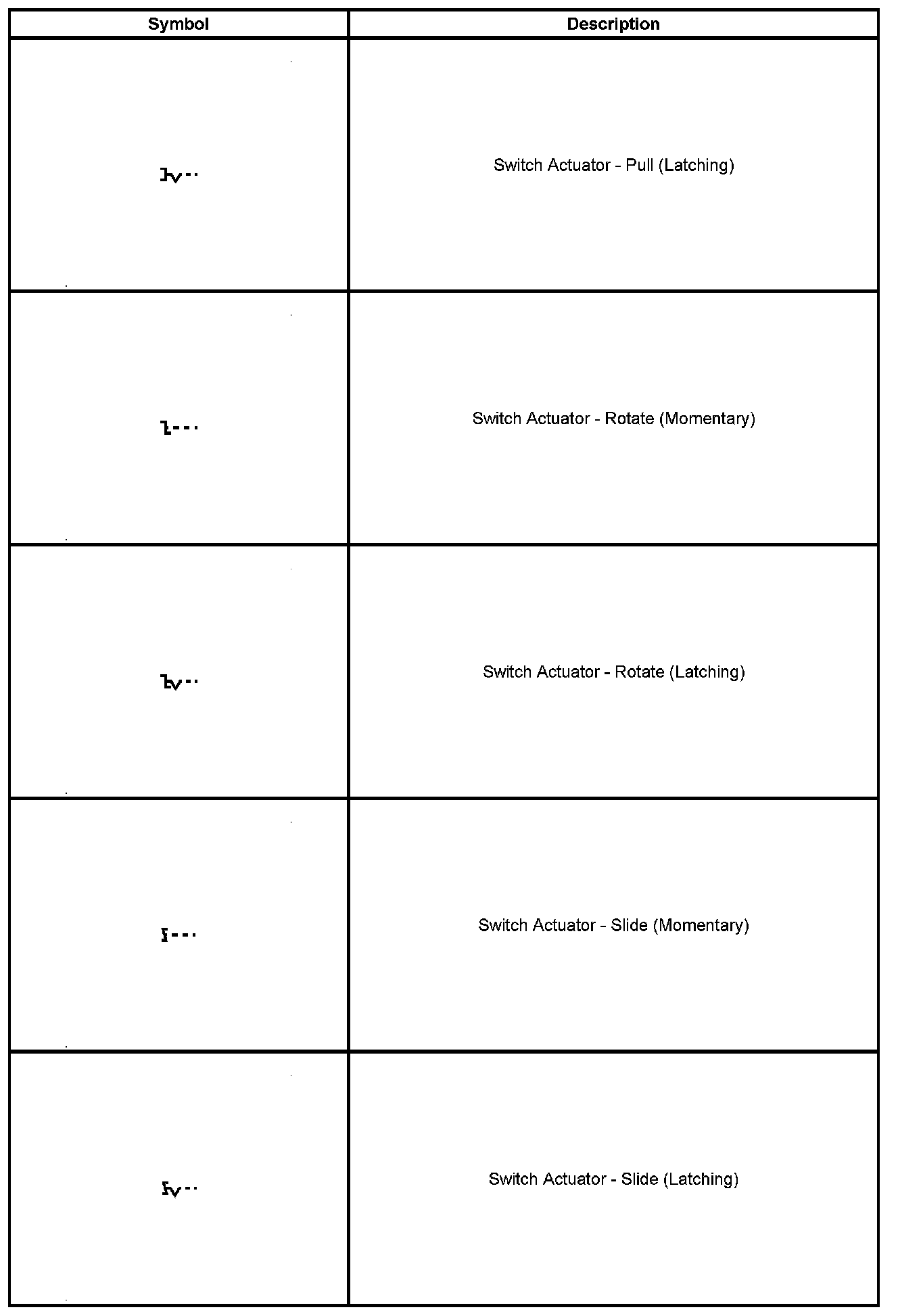

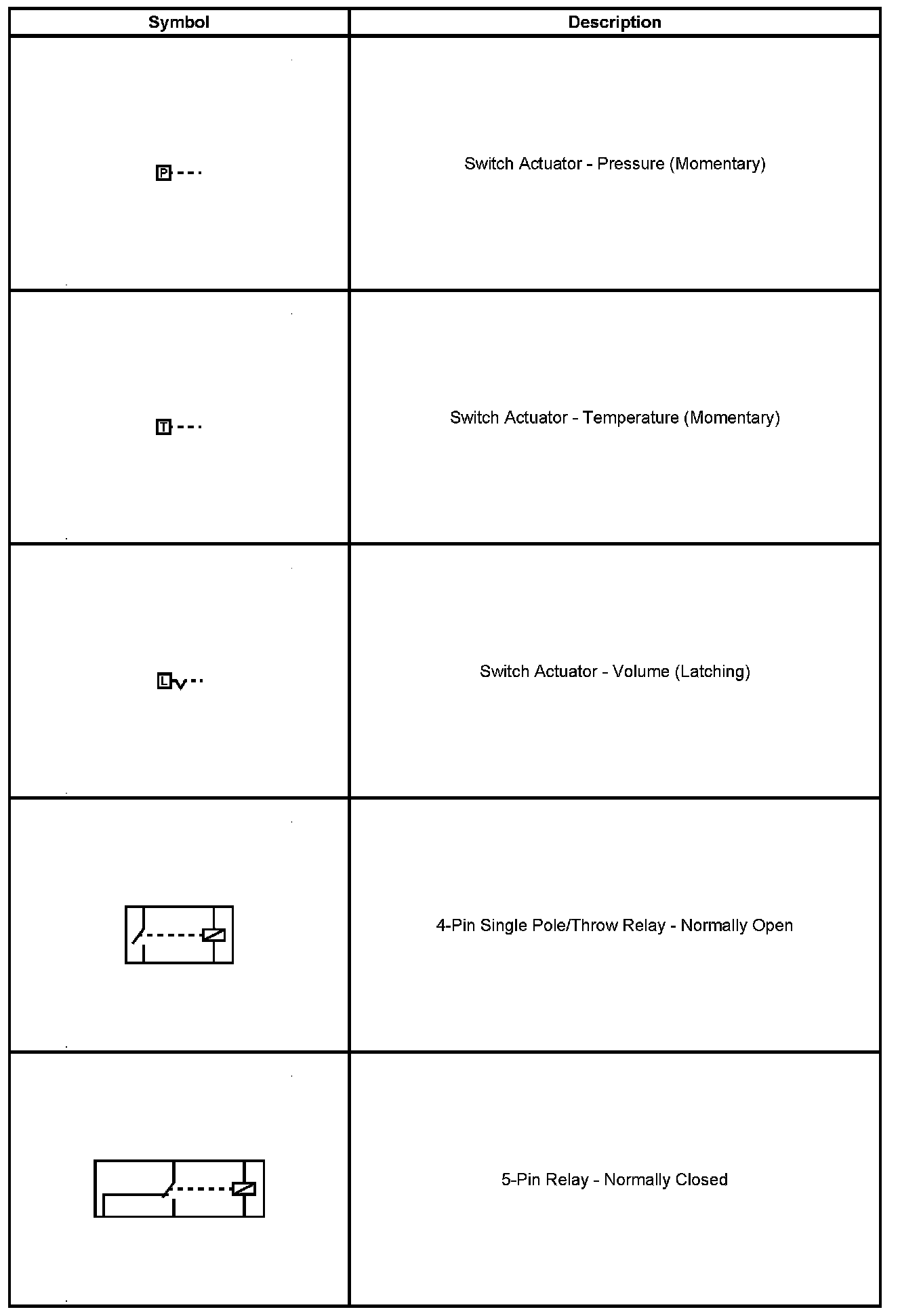

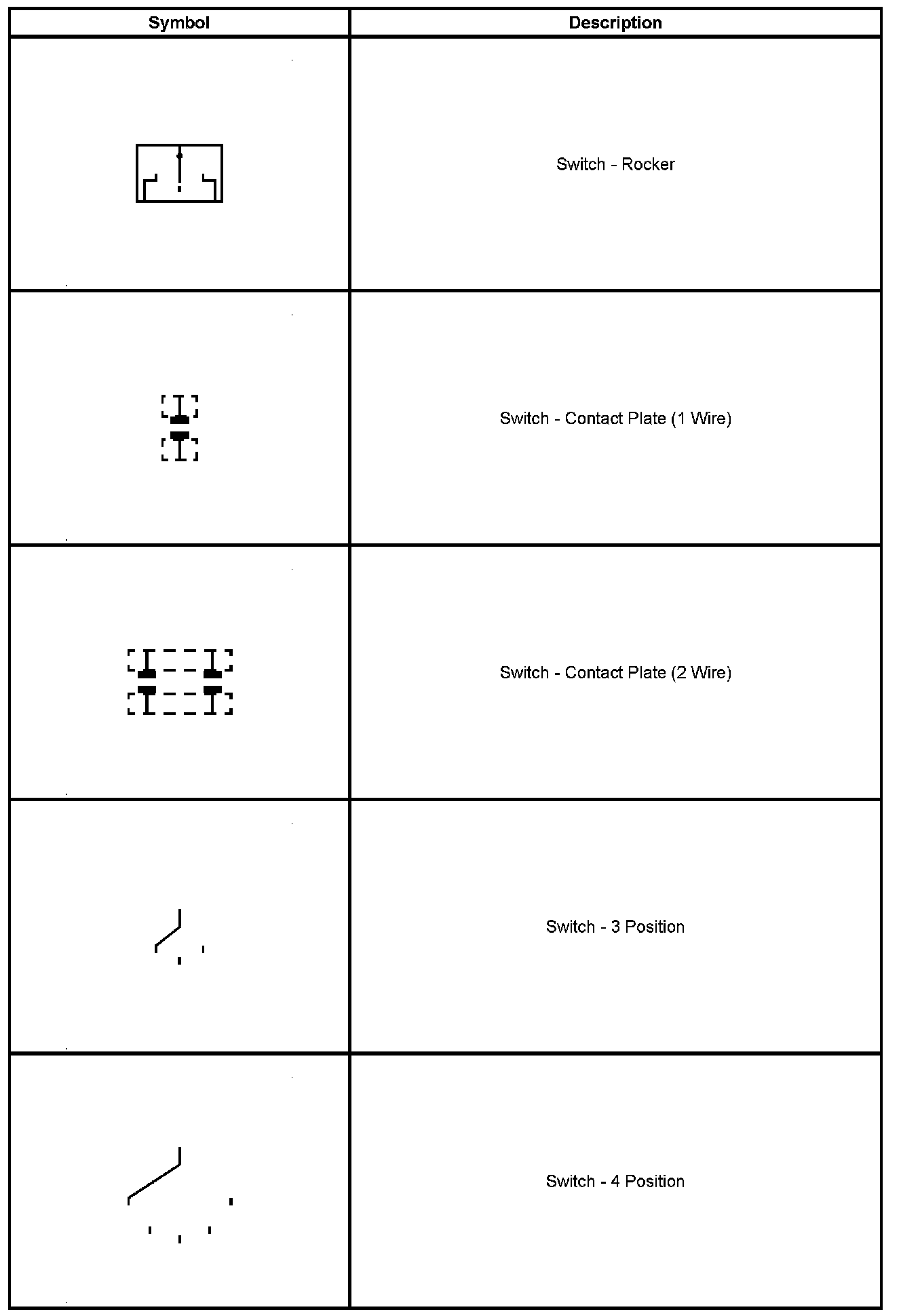

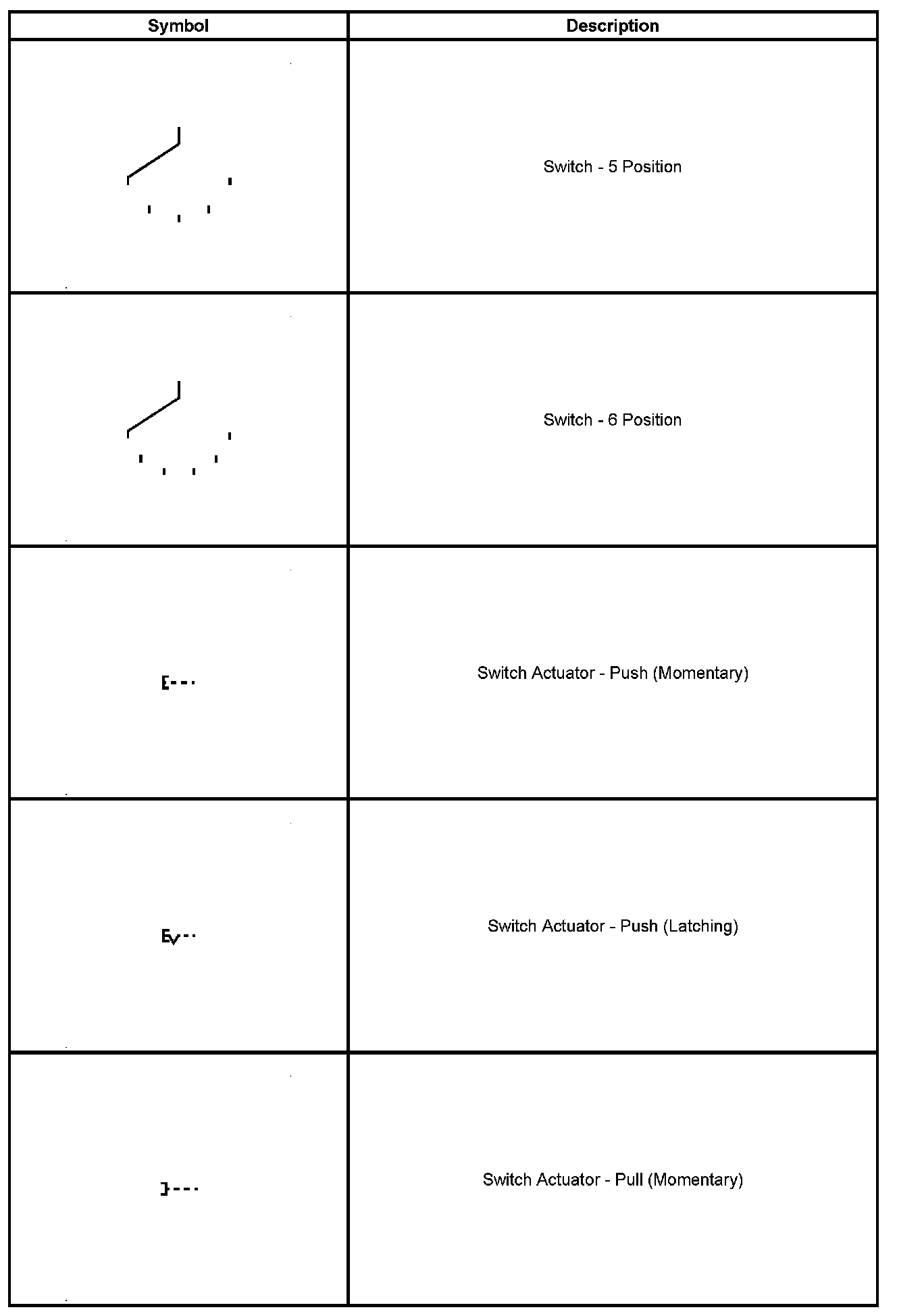

Switches and Relays

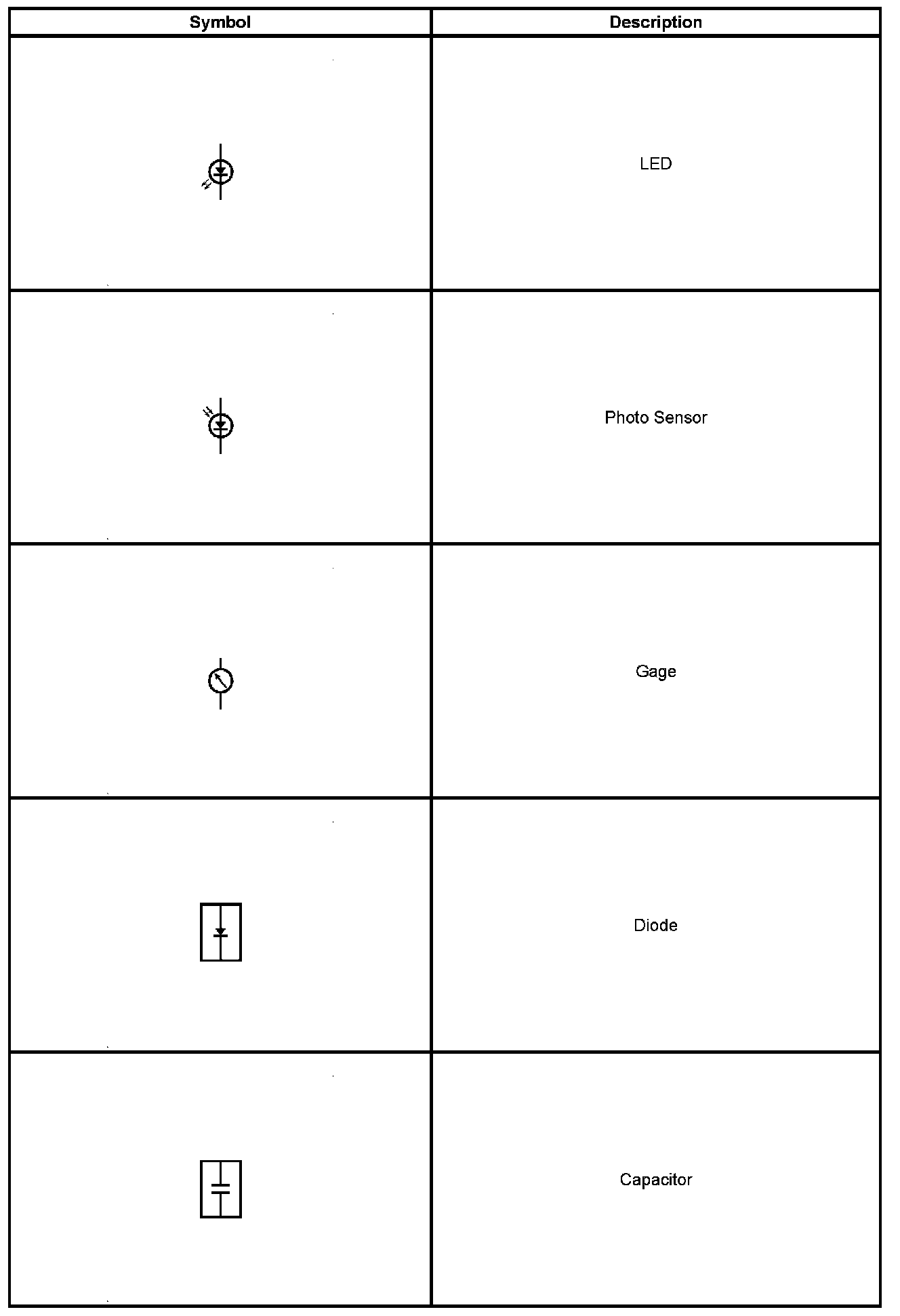

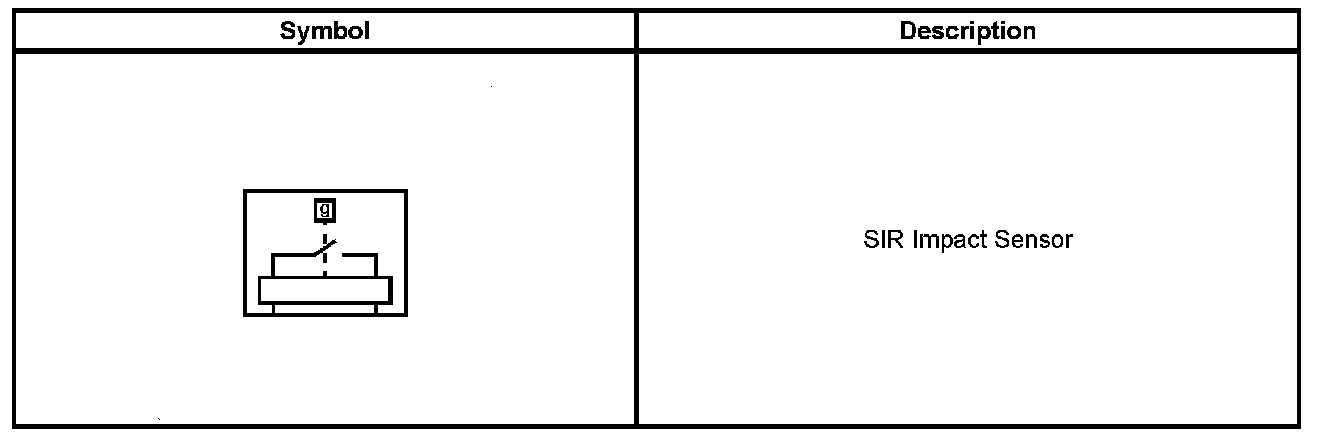

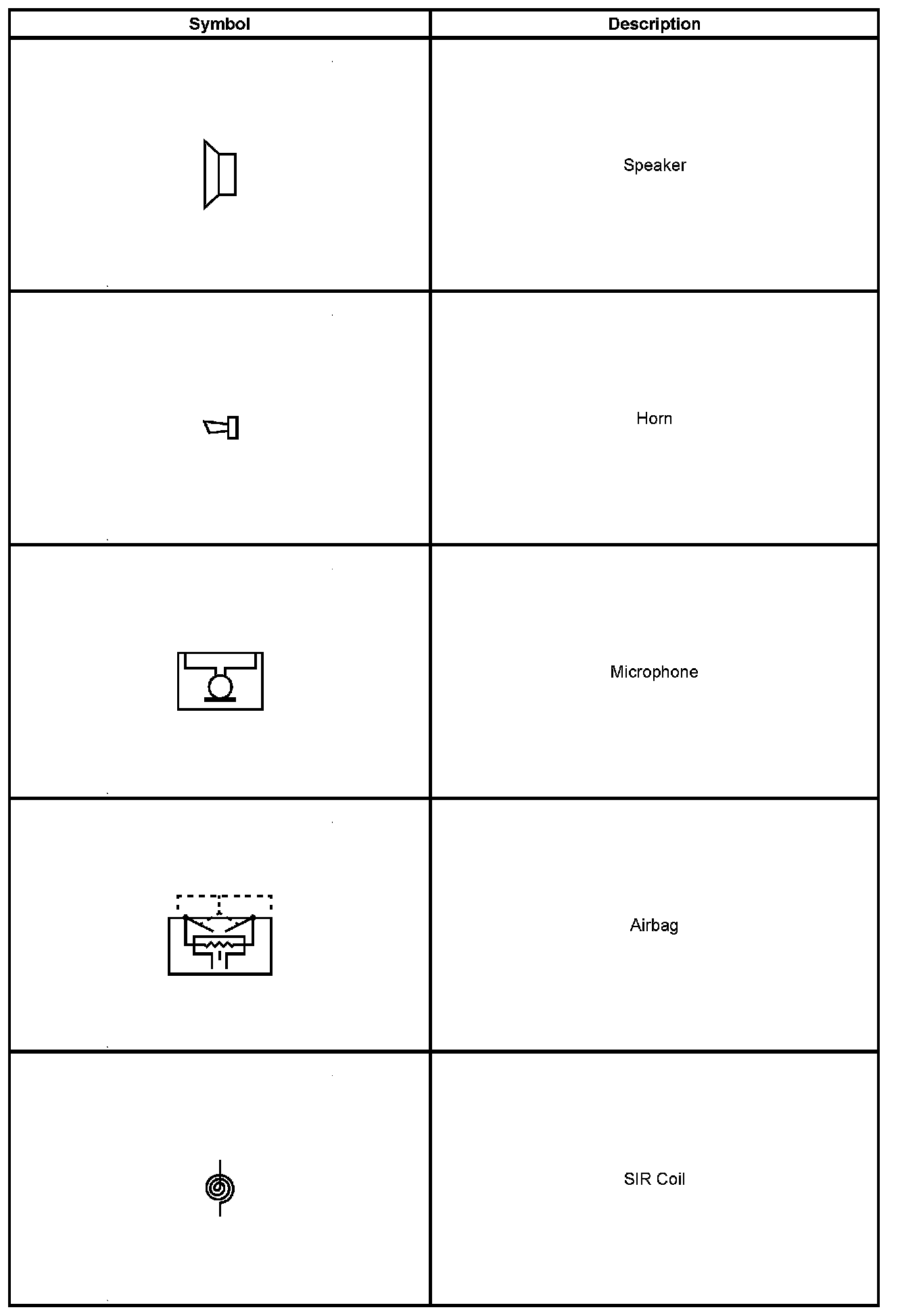

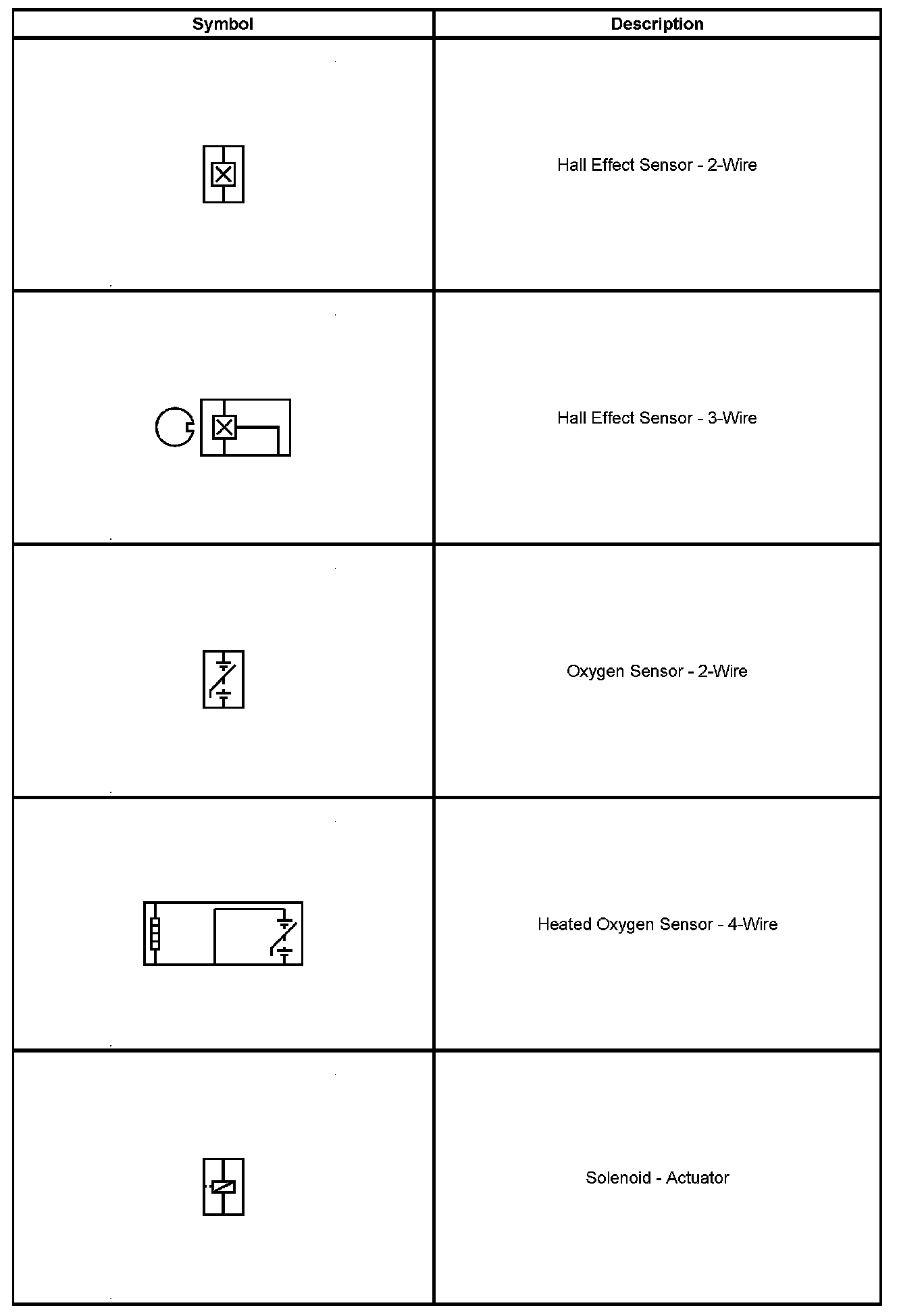

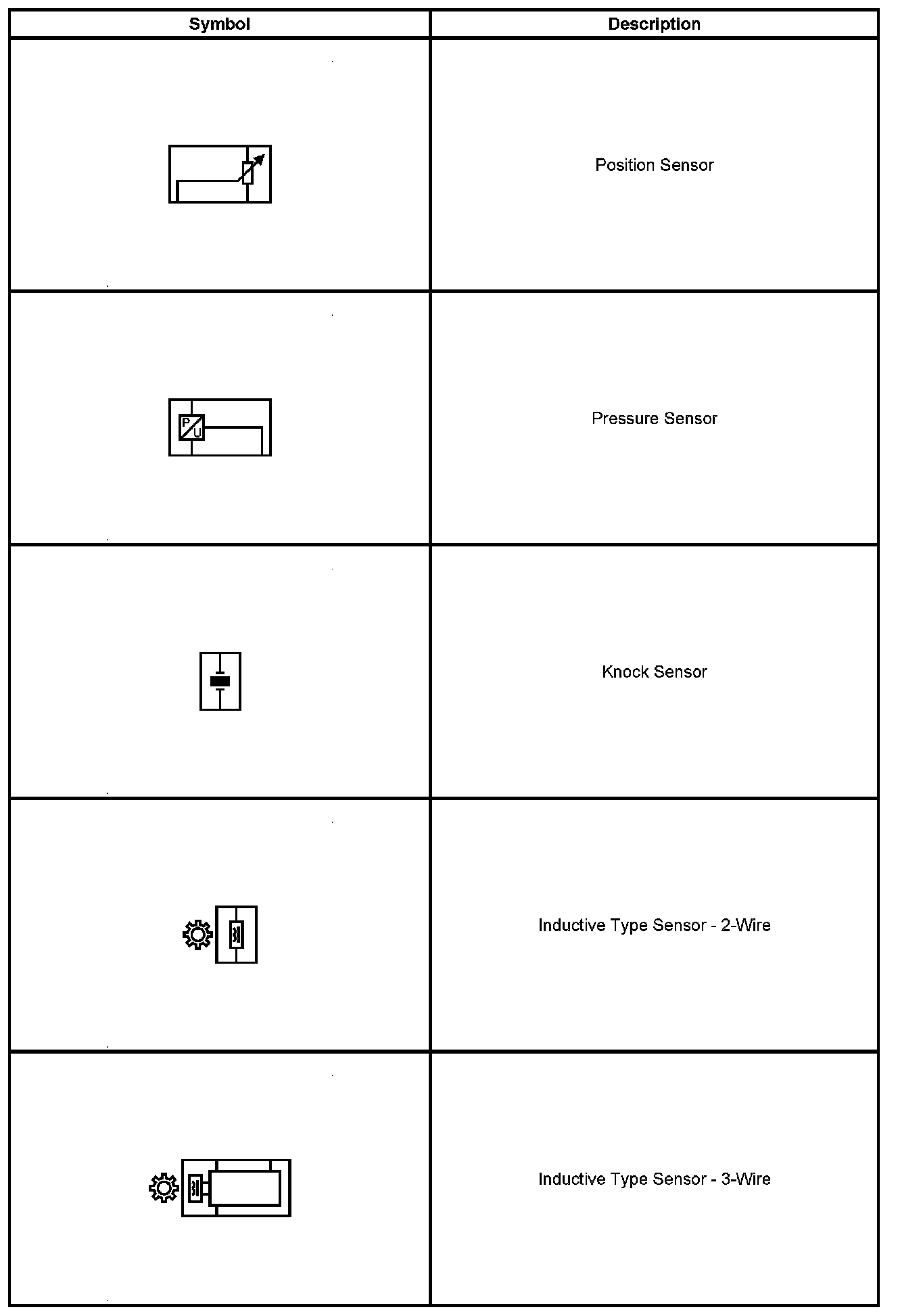

Devices and Sensors
