Transmission Position Sensor/Switch: Diagrams



Component Connector End Views - Continued

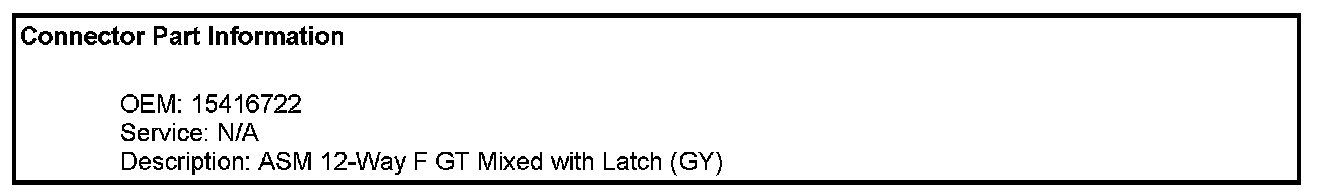

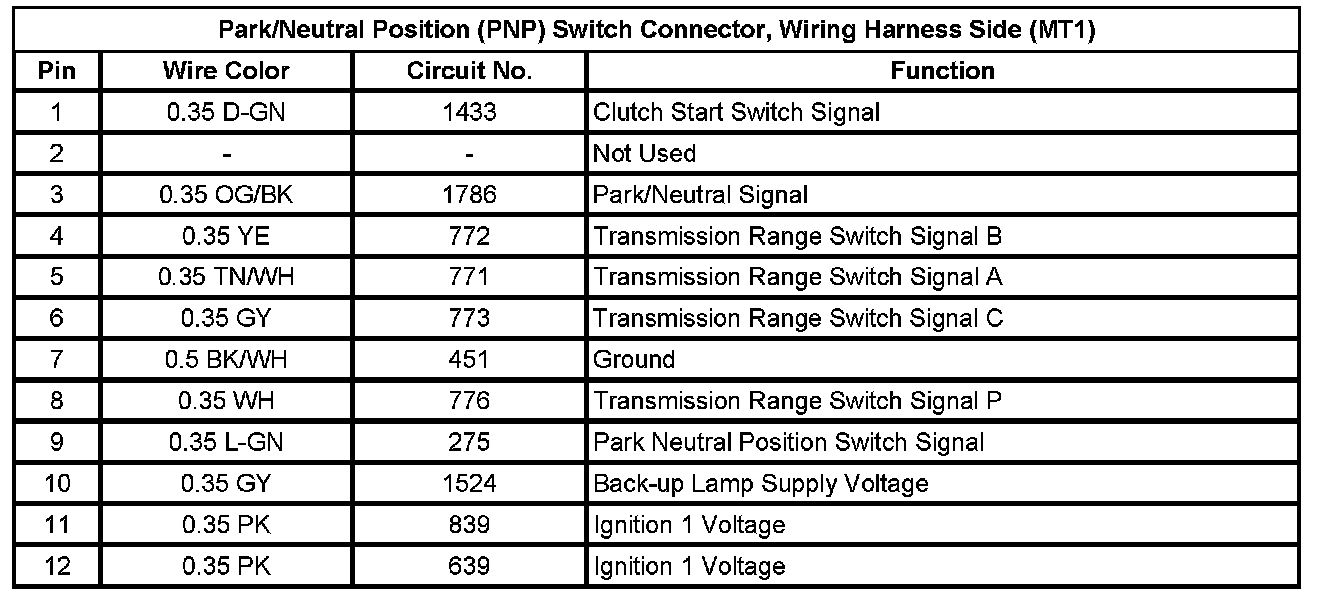

Park/Neutral Position (PNP) Switch Connector, Wiring Harness Side (MT1)

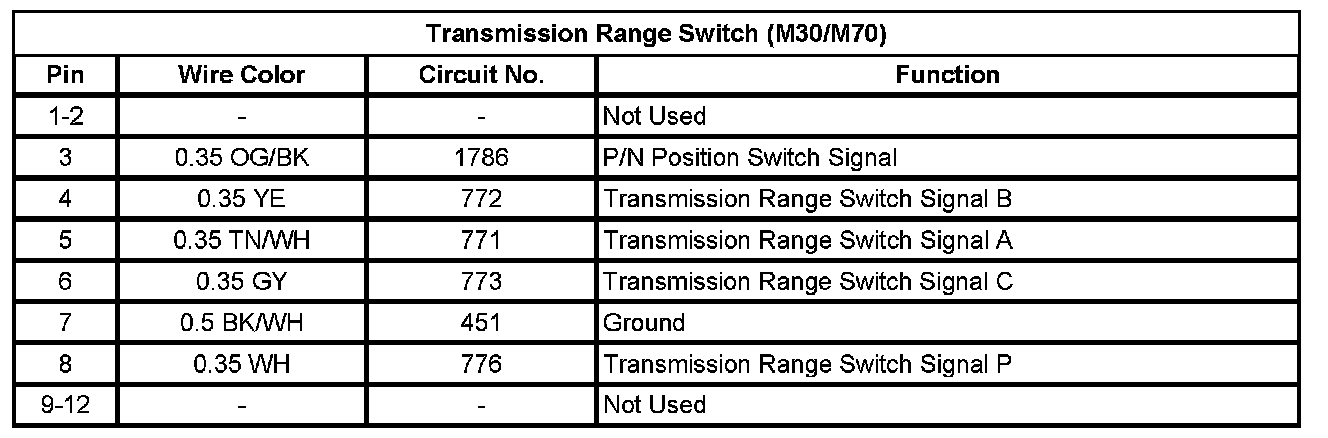

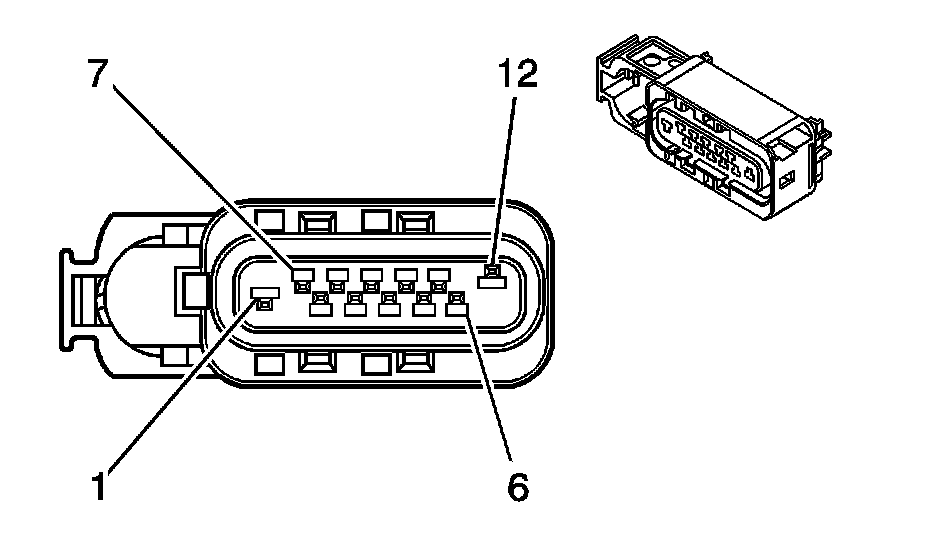

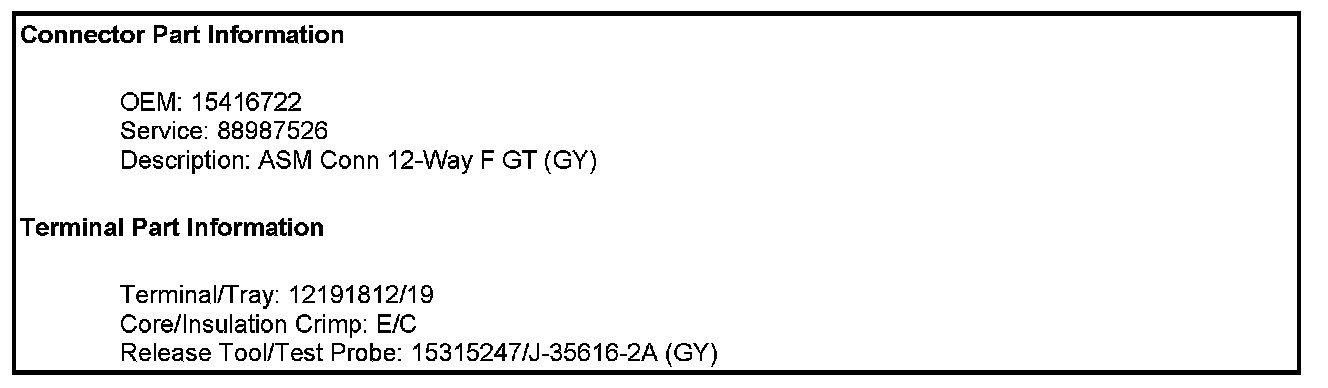

Transmission Range Switch (M30/M70)
