Powertrain Component Views



Powertrain Component Views

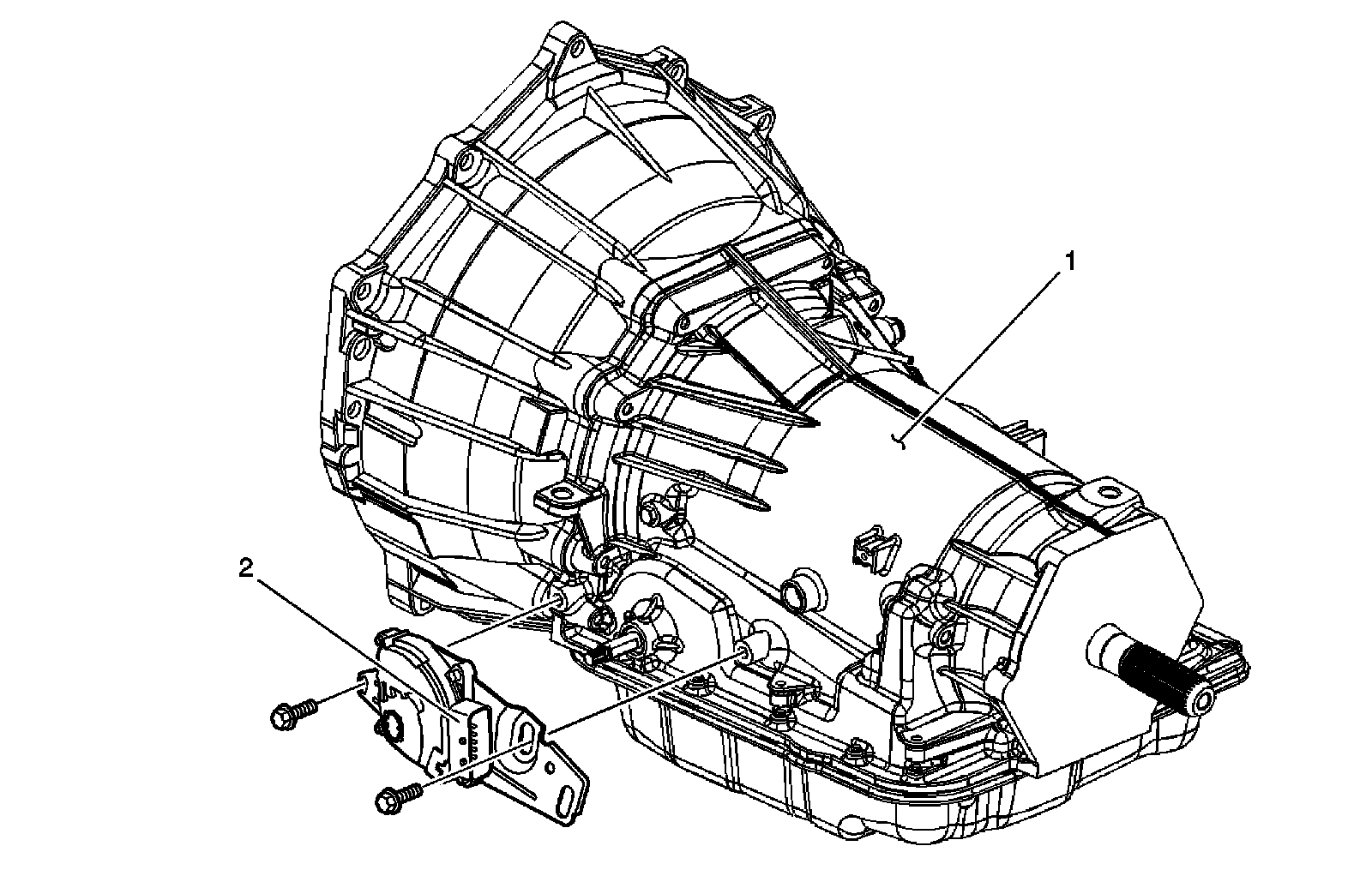

Left Side of the Transmission Components (4L60-E/4L65-E/4L70-E)

Park Neutral Position (PNP) Switch:




1 - Automatic Transmission
2 - Park/Neutral Position (PNP) Switch
