Powertrain Component Views



Powertrain Component Views

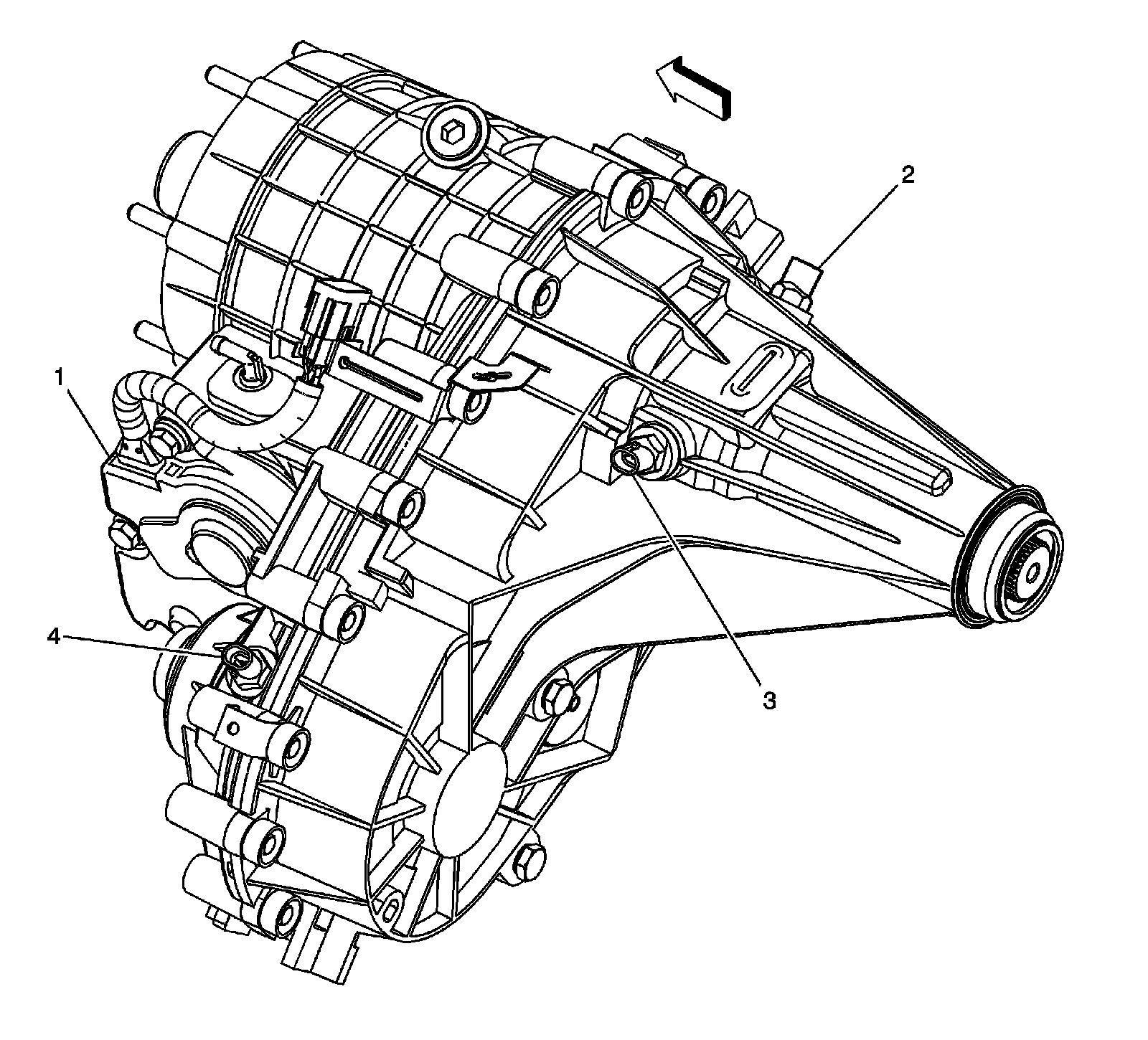

Transfer Case Components (NP8)

Transfer Case:




1 - Transfer Case Encoder Motor
2 - Propshaft Speed Sensor - Rear
3 - Vehicle Speed Sensor (VSS)
4 - Propshaft Speed Sensor - Front

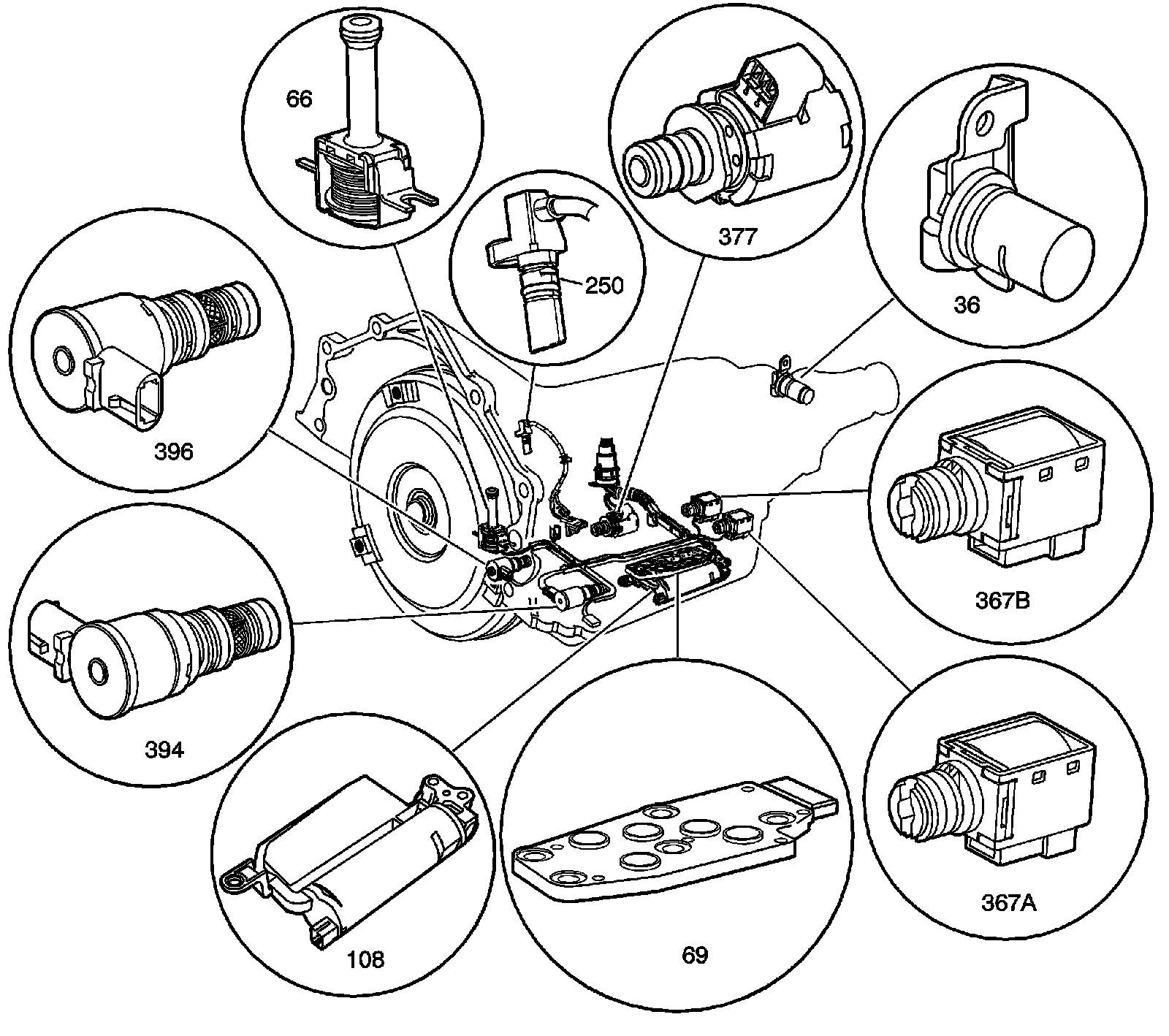

Inside the Transmission Components (4L60-E/4L65-E/4L70-E)

Electronic Components:




36 - Vehicle Speed Sensor (VSS)
66 - Torque Converter Clutch (TCC) Solenoid Valve
69 - Automatic Transmission Fluid Pressure Manual Valve Position Switch
250 - Input Speed Sensor (ISS)
367a - 1-2 Shift Solenoid (1-2 SS) Valve
367b - 2-3 Shift Solenoid (2-3 SS) Valve
377 - Pressure Control (PC) Solenoid Valve
394 - 3-2 Shift Solenoid (3-2 SS) Valve Assembly
396 - Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve
