Intake Manifold

Intake Manifold

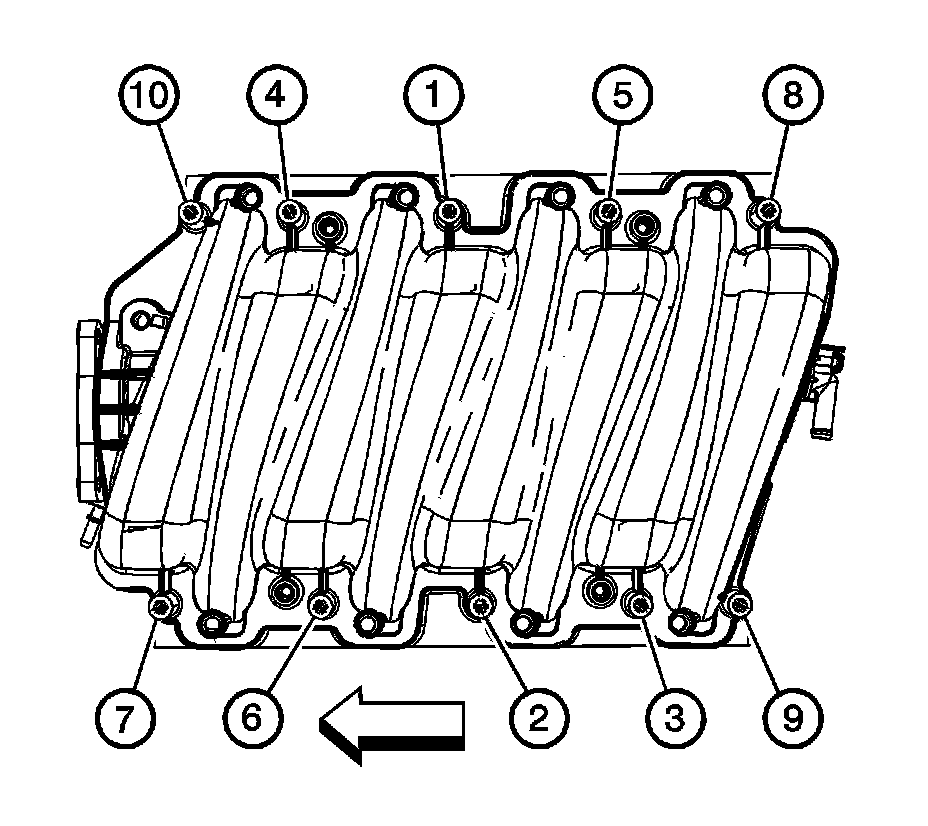

Tighten the bolts a first pass in the sequence shown to 5 N.m (44 lb in).
Tighten the bolts a final pass in the sequence shown to 10 N.m (89 lb in).

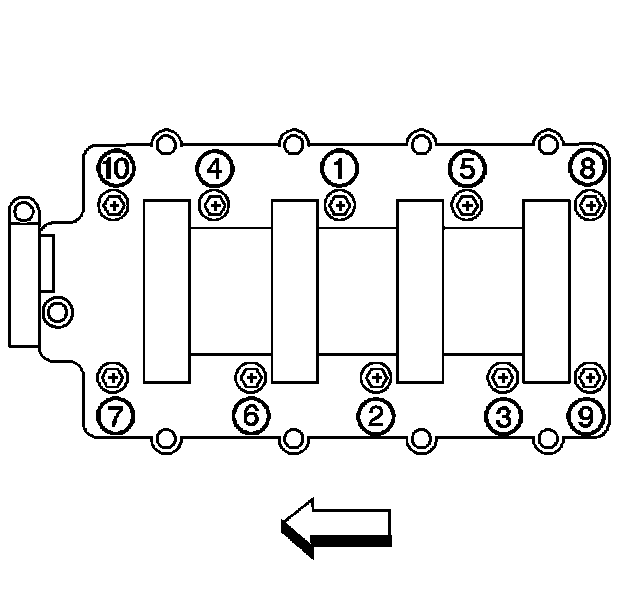

Intake Manifold (LFA)
Tighten the bolts a first pass in the sequence shown to 5 N.m (44 lb in).
Tighten the bolts a final pass in the sequence shown to 10 N.m (89 lb in).

Throttle Body Bolts 10 N.m (89 lb in)
Throttle Body Nuts 10 N.m (89 lb in)
Throttle Body Studs 6 N.m (53 lb in)
