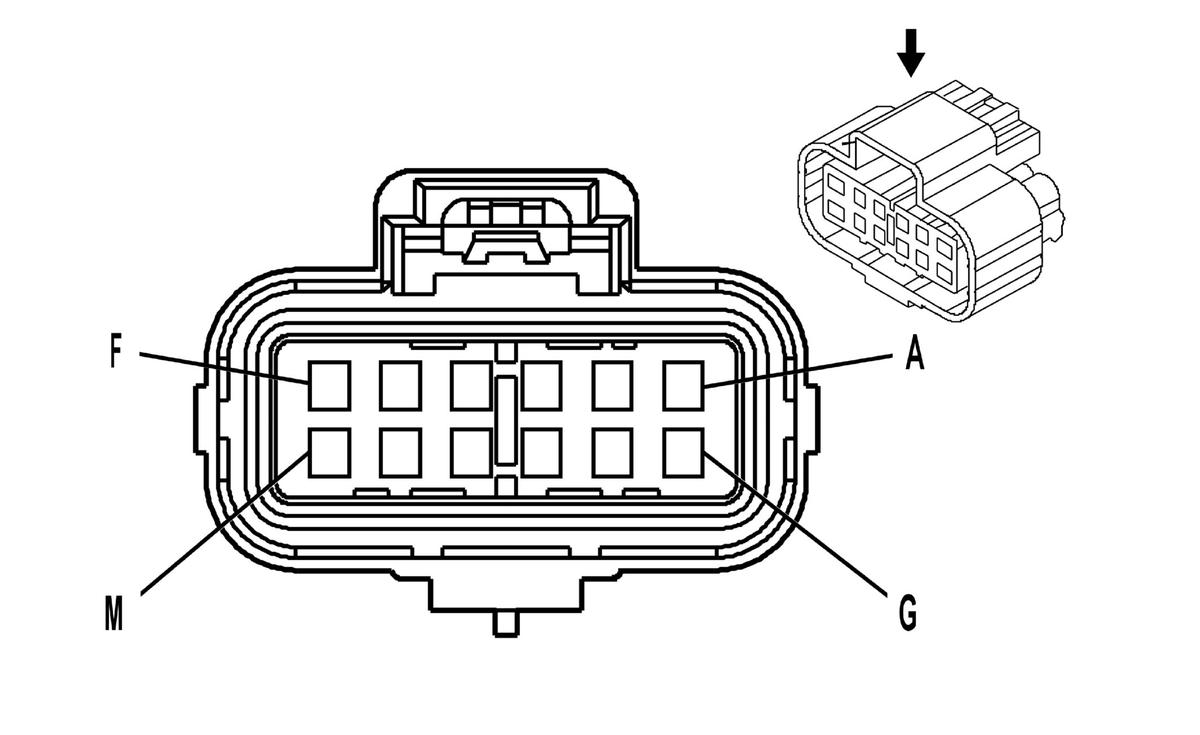

Assist Step Control Module X2 (BRS)
Courtesy of GENERAL MOTORS CORP. Assist Step Control Module X2 (BRS)
| Pin |
Wire Color |
Circuit |
Function |
| A |
0.5 PK |
7468 |
10-Volt Reference |
| B |
0.5 L-GN |
7464 |
10-Volt Referencee |
| C |
0.5 YE |
7467 |
Running Board Motor Hall Sensor Left Signal |
| D |
0.5 PU |
7465 |
Running Board Motor Hall Sensor Right Signal |
| E |
0.5 TN |
7466 |
Low Reference |
| F |
0.5 YE/BK |
7463 |
Low Reference |
| G |
- |
- |
Not Used |
| H |
0.5 D-GN |
5060 |
Low Speed GMLAN Serial Data |
| J |
- |
- |
Not Used |
| K |
0.5 TN/WH |
7462 |
Running Board Disable Signal |
| L-M |
- |
- |
Not Used |
Connector Part Information
- OEM: 15326849
- Service: 88986260
- Description: 12-Way F GT 150 Series, Sealed (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
