Electrical Component Locations
>>
Wiring Systems And Power Management - Electrical Center Identification Views & Component Connector End View Index
>>
Electrical Center Identification Views
>>
Fuse Block - I/P, Top View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuse Block - I/P, Top View

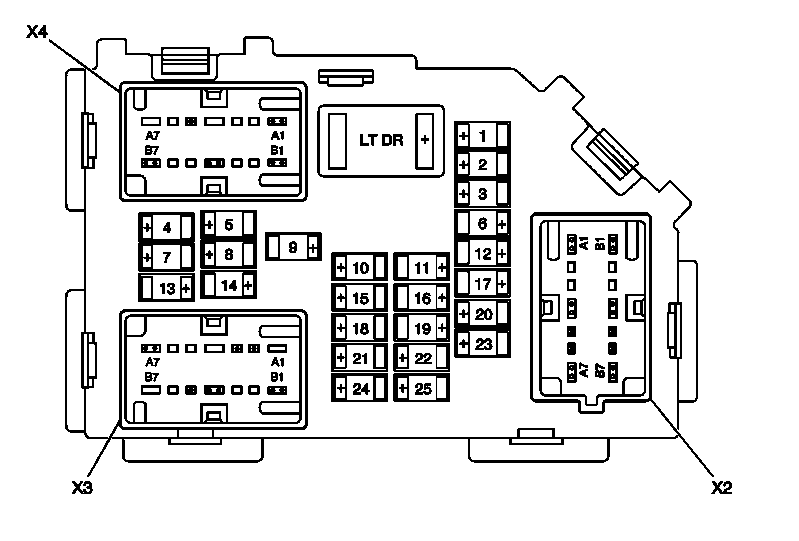

Fig 1: Fuse Block - I/P, Top View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
