Junction Block - Left I/P X11

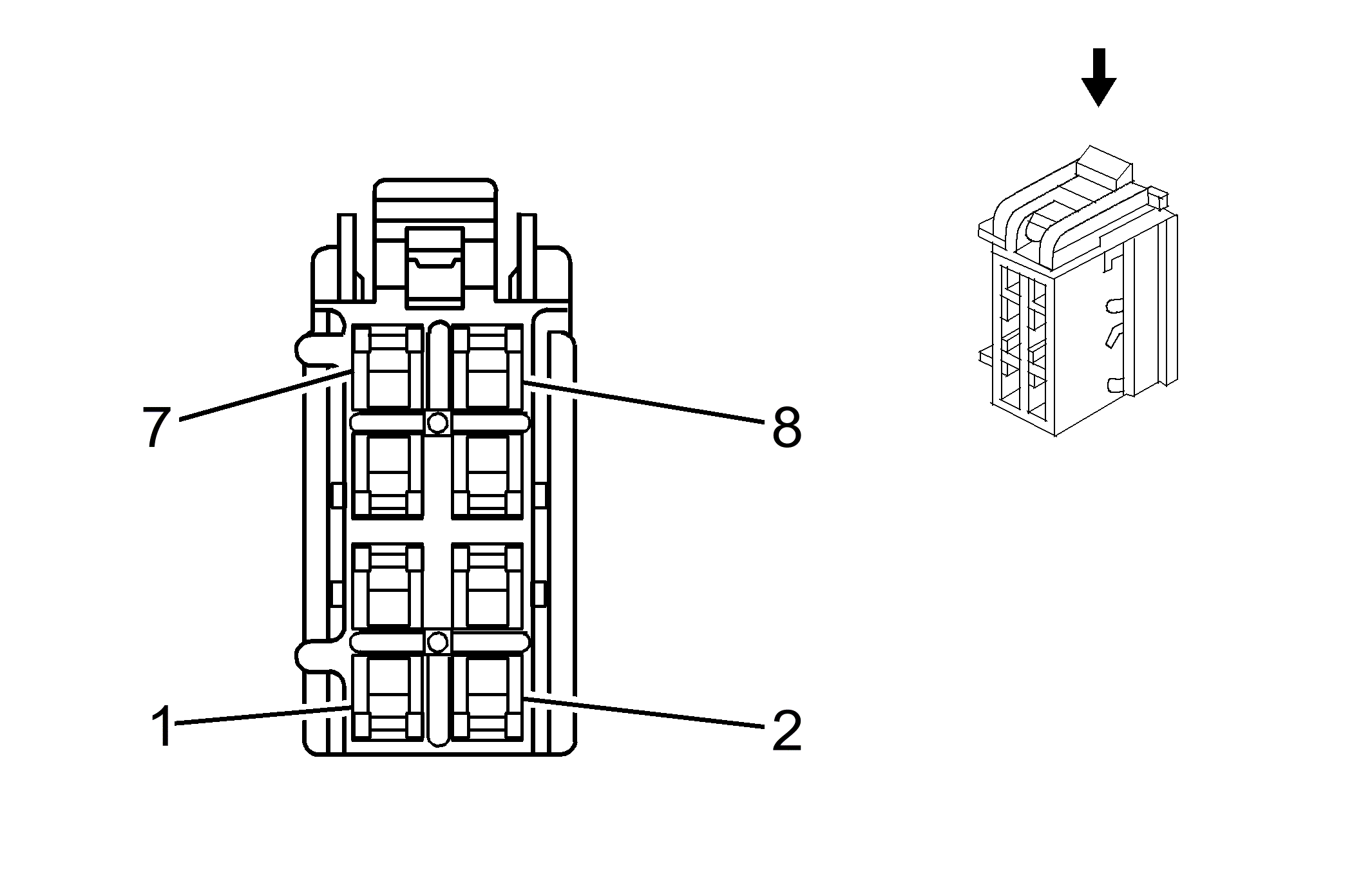

Fig 1: Junction Block - Left I/P X11 Connector End View
GM1665725Courtesy of GENERAL MOTORS CORP.
Junction Block - Left I/P X11

Pin Wire Circuit Function
1 2 RD/WH 1340 Battery Positive Voltage
2 3 RD/WH 1440 Battery Positive Voltage (AG2)
3 0.35 PK 1639 Ignition Voltage
4 0.5 BN/WH 230 Instrument Panel Lamp Dimming Control
0.5 BN/WH 230 Instrument Panel Lamp Dimming Control
5 0.35 D-BU 38 Backup Lamp Relay Control (UVC)
6 0.35 PK 1139 Ignition Voltage (HP2)
0.5 L-BU 1320 CHMSL Control (except HP2)
7 0.5 RD/WH 4440 Battery Positive Voltage
0.5 RD/WH 4440 Battery Positive Voltage
8 0.5 RD/WH 4440 Battery Positive Voltage (ASF)
Connector Part Information
  • OEM: 13516833
  • Service: 19115668
  • Description: 8-Way F GT 280 Series (L-GY)

Terminal Part Information
  • Pins: 1, 2
  • Terminal/Tray: 15304713/19
  • Core/Insulation Crimp: F/D
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: 1, 2 (HP2)
  • Terminal/Tray: 13525969/4
  • Core/Insulation Crimp: Pins 1 - 4/4
  • Core/Insulation Crimp: Pins 2 - F/D
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: 3-8
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: Pins 3, 5-6, 8: E/A
  • Core/Insulation Crimp: Pins 4, 7: 2/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: 3-8 (HP2)
  • Terminal/Tray: 13525970/4
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
