Control Solenoid Valve and Transmission Control Module Assembly Input Shaft Speed/Output Shaft Speed Input Test: Notes

Tools Required

• J 35616  GM-Approved Terminal Test Kit
• J 38522  Variable Signal Generator

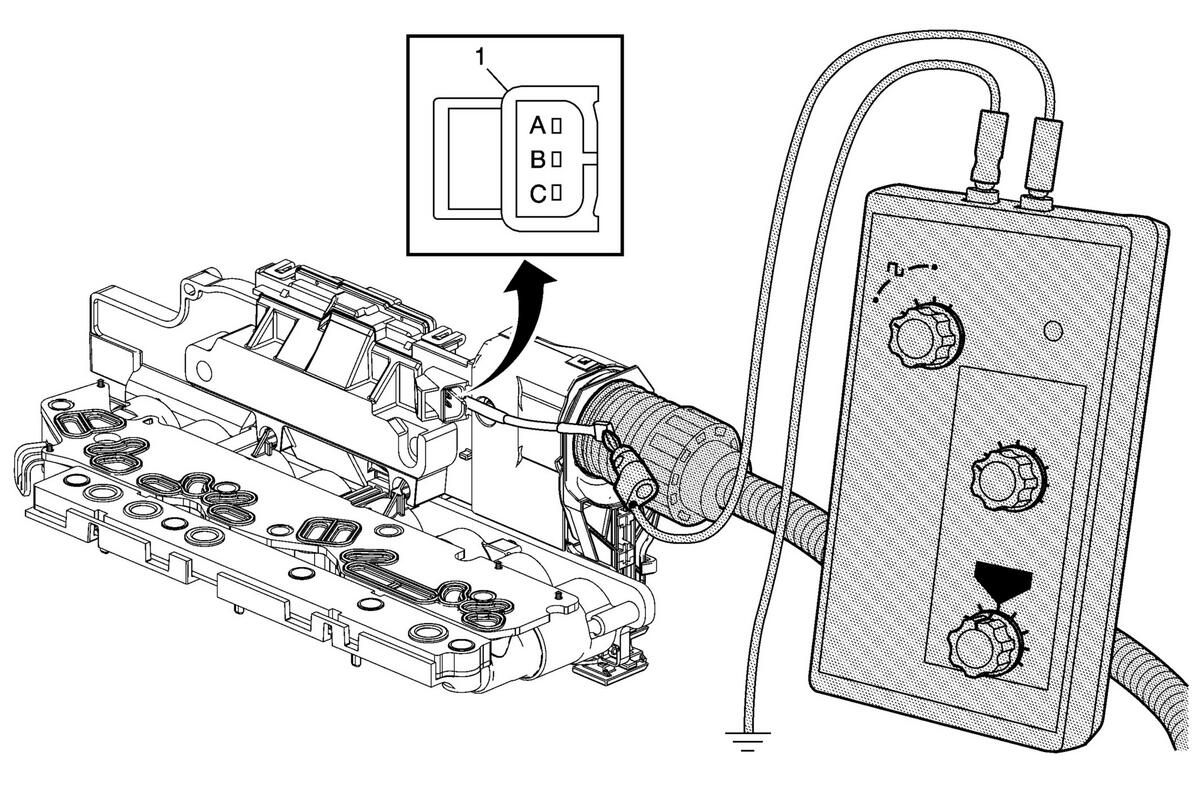

Fig 1: Identifying J 35616 And J 38522

Courtesy of GENERAL MOTORS CORP.
