Upfitter Provision Schematics

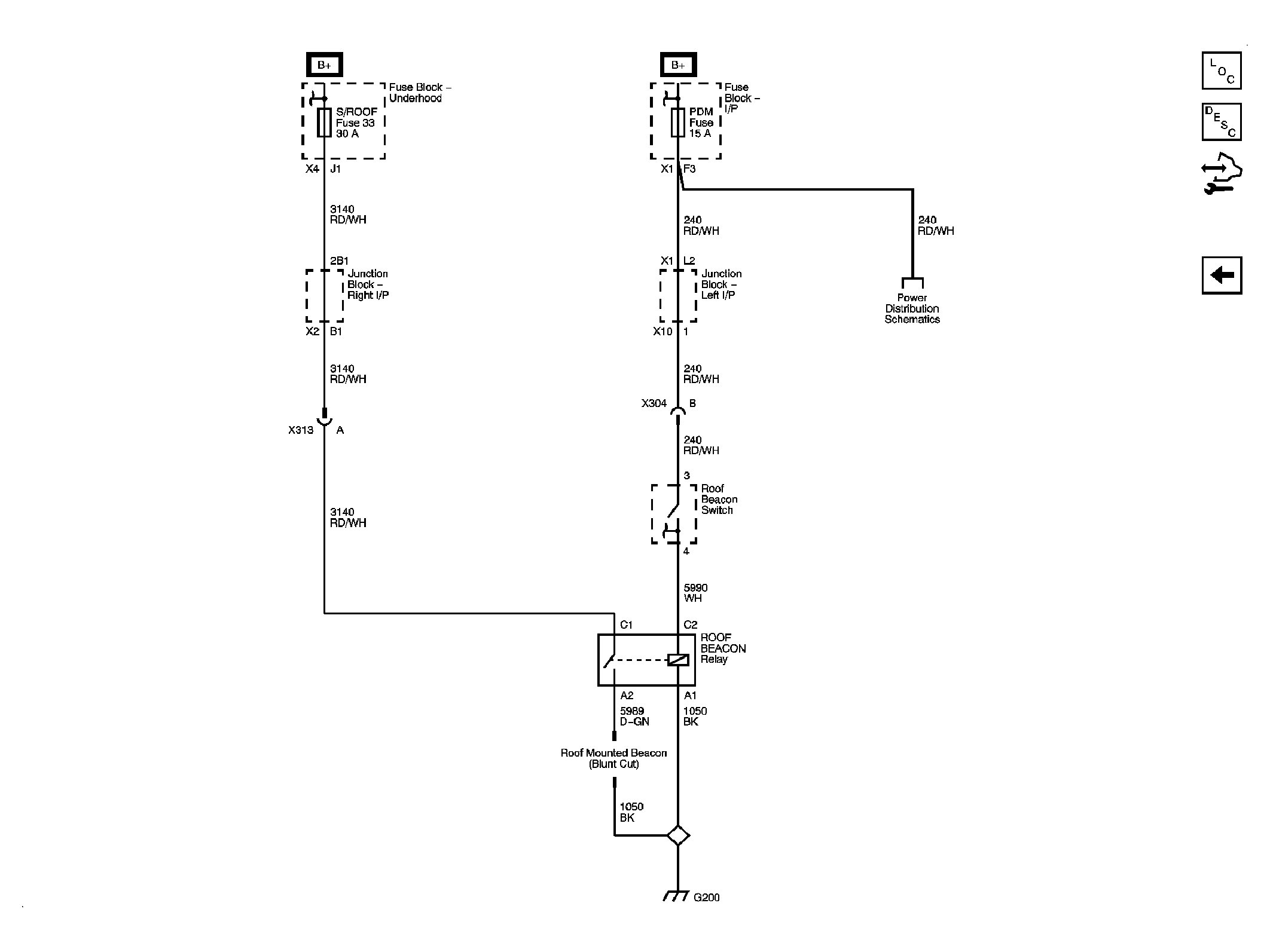

Fig 1: Roof Beacon Schematic - TRW/5G4
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
