Power Trunk / Liftgate Control Module



Component Connector End Views

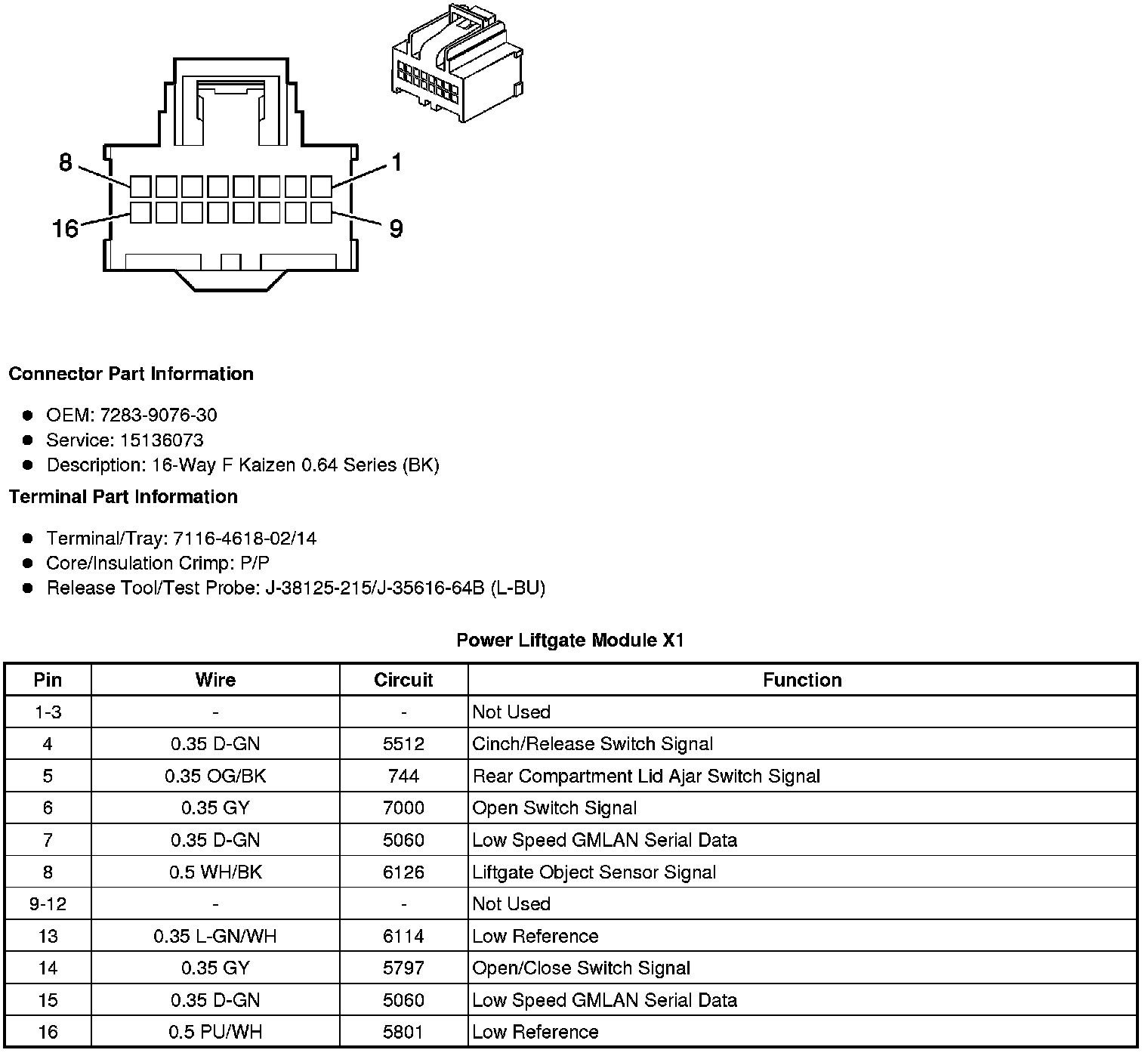

Power Liftgate Module X1

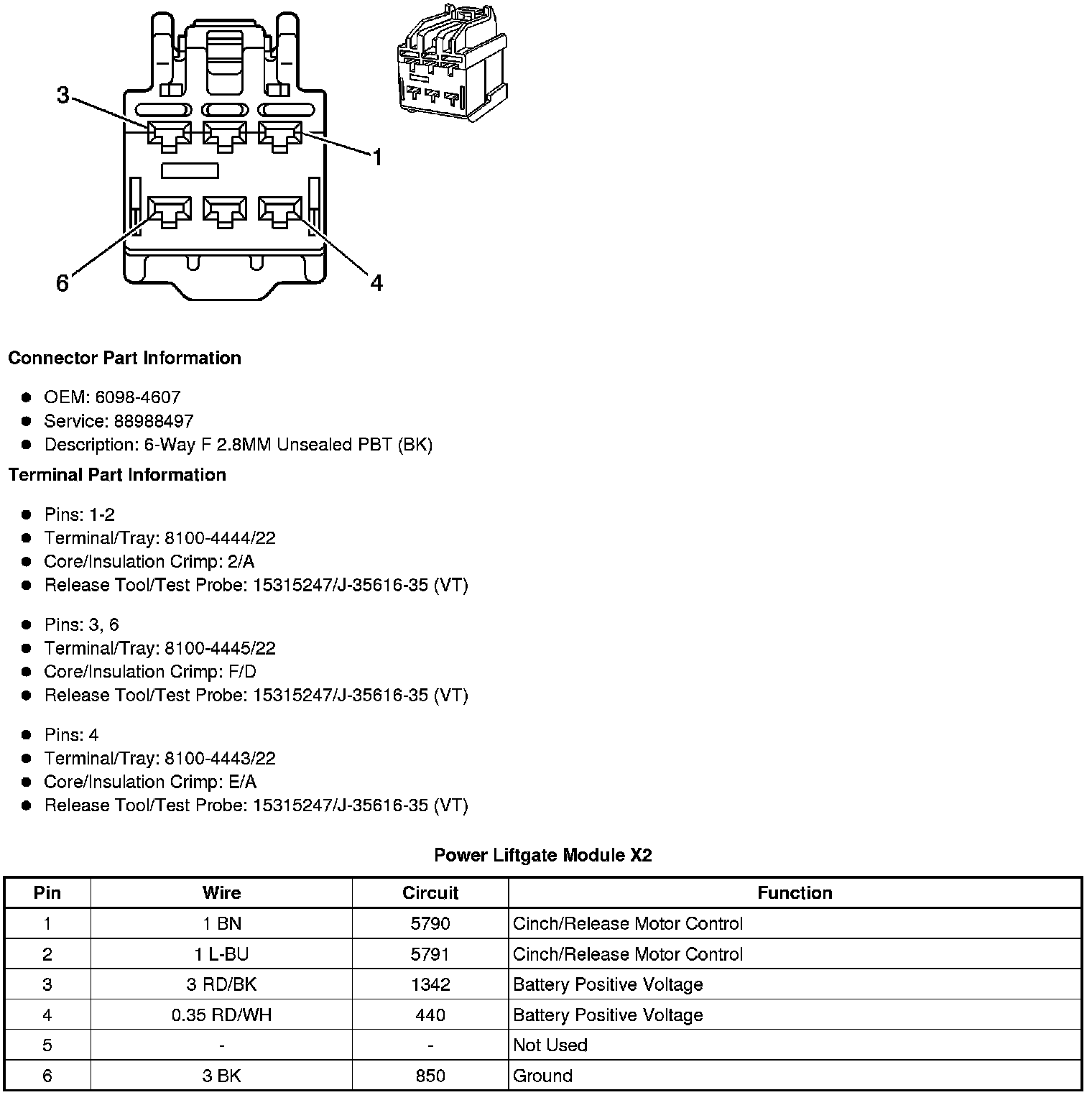

Power Liftgate Module X2

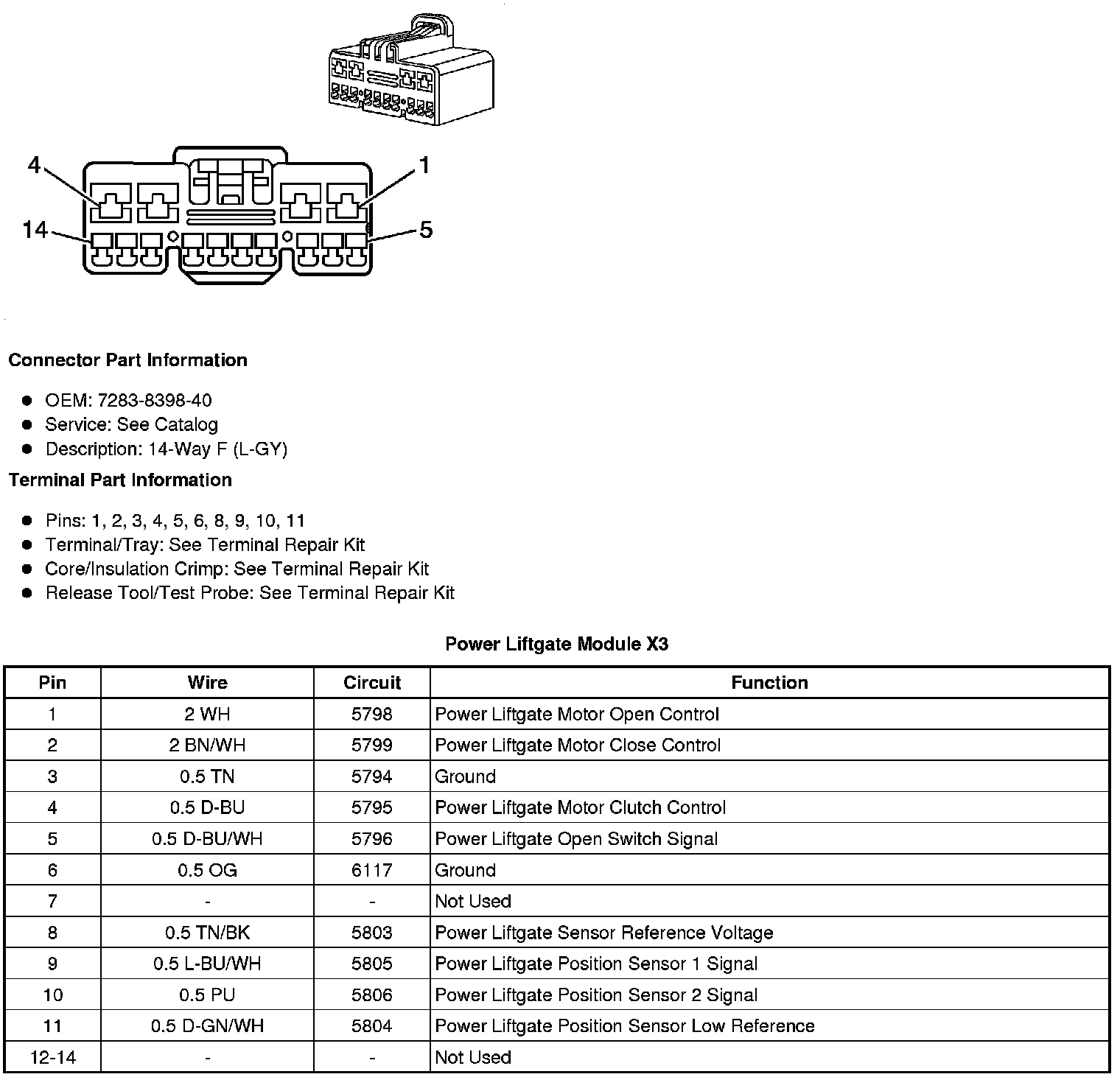

Power Liftgate Module X3
