Remote Control Module, Audio - Stereo



Component Connector End Views

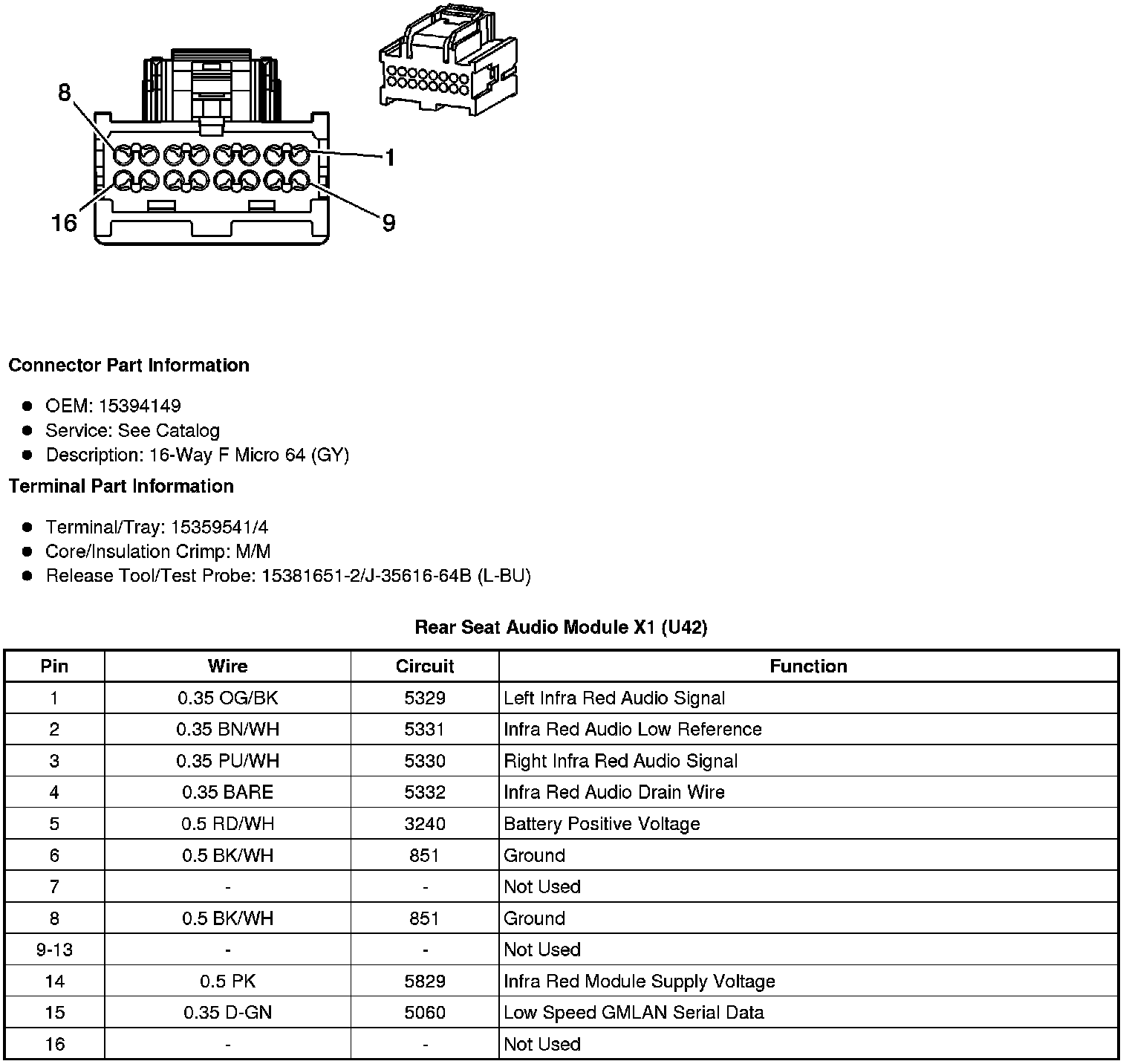

Rear Seat Audio Module X1 (U42)

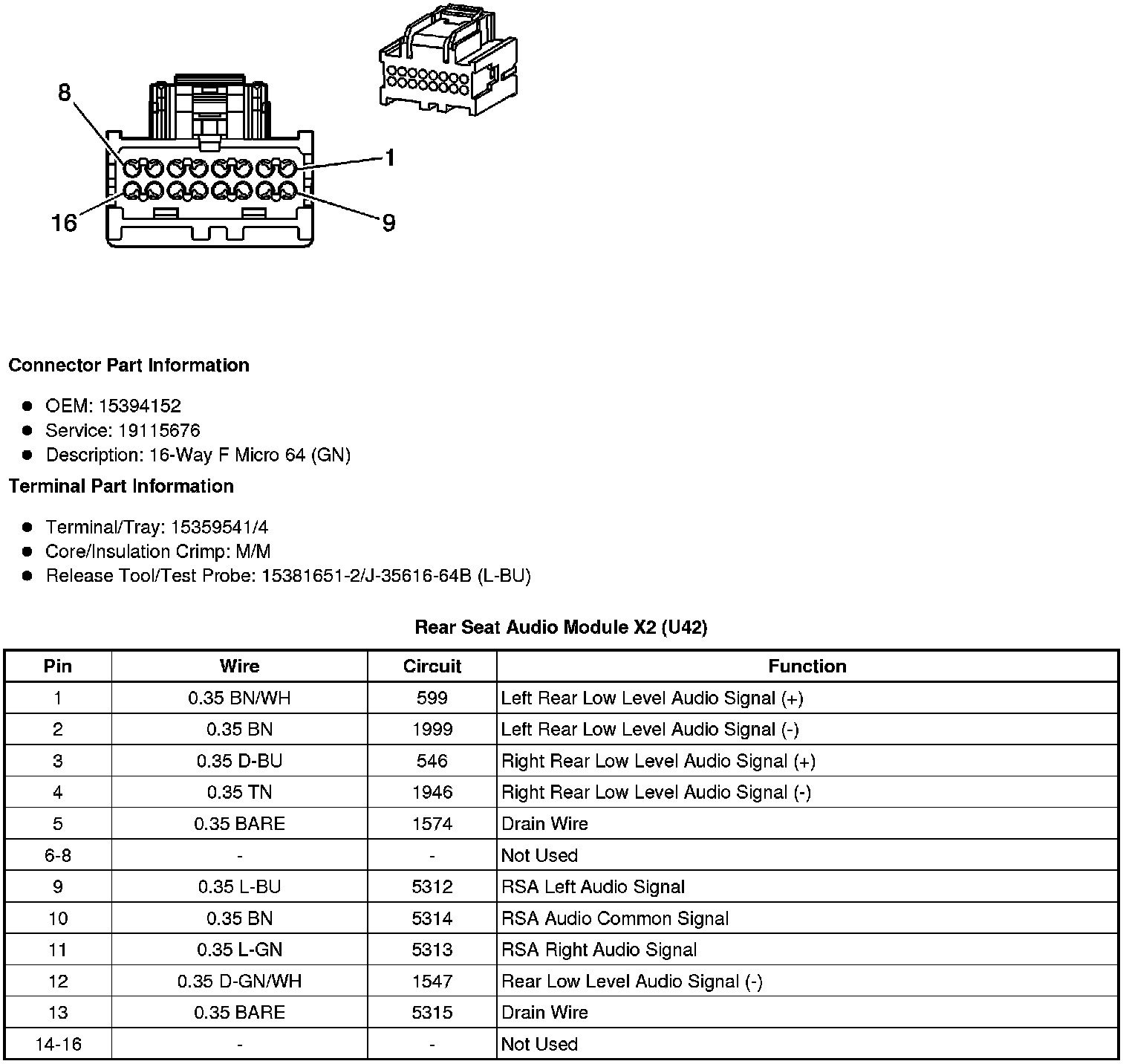

Rear Seat Audio Module X2 (U42)
