Connector Views



Component Connector End Views

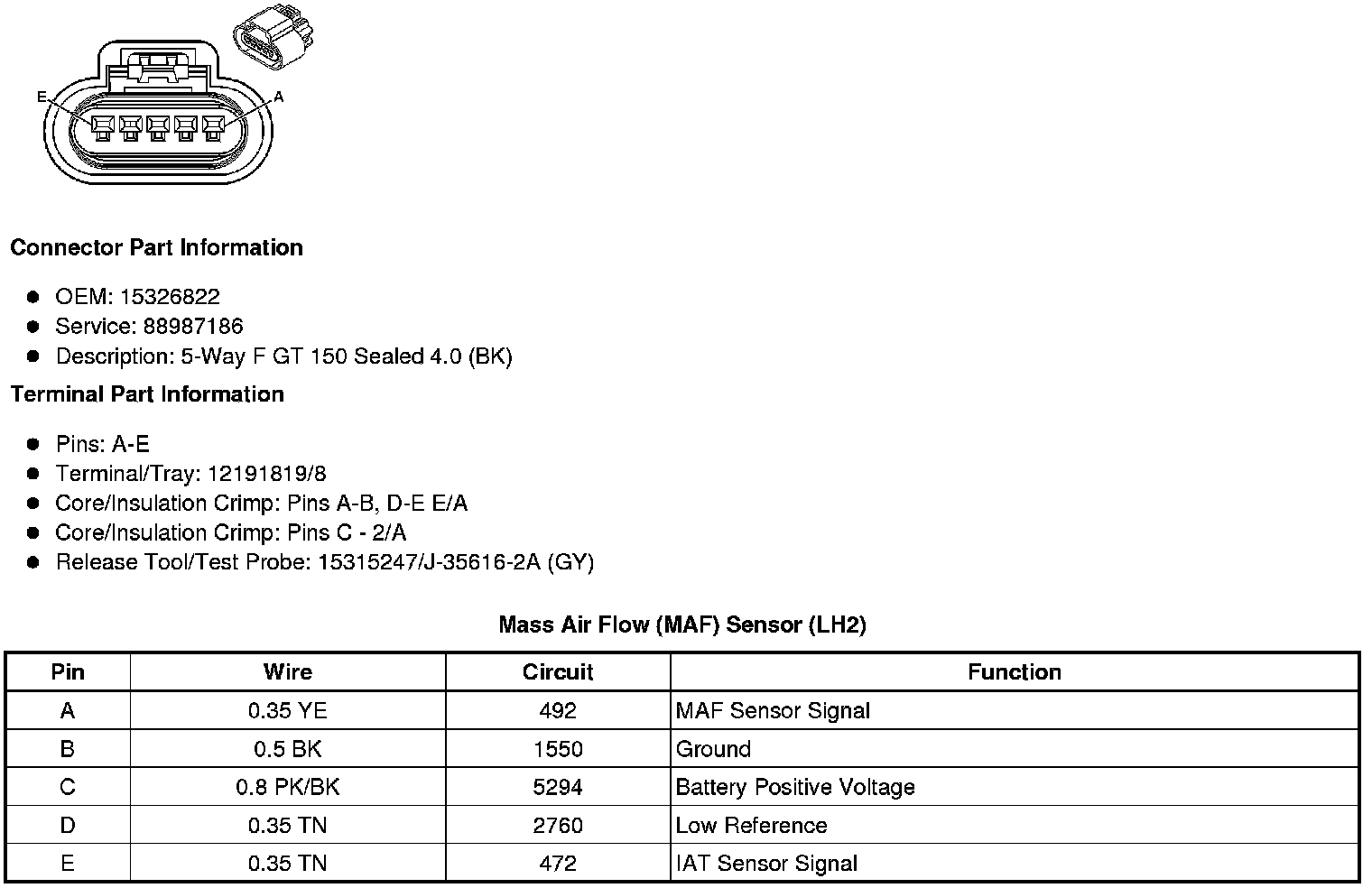

Mass Air Flow (MAF) Sensor (LH2 - Gas, 8 Cylinder, 4.6L, SFI, V8, DOHC, HO)

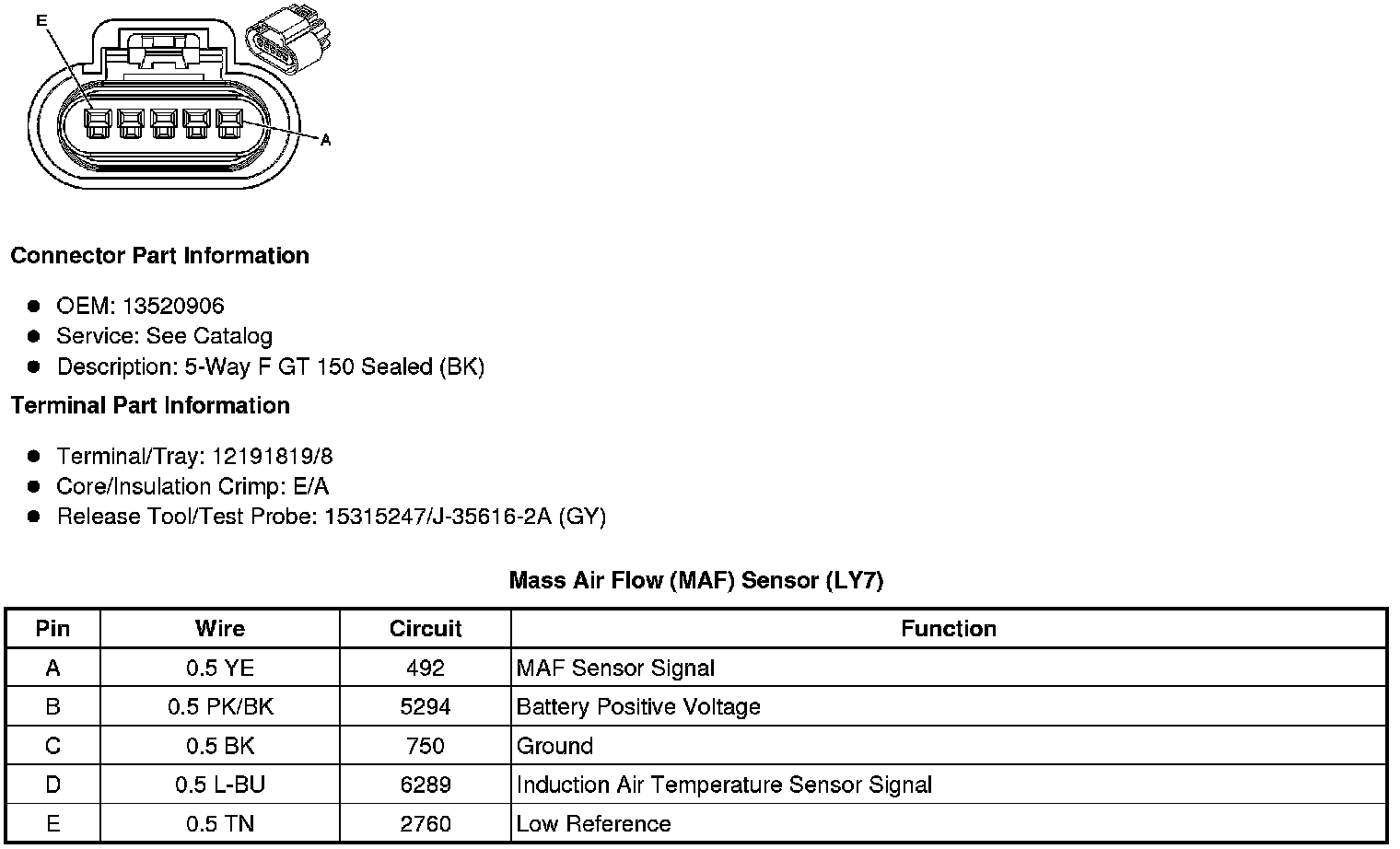

Mass Air Flow (MAF) Sensor (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)
