Coolant Temperature Sensor/Switch (For Computer): Diagrams
Component Connector End Views

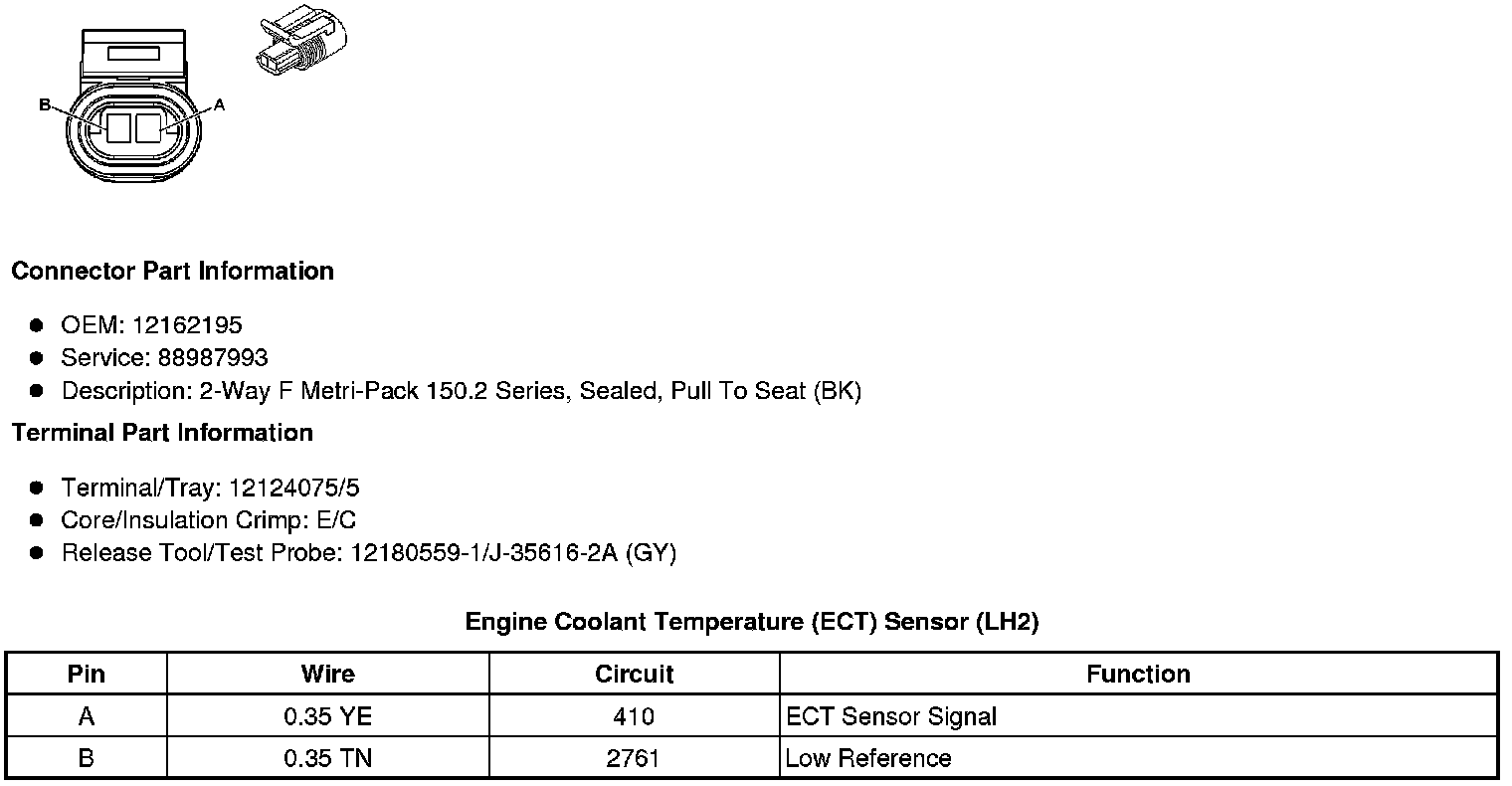

Engine Coolant Temperature (ECT) Sensor (LH2 - Gas, 8 Cylinder, 4.6L, SFI, V8, DOHC, HO)

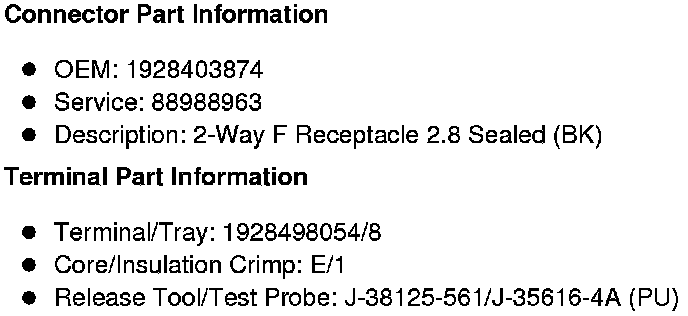

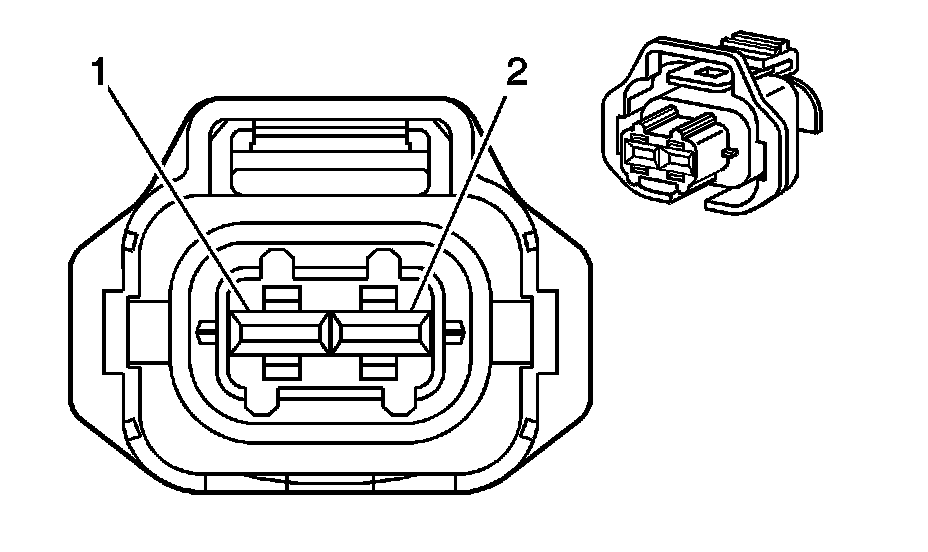

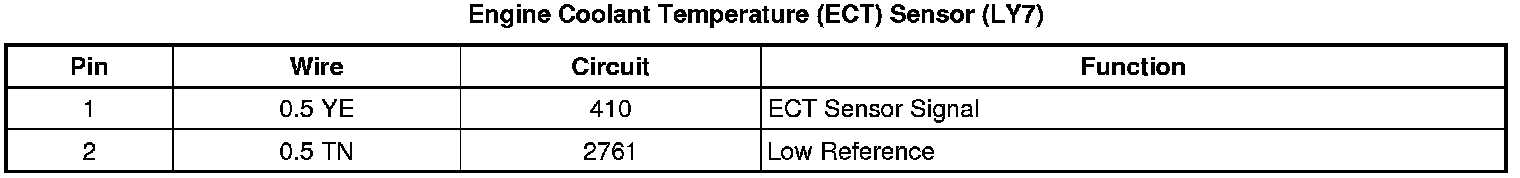

Engine Coolant Temperature (ECT) Sensor (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)
