Intake Manifold
Intake Manifold
Bolts*
10 N.m (89 lb in)

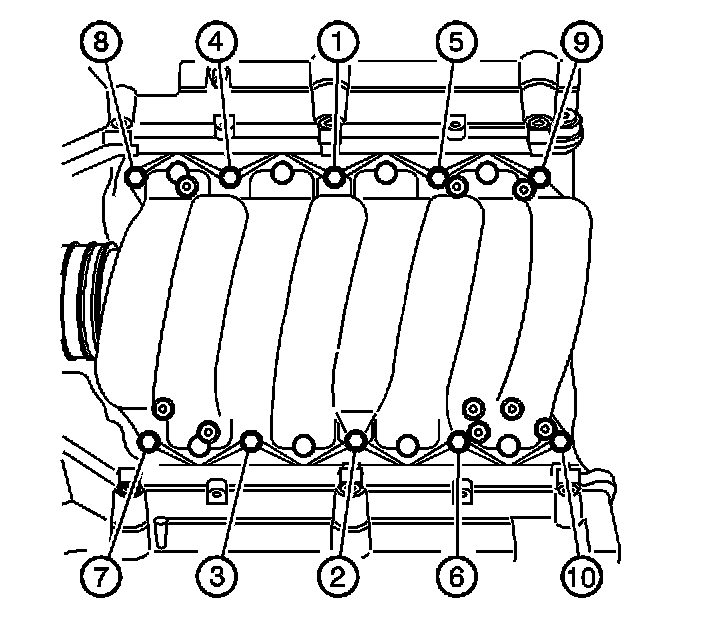

*Tighten the
intake manifold
bolts in sequence (1-10).
