Fuel Pressure Sensor/Switch

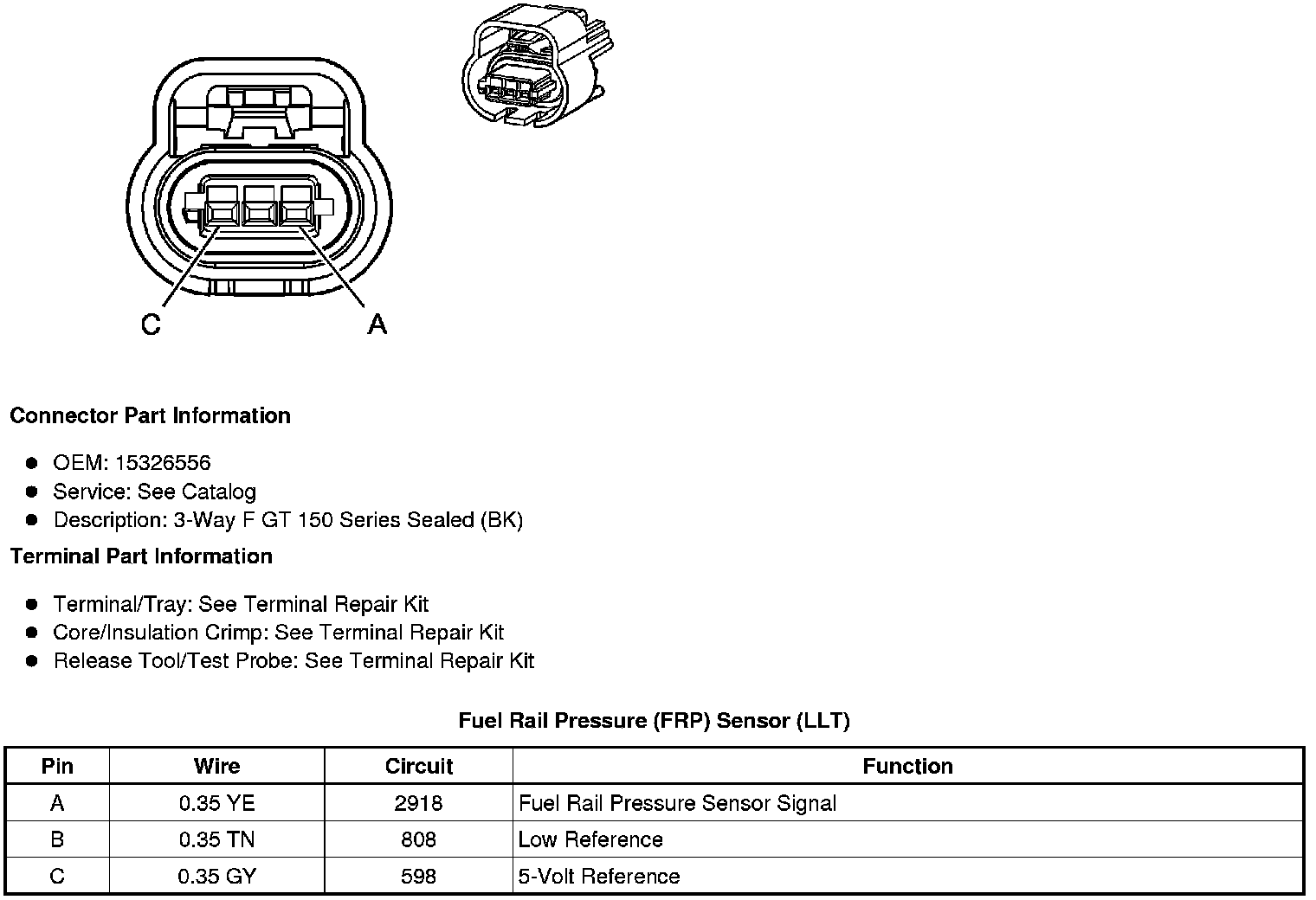

Component Connector End Views
Fuel Rail Pressure (FRP) Sensor (LLT - Gas, 6 Cyl, 3.6L, Sidi, V6, Alum)
